Fog/Driving Lamp: Service and Repair

Fog Light Assembly:

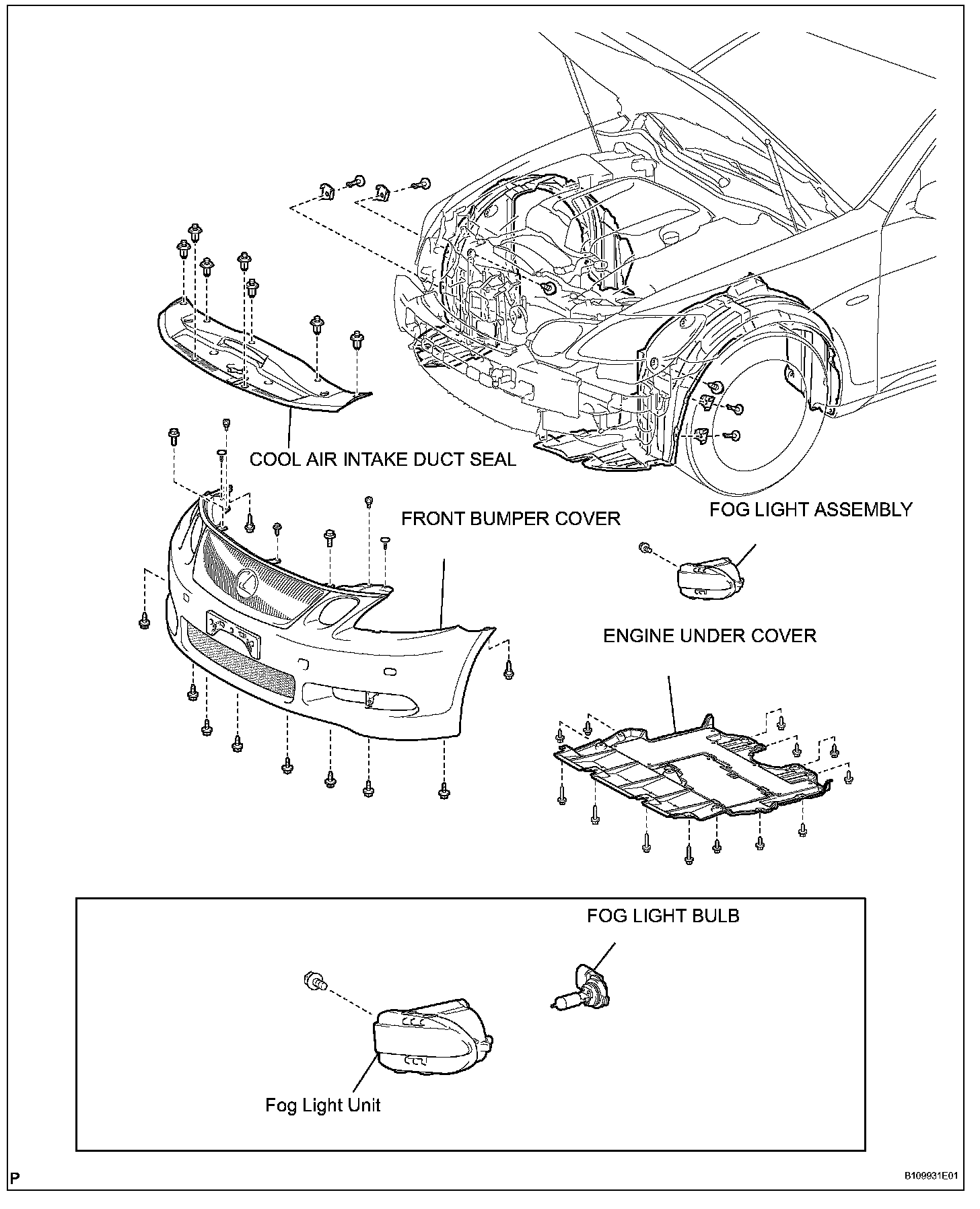

FOG LIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE UNDER COVER
4. REMOVE FRONT BUMPER COVER




5. REMOVE FOG LIGHT ASSEMBLY

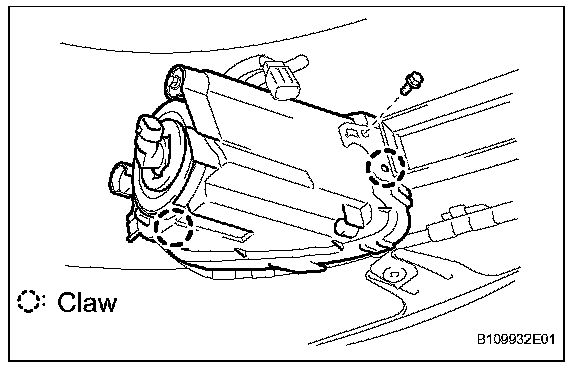

a. Remove the bolt.
b. Detach the 2 claws and remove the fog light.




6. REMOVE FOG LIGHT BULB

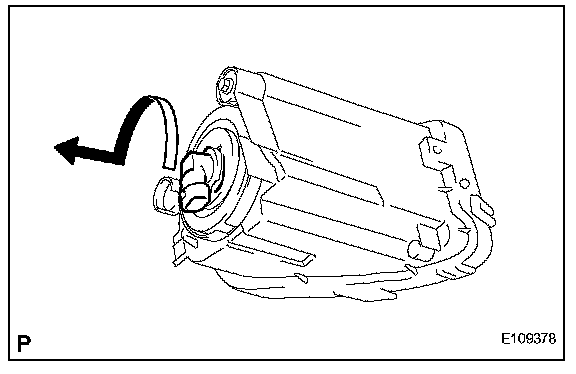

a. Turn the fog light bulb in the direction indicated by the arrow and remove it.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.




1. INSTALL FOG LIGHT BULB

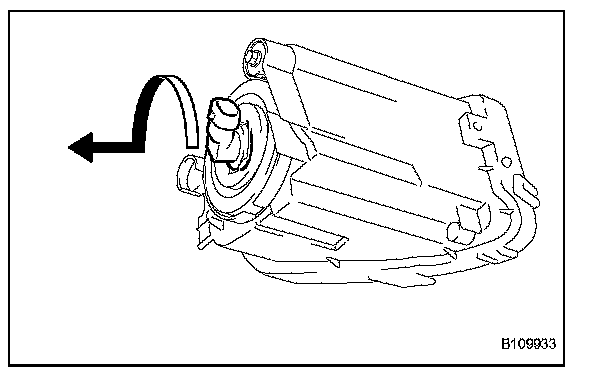

a. Turn the fog light bulb in the direction indicated by the arrow and install it.




2. INSTALL FOG LIGHT ASSEMBLY

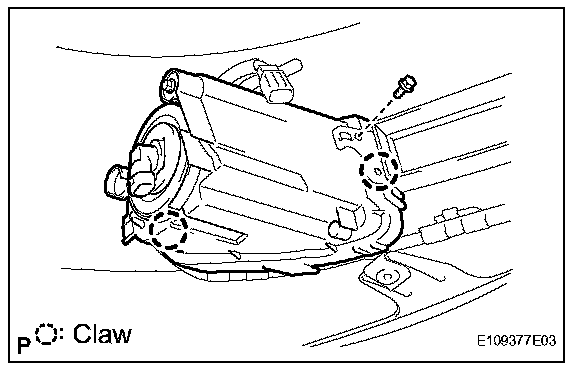

a. Attach the 2 claws and install the fog light.
b. Install the bolt.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. ADJUST FOG LIGHT AIM
