Tachometer Malfunction

Tachometer Malfunction

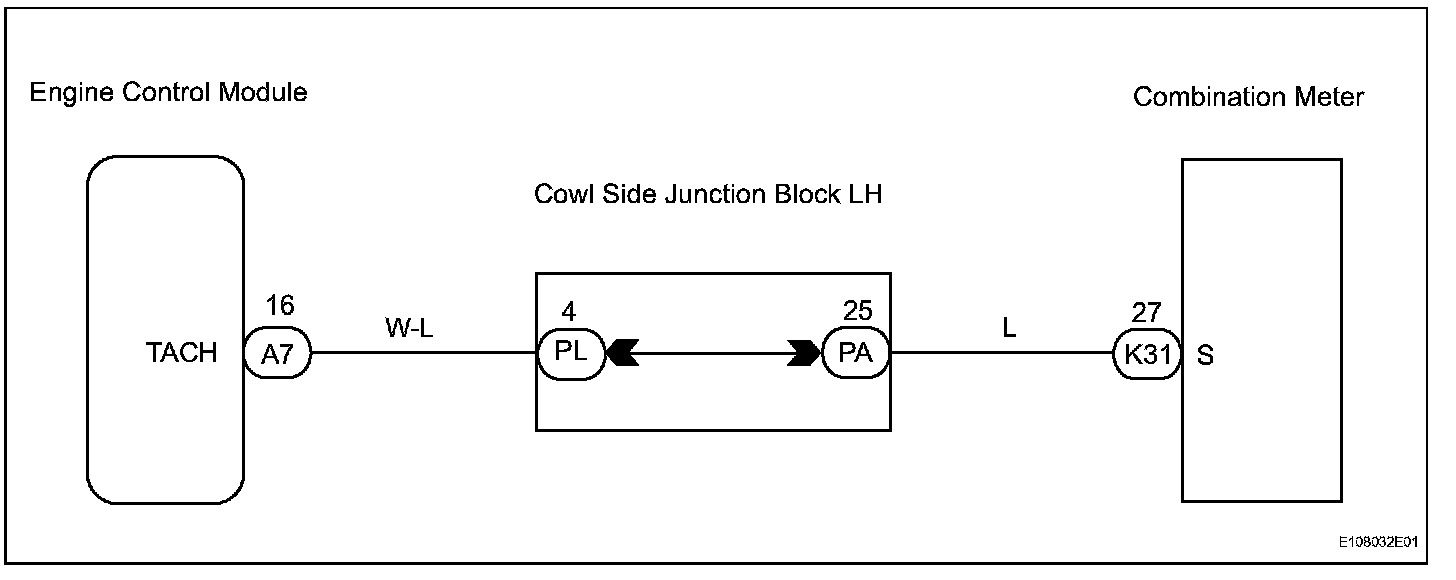

Wiring Diagram:

INSPECTION PROCEDURE

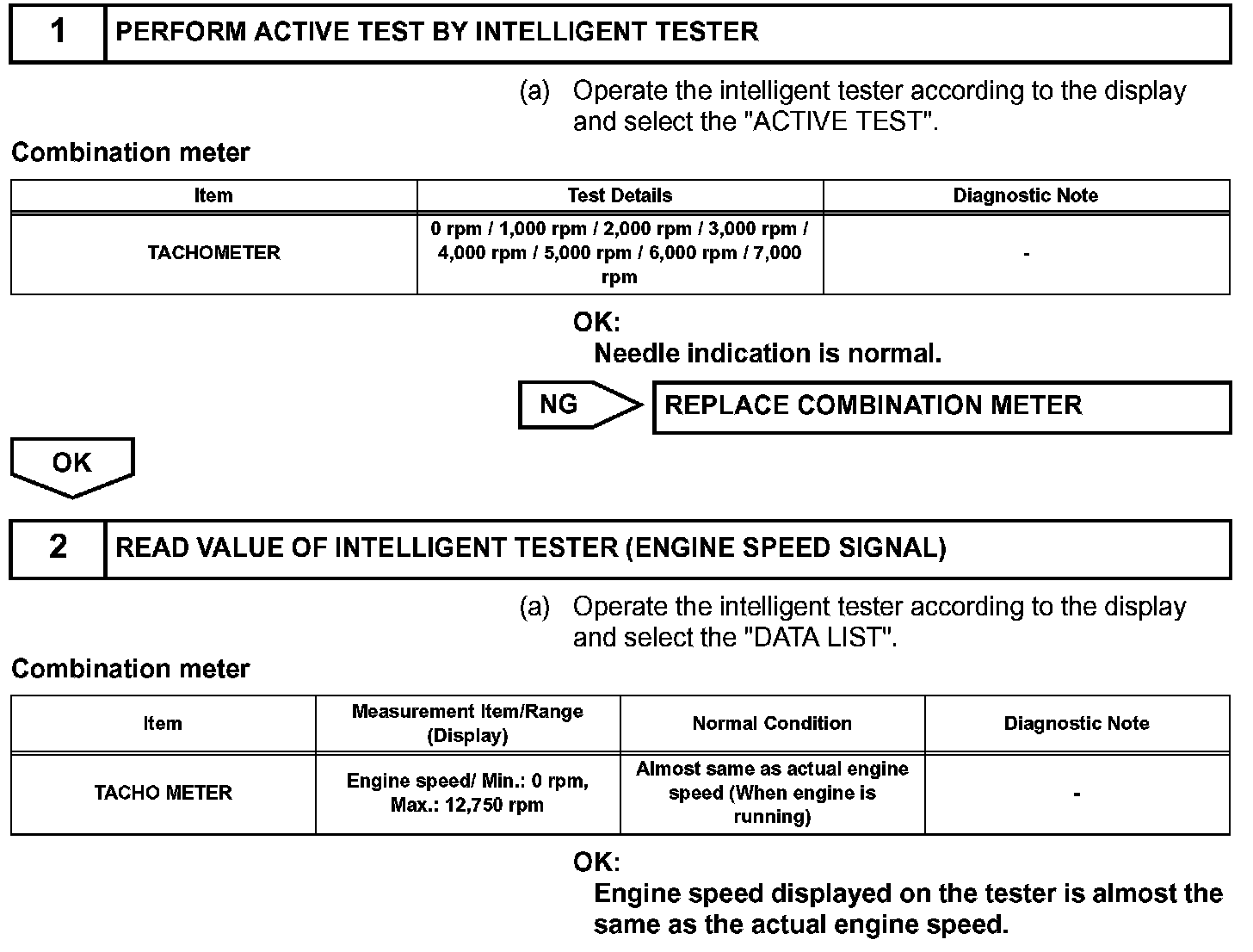

Step 1-2:

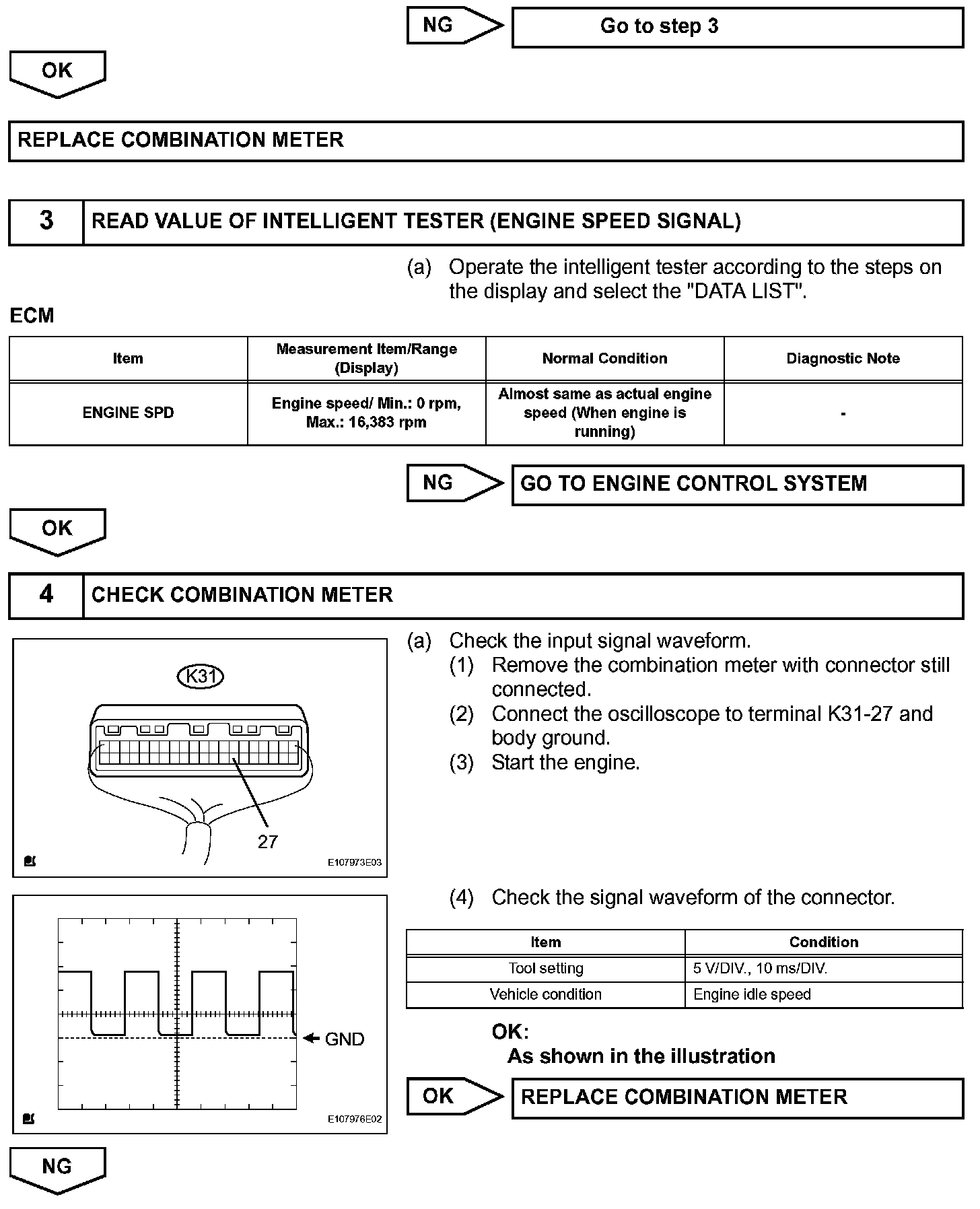

Step 2 (Continued)-4:

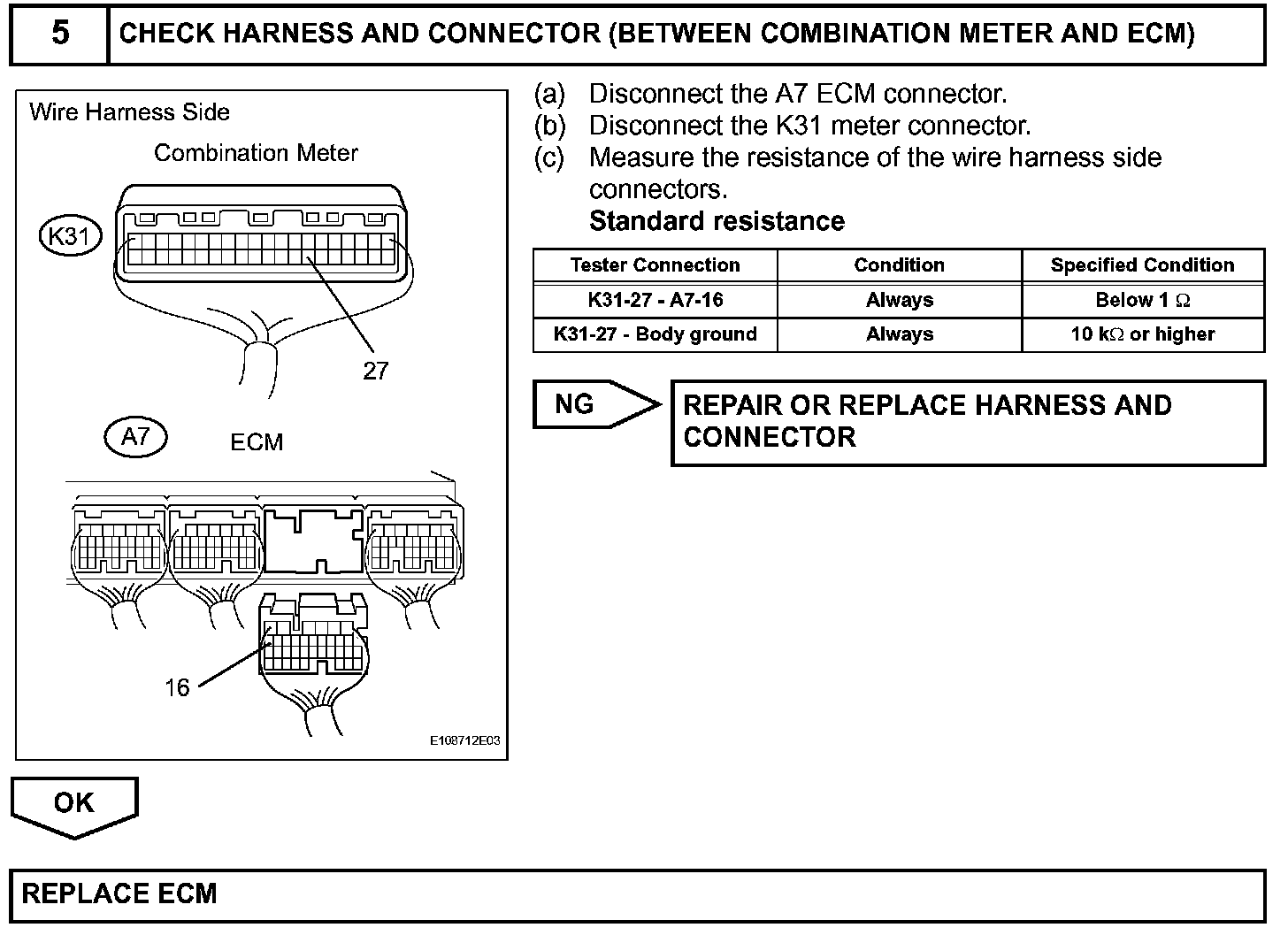

Step 5:
