Power Seat Switch

POWER SEAT SWITCH

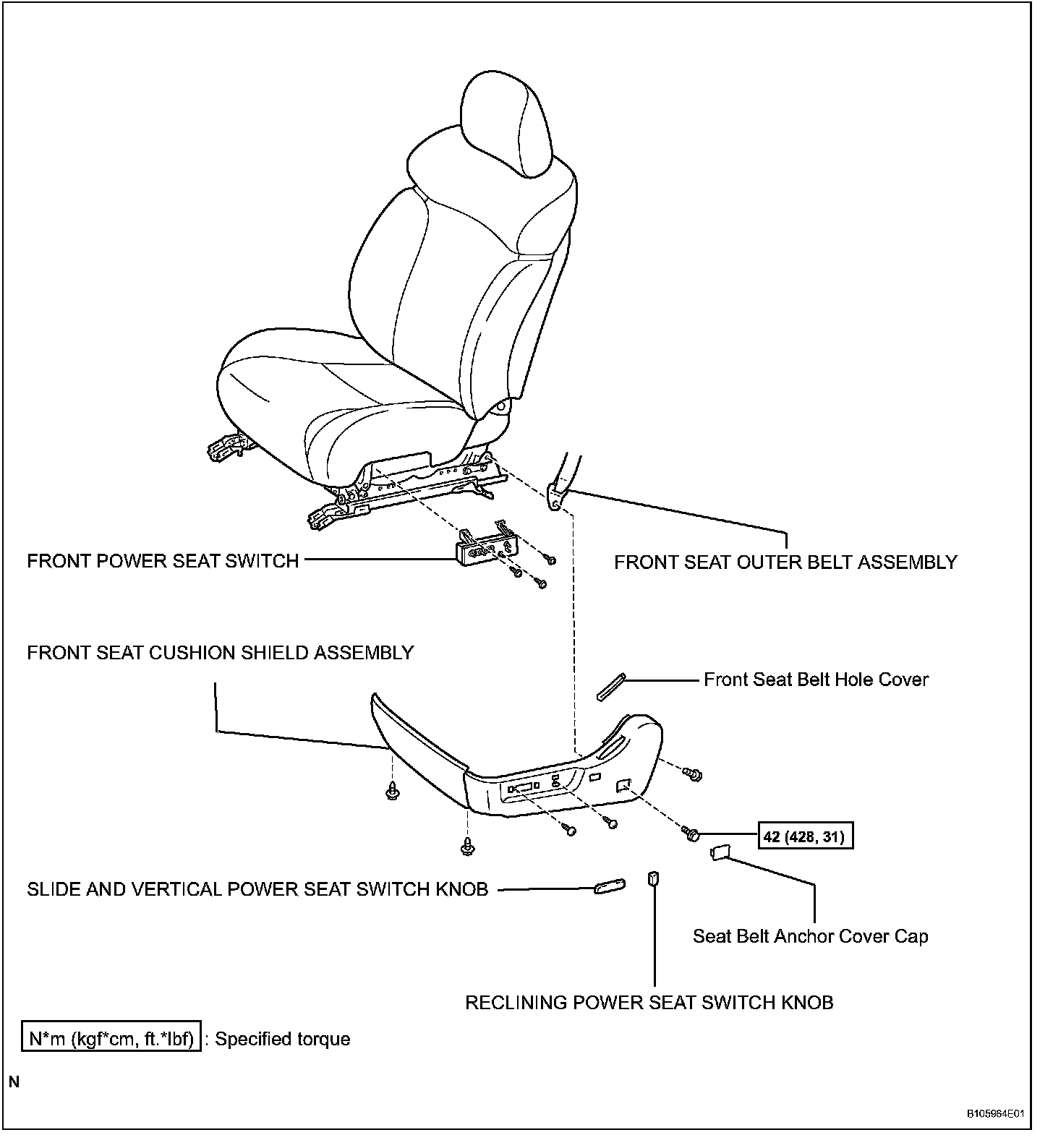

Power Seat Switch:

REMOVAL

HINT: Use the same procedures for the LH and RH side.

1. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

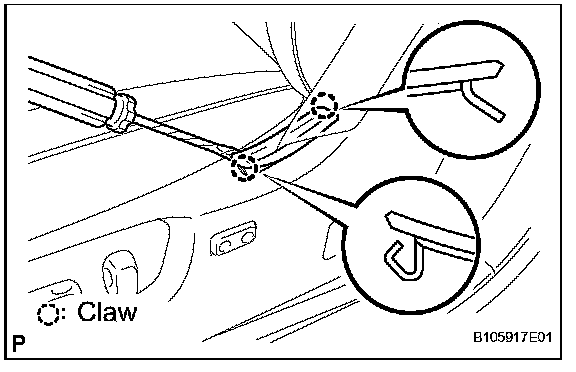

a. Using a screwdriver, detach the 2 claws and remove the front seat belt cover.

HINT: Tape the screwdriver tip before use.





b. Apply protective tape around the seat belt anchor cover cap to the cushion shield.

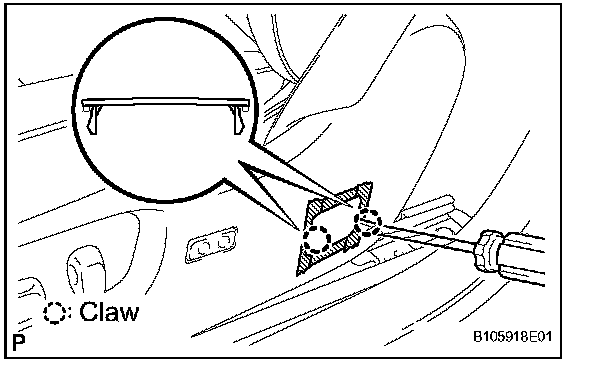

c. Using a screwdriver, detach the 2 claws and remove the seat belt anchor cover cap.

HINT: Tape the screwdriver tip before use.

d. Move the seat using the power seat switch knob so that the belt anchor bolt is revealed.

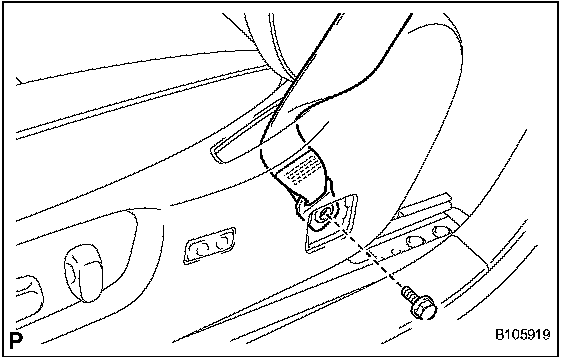

e. Remove the bolt and front seat outer belt anchor.





2. REMOVE RECLINING POWER SEAT SWITCH KNOB

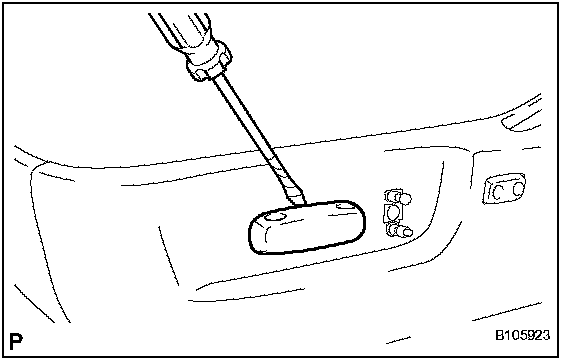

a. Using a screwdriver, detach the knob.

HINT: Tape the screwdriver tip before use.





3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
a. Using a screwdriver, detach the knob.

HINT: Tape the screwdriver tip before use.

4. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
a. Disconnect the 2 rubber bands of the front seatback board from the front seat frame.





b. Remove the 5 screws.

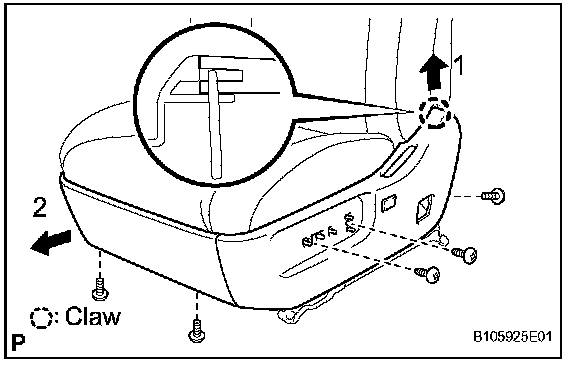

c. Detach the claw and remove the cushion shield assembly in the order indicated in the illustration.
d. Disconnect the connector from the lumbar front power seat switch.

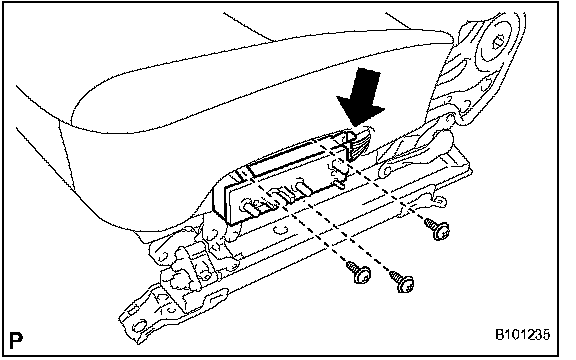

5. REMOVE FRONT POWER SEAT SWITCH
a. Remove the 3 screws.
b. Disconnect the connector and remove the switch.

INSTALLATION

HINT:
- Use the same procedures for the LH and RH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL FRONT POWER SEAT SWITCH
a. Connect the connector.
b. Install the switch with the 3 screws.

2. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
a. Connect the connector to the lumbar front power switch.

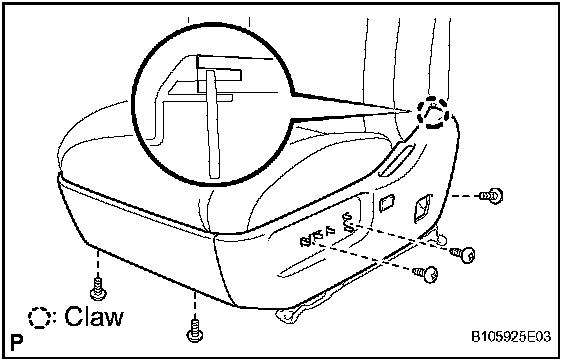

b. Attach the claw and install the cushion shield assembly.
c. Install the 5 screws.
d. Connect the 2 rubber bands of the front seatback board to the seat frame.

3. INSTALL RECLINING POWER SEAT SWITCH KNOB
4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB





5. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
a. Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.

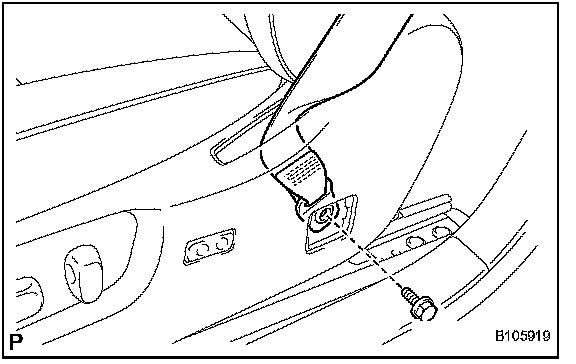

b. Install the front seat outer belt anchor with the bolt.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

c. Install the seat belt anchor cover cap.
d. Install the front seat belt hole cover.
