Removal and Replacement

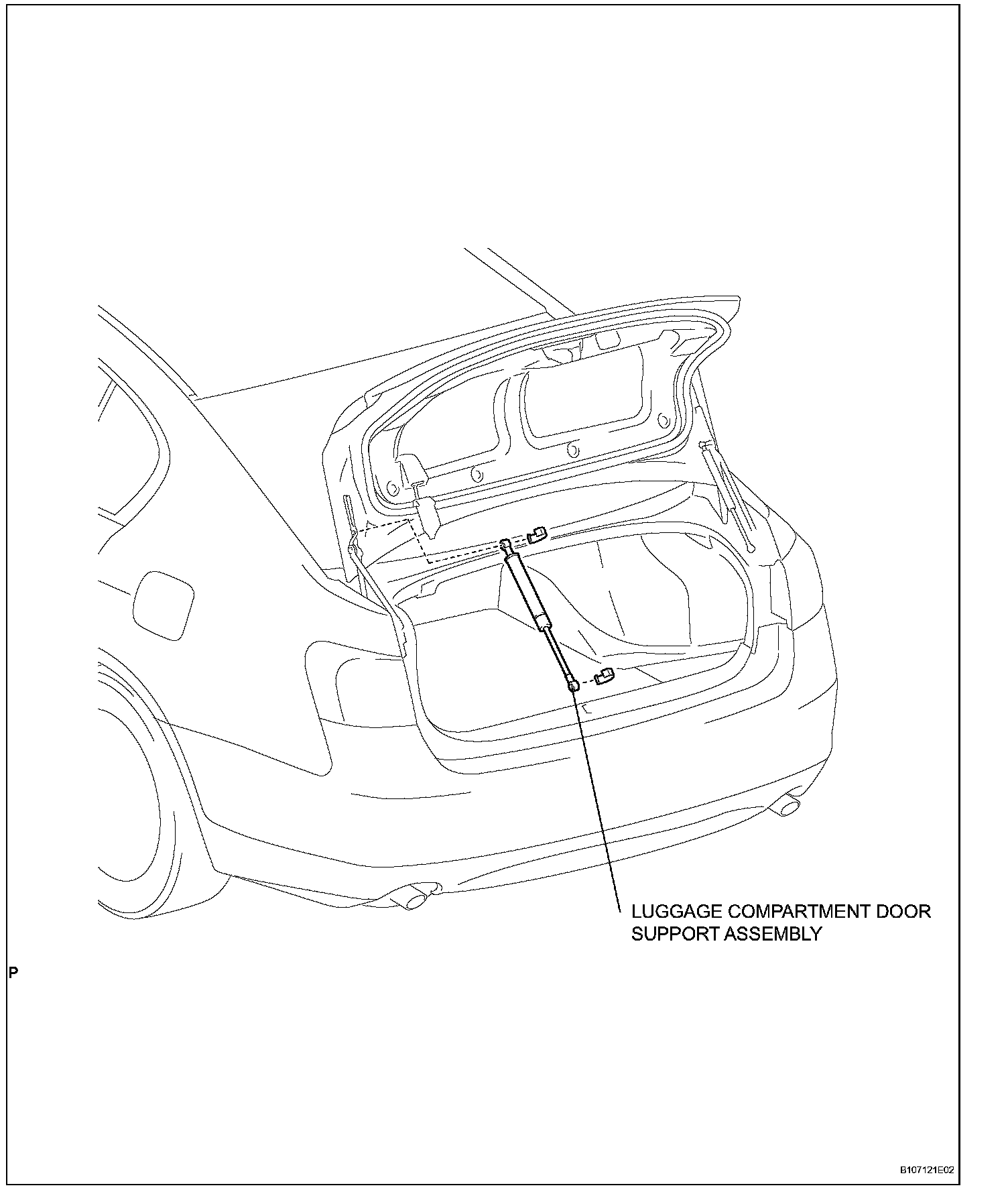

LUGGAGE COMPARTMENT DOOR SUPPORT

Luggage Compartment Door Support:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

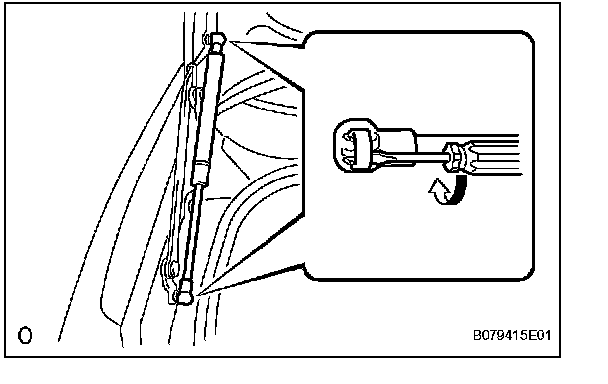

a. Using a screwdriver, remove the clip and support from the door side.

HINT:
- Tape the screwdriver tip before use.
- Remove the support while supporting the door panel with your hands.

b. Using a screwdriver, remove the clip and support from the vehicle body side.

HINT:
- Tape the screwdriver tip before use.
- Remove the support while supporting the door panel with your hands.

c. Remove the support.

HINT: Remove the support while supporting the door panel with your hands.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
a. Install the 2 clips to the support.
b. Install the support.
