Procedures

DISPOSAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
a. Remove the support.
b. Horizontally fix the support in a vise with the piston-rod pulled out.

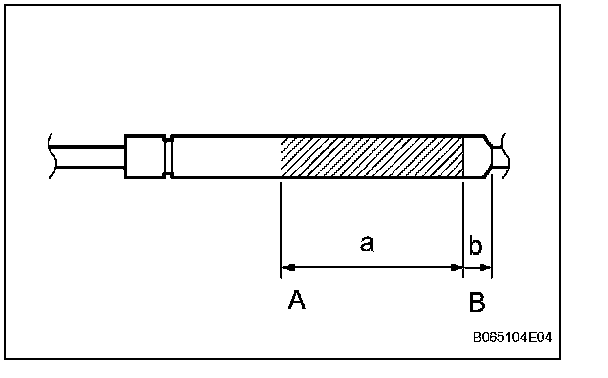

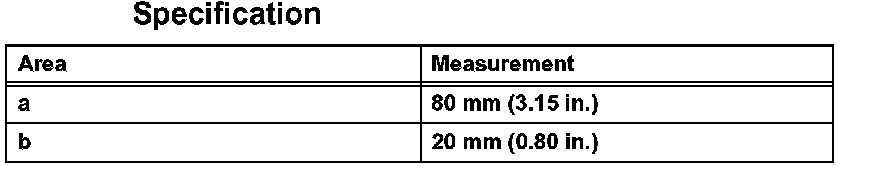

c. Using a metal saw or equivalent, gradually cut any area between A and B to release the gas.





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.

NOTICE: The gas is colorless, odorless and harmless.
