Pinout Values and Diagnostic Parameters

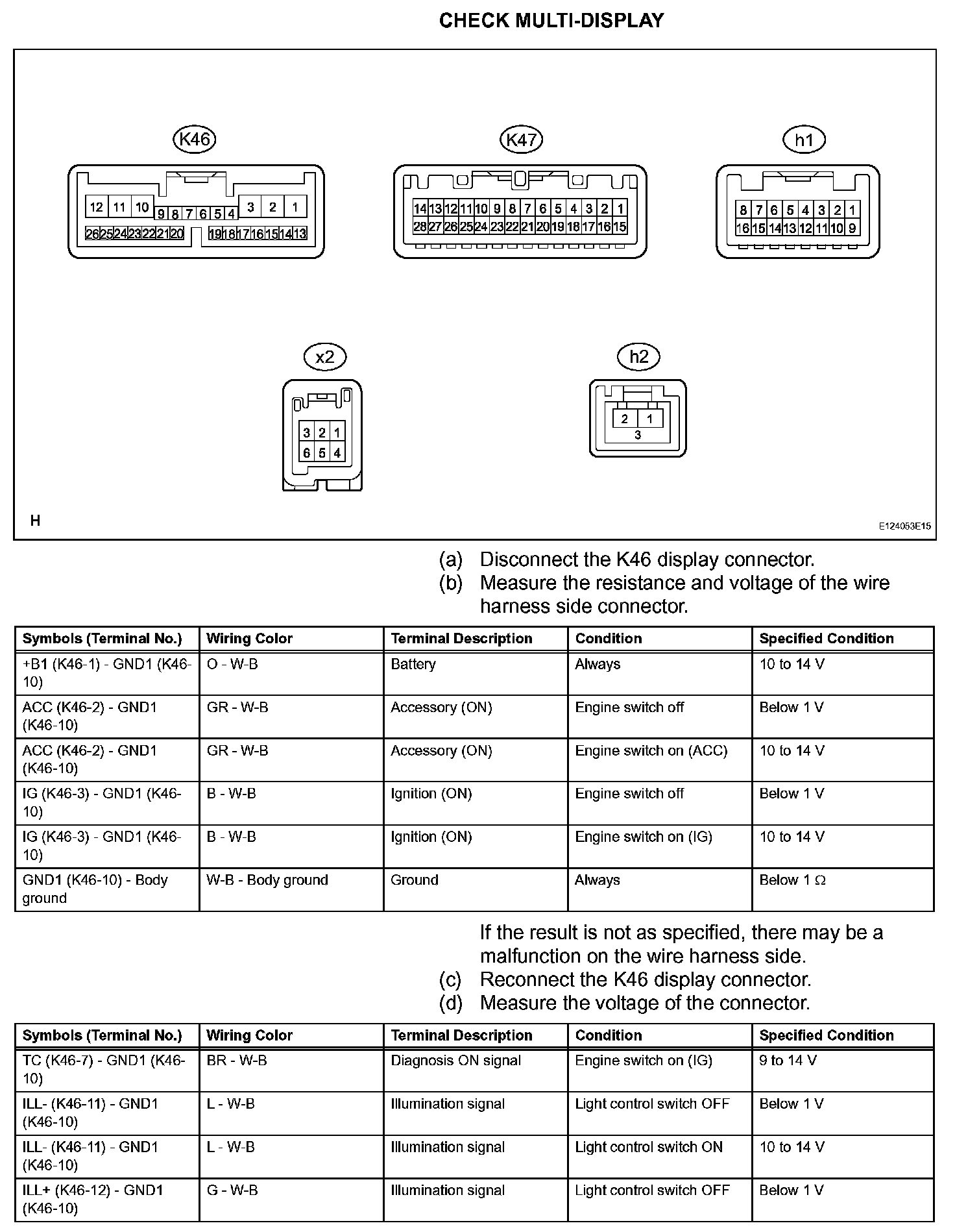

Terminals Of Control Module/Pinouts - Check Multi-Display (Part 1):

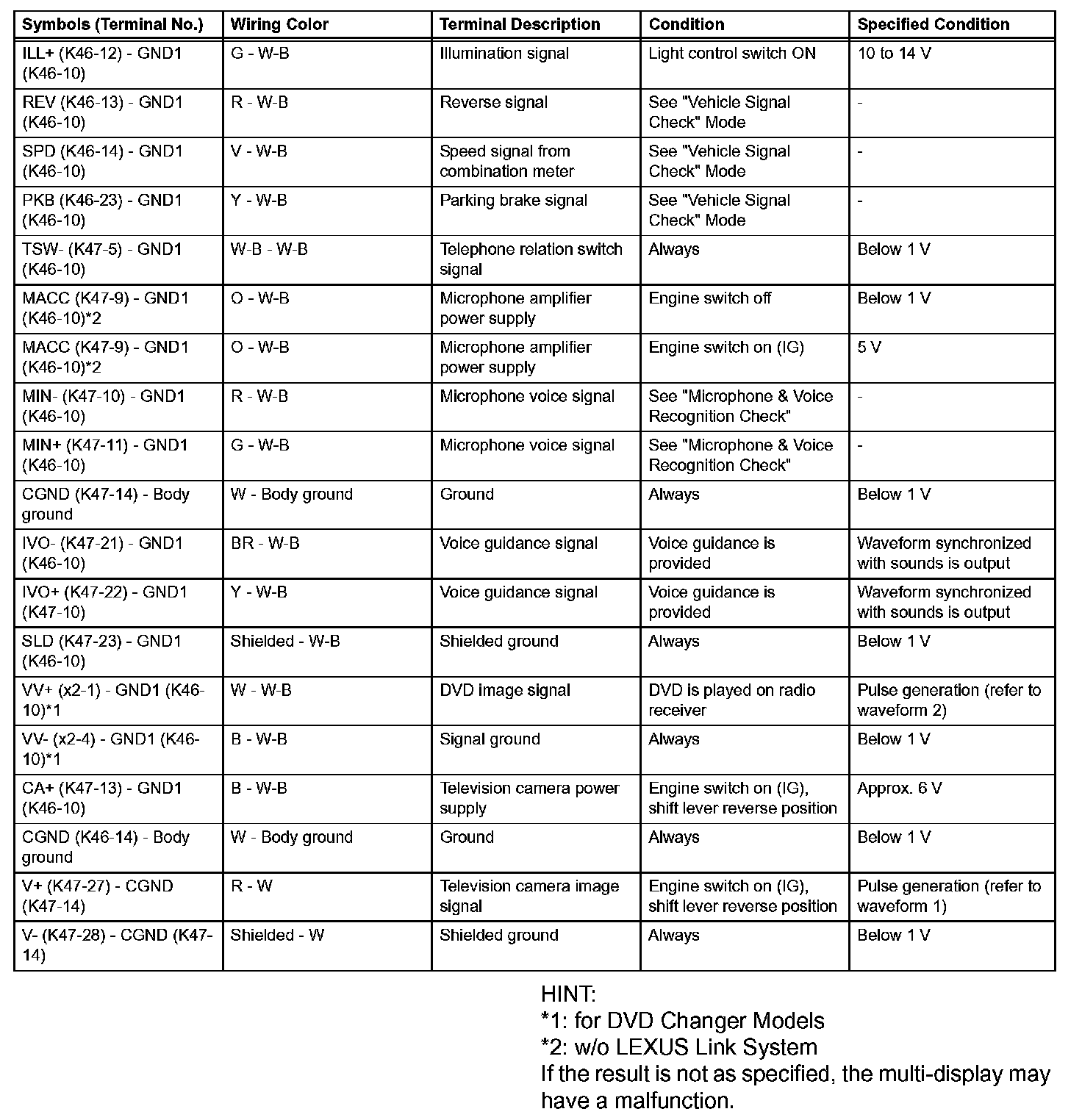

Terminals Of Control Module/Pinouts - Check Multi-Display (Part 2):

Terminals Of Control Module/Pinouts - Check Radio Receiver (Part 1):

Terminals Of Control Module/Pinouts - Check Radio Receiver (Part 2):

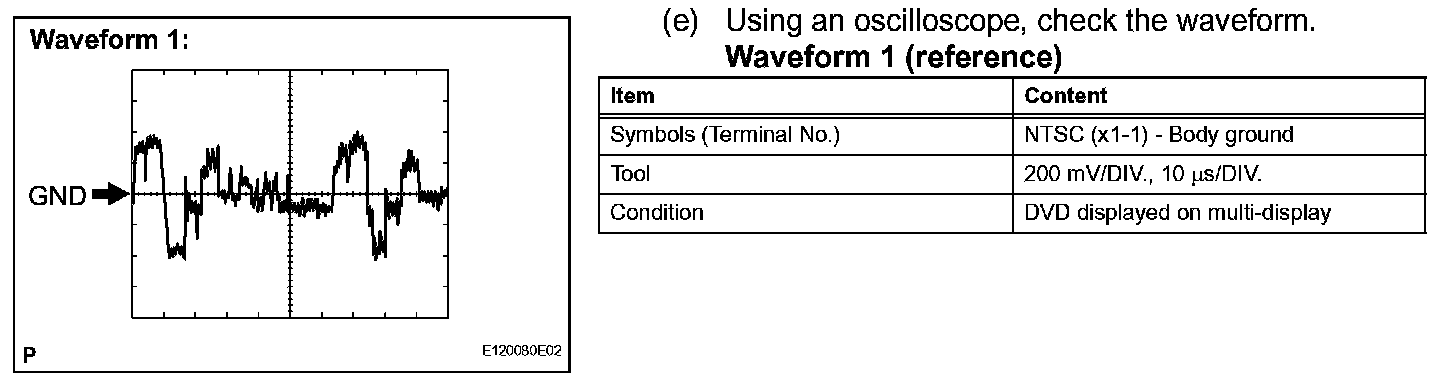

Check Radio Receiver - Oscilloscope Waveform:

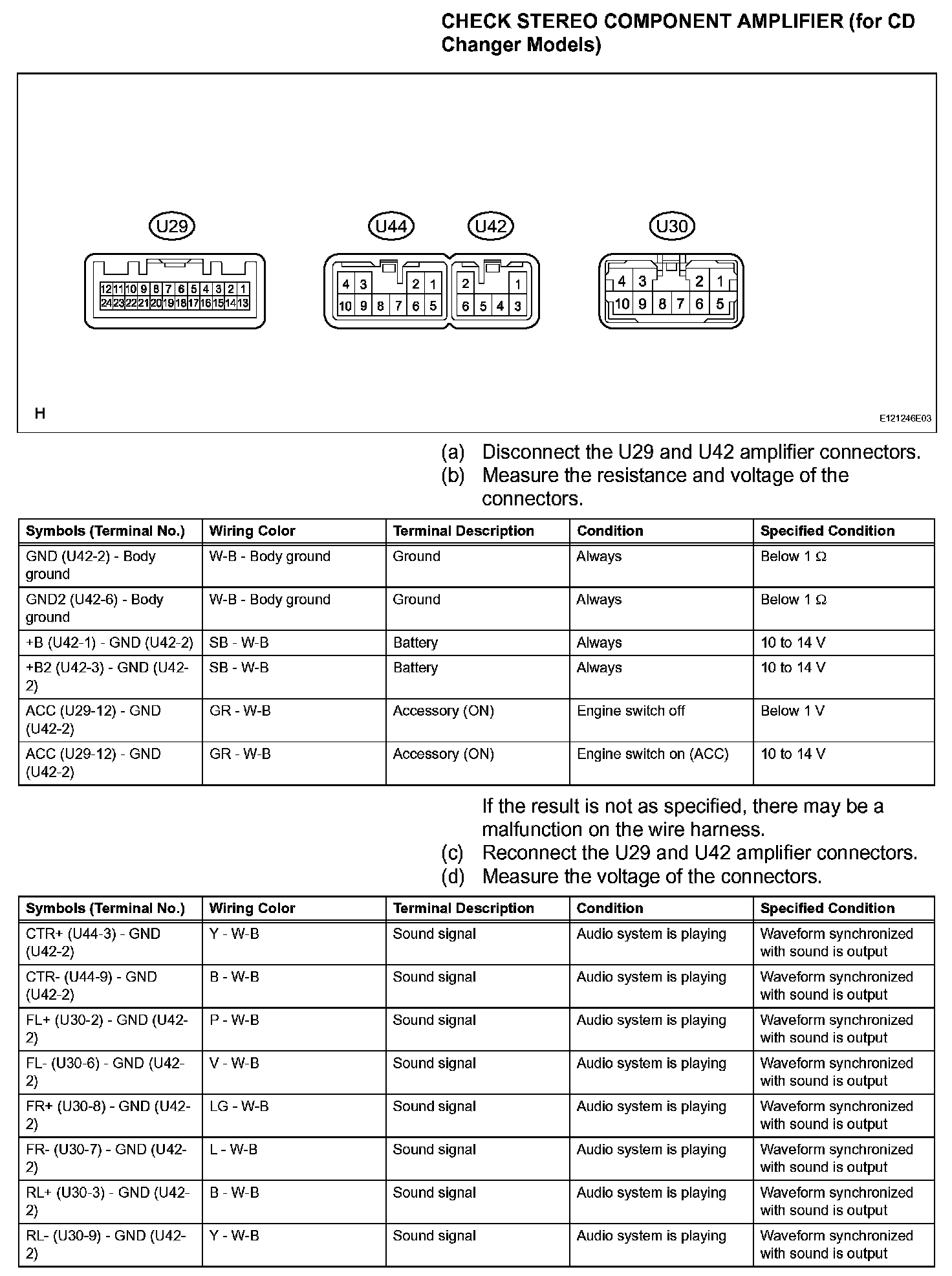

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (For CD Changer Models) (Part 1):

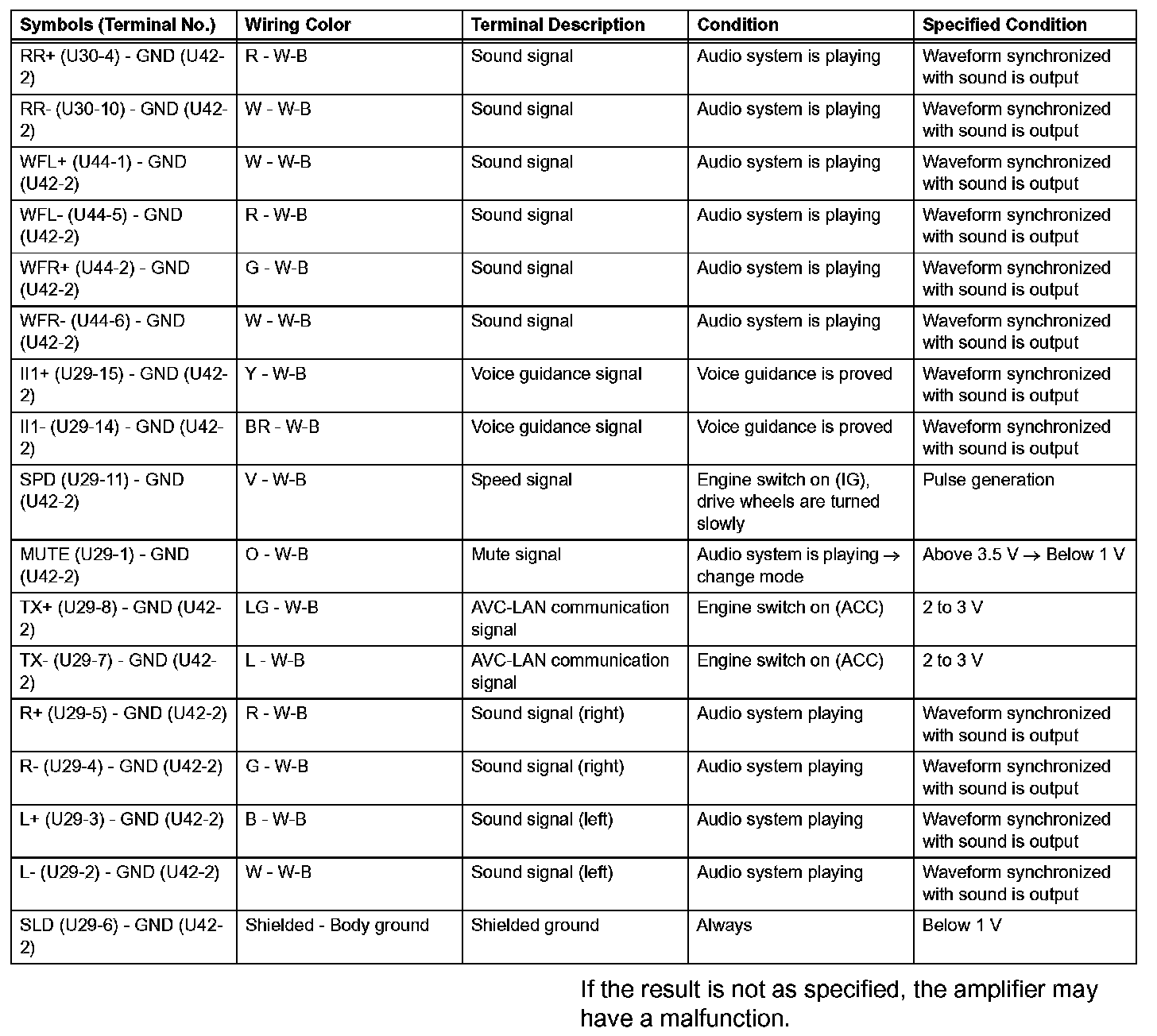

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (For CD Changer Models) (Part 2):

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (For DVD Changer Models) (Part 1):

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (For DVD Changer Models) (Part 2):

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (For DVD Changer Models) (Part 3):

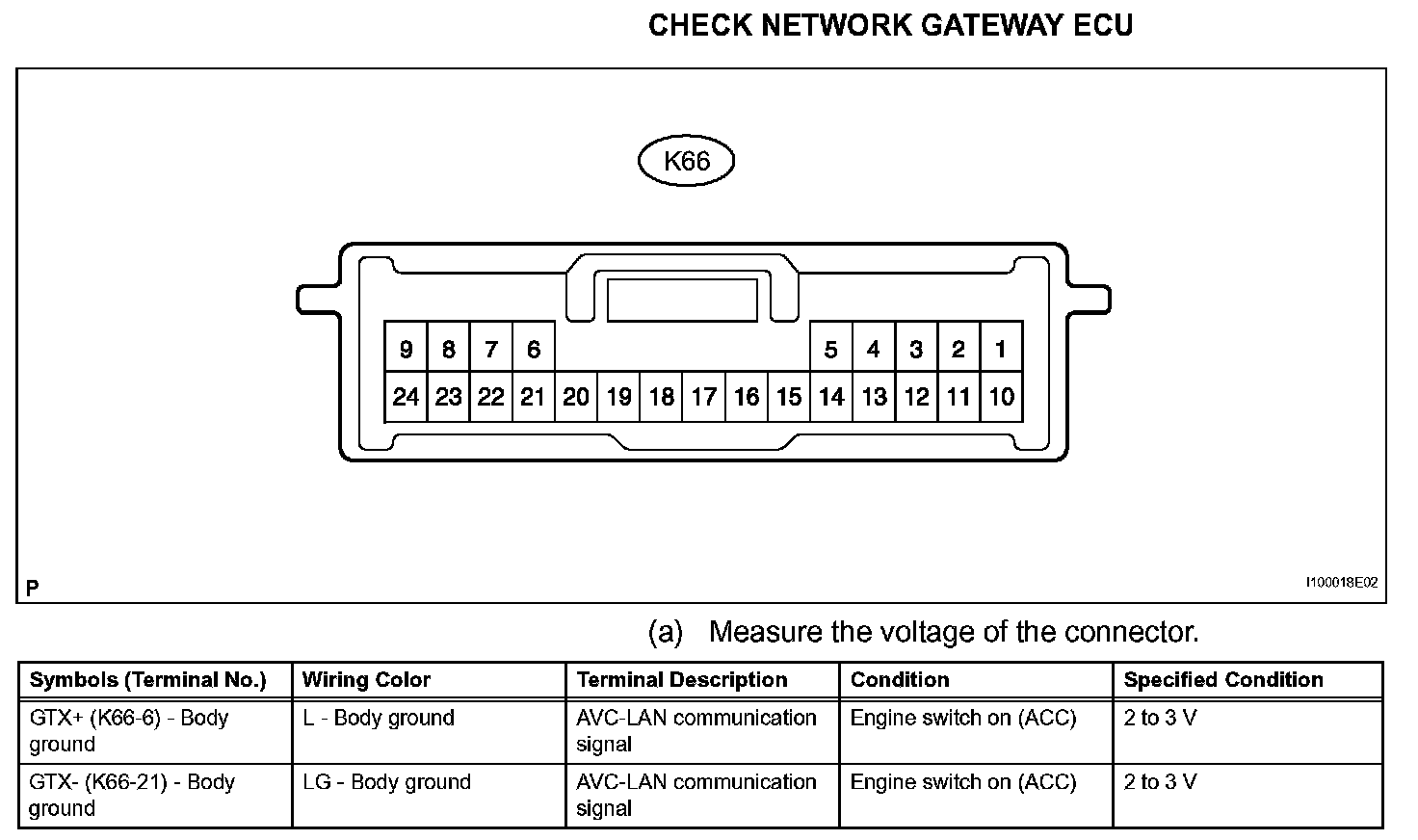

Terminals Of Control Module/Pinouts - Check Network Gateway ECU:

Terminals Of Control Module/Pinouts - Check Mayday ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Mayday ECU (Part 2):
