Engine Immobilizer System

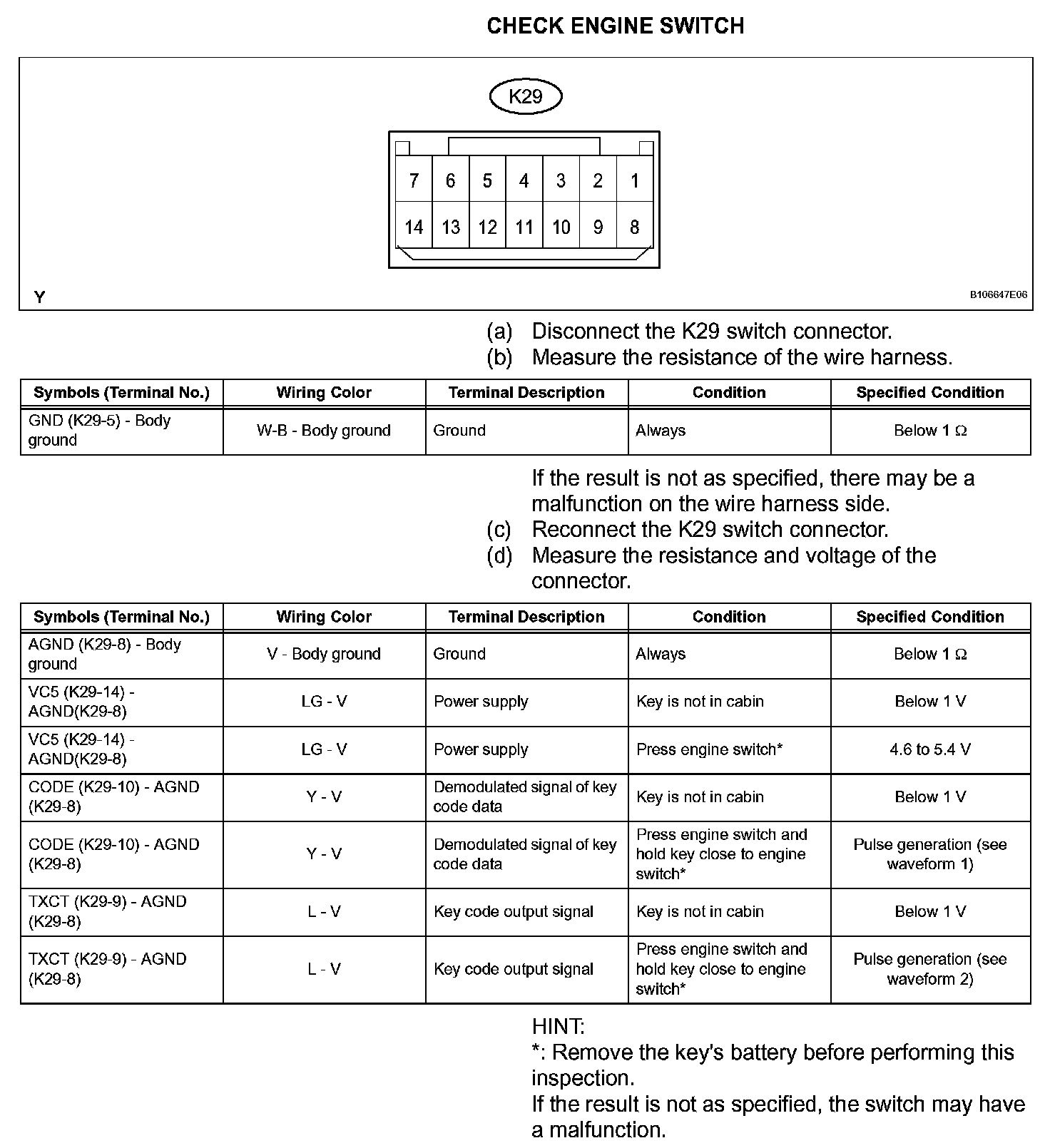

Terminals Of Control Module/Pinouts - Check Engine Switch:

Check Engine Switch - Oscilloscope Waveforms:

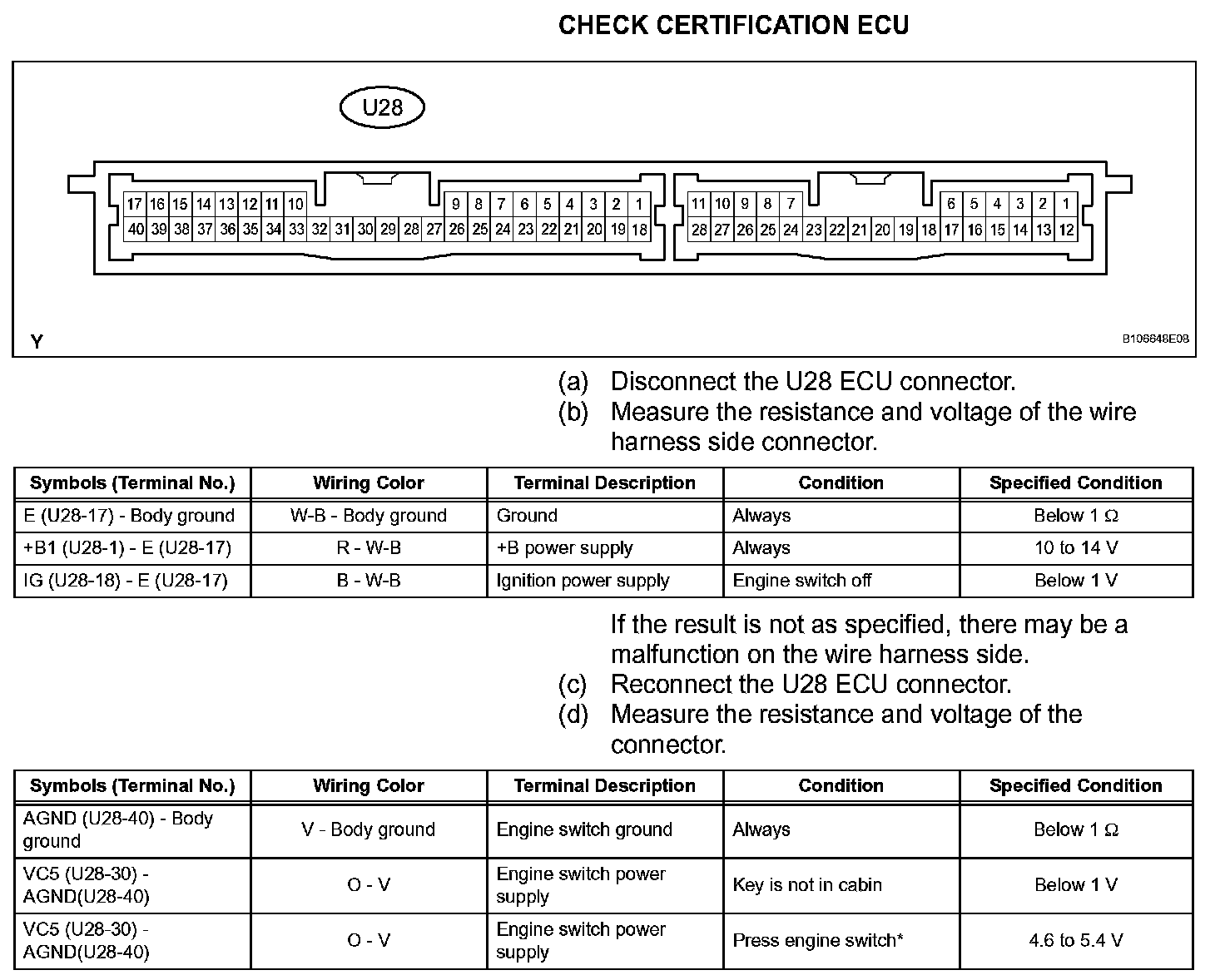

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):

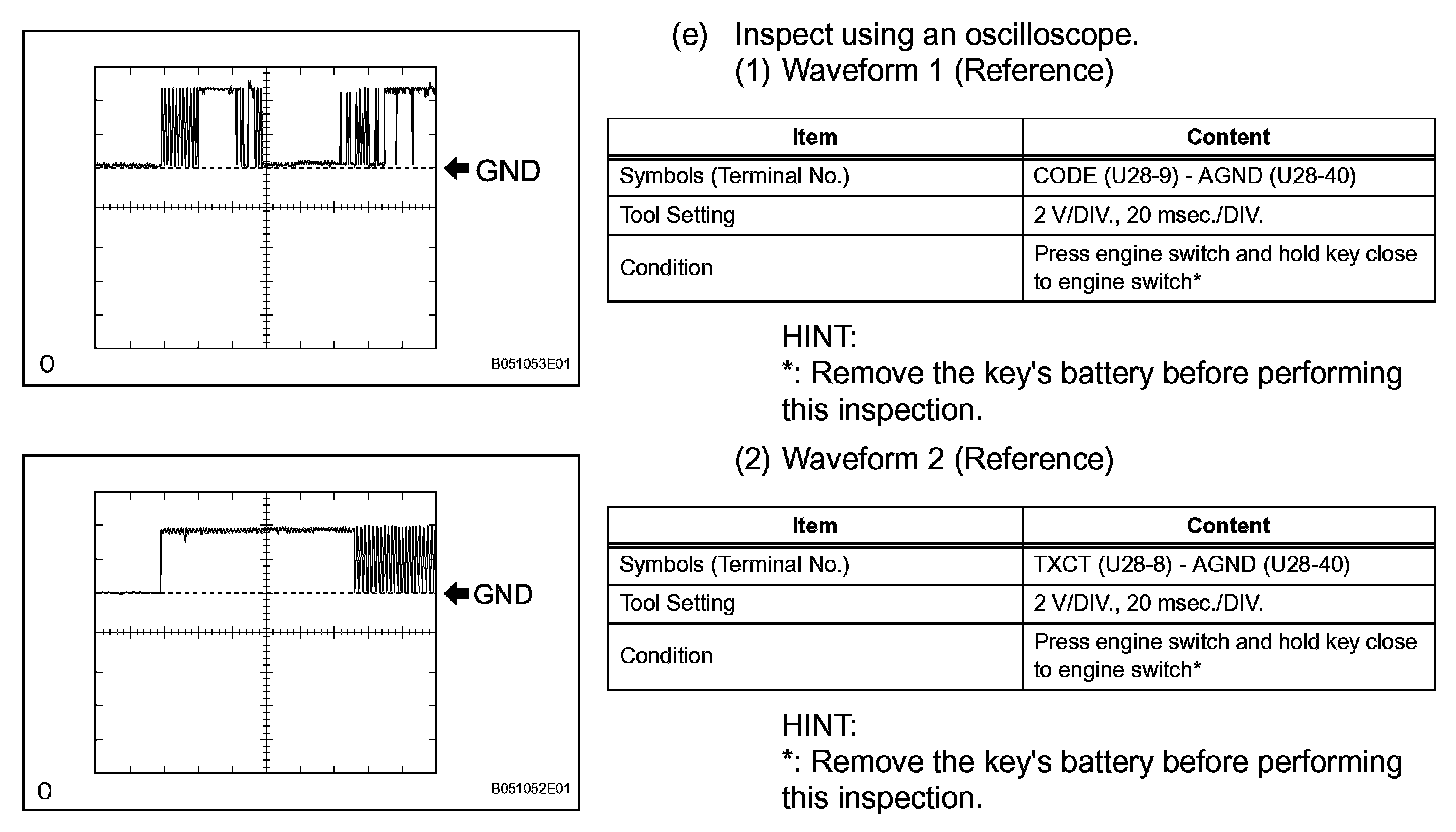

Check Certification ECU - Oscilloscope Waveforms:

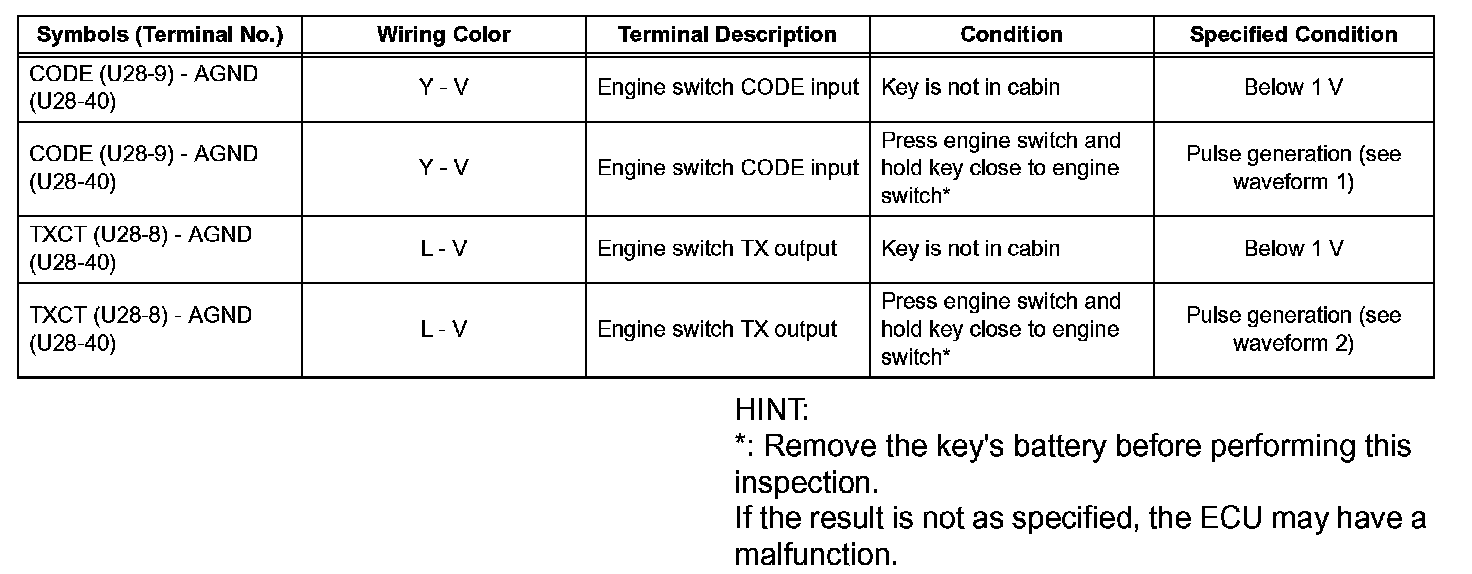

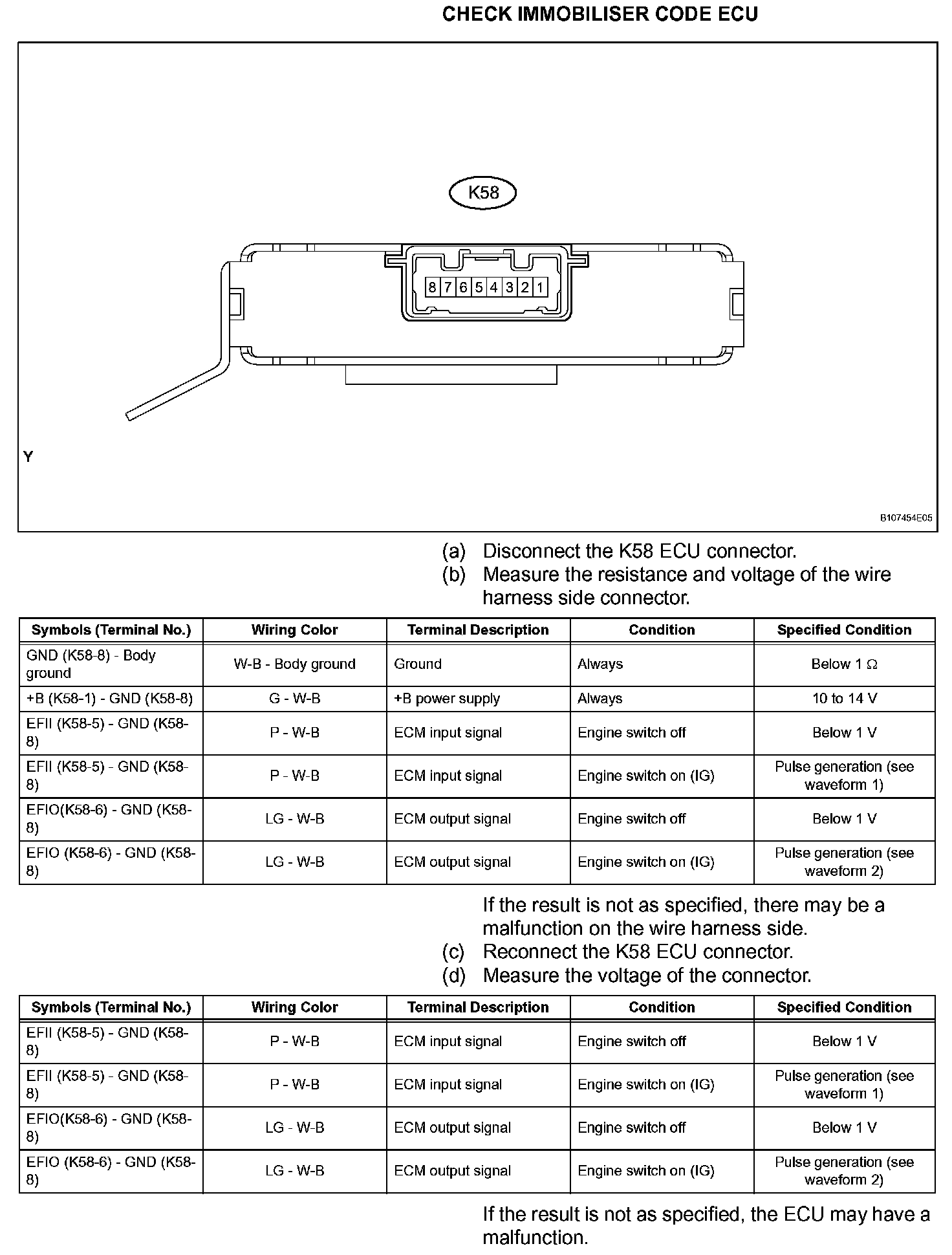

Terminals Of Control Module/Pinouts - Check Immobiliser Code ECU:

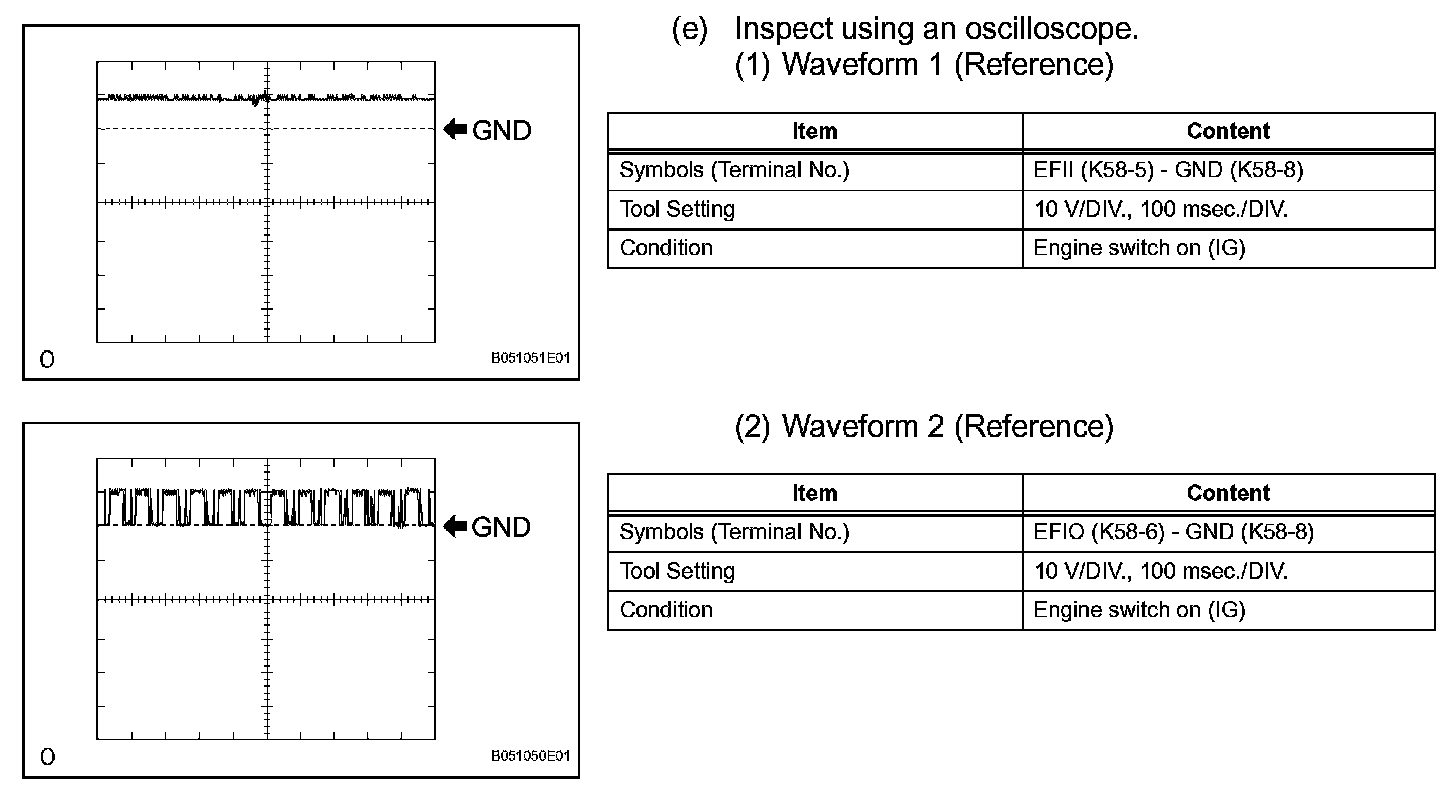

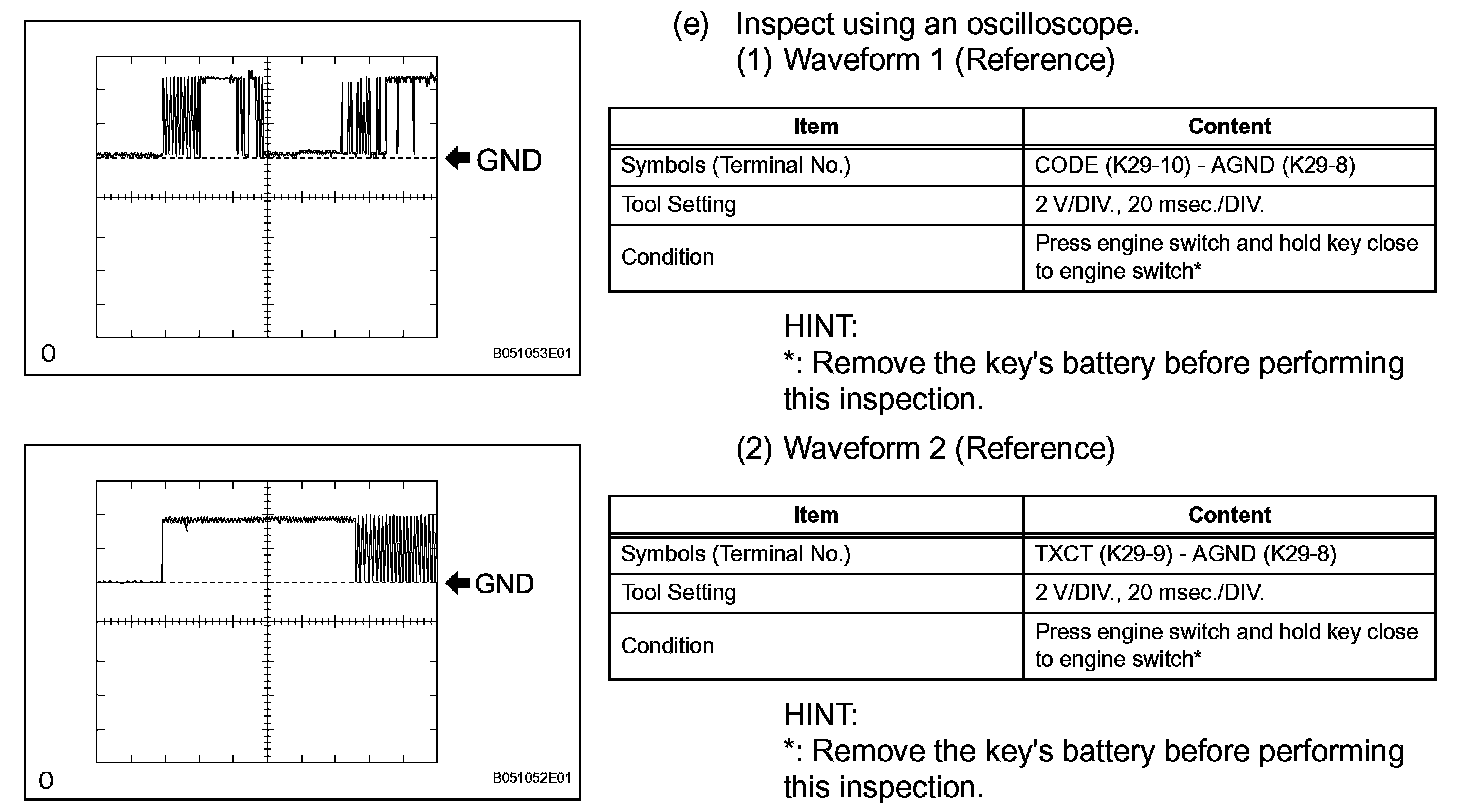

Check Immobiliser Code ECU - Oscilloscope Waveforms:

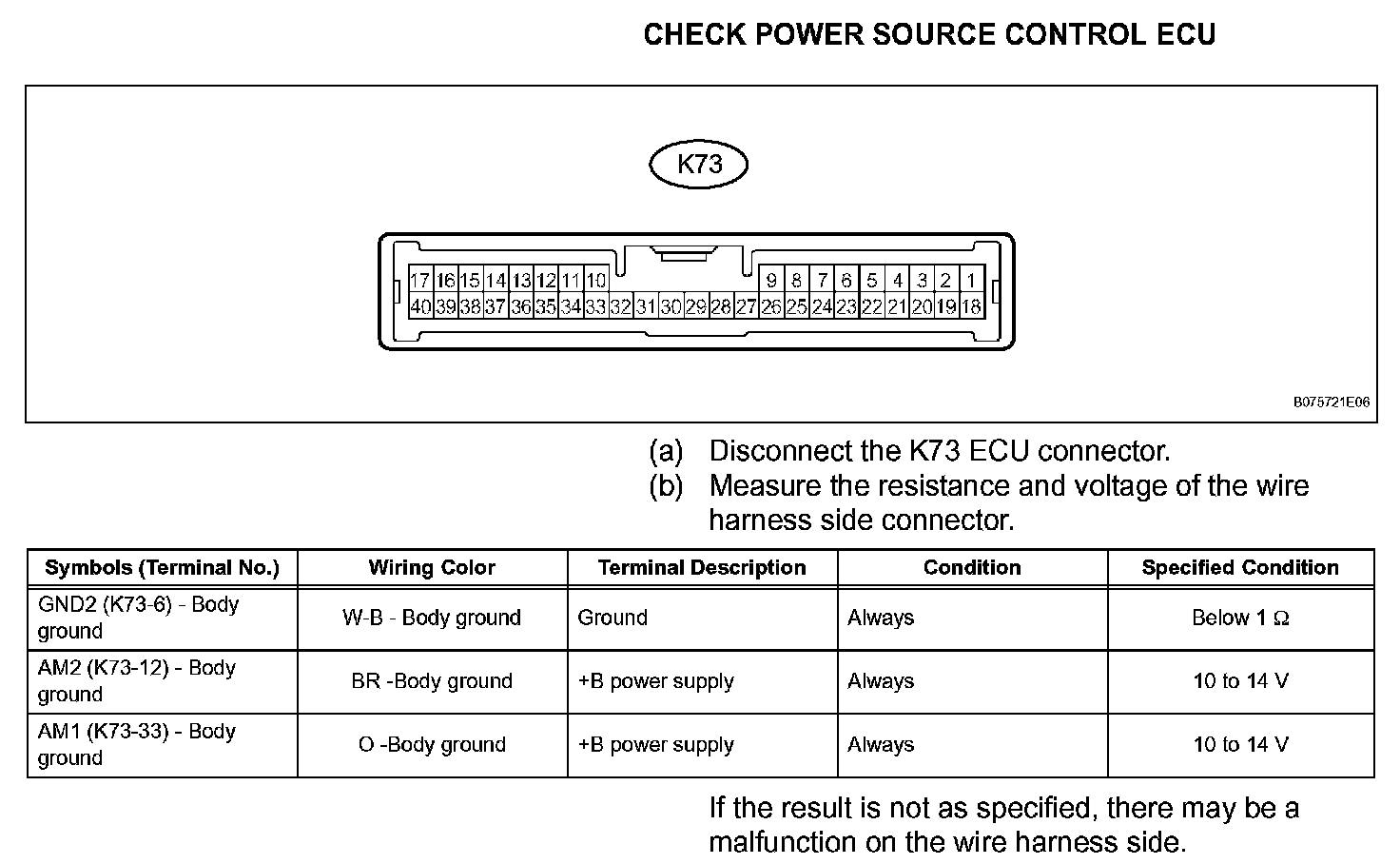

Terminals Of Control Module/Pinouts - Check Power Source Control ECU:

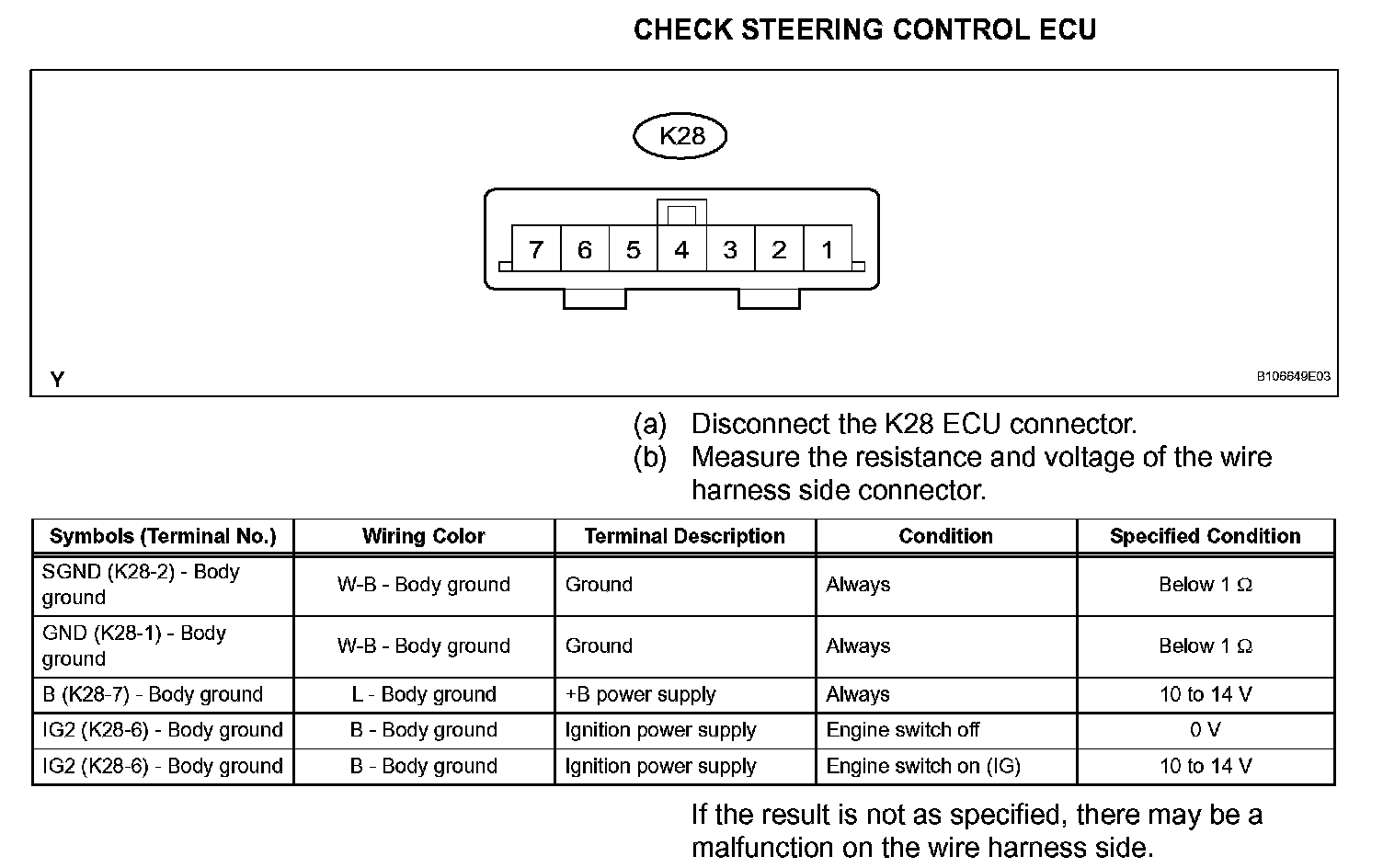

Terminals Of Control Module/Pinouts - Check Steering Control ECU:

Terminals Of Control Module/Pinouts - Check ECM (2GR-FSE) (Part 1):

Terminals Of Control Module/Pinouts - Check ECM (2GR-FSE) (Part 2):

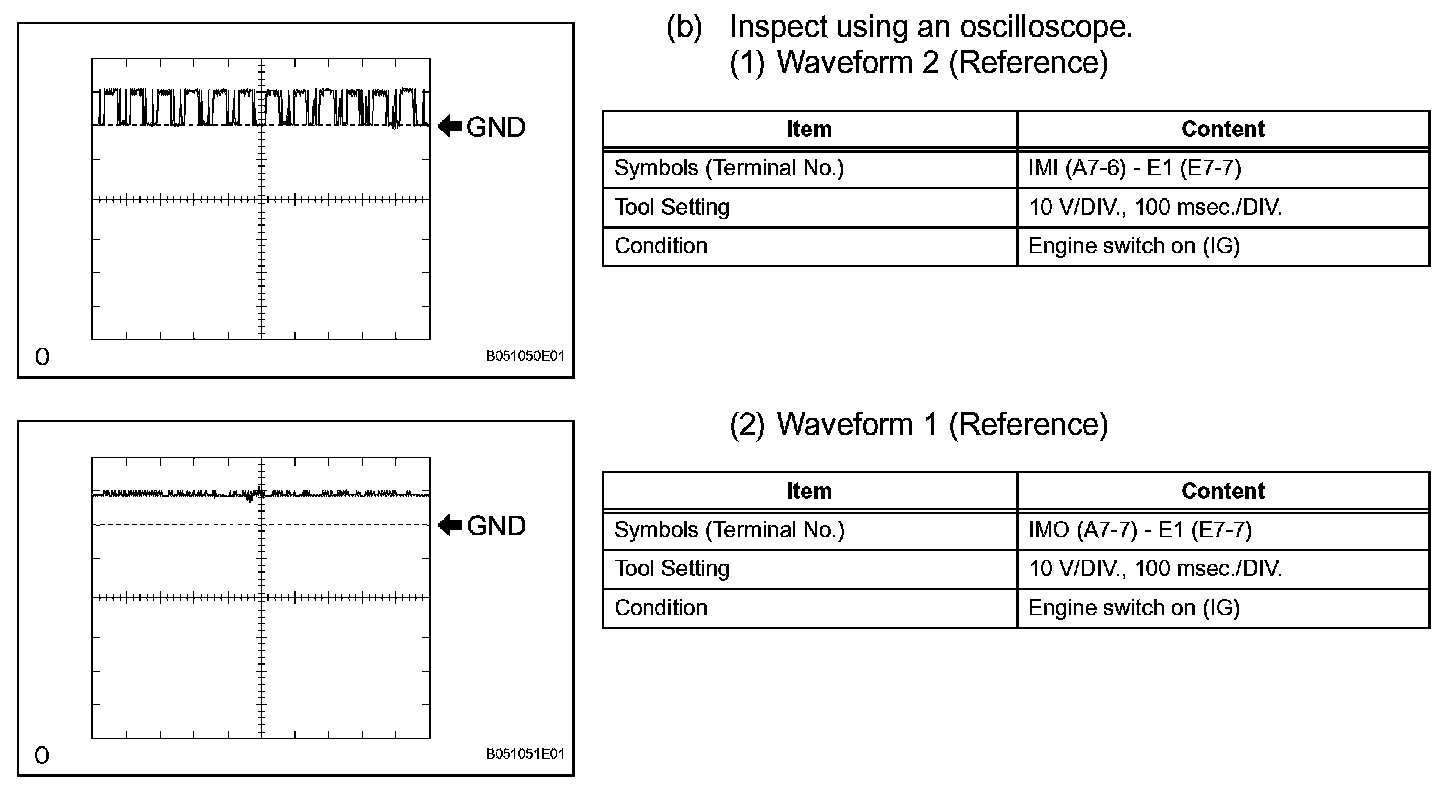

Check ECM (2GR-FSE) - Oscilloscope Waveforms:

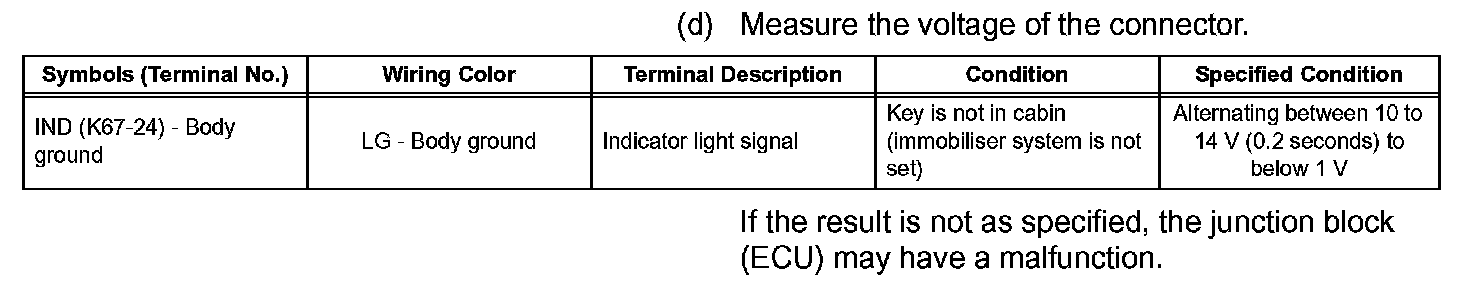

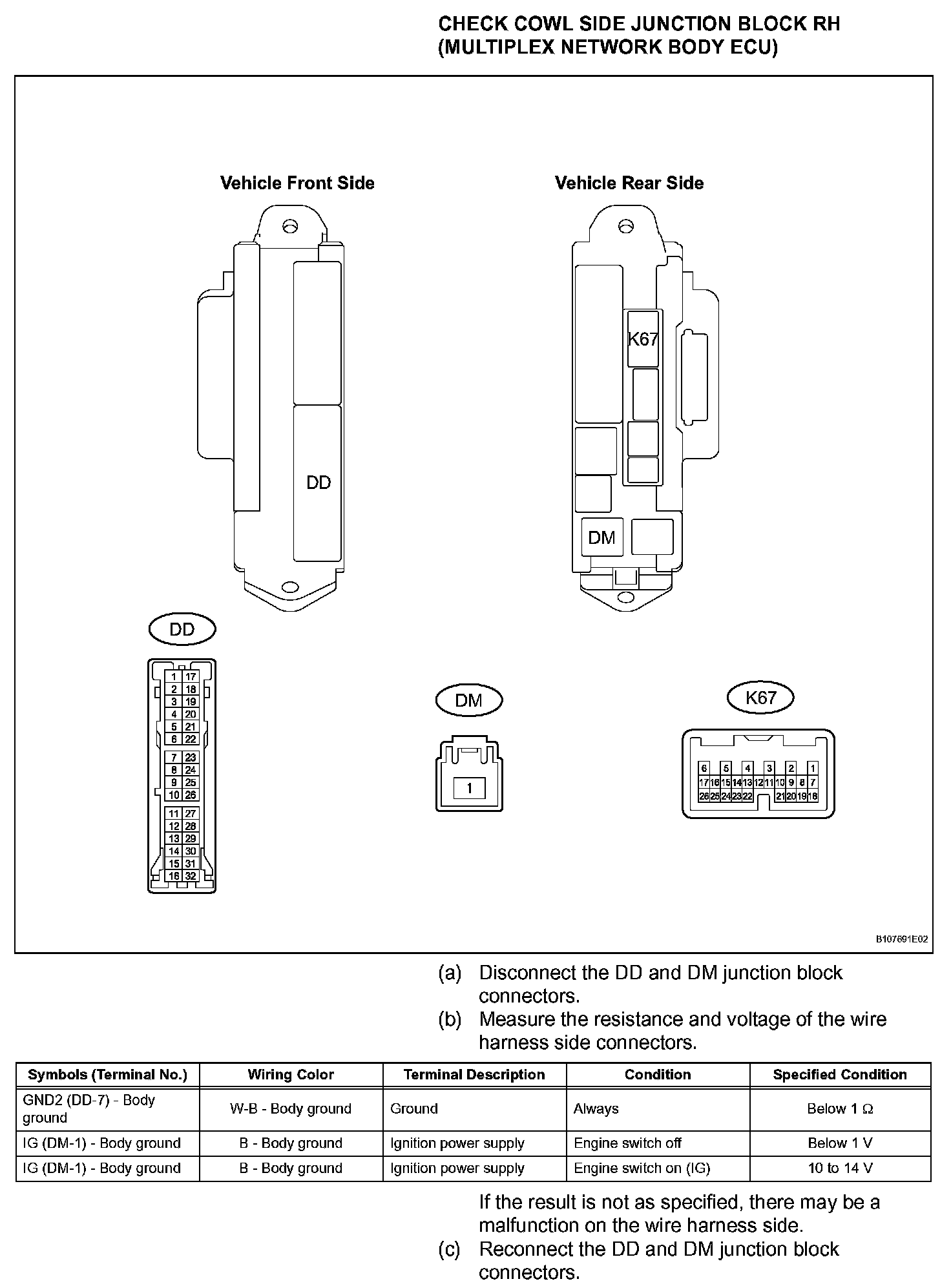

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU) (Part 2):
