Security Horn Circuit
Security Horn CircuitDESCRIPTION
When the theft deterrent system is operating, the multiplex network body ECU outputs a signal continuously at 0.4 second intervals, causing the security horn to sound.

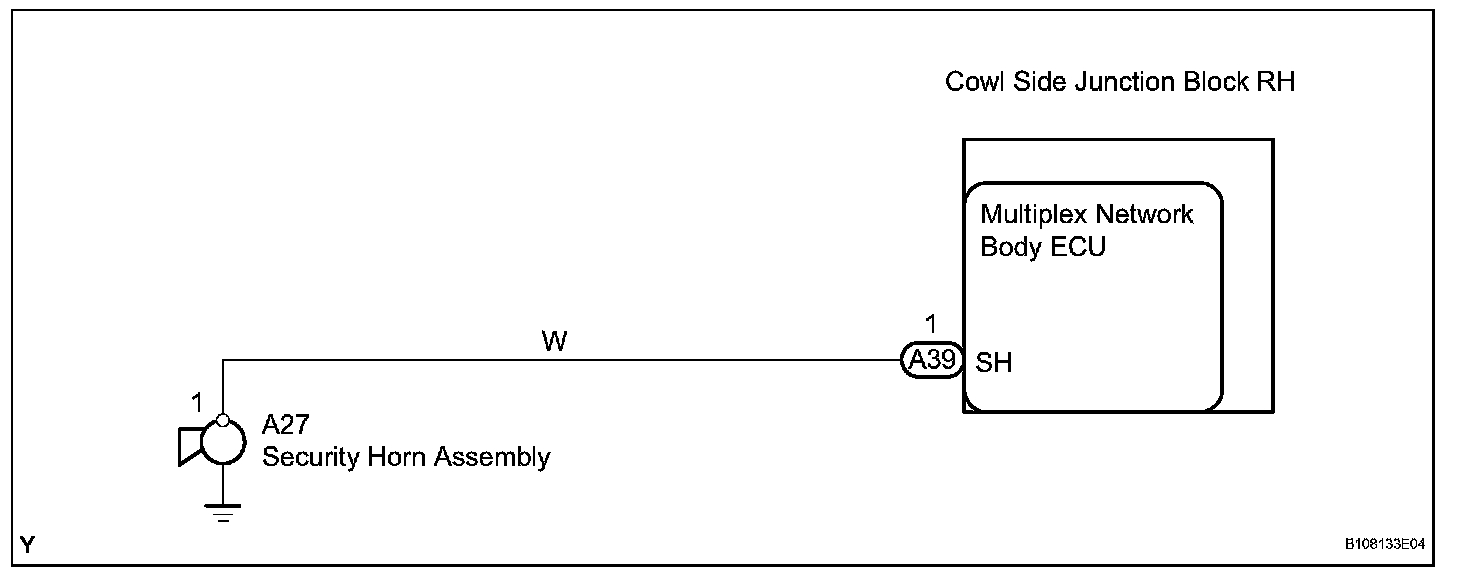

Wiring Diagram:
INSPECTION PROCEDURE

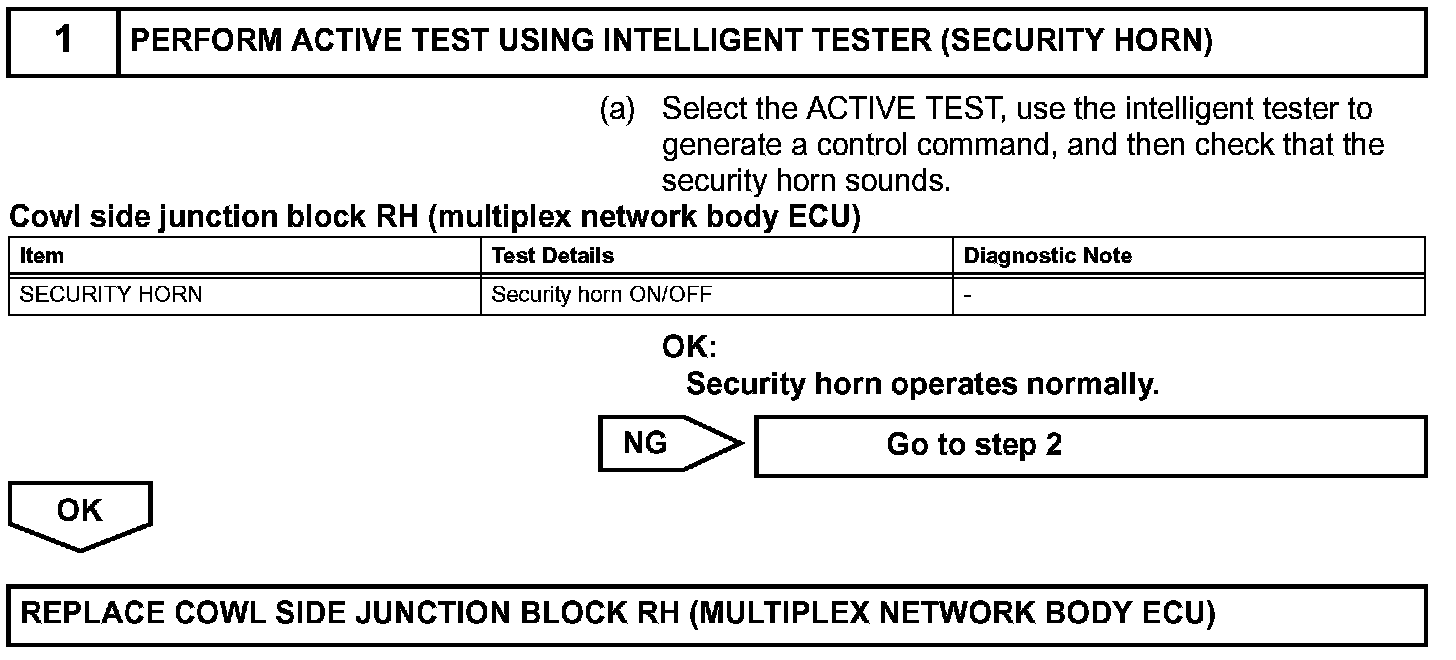

Step 1:

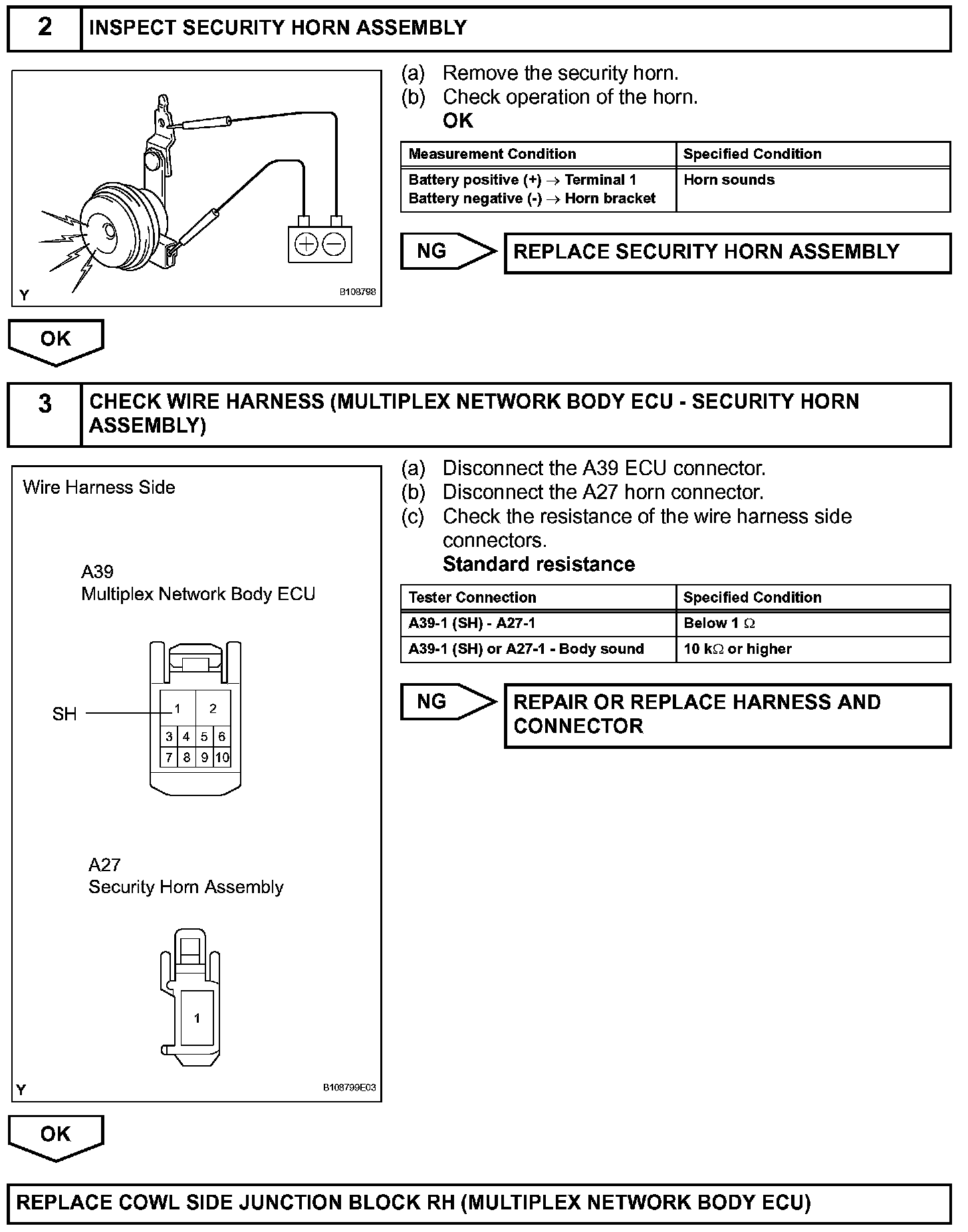

Step 2-3:
