Horn Circuit

Horn Circuit

DESCRIPTION

When the theft deterrent system changed from the armed state to the alarm sounding state, the front controller transmits a signal to cause the horns to sound at 0.4 second intervals.

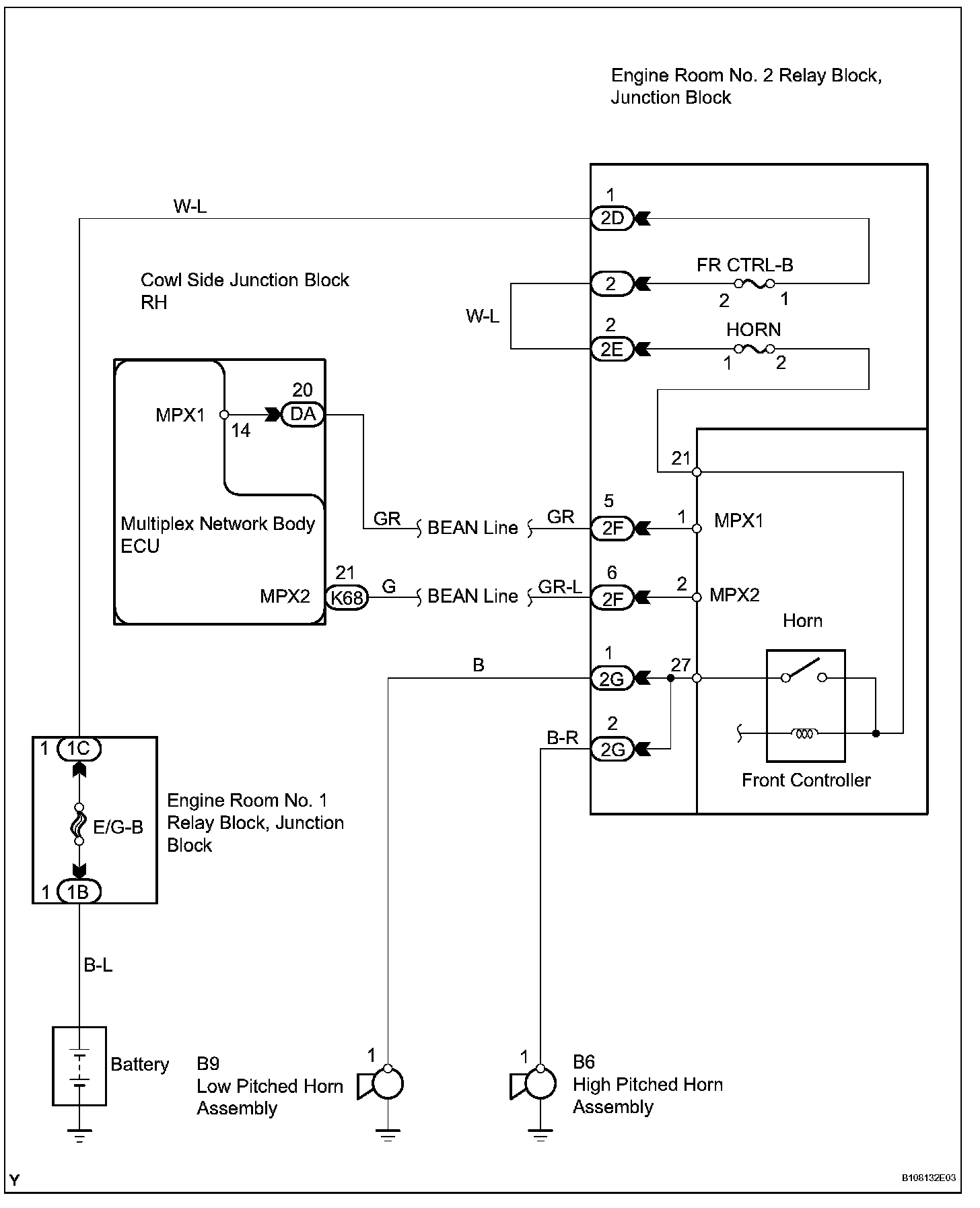

Wiring Diagram:





INSPECTION PROCEDURE

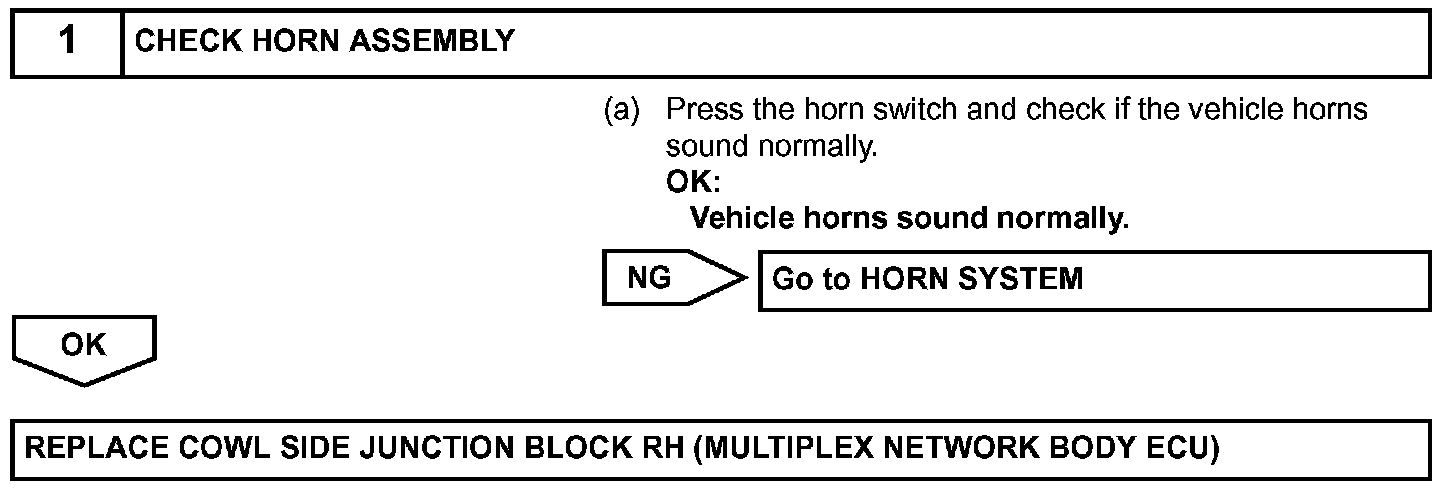

Step 1:
