DTC U0145 Lost Communication with Body Control Module "E"

DESCRIPTION

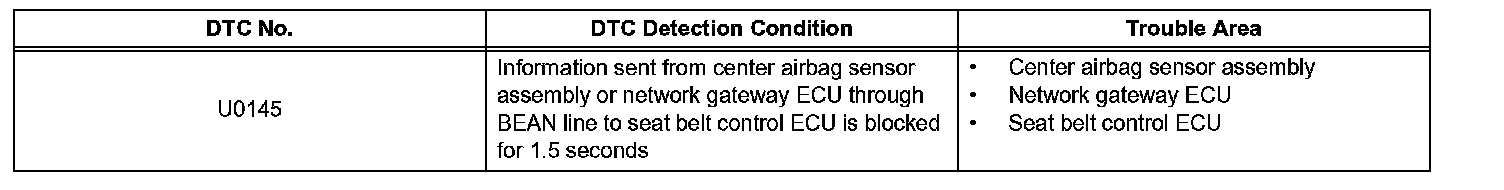

DTC Detection Condition:

- When the seat belt control ECU is communicating to the network gateway ECU, it uses the CAN line when communicating to the gateway ECU. When the seat belt control ECU is communicating to the center airbag sensor assembly, it uses the BEAN line between the gateway ECU and center airbag sensor assembly.
- The seat belt control ECU receives the following: 1) driver and front passenger seat belt buckle switch status and malfunction information from the center airbag sensor assembly, and 2) vehicle type information from the network gateway ECU.
- This DTC is output when information from the BEAN line is blocked. There is a possibility that a malfunction has occurred in the center airbag sensor assembly or network gateway ECU because, in this case, they are the only components that communicate through the BEAN.

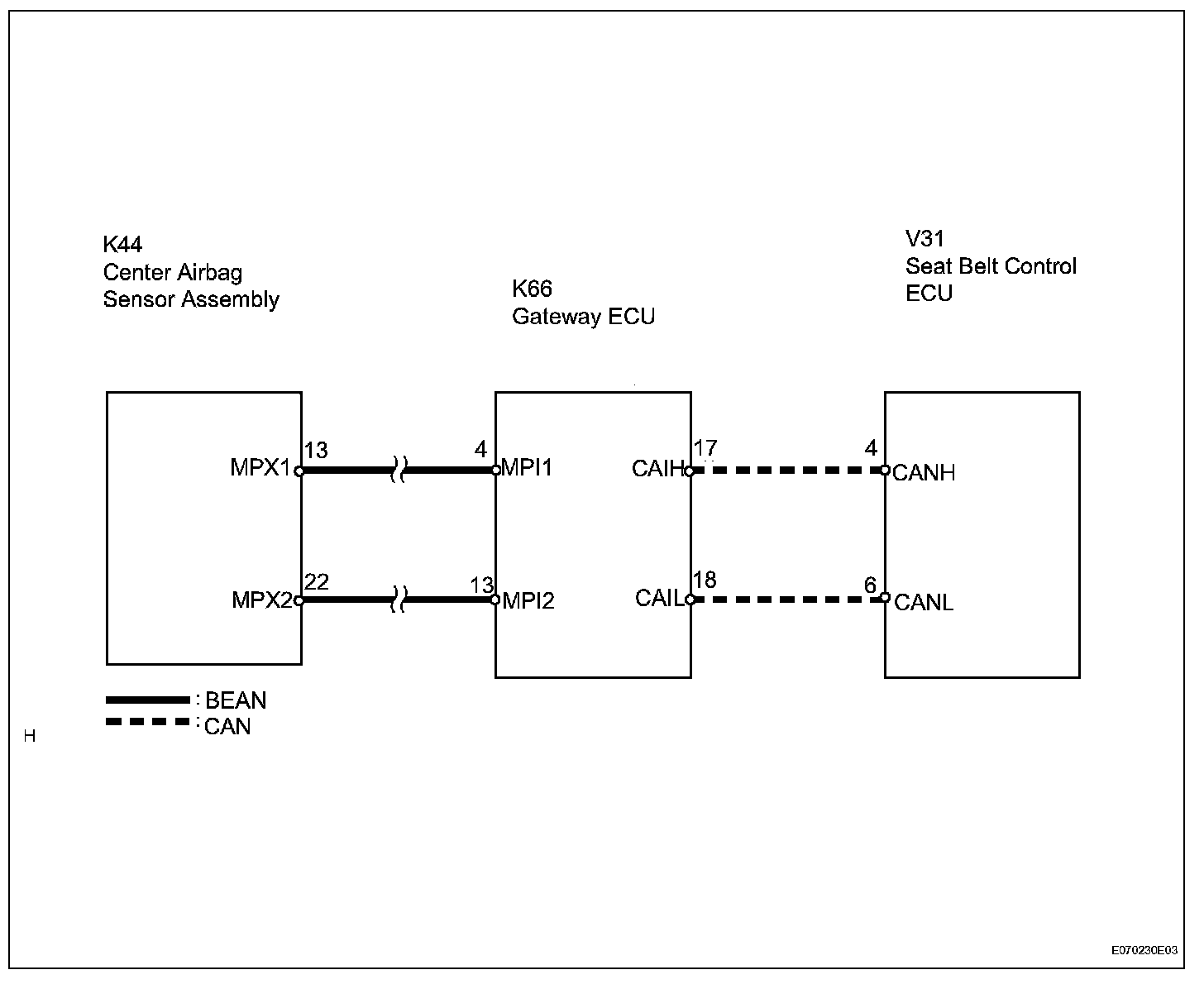

Wiring Diagram:

INSPECTION PROCEDURE

NOTE: When the seat belt control ECU is replaced with a new one, Active Test must be performed.

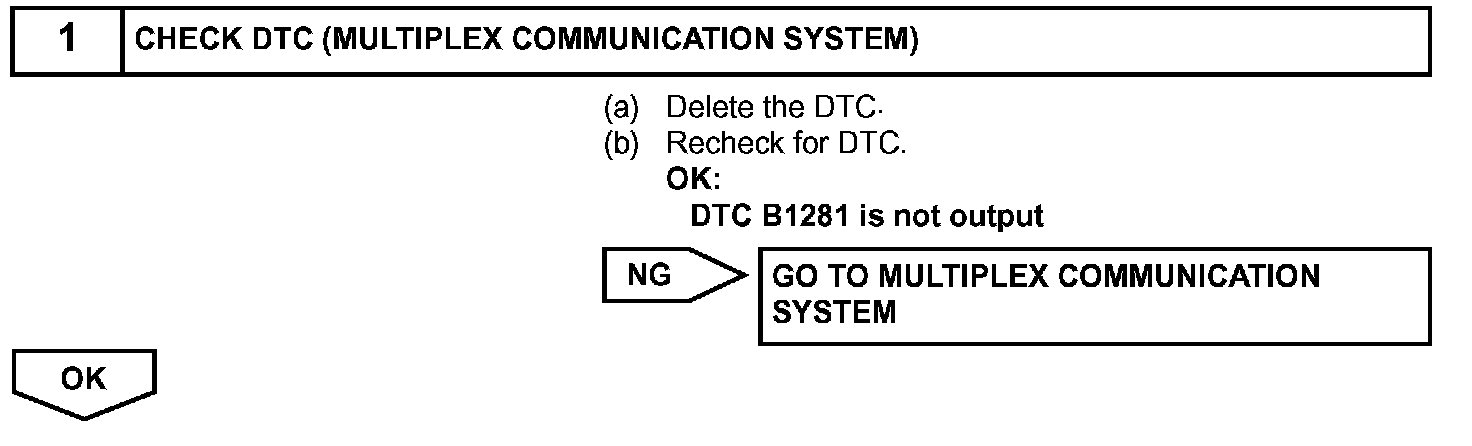

Step 1:

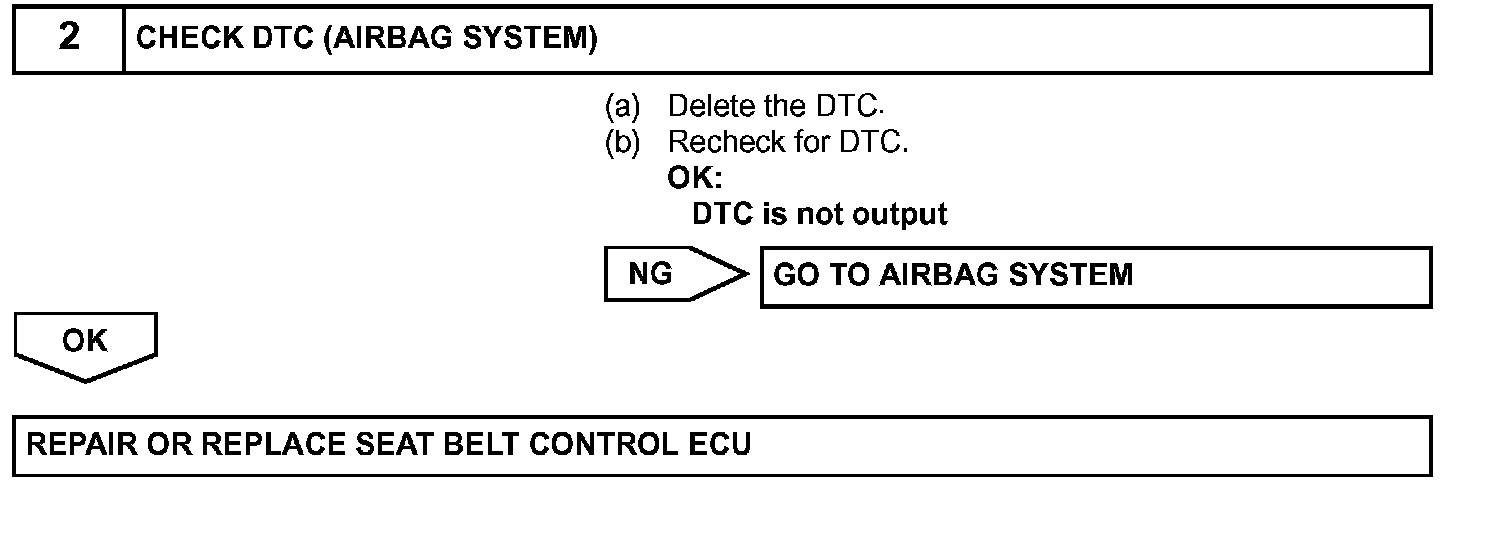

Step 2:
