DTC 76
DTC C2176/76 Receiver ErrorDESCRIPTION
The signals are transmitted to the tire pressure warning antenna and receiver on the body as radio waves and then sent to the tire pressure warning ECU.

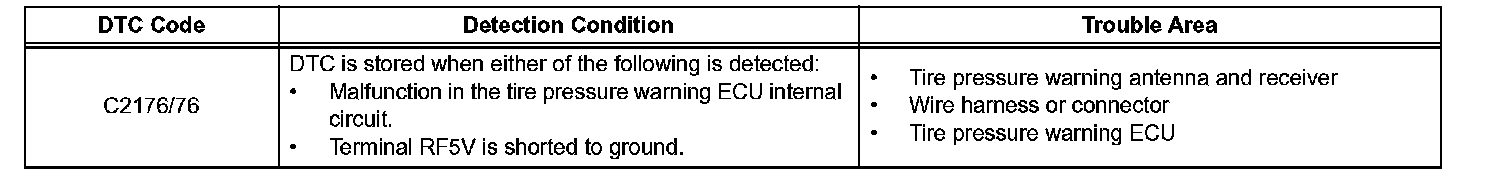

C2176/76:

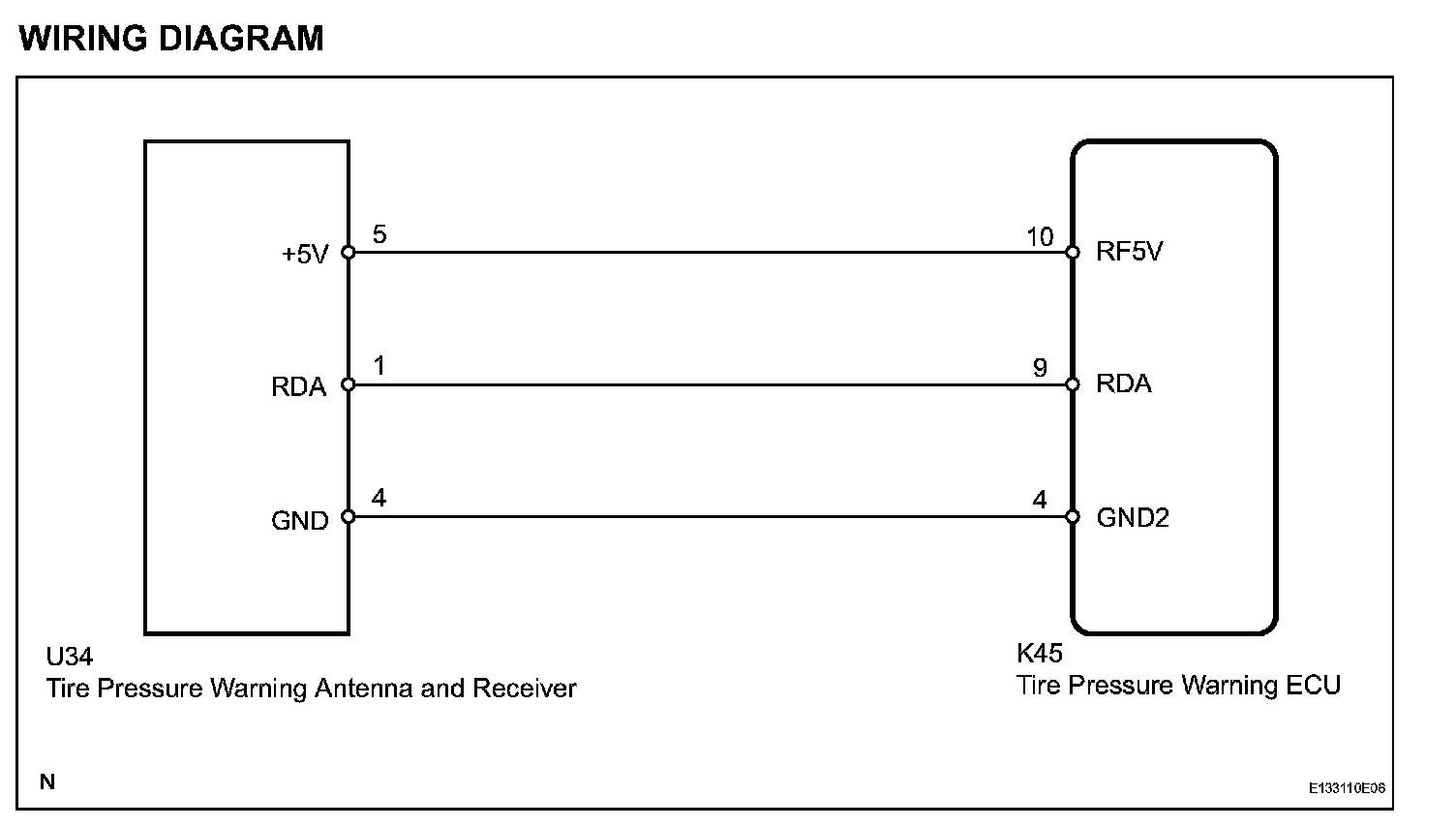

WIRING DIAGRAM:
INSPECTION PROCEDURE
NOTICE:
^ When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU and/or valve and transmitter has been replaced. Initialization

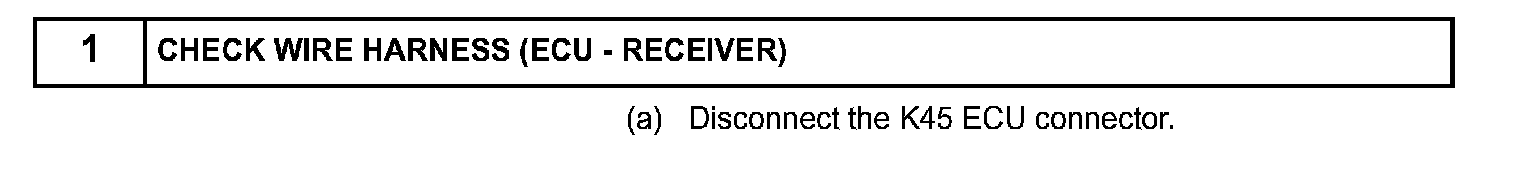

Step 1(Part 1):

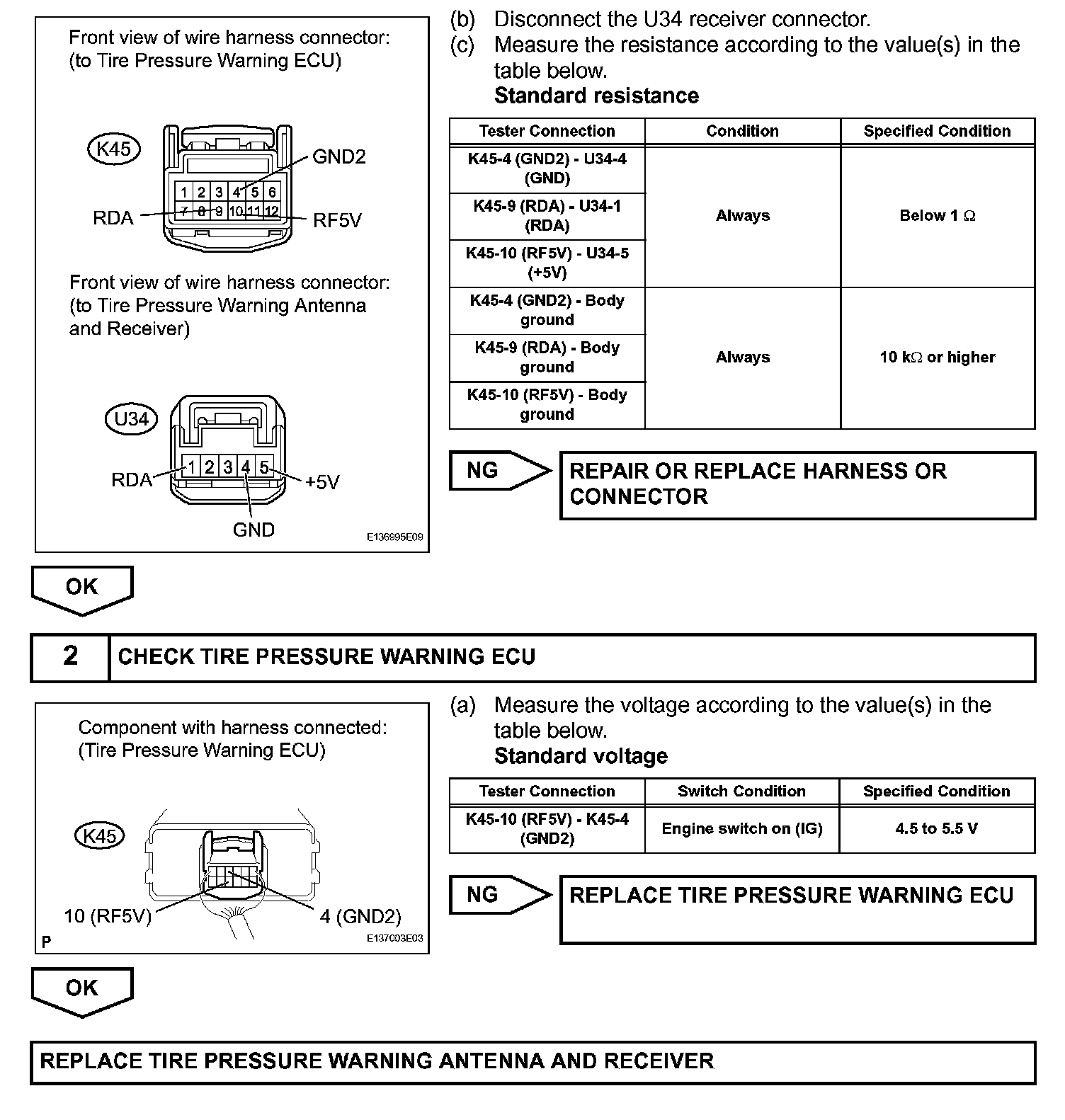

Steps 1(Part 2)-2:
