DTC 57

DTC C1597/57 Lost Communication between VGRS and EPS

DESCRIPTION
The steering control ECU receives signals from the power steering ECU via local CAN communication. If the steering control ECU cannot receive signals from the power steering ECU correctly via local CAN communication, it will store DTC C1597/57.

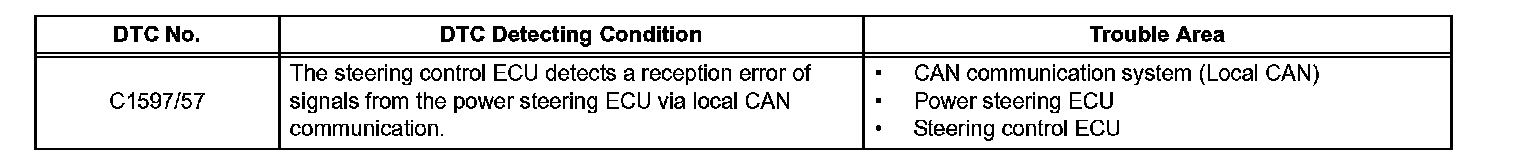

C1597/57:

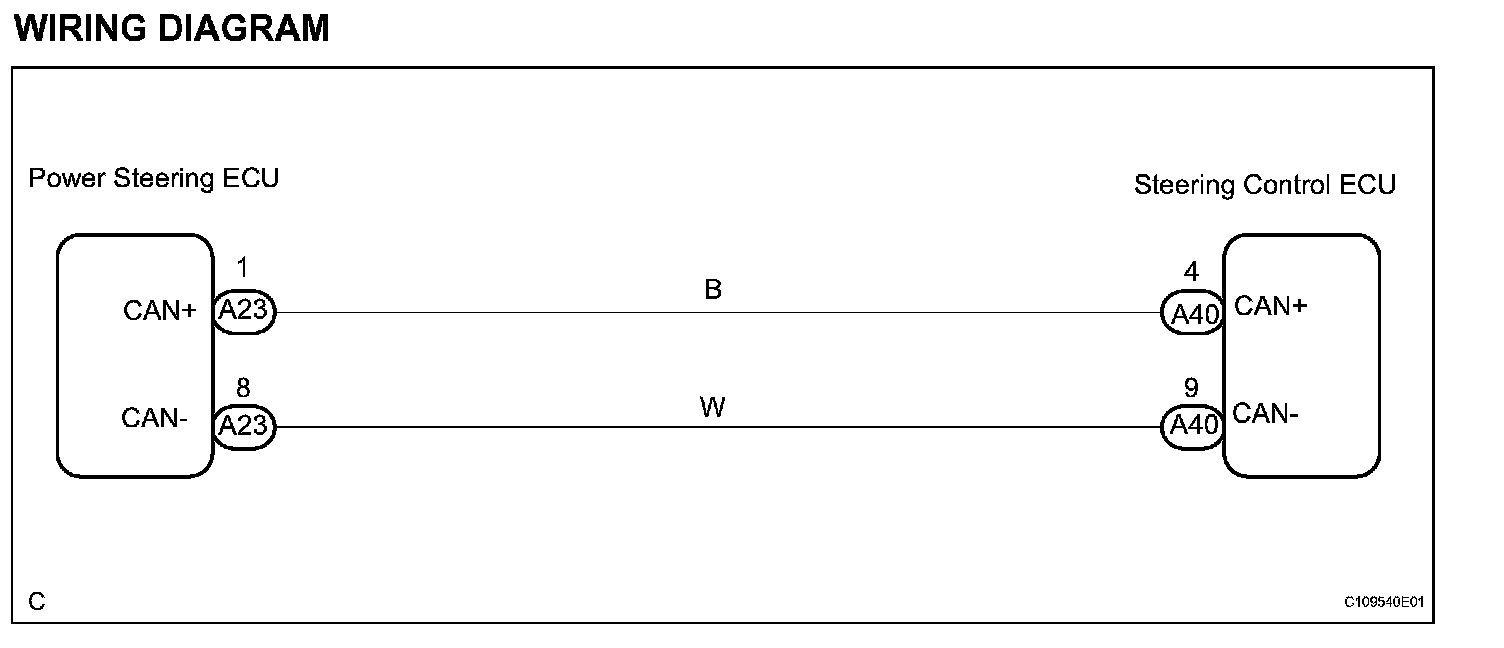

WIRING DIAGRAM:

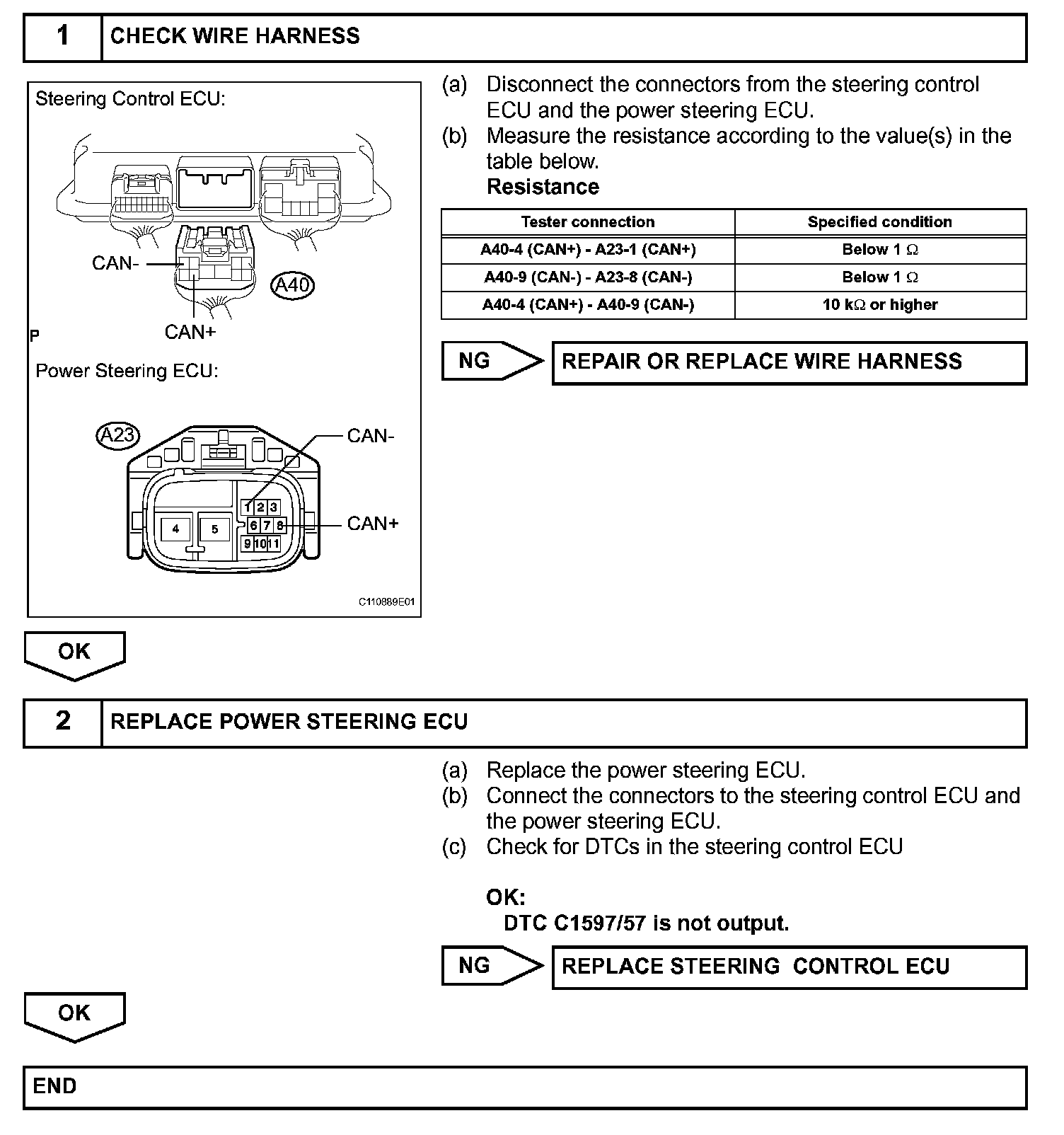

INSPECTION PROCEDURE

Steps 1-2:
