Lost Communication With Steering Angle Sensor Module

DTC U0126/56 Lost Communication with Steering Angle Sensor Module

DESCRIPTION
The steering control ECU receives signals from the steering angle sensor via CAN communication. If the steering control ECU detects an error in reception, it will output this DTC.

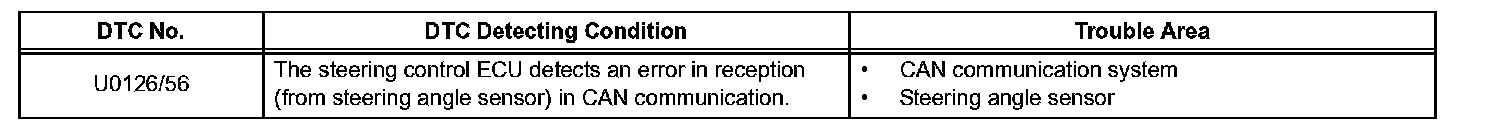

U0126/56:

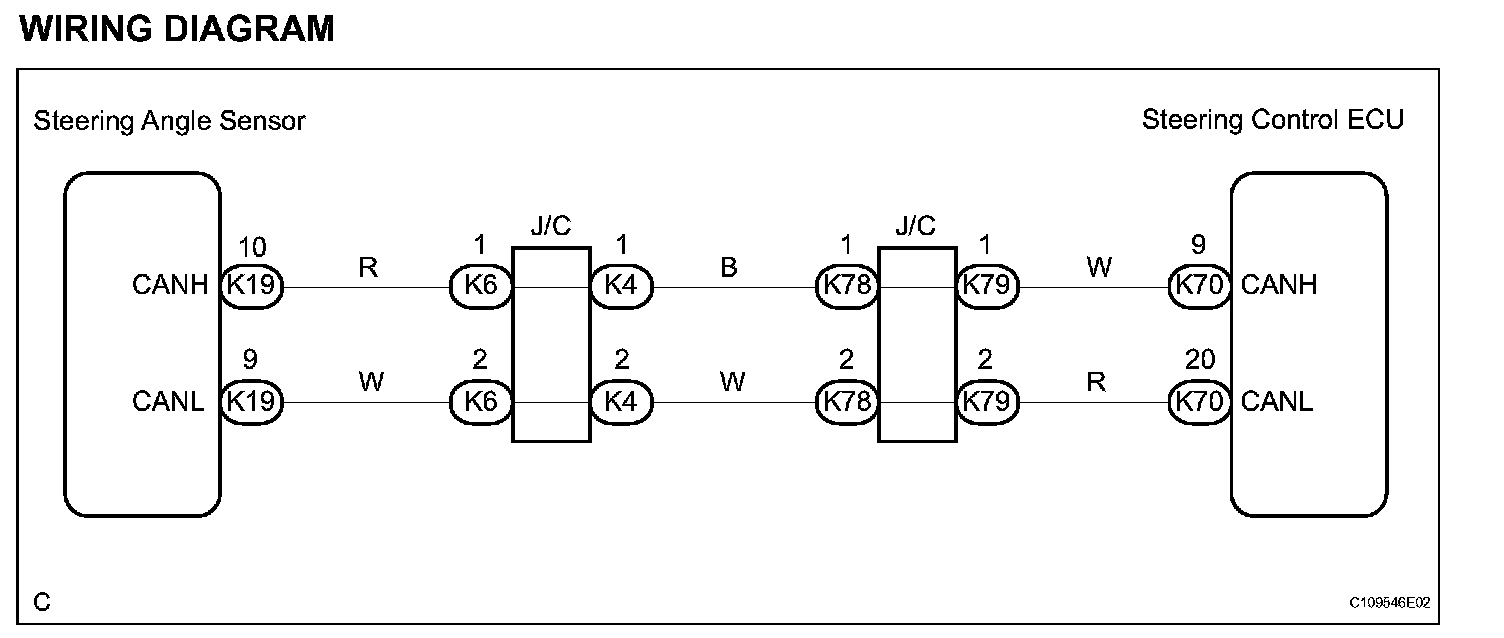

WIRING DIAGRAM:





INSPECTION PROCEDURE

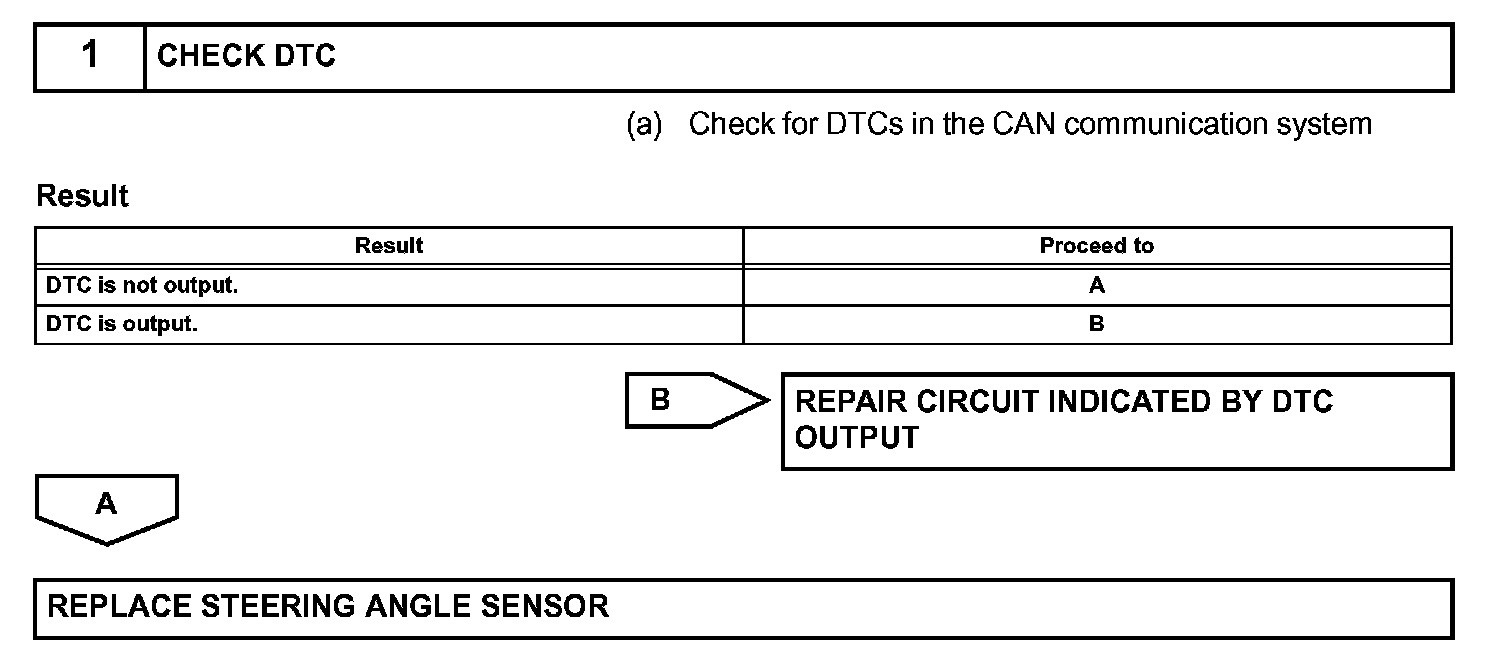

Step 1:
