DTC 01-DC

DTC 01-DC Transmission Error

DESCRIPTION

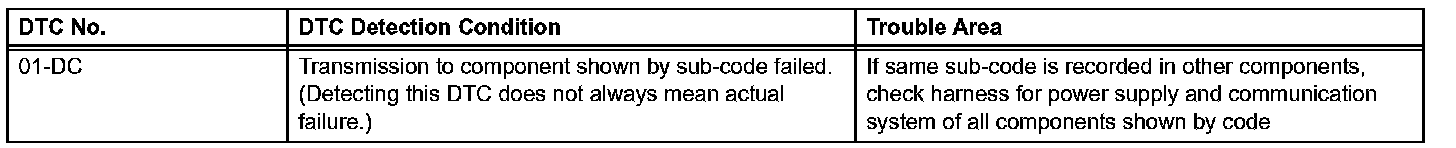

DTC Detection Condition:

NOTE:
- The multi-display is the master unit.
- Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.

INSPECTION PROCEDURE

NOTE: Be sure to read DESCRIPTION before performing the given procedures.

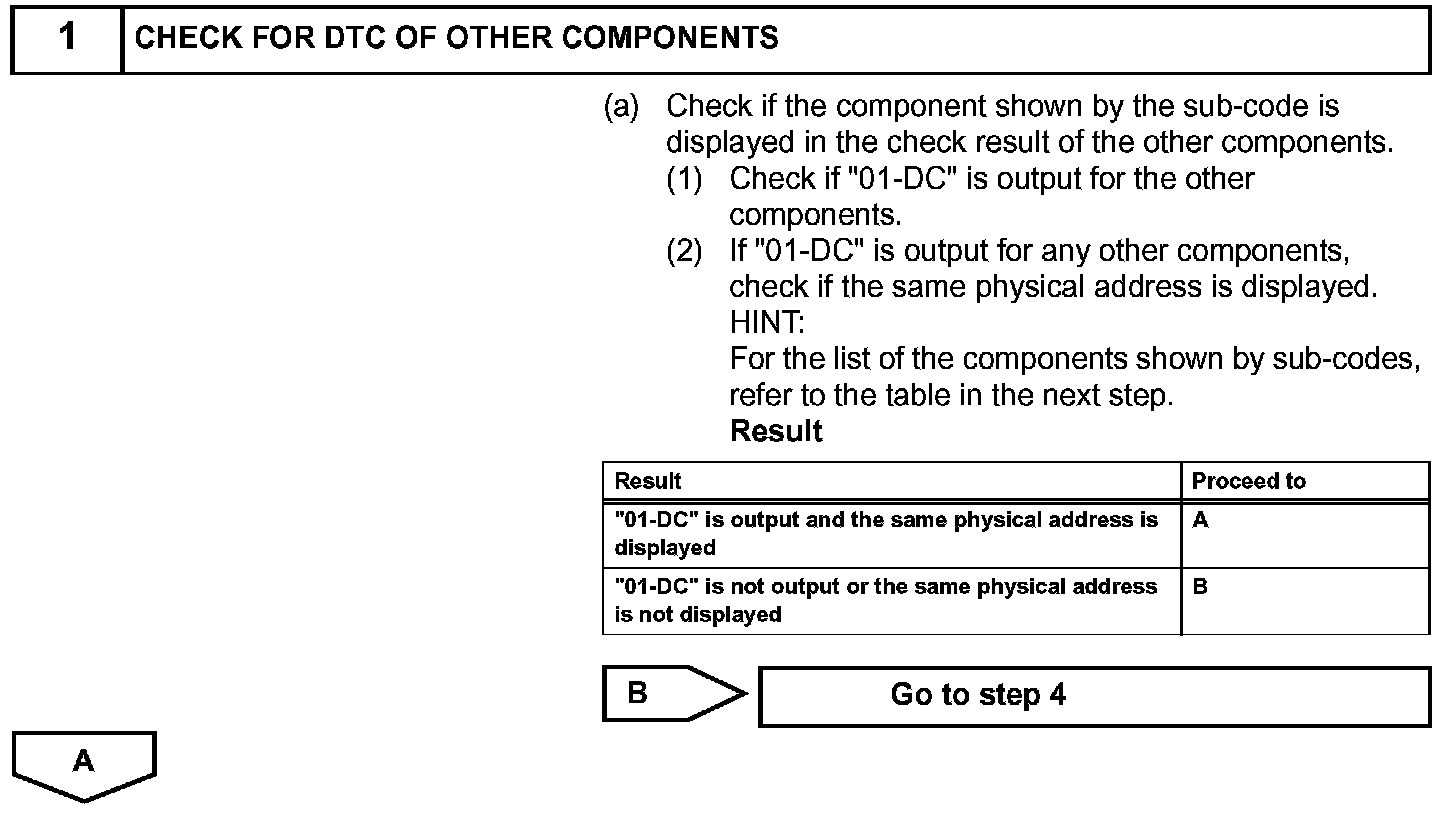

Step 1:

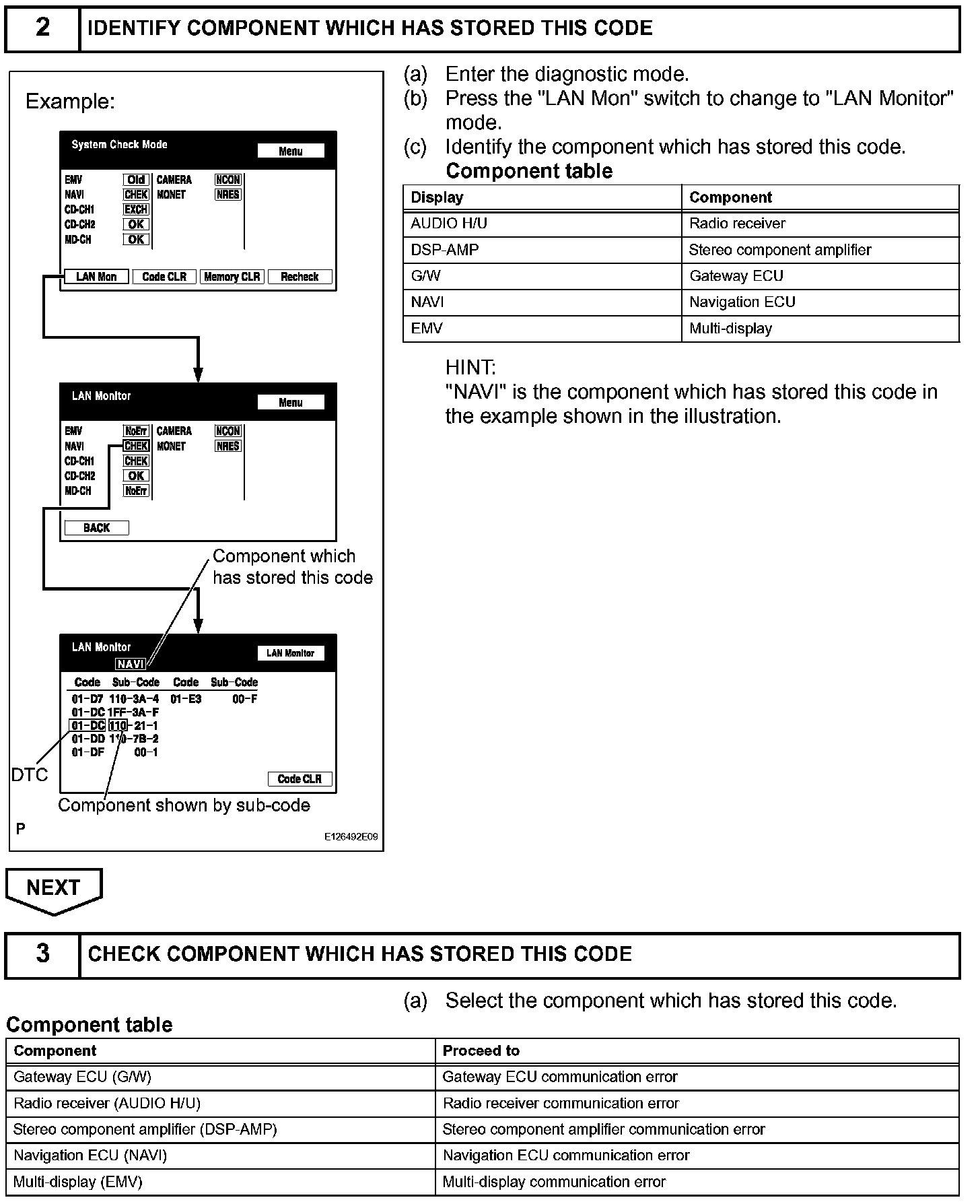

Step 2-3:

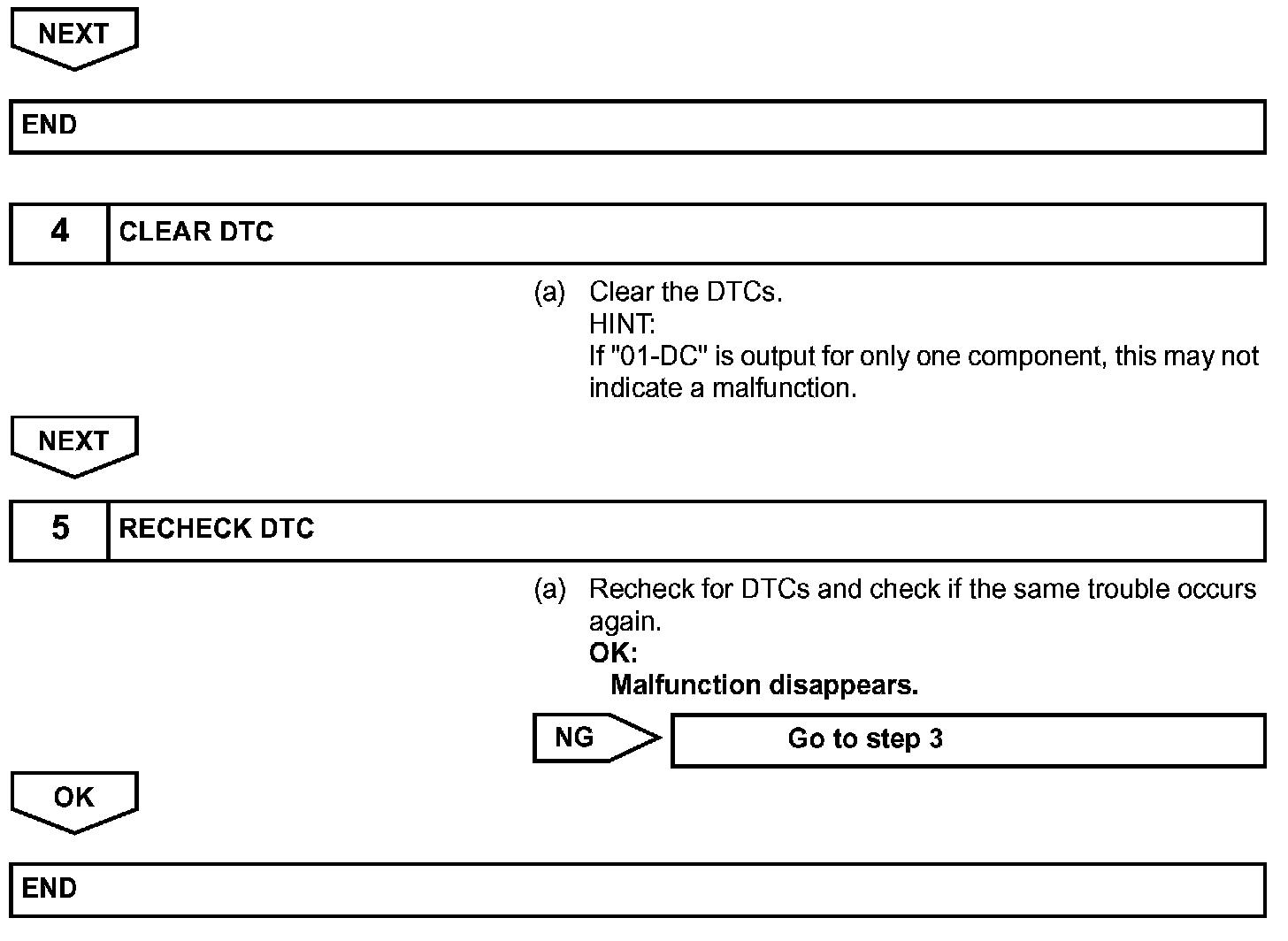

Step 3 (Continued)-5:
