DTC 4-1

DTC 4-1 Red LED Error

DESCRIPTION

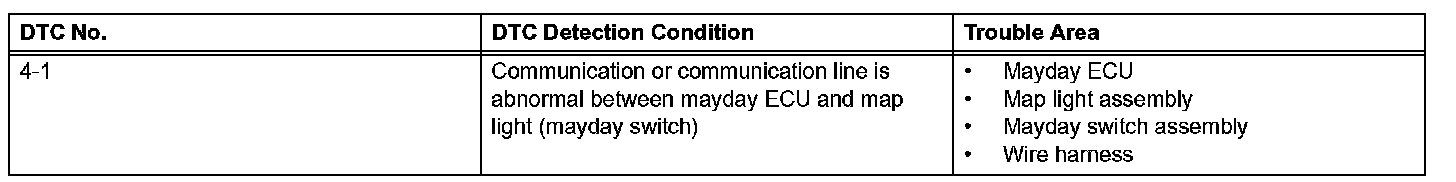

DTC Detection Condition:

This DTC is output when one of the following occurs: 1) the Mayday ECU is malfunctioning; 2) the red LED is malfunctioning; or 3) the wire harness between the Mayday ECU and the map light (Mayday switch ) is open or short.

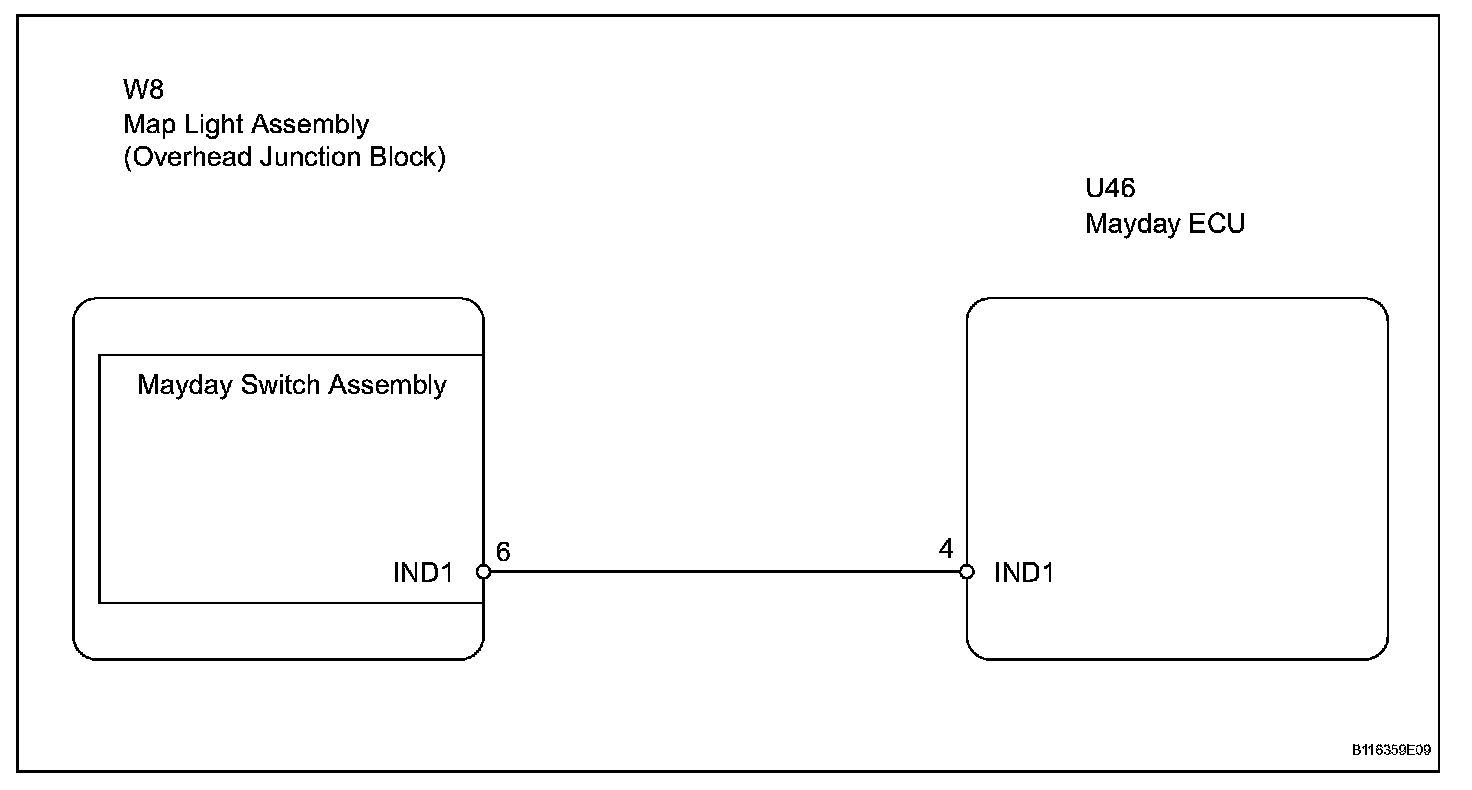

Wiring Diagram:

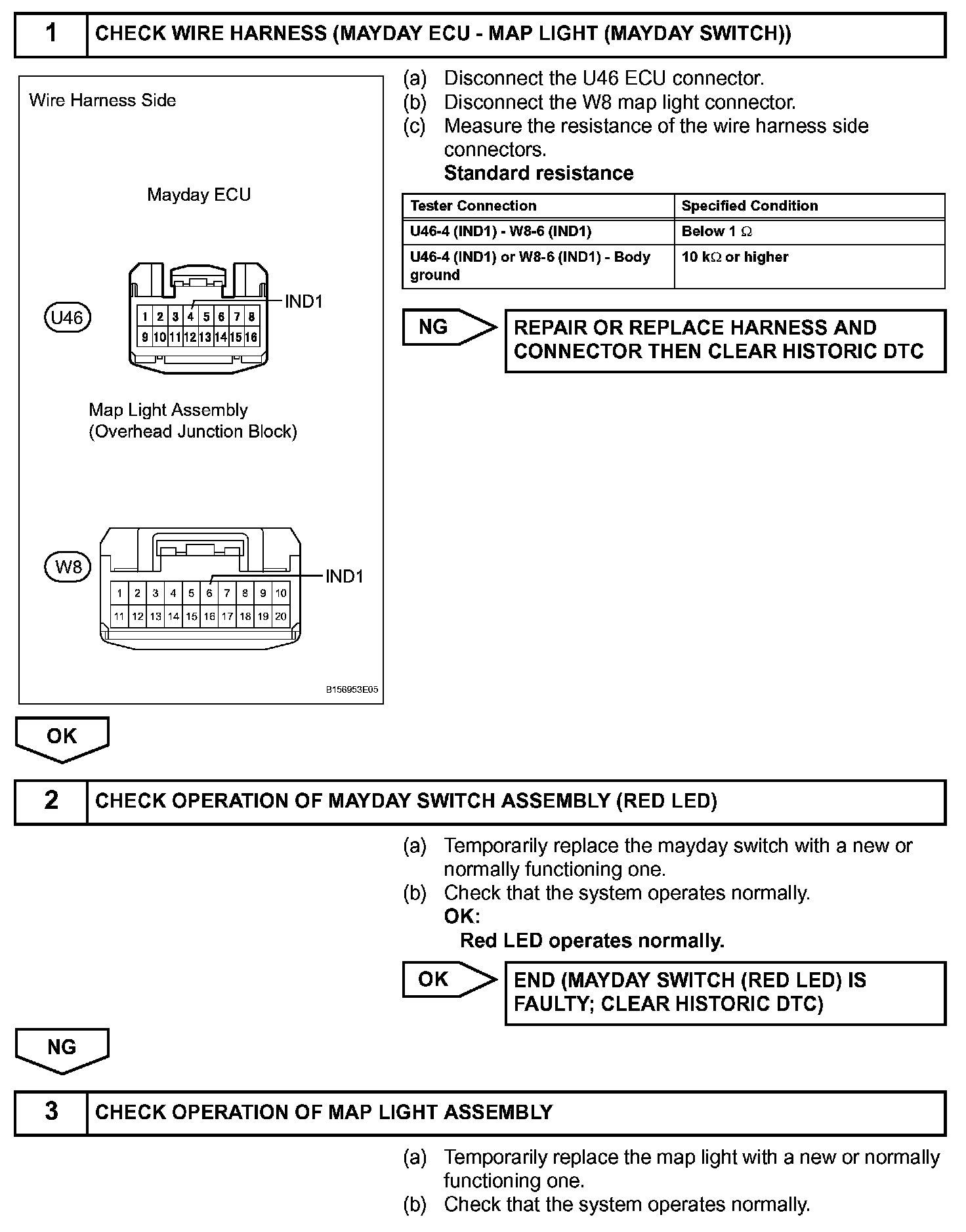

Step 1-3:

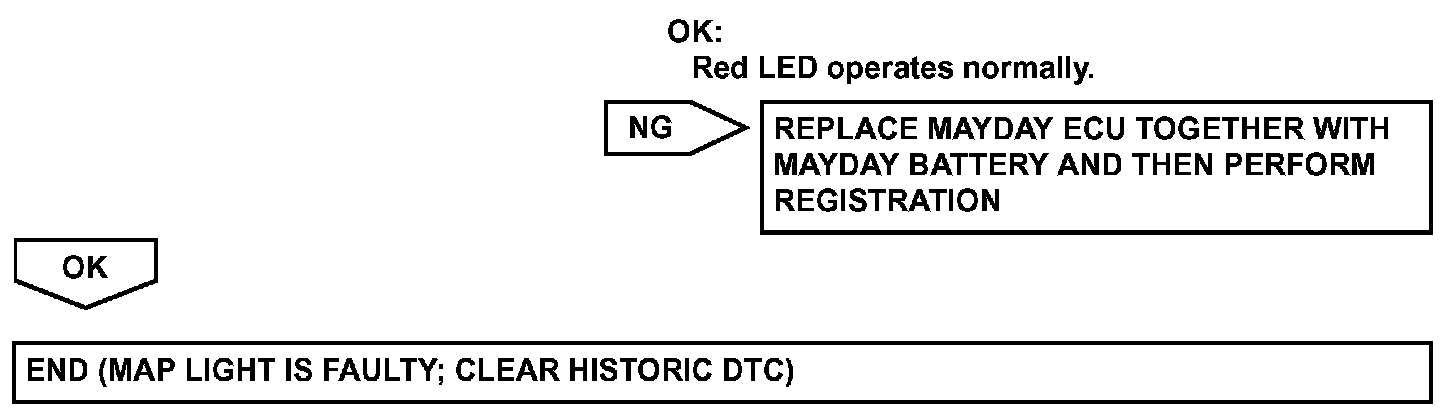

Step 3 (Continued):

INSPECTION PROCEDURE
