DTC 3-1

DTC 3-1 GPS Antenna Error

DESCRIPTION

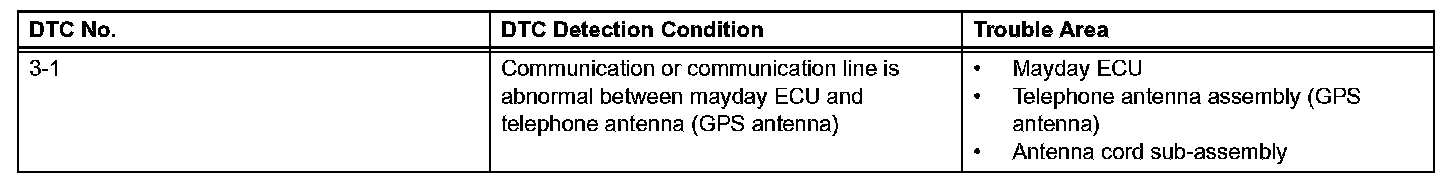

DTC Detection Condition:

This DTC is output when one of the following occurs: 1) the Mayday ECU is malfunctioning; 2) the telephone antenna (GPS antenna) is malfunctioning; or 3) the antenna cord is malfunctioning.

Wiring Diagram:

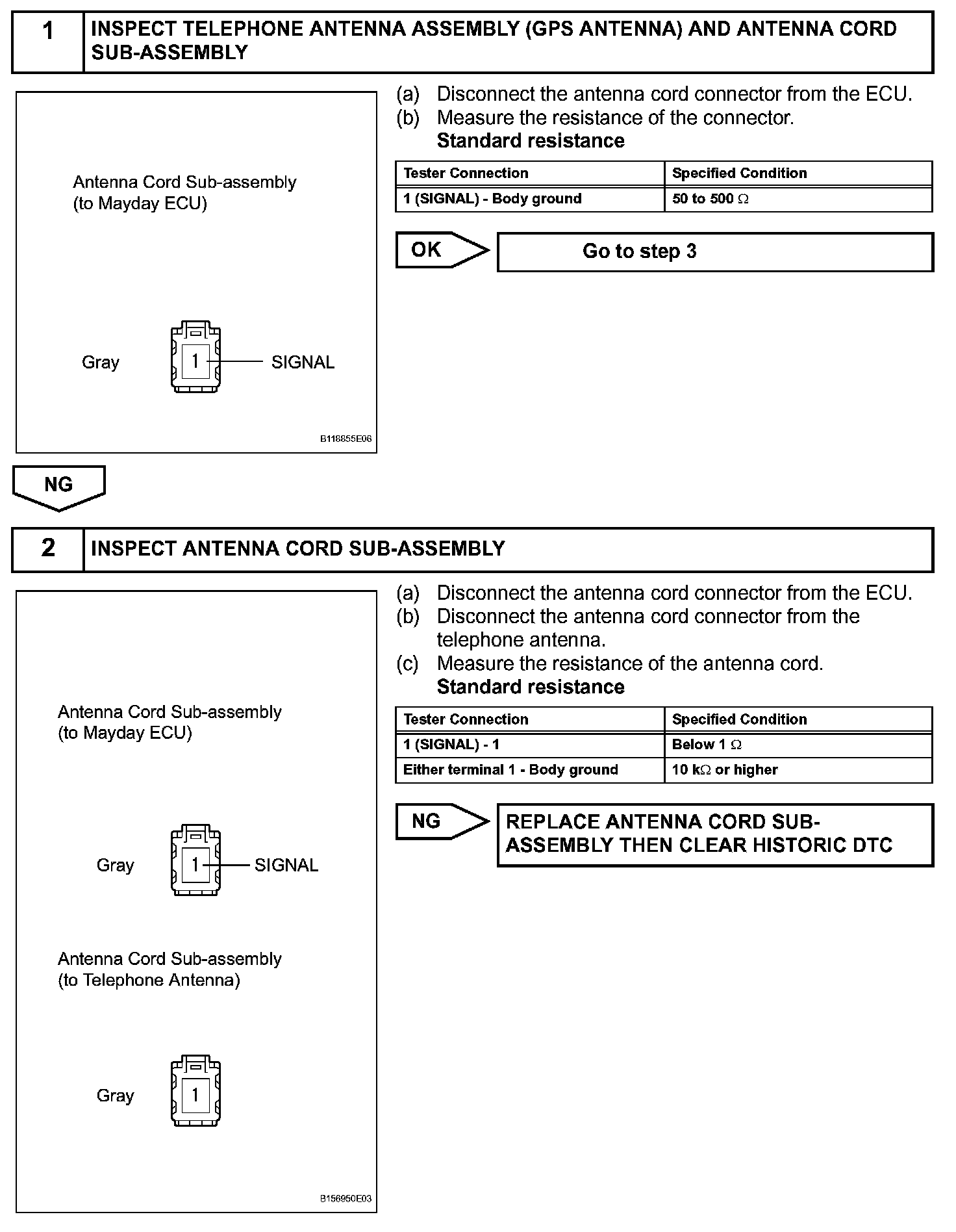

Step 1-2:

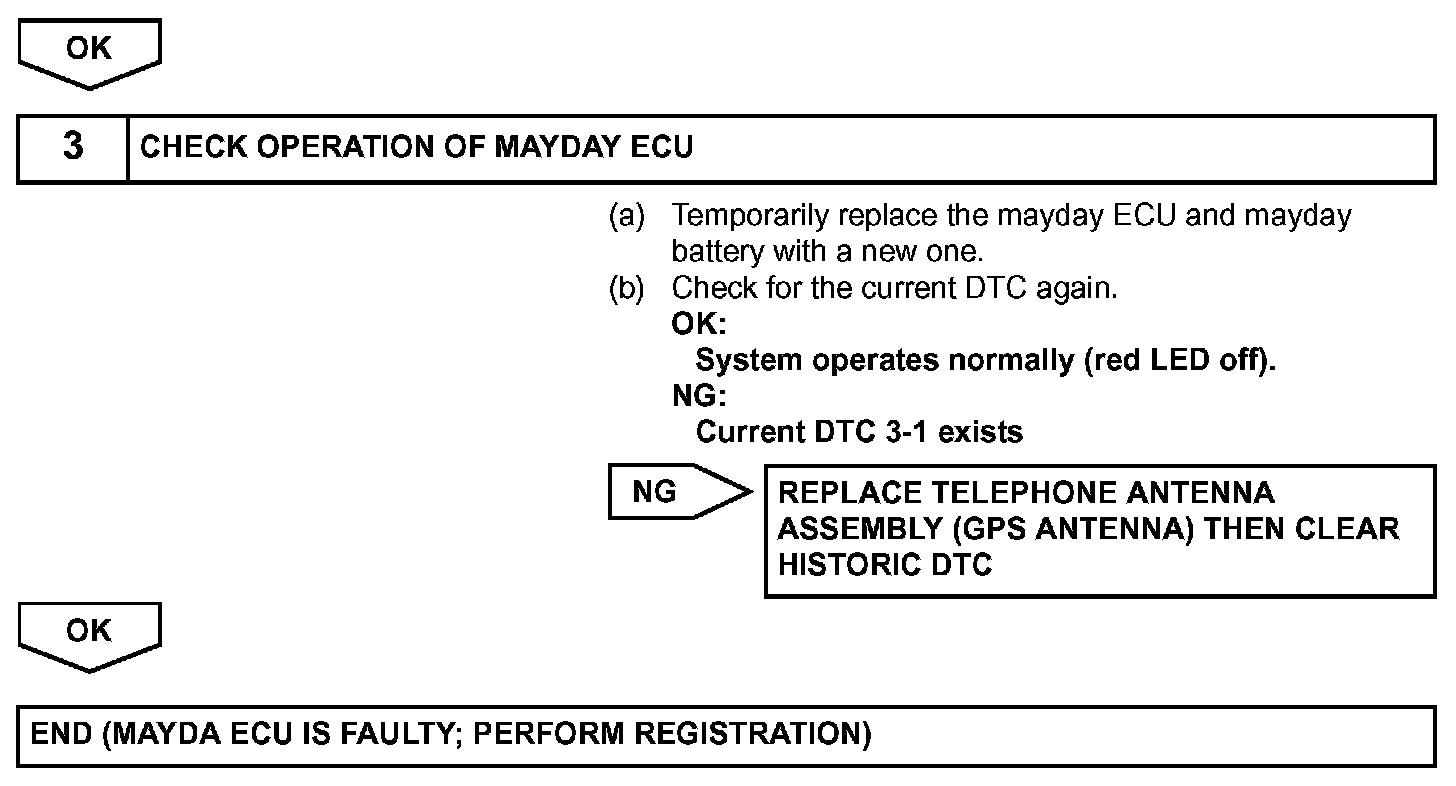

Step 2 (Continued)-3:

INSPECTION PROCEDURE
