DTC 13

DTC B1413/13 Evaporator Temperature Sensor Circuit

DESCRIPTION

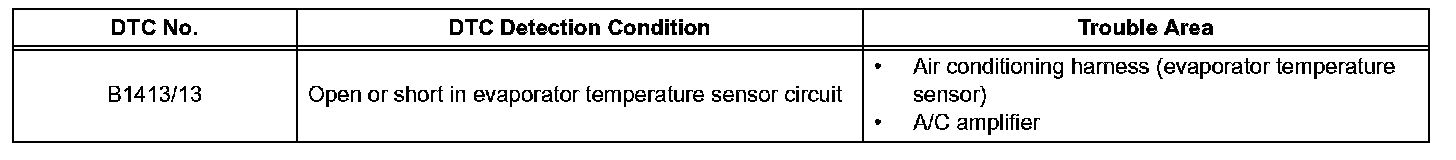

DTC Detection Condition:

The evaporator temperature sensor (A/C thermistor) is installed on the evaporator in the air conditioner unit to detect the cooled air temperature that has passed through the evaporator and control the air conditioning. It sends appropriate signals to the A/C amplifier. The resistance of the evaporator temperature sensor (A/C thermistor) changes in accordance with the cooled air temperature that has passed through the evaporator. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.

The A/C amplifier applies voltage (5 V) to the evaporator temperature sensor (A/C thermistor) and reads voltage changes as the resistance of the evaporator temperature sensor (A/C thermistor) changes. This sensor is used for frost prevention.

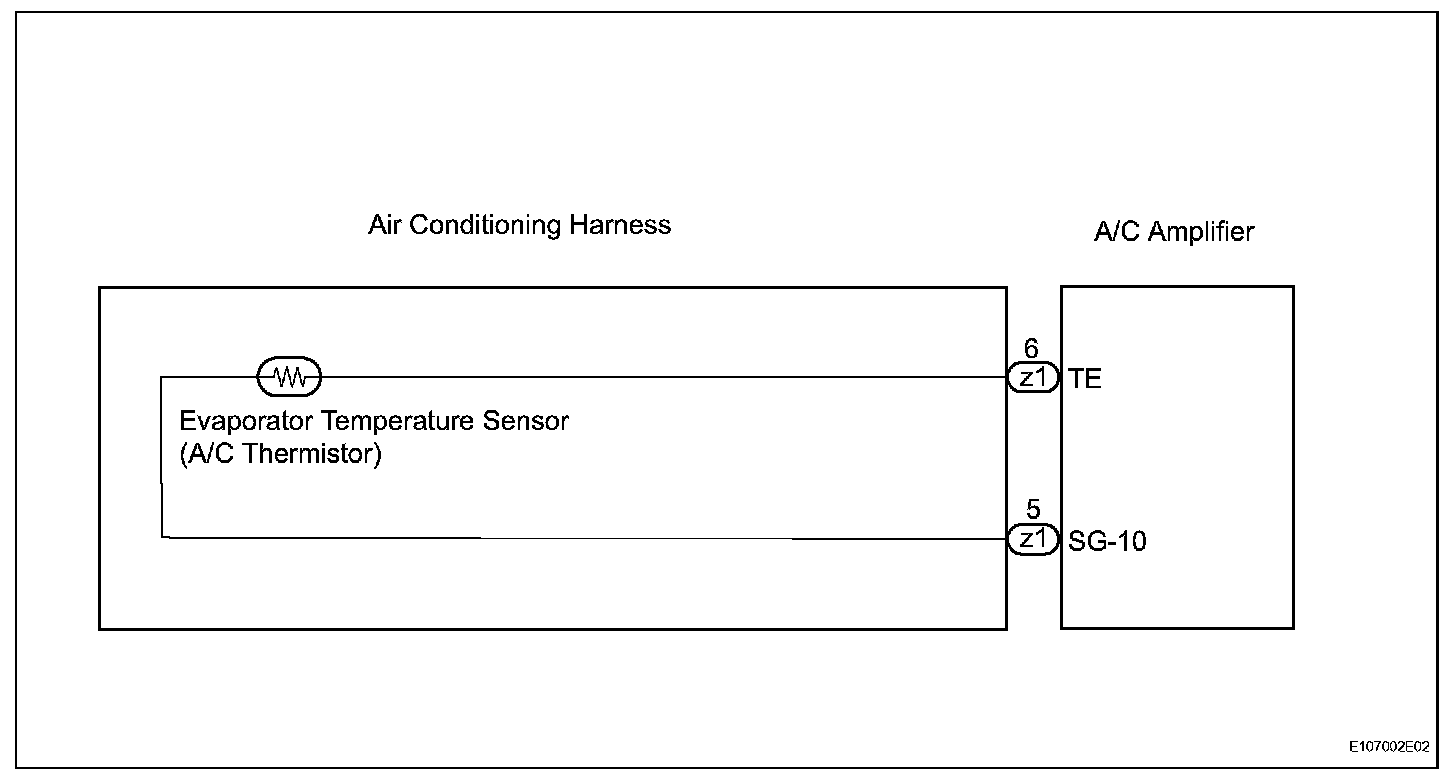

Wiring Diagram:

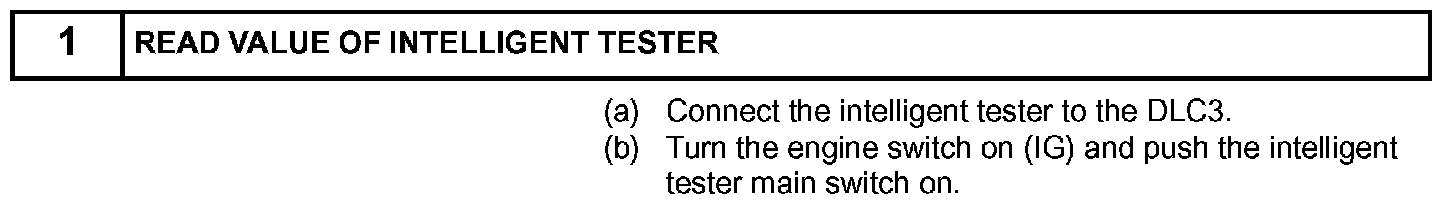

Step 1:

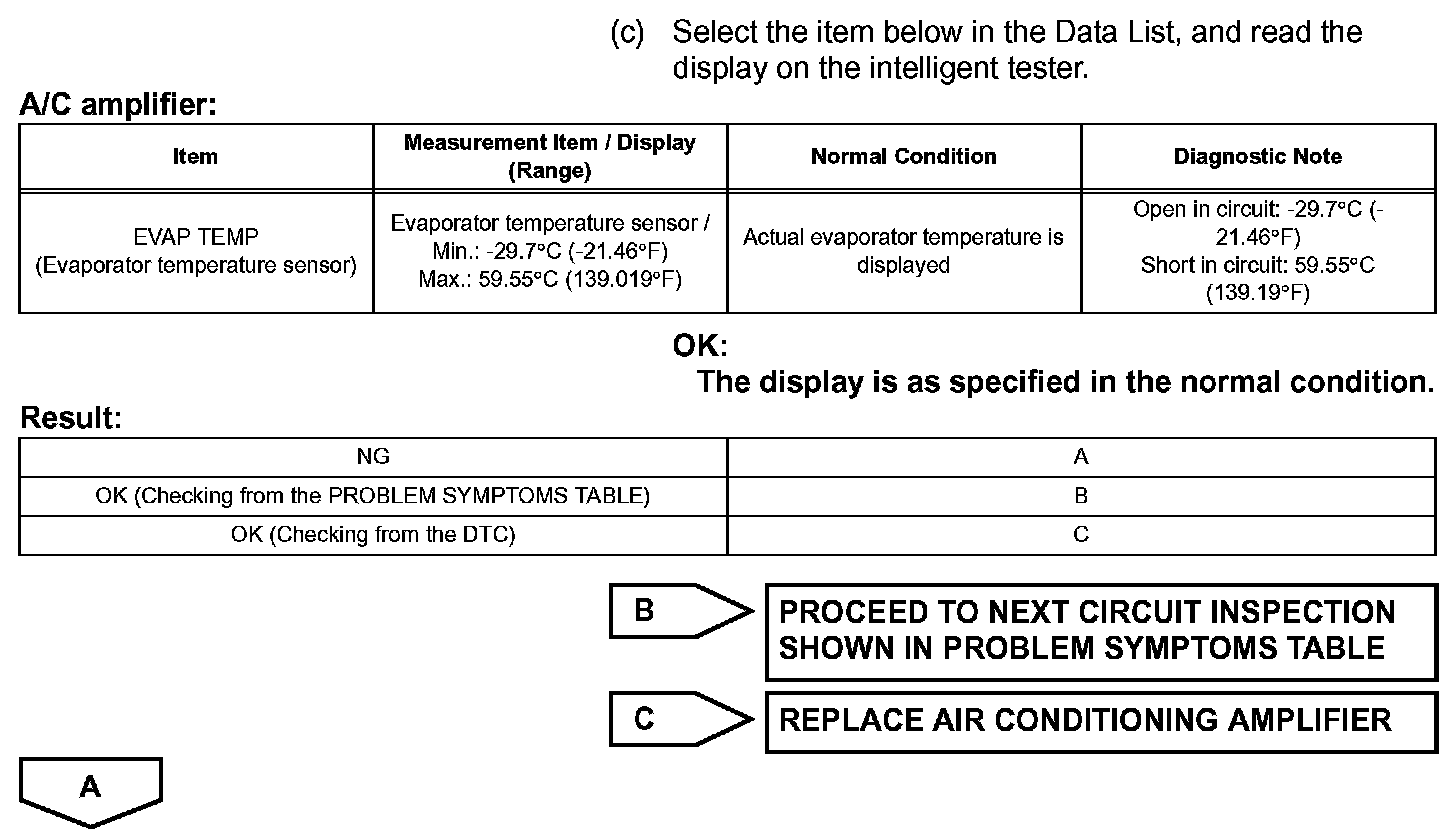

Step 1 (Continued):

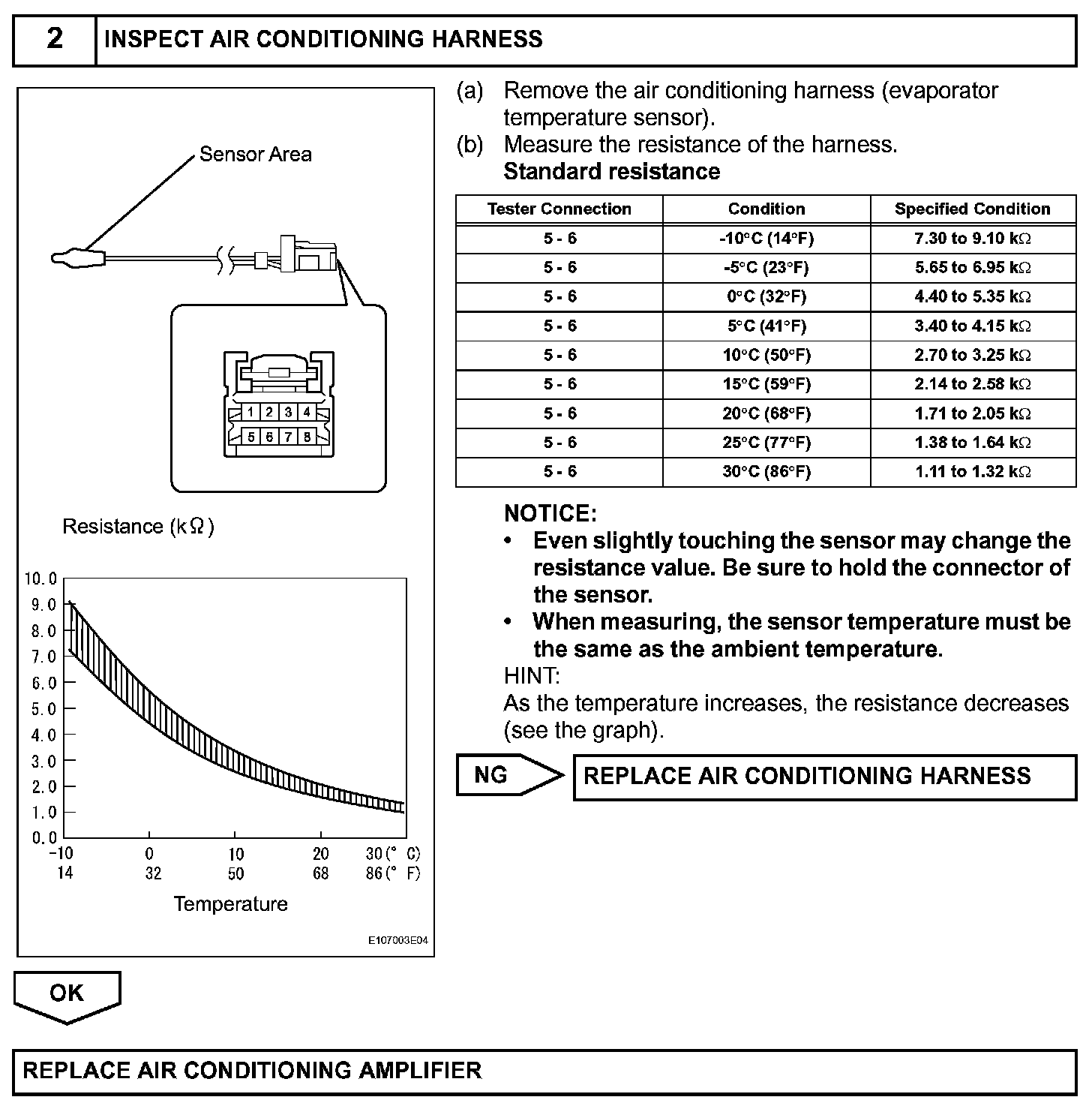

Step 2:

INSPECTION PROCEDURE
