C1777

DTC C1777 Steering Angle Sensor Circuit

DESCRIPTION

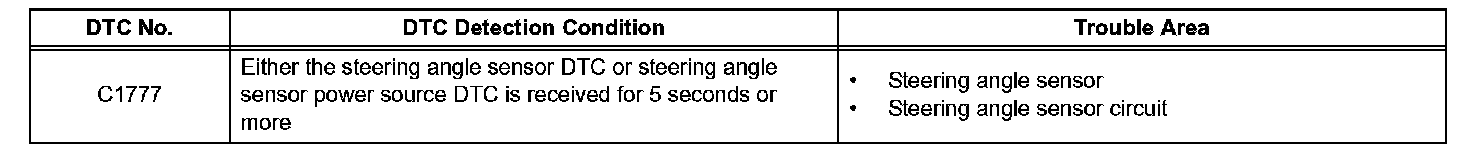

DTC Detection Condition:

- The steering angle sensor detects the amount and direction of steering wheel movement and inputs these details to the absorber control ECU via CAN communication.
- The fail-safe function prohibits roll posture control if any malfunction occurs in the steering angle sensor circuit.

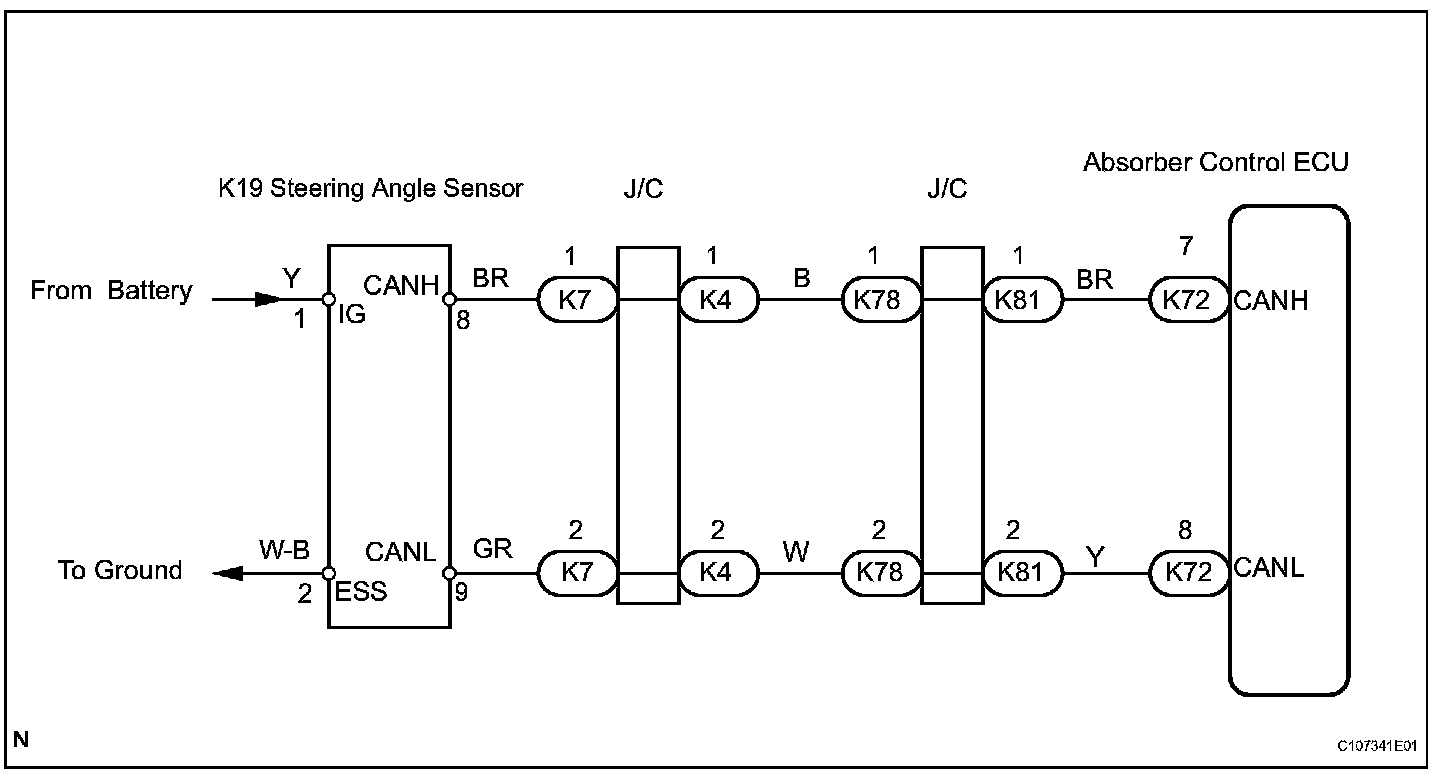

Wiring Diagram:

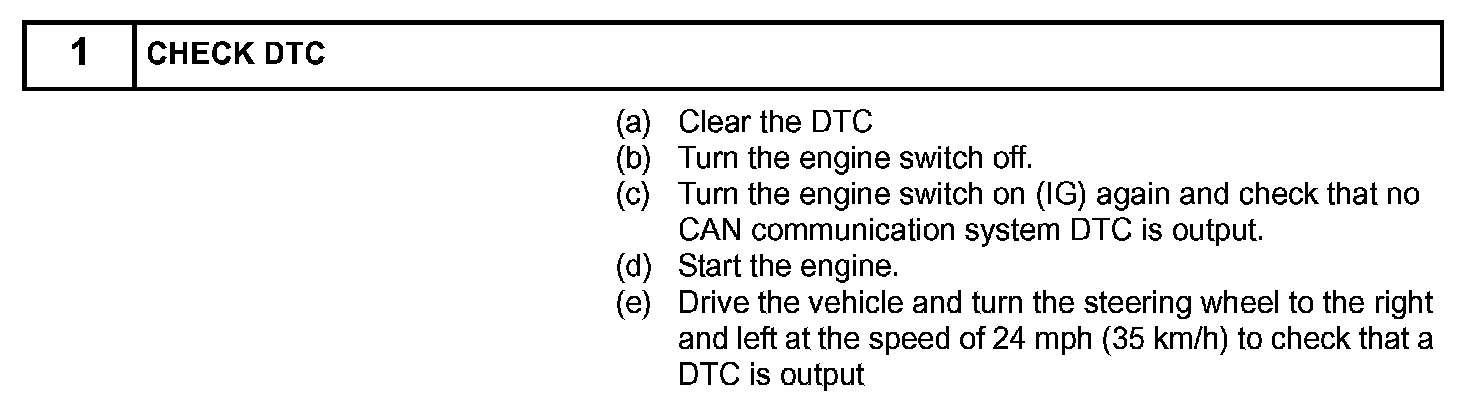

Step 1:

Step 1(Continued)-2:

INSPECTION PROCEDURE

HINT:
- Check the condition of each related circuit connector before troubleshooting.
- When C1774 is output, inspect and repair the trouble areas indicated by C1774 first.
