B2620

DTC B2620 ECU Power Source Circuit Malfunction

DESCRIPTION
The ECU power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.

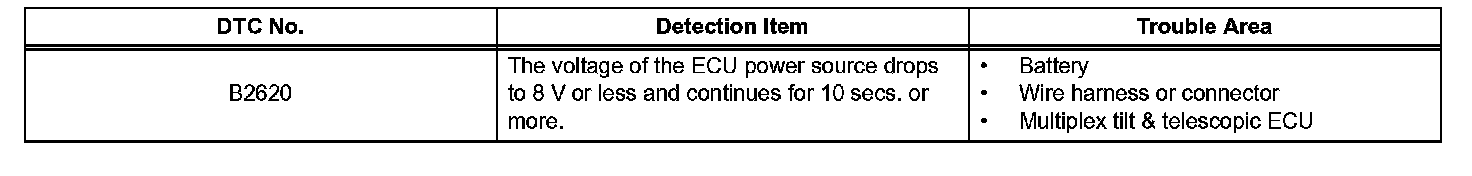

B2620:

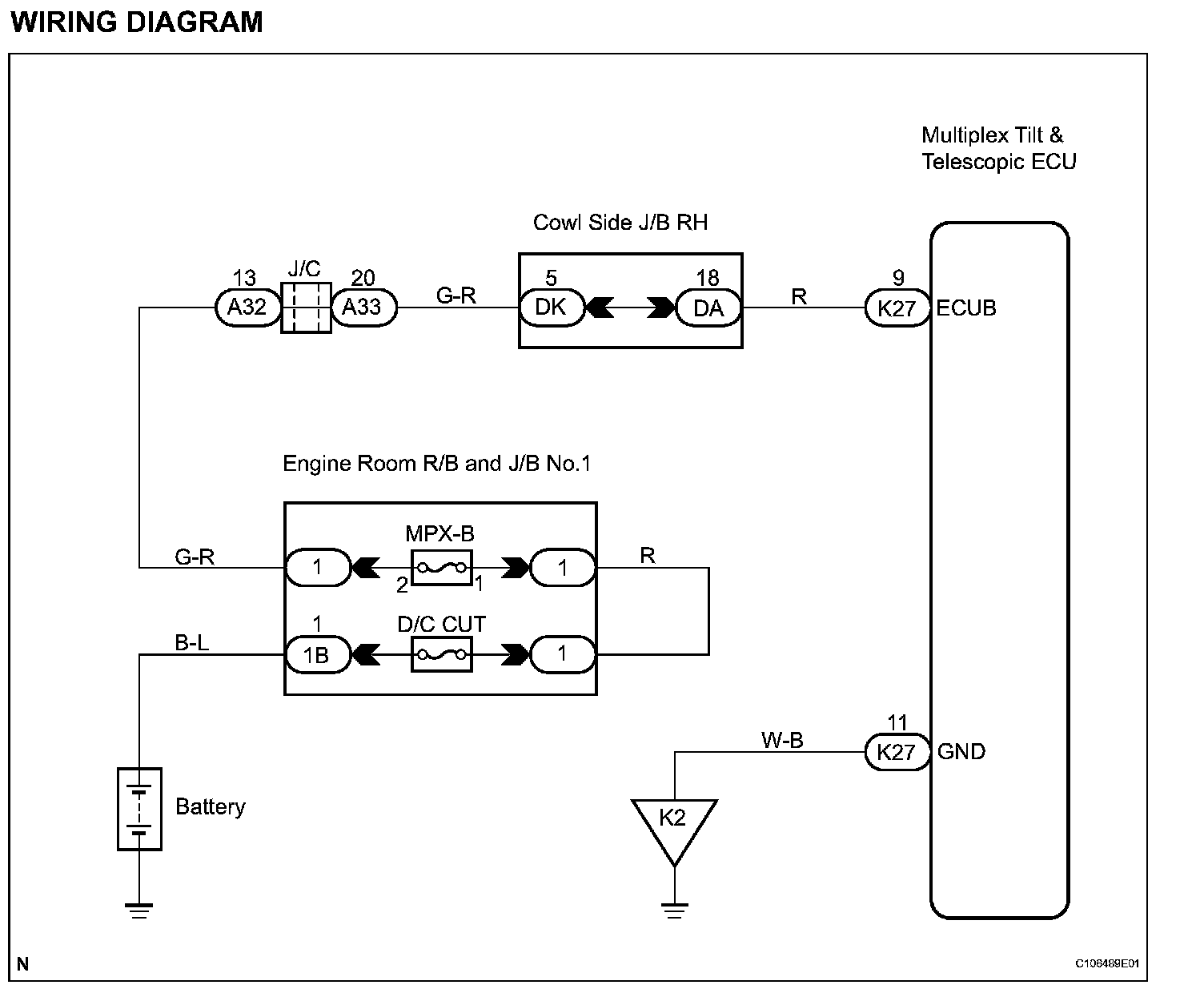

WIRING DIAGRAM:





INSPECTION PROCEDURE

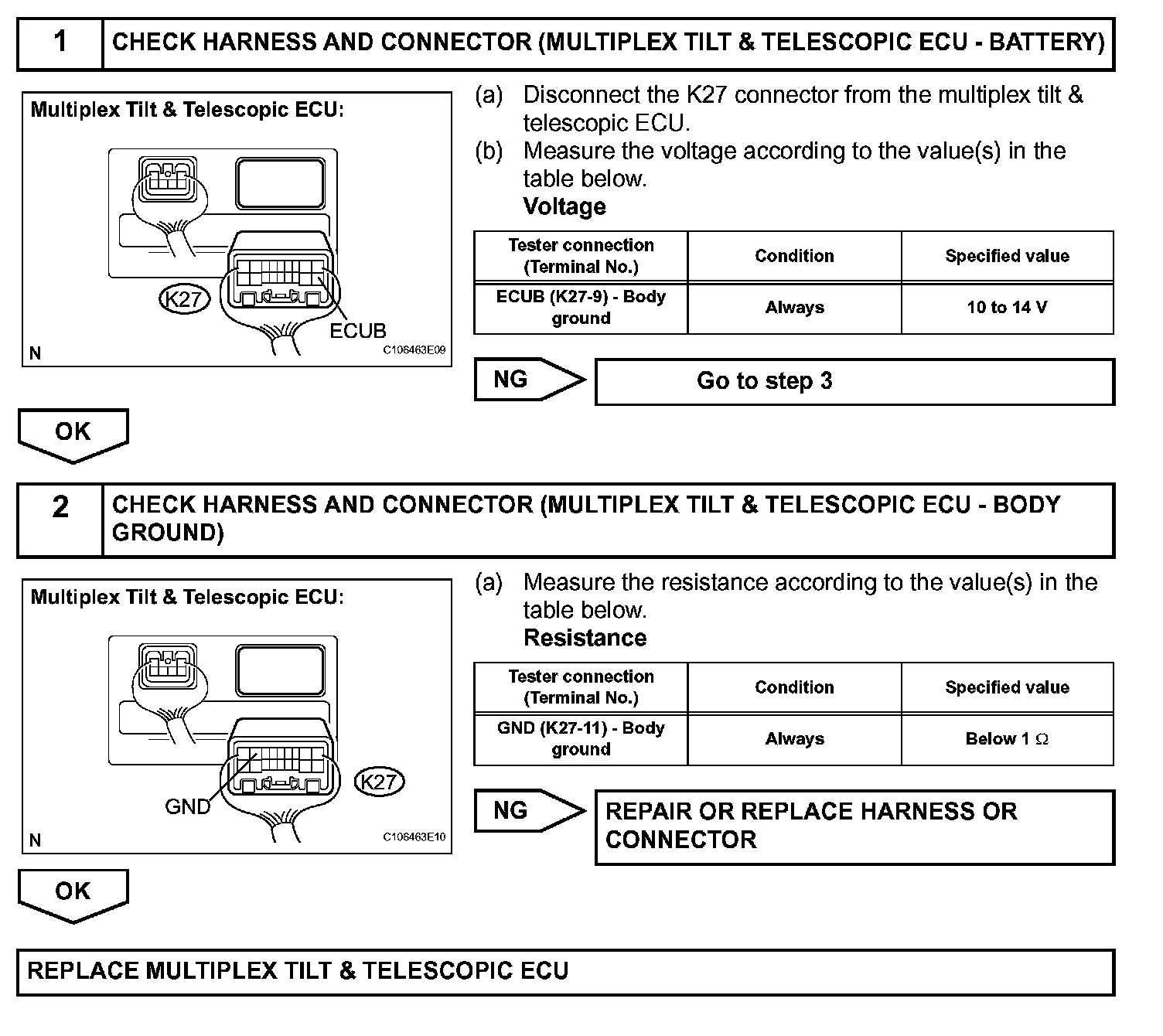

Steps 1-2:

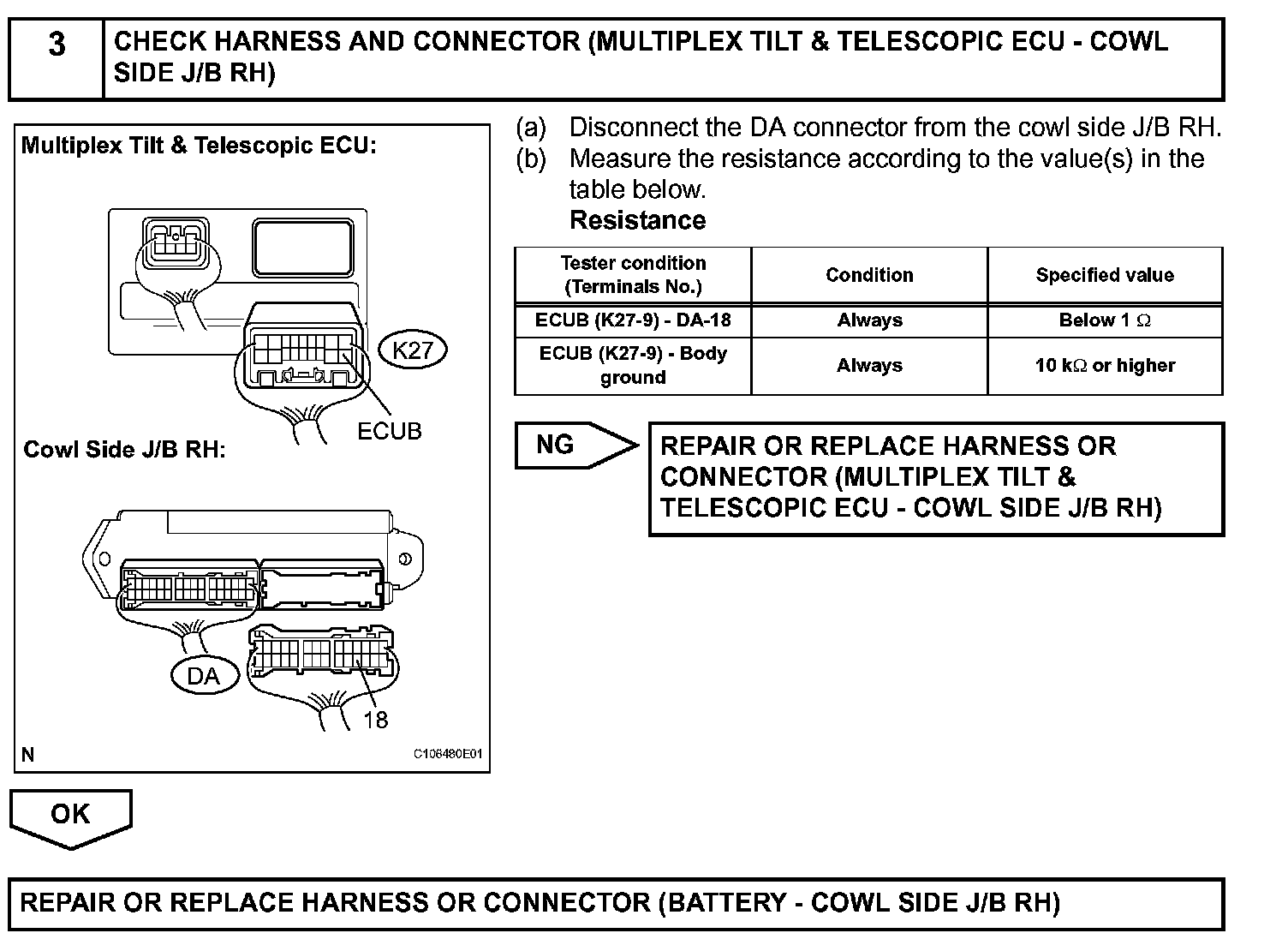

Step 3:
