B2235
DTC B2235 Front Right Sensor MalfunctionDESCRIPTION

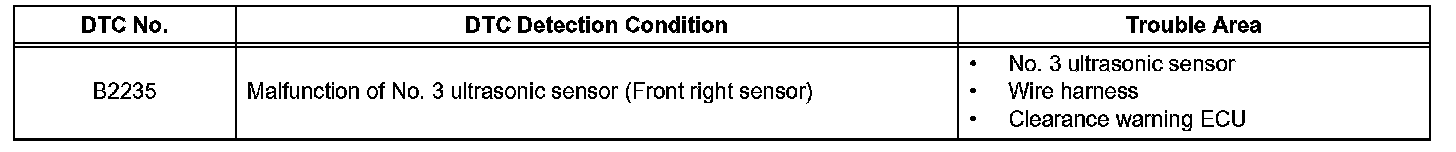

DTC Detection Condition:

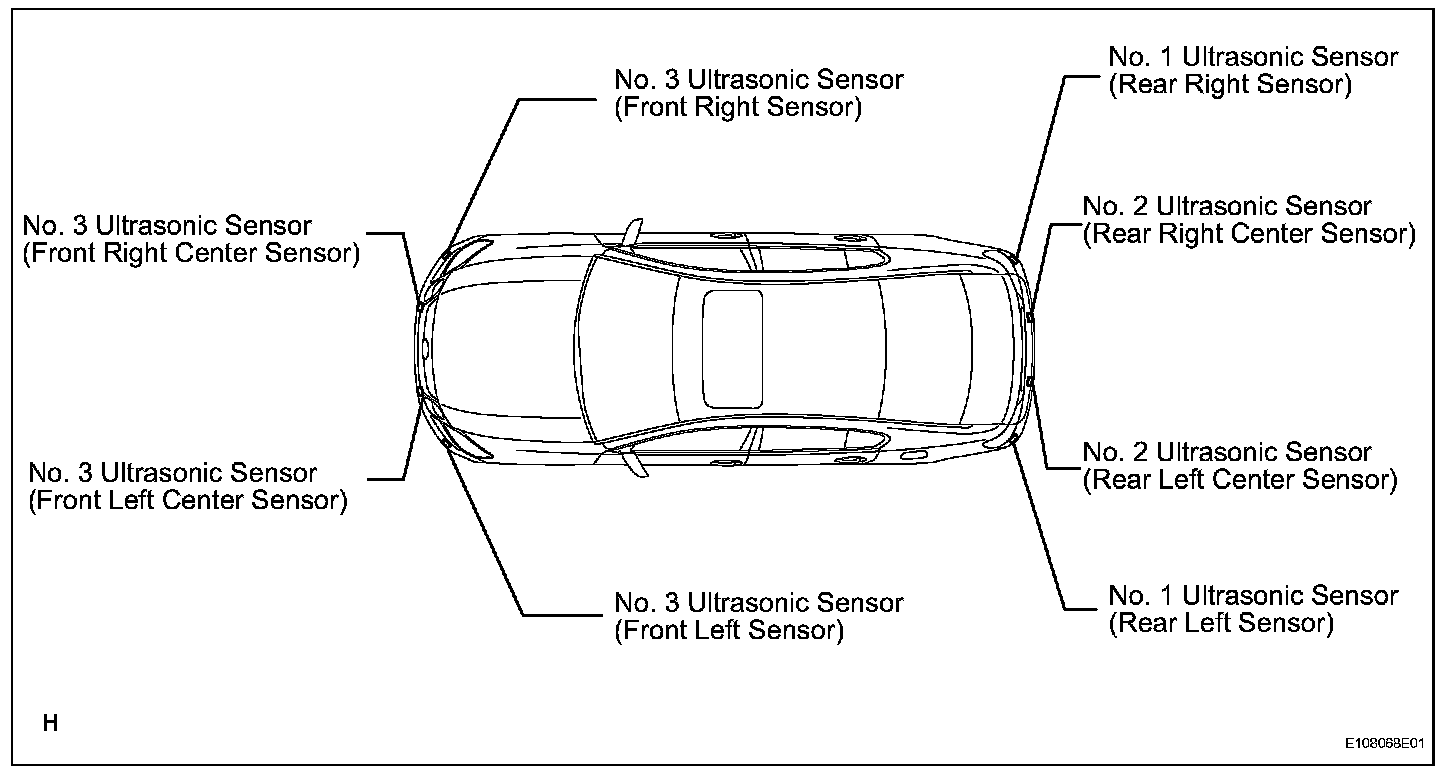

The No. 3 ultrasonic sensor (front right sensor) is installed on the front bumper.
The clearance warning ECU detects obstacles based on signals received from the front right sensor. If the front right sensor's circuit has an open, short or other malfunction, it will not function normally.

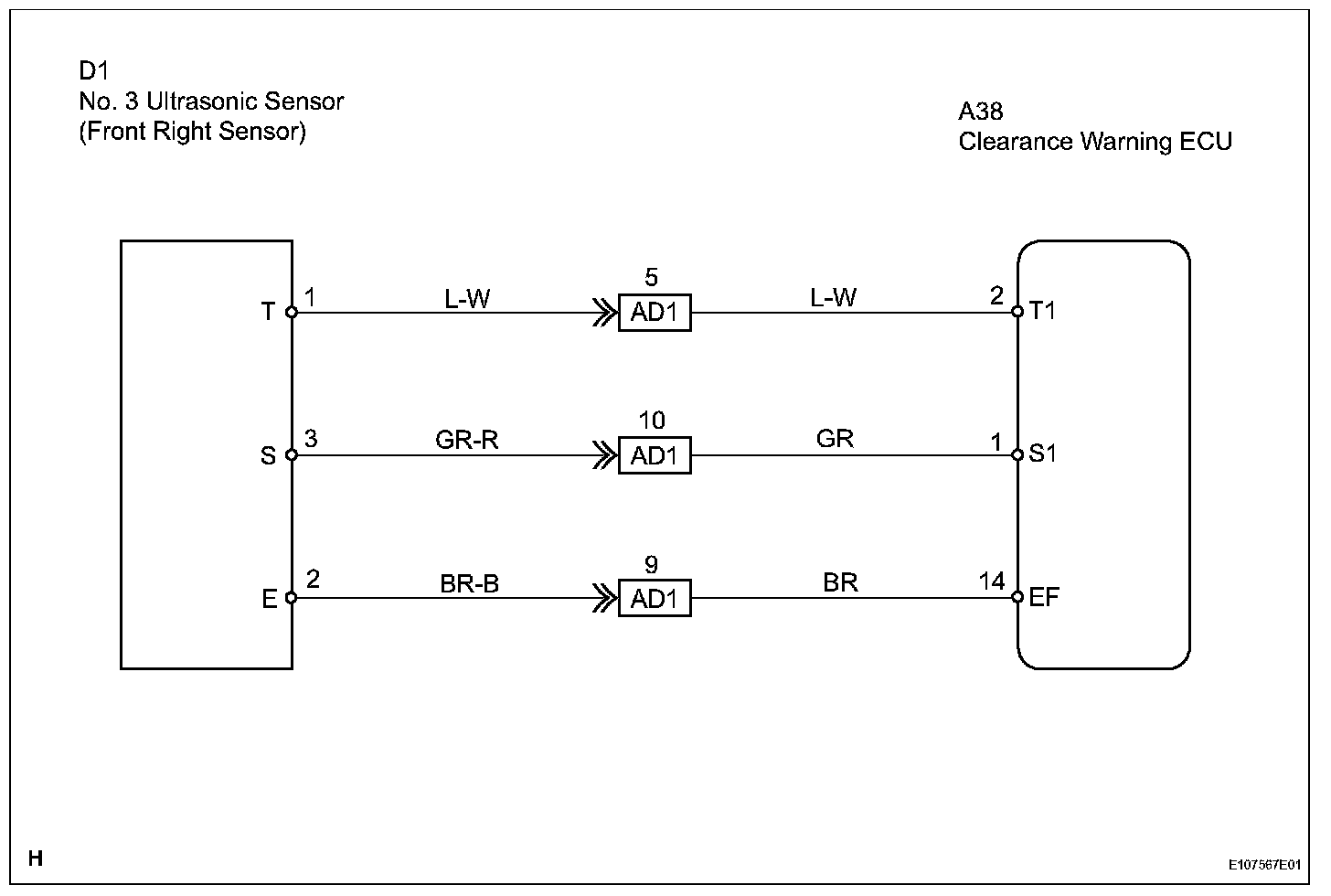

Wiring Diagram:
INSPECTION PROCEDURE

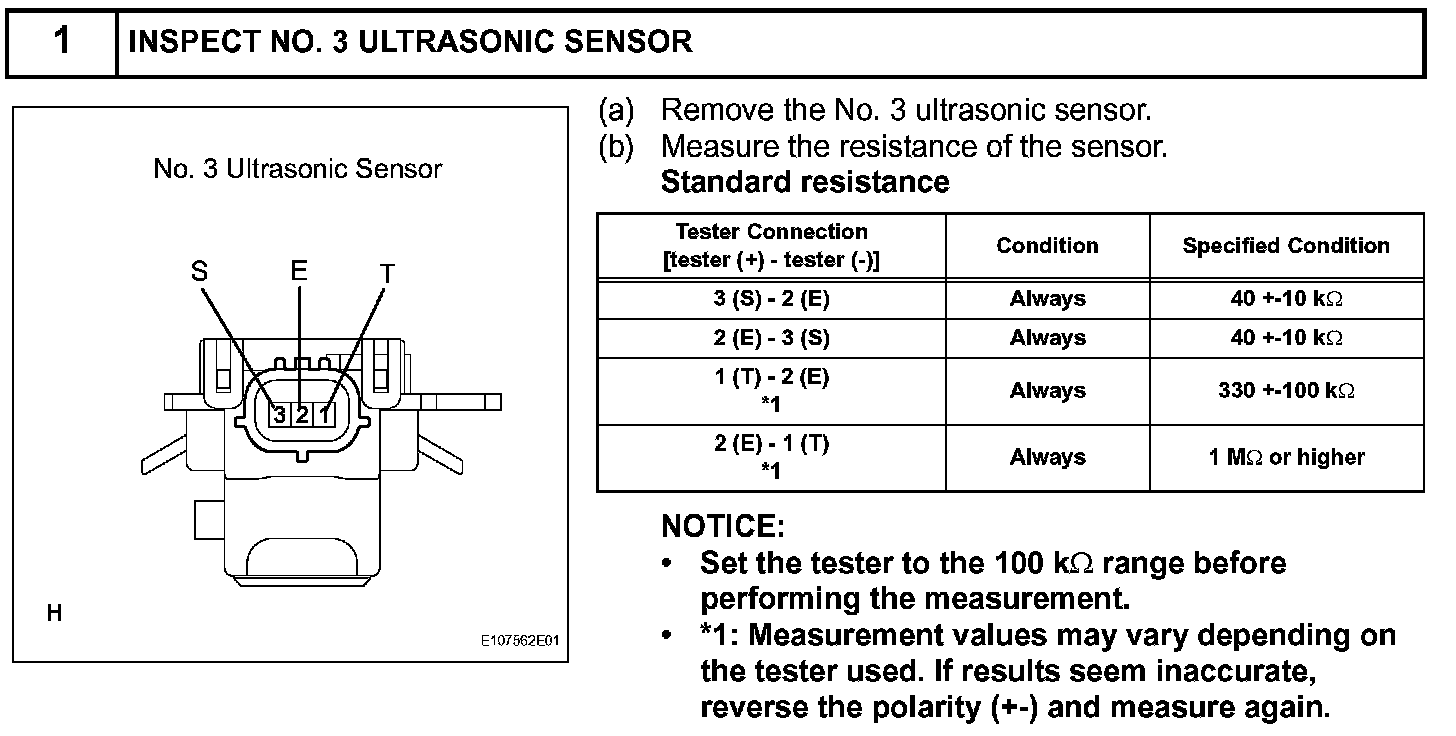

Step 1:

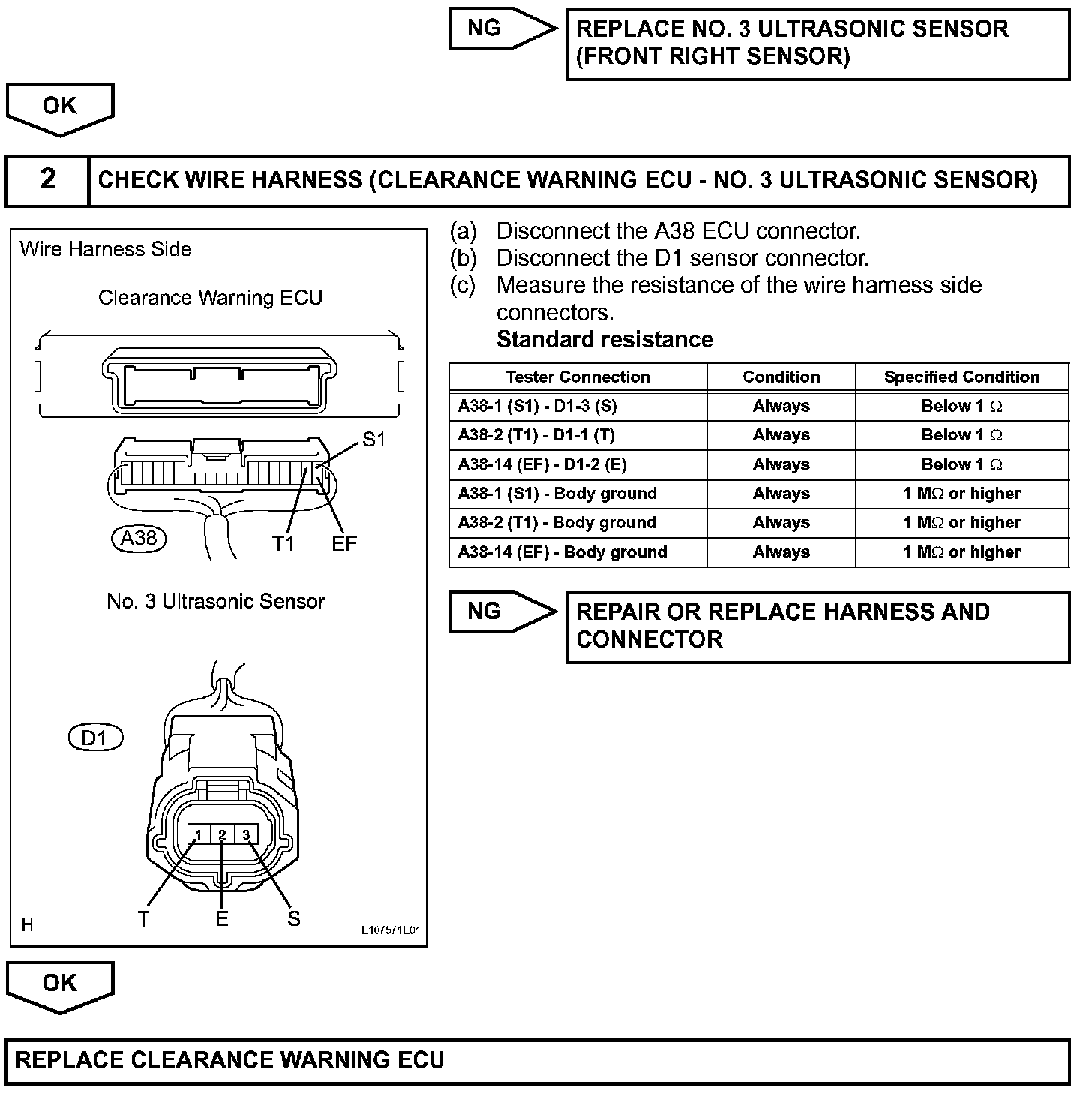

Step 1 (Continued)-2:
