DTC B2216 Back Door Closer Does Not Function Normally

DESCRIPTION
The luggage compartment door closer consists of: 1) the luggage compartment door closer motor, which performs opener and closer operations based on signals from the cowl side junction block ECU LH; 2) 2 position detection switches (LOPN, LCLS), which check the position of the closer motor; and 3) the luggage door courtesy switch (LCTY), which sends signals to start/stop the closer operation and illuminates the luggage room light. the door unlock switch (BDCY), which is built into the luggage compartment door striker, detects whether the luggage compartment door is open or closed, and transmits ON/OFF signals to the cowl side junction block ECU LH.

HINT: "Back door" refers to luggage compartment door.

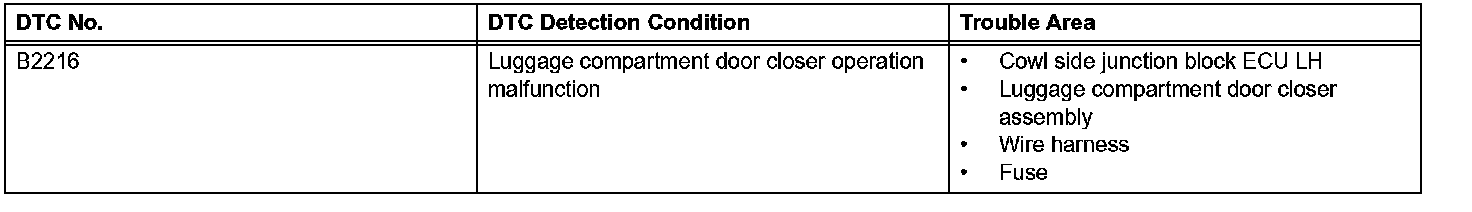

DTC Detection Condition:

WIRING DIAGRAM

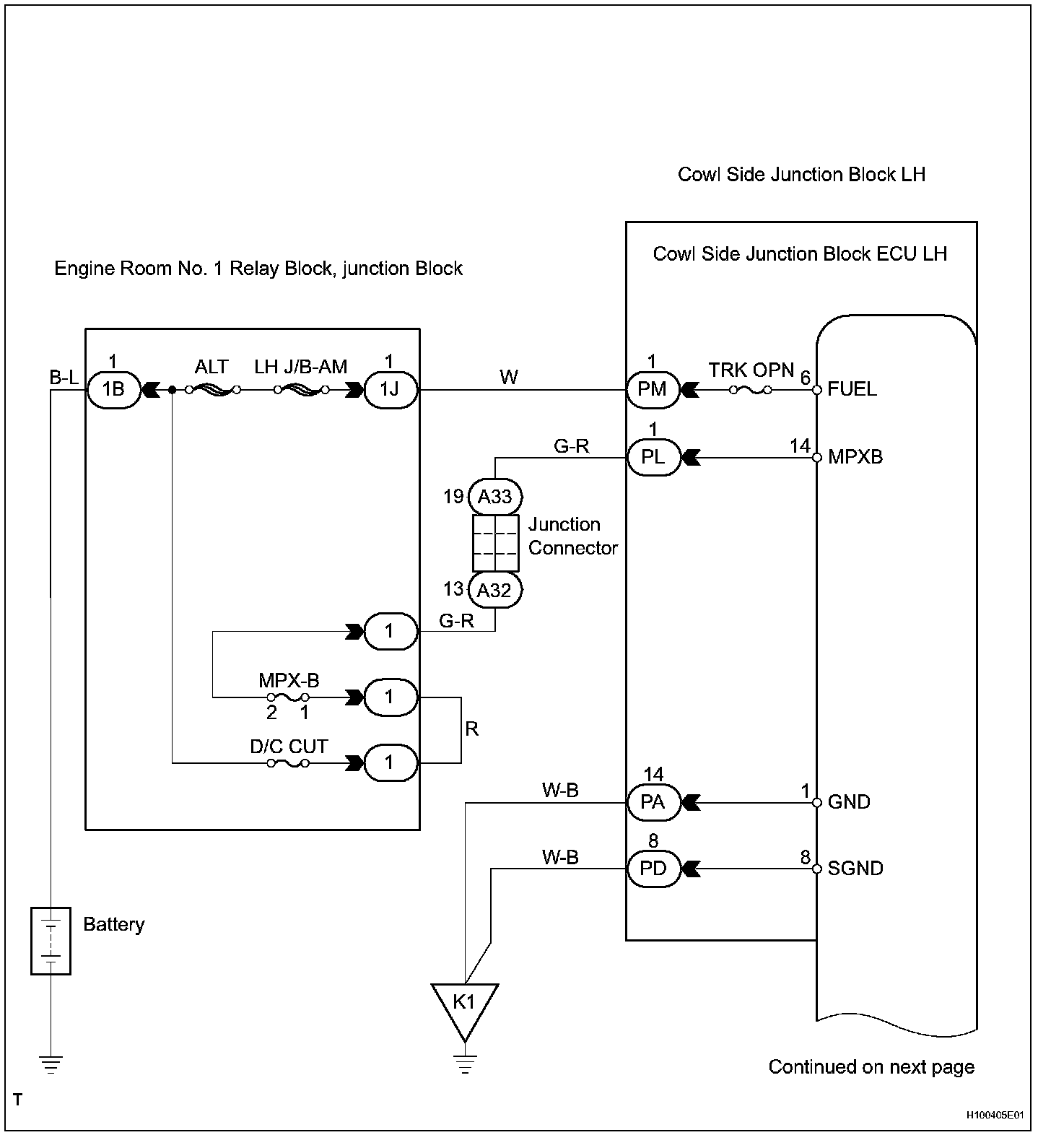

Wiring Diagram (Part 1):

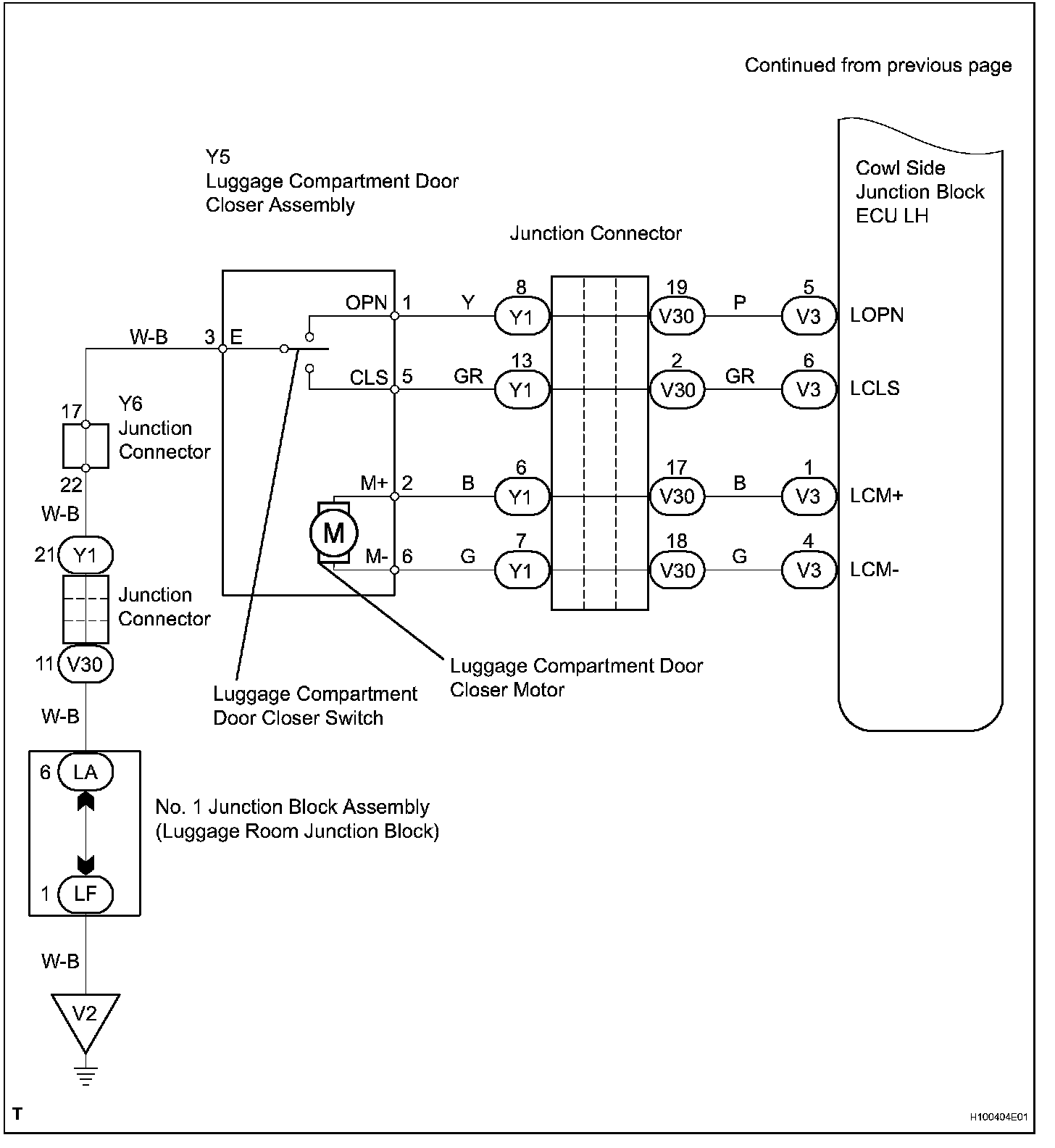

Wiring Diagram (Part 2):

INSPECTION PROCEDURE

Step 1 - 2:

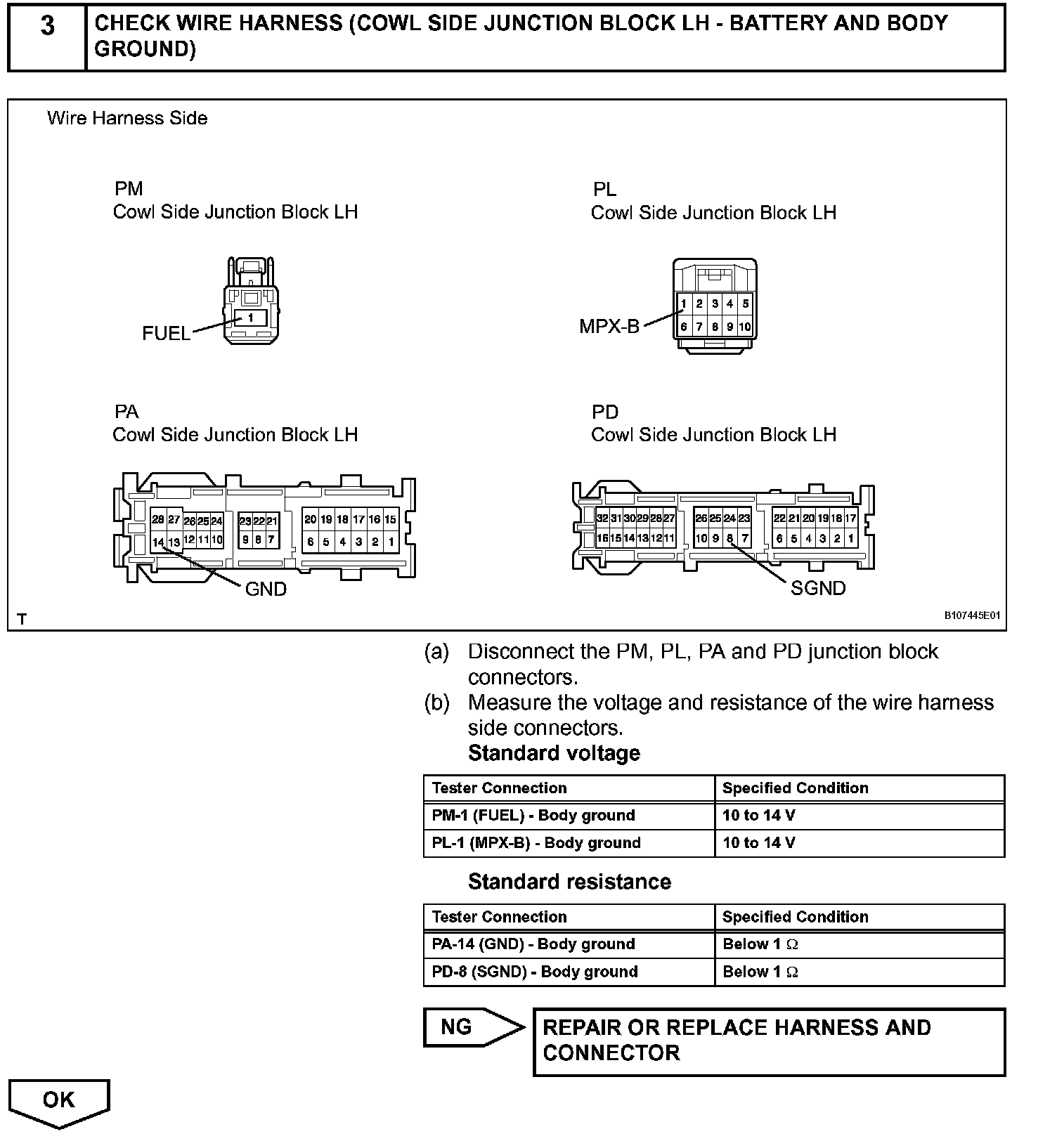

Step 3:

Step 4 - 5:

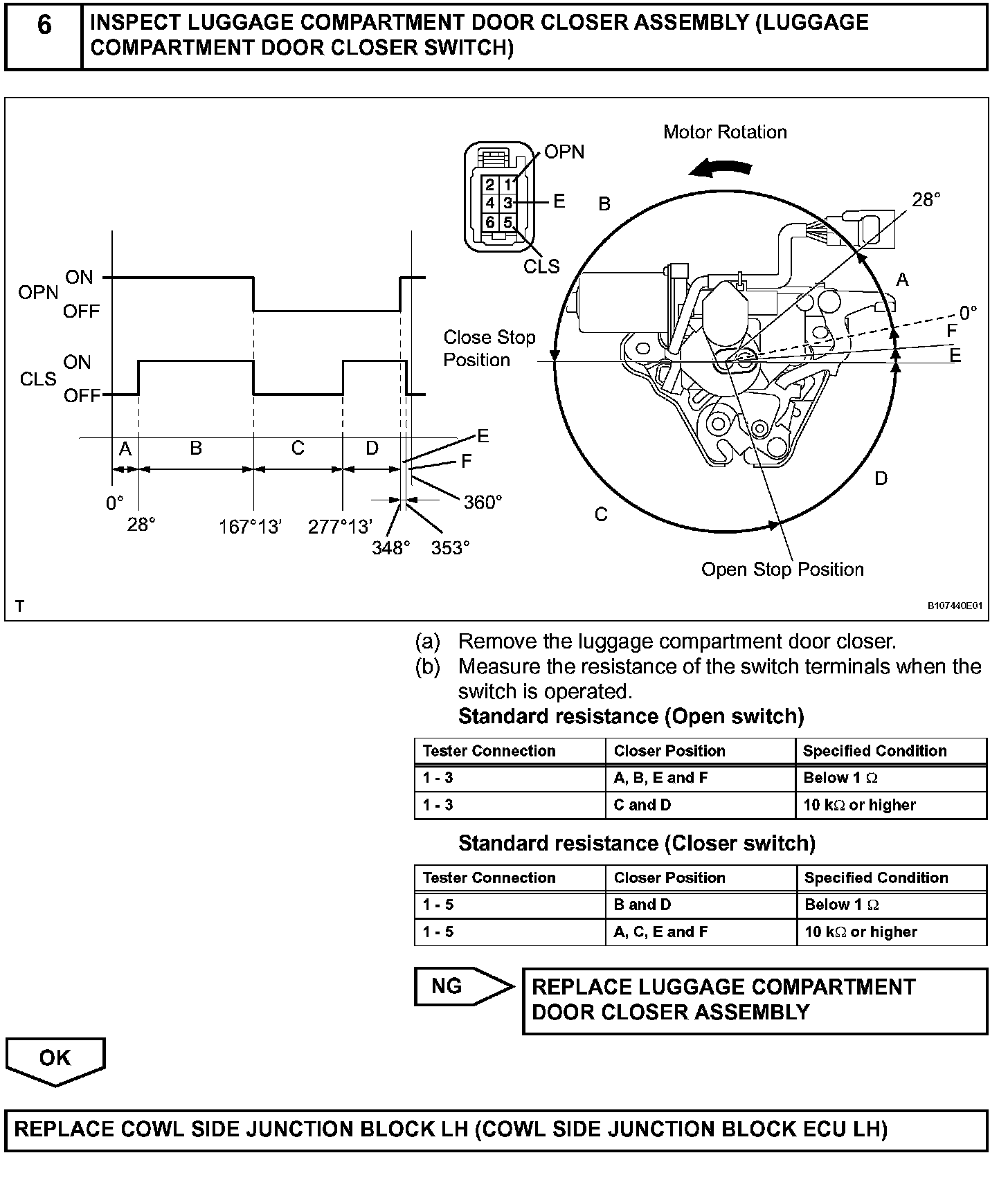

Step 6:
