B2058

DTC B2058 Steering Angle Sensor

DESCRIPTION

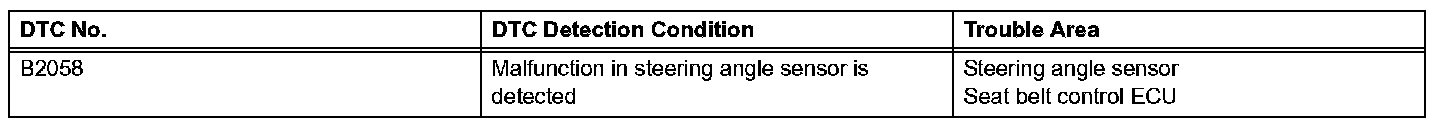

DTC Detection Condition:

This DTC is output when a malfunction in the steering angle sensor is detected. This circuit consists of the steering angle sensor and seat belt control ECU. Signals are sent from the steering sensor through CAN communication.

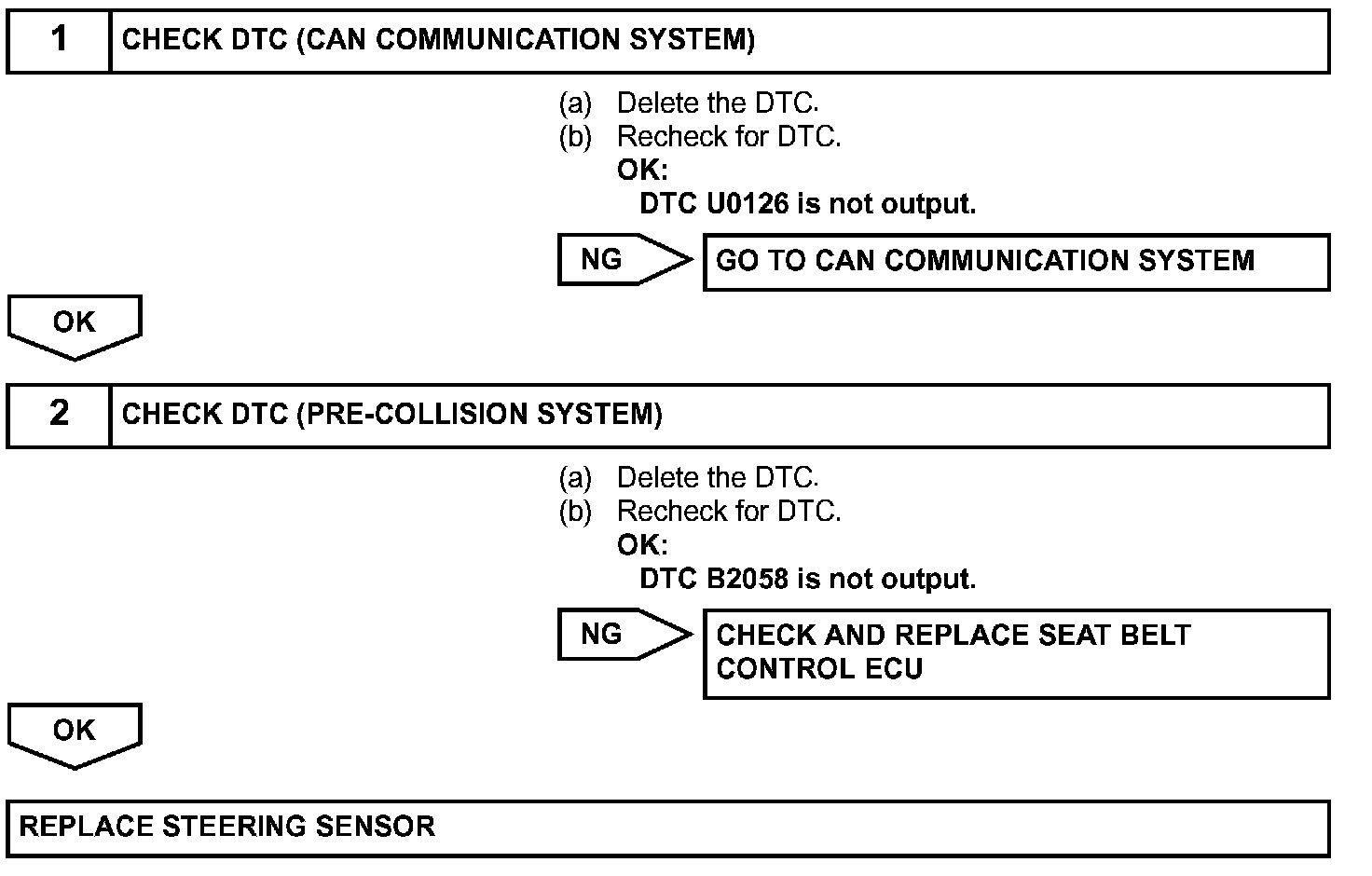

INSPECTION PROCEDURE

NOTE: When the seat belt control ECU is replaced with a new one, Active Test must be performed.

Step 1-2:
