B1635

DTC B1635/24 Rear Airbag Sensor LH Circuit Malfunction

DESCRIPTION

DTC Detecting Condition:

The rear airbag sensor LH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1635/24 is recorded when a malfunction is detected in the rear airbag sensor LH circuit.

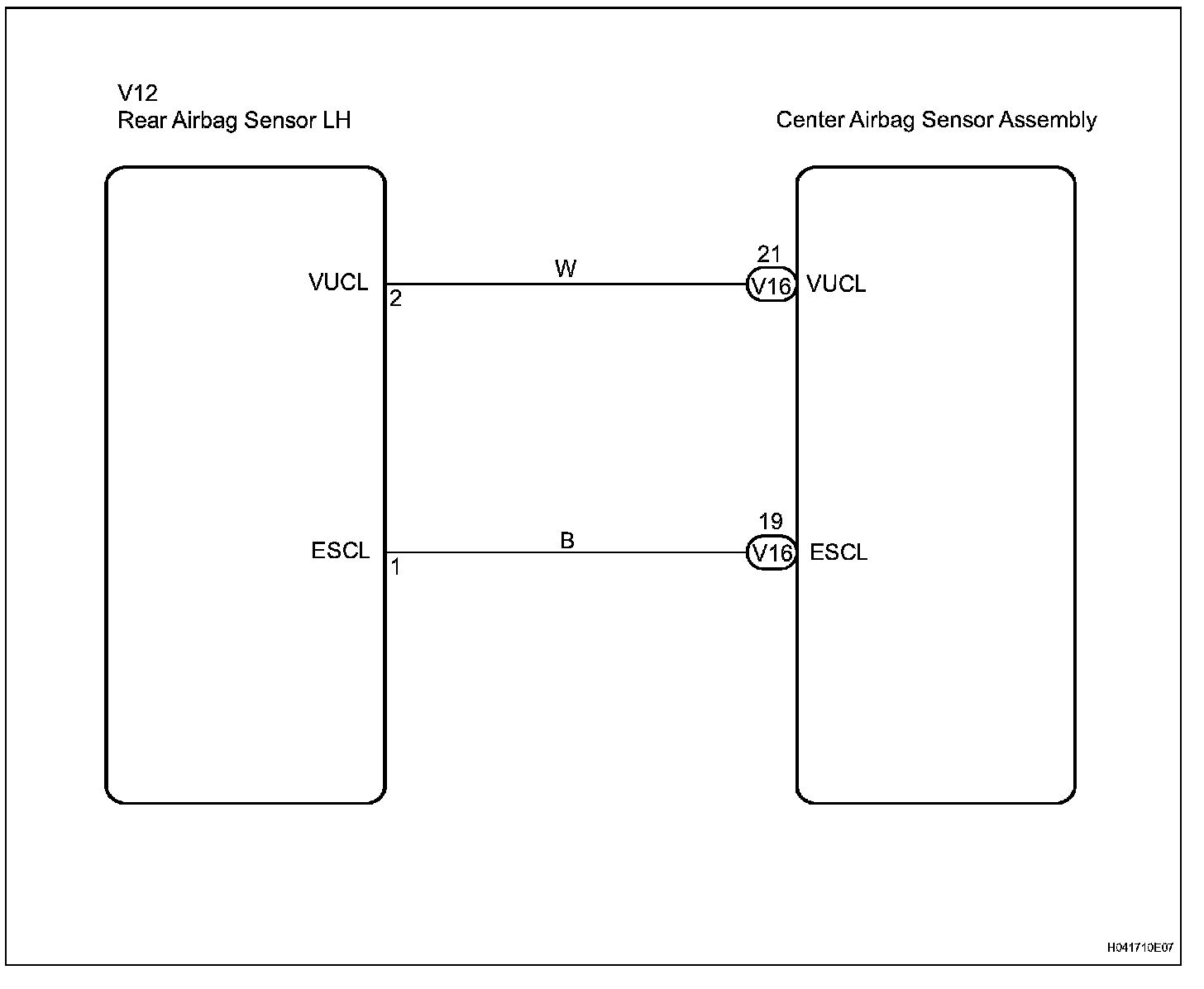

Wiring Diagram:

INSPECTION PROCEDURE

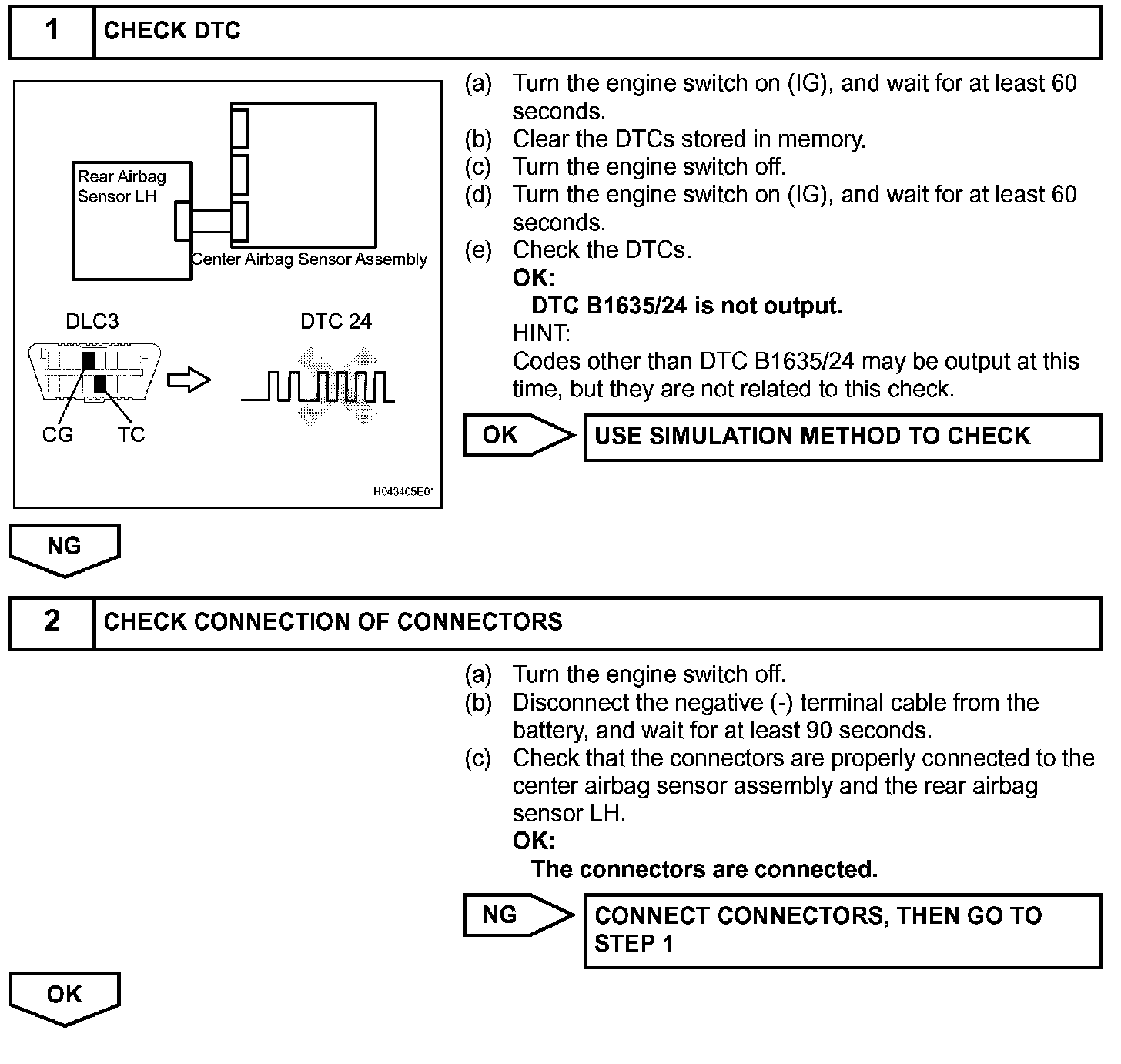

Step 1-2:

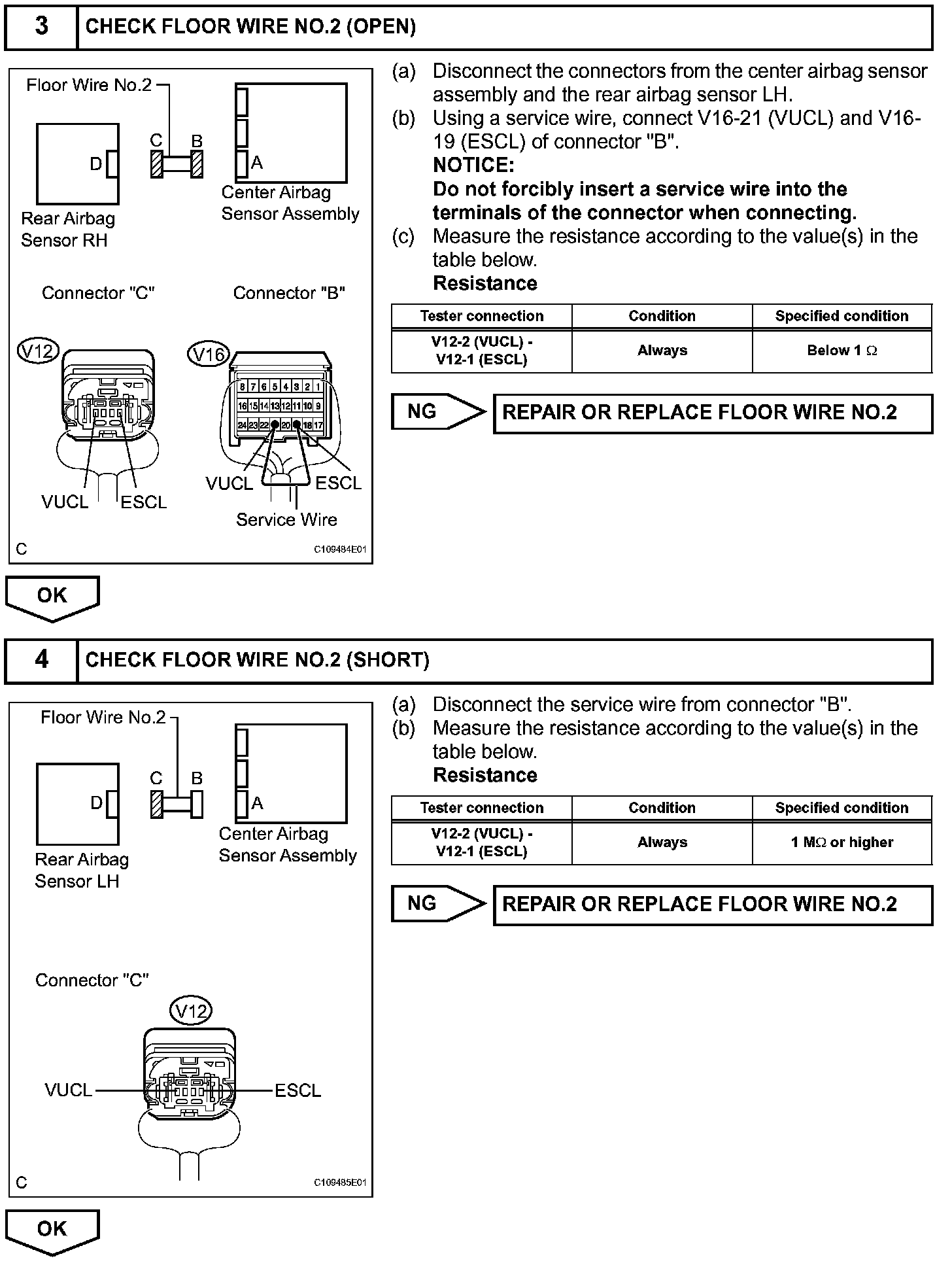

Step 3-4:

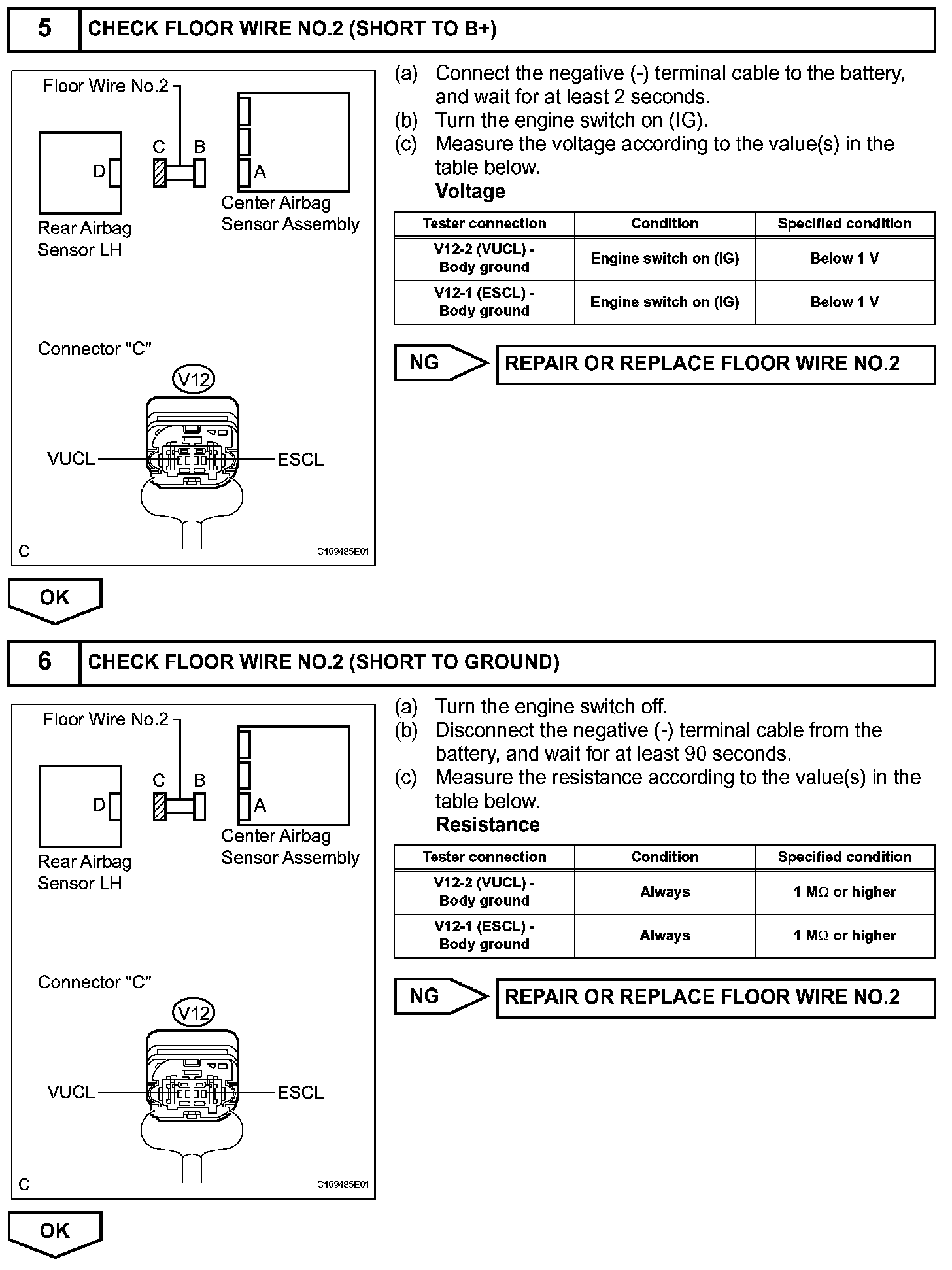

Step 5-6:

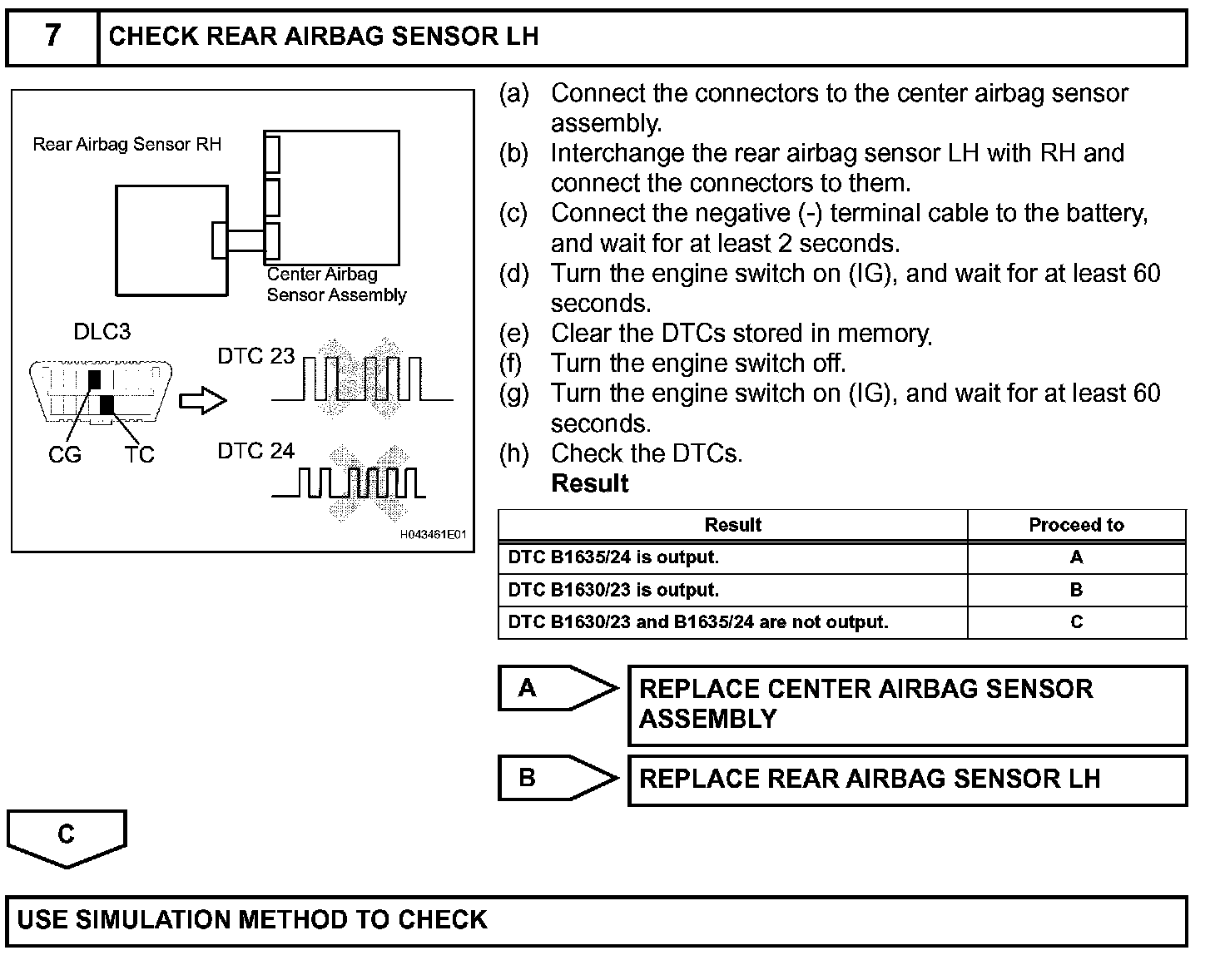

Step 7:
