B1630

DTC B1630/23 Rear Airbag Sensor RH Circuit Malfunction

DESCRIPTION

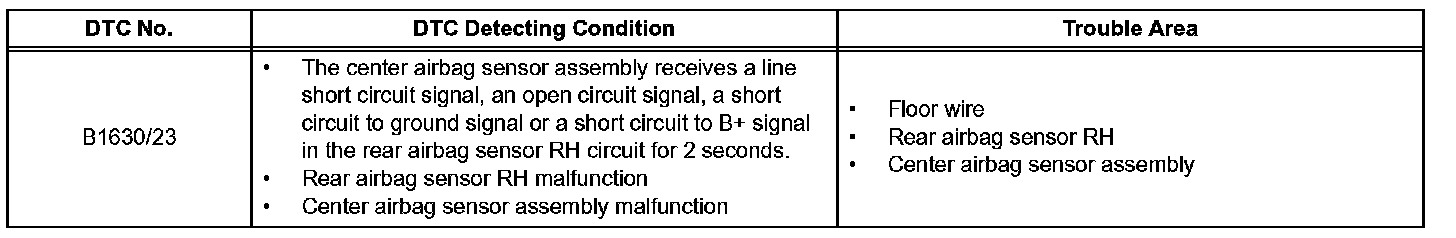

DTC Detecting Condition:

The rear airbag sensor RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1630/23 is recorded when a malfunction is detected in the rear airbag sensor RH circuit.

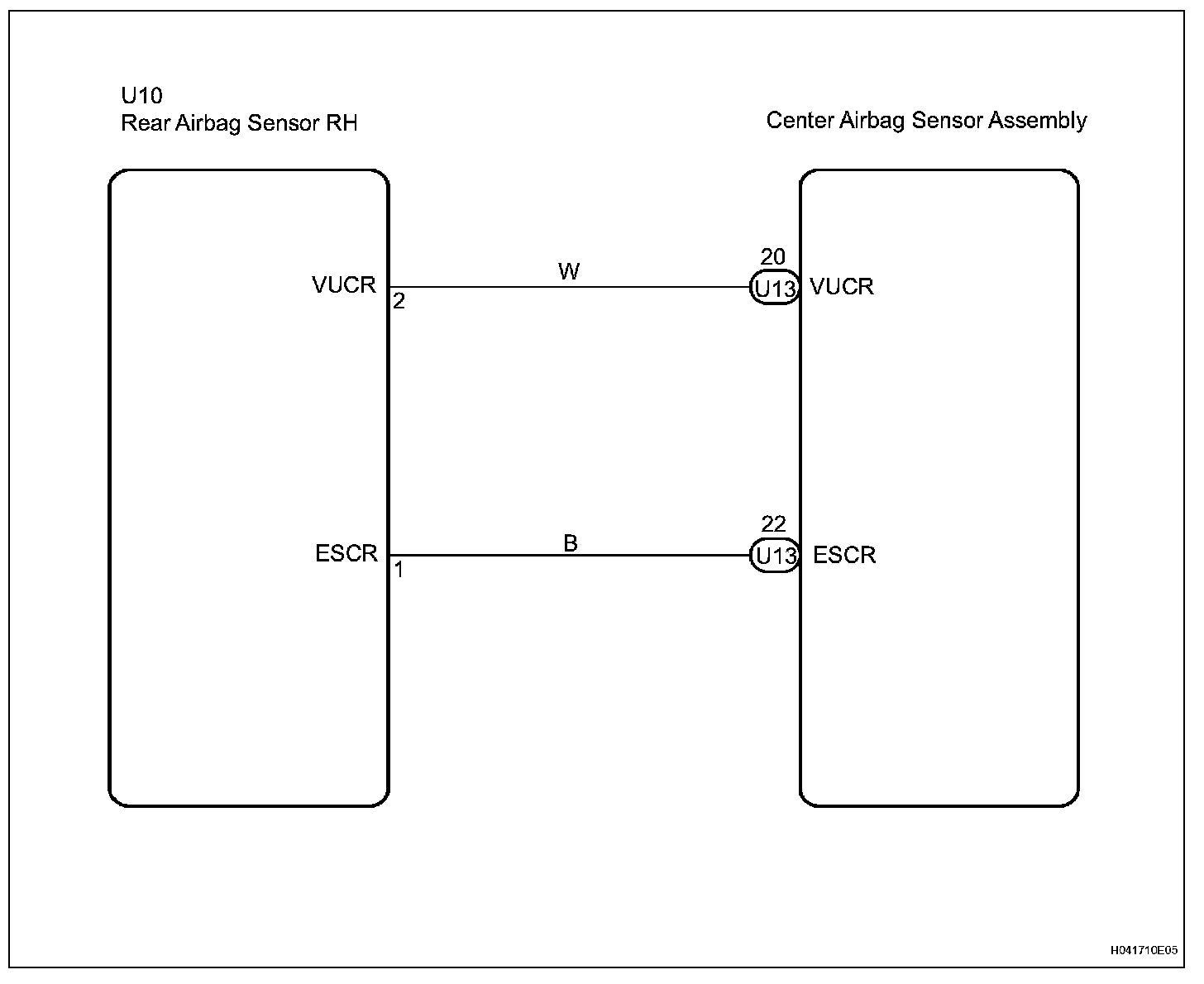

Wiring Diagram:

INSPECTION PROCEDURE

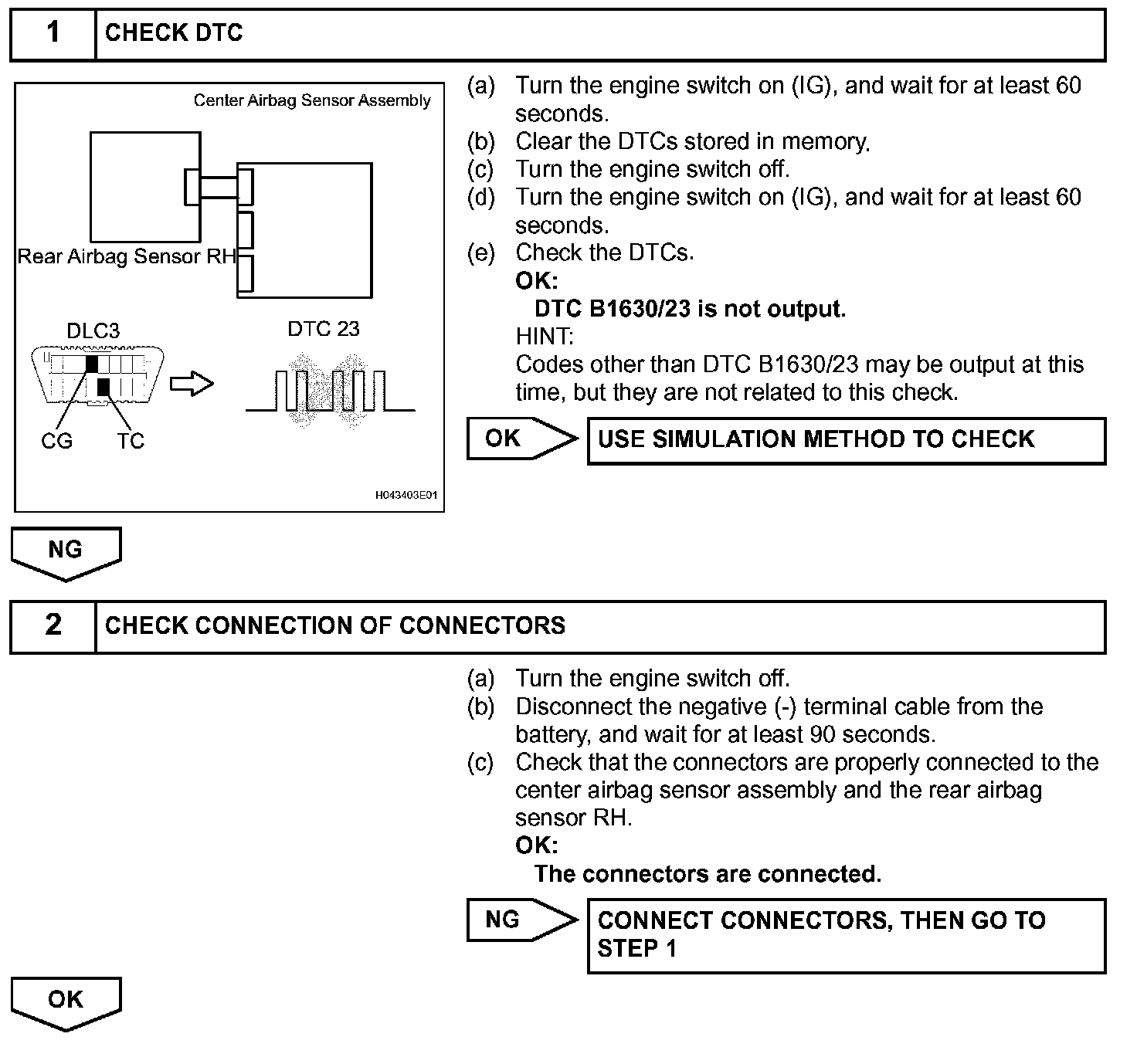

Step 1-2:

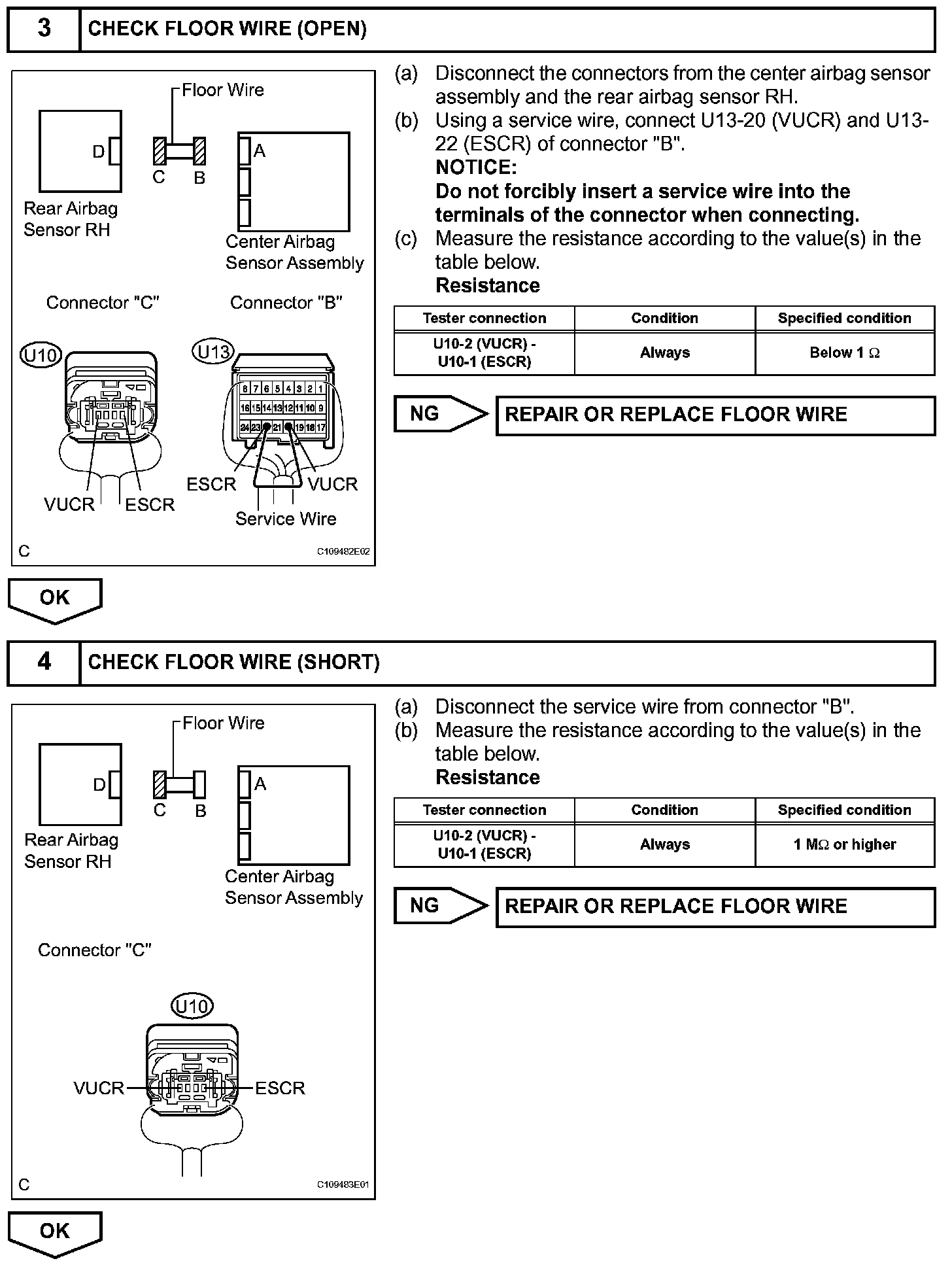

Step 3-4:

Step 5-6:

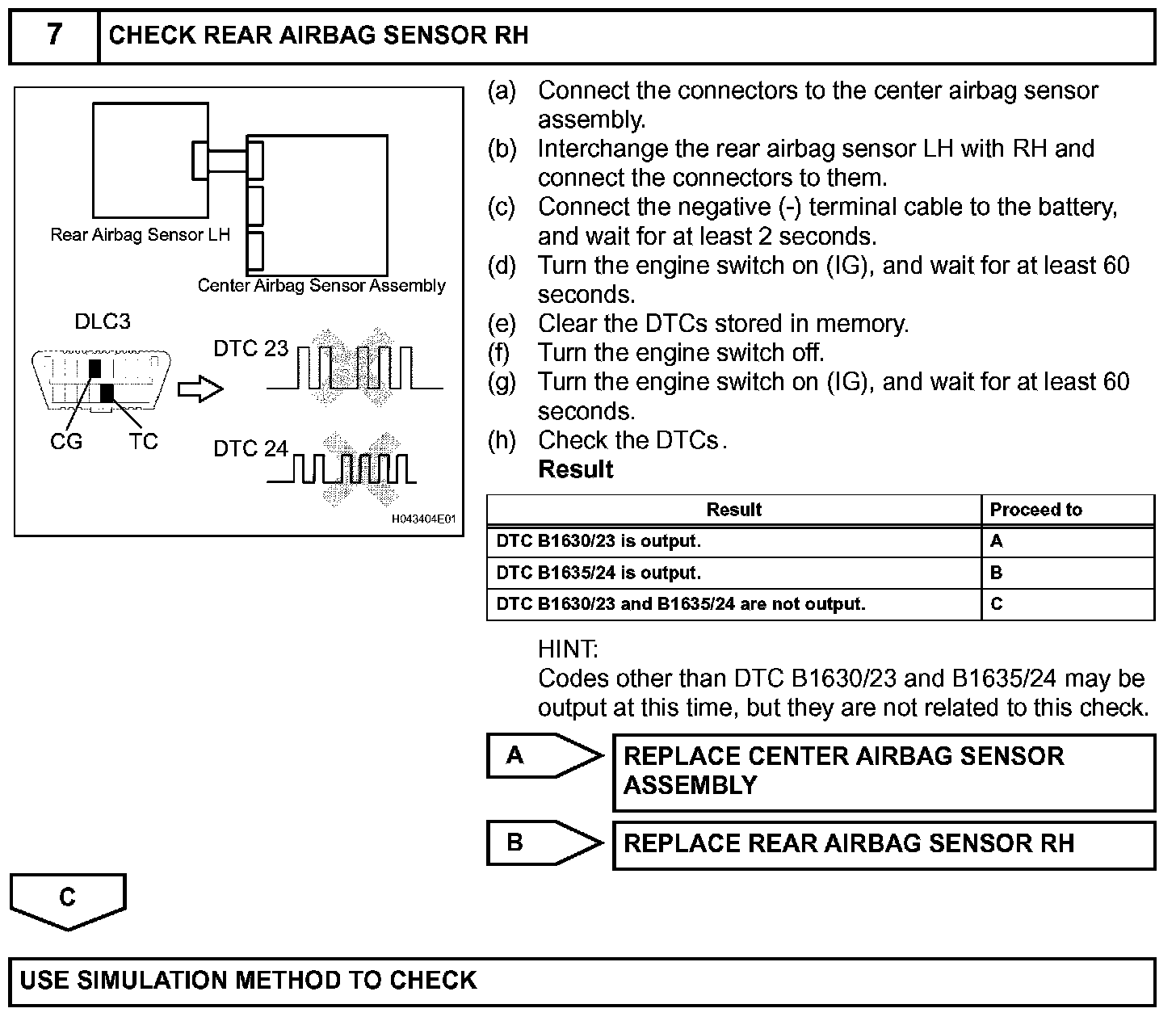

Step 7:
