B1244
DTC B1244 Light Sensor Circuit MalfunctionDESCRIPTION

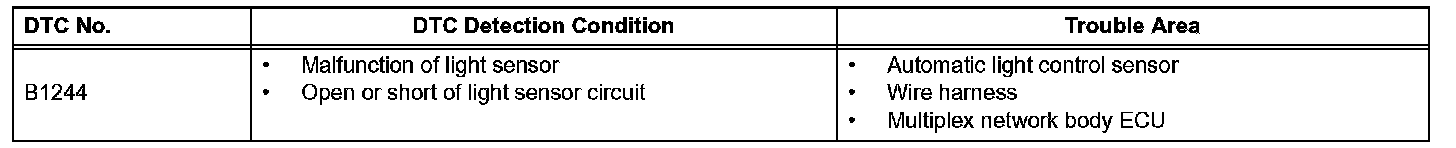

DTC Detection Condition:
This DTC is output when a failure of the automatic light control sensor circuit is detected.

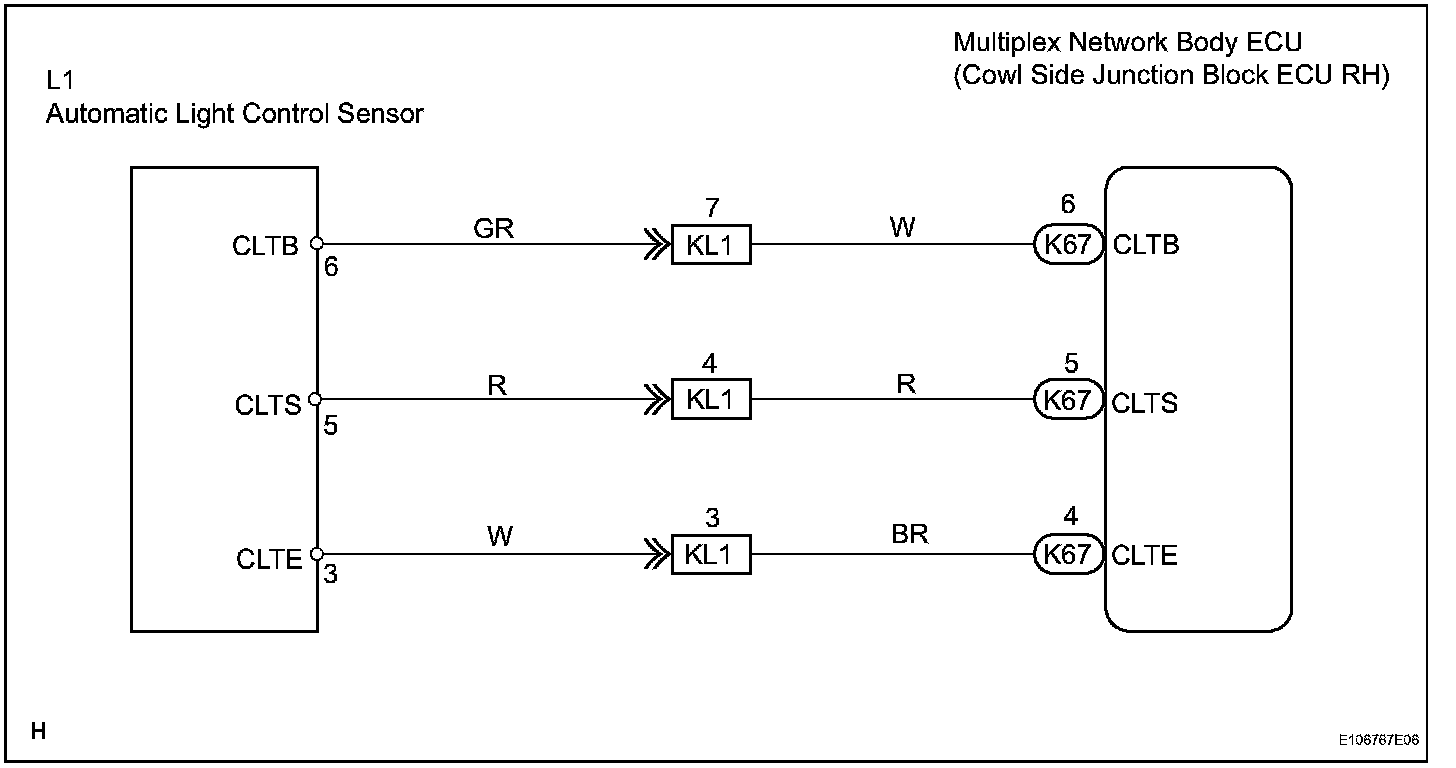

Wiring Diagram:
INSPECTION PROCEDURE

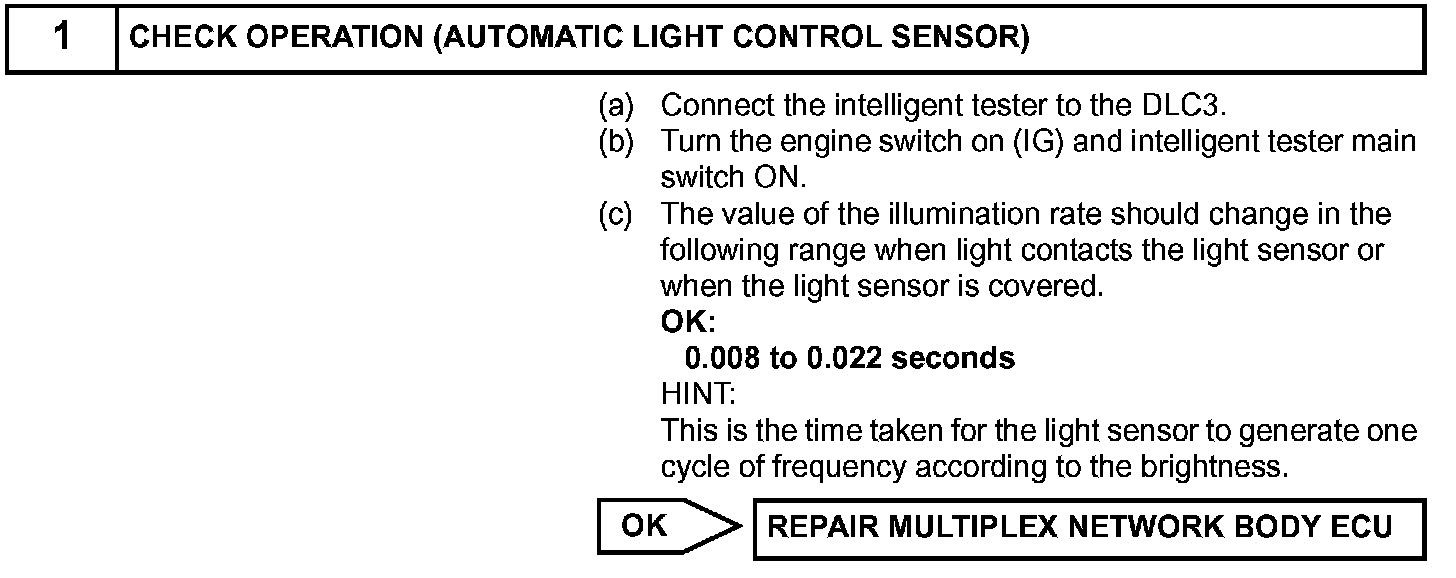

Step 1:

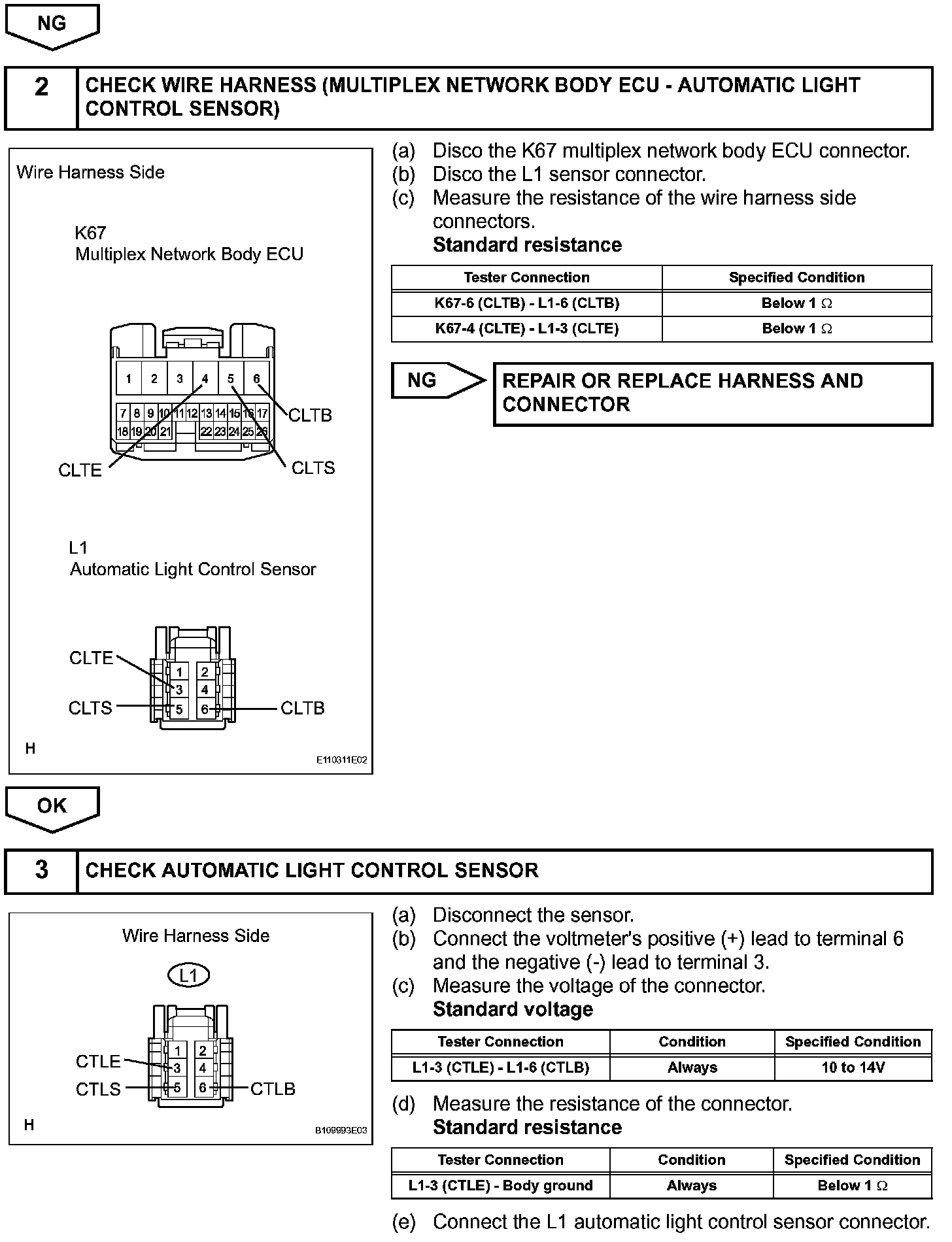

Step 1 (Continued)-3:
Step 3 (Continued):
