Wiper and Washer Switch Circuit

Wiper and Washer Switch Circuit

DESCRIPTION

This circuit provides power to operate the windshield wiper switch. The manual operation signals are sent to the cowl side junction block ECU LH.

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Before the procedure, check that the Multiplex Communication System (MPX) DTCs are not output.

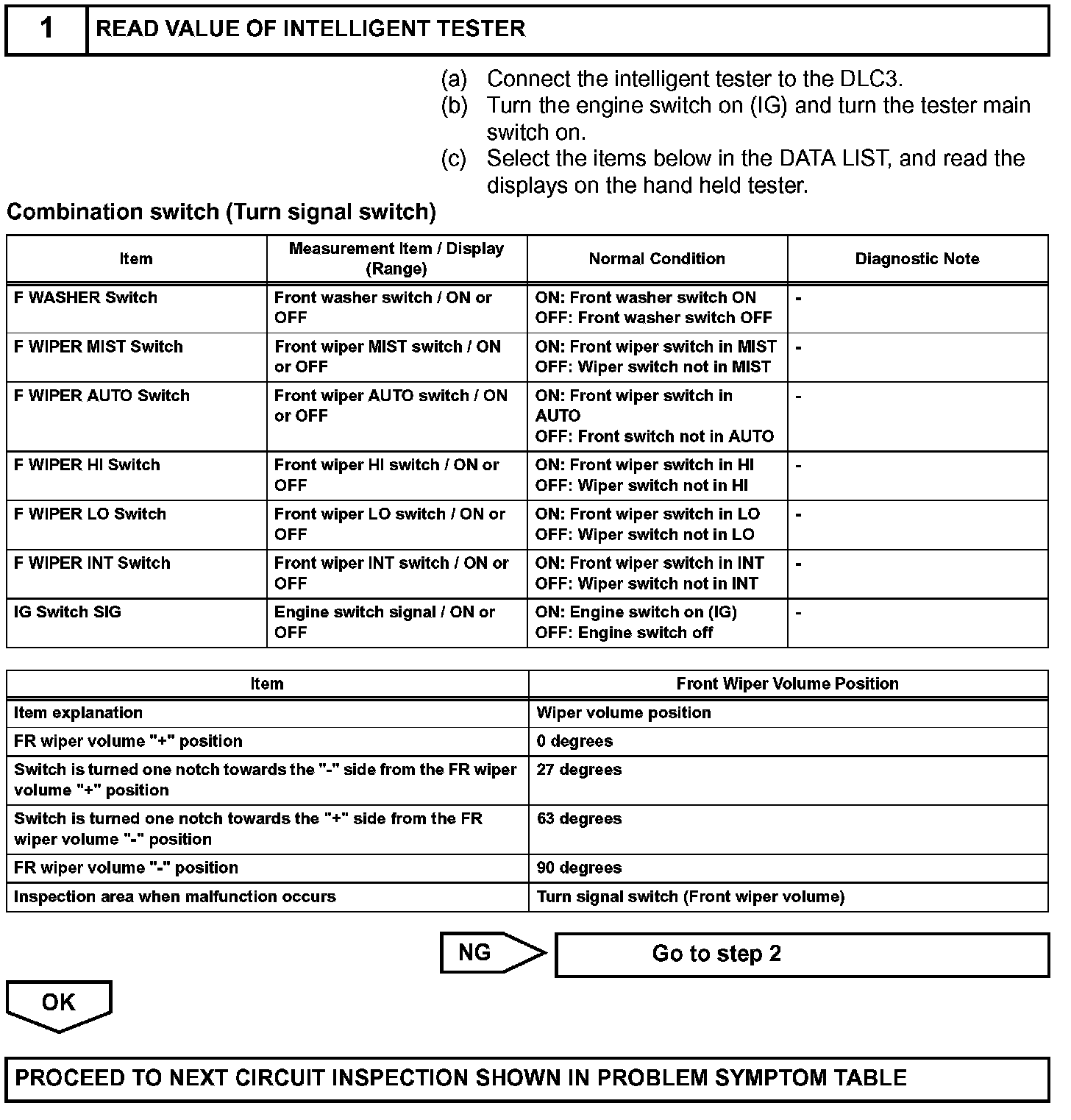

Step 1:

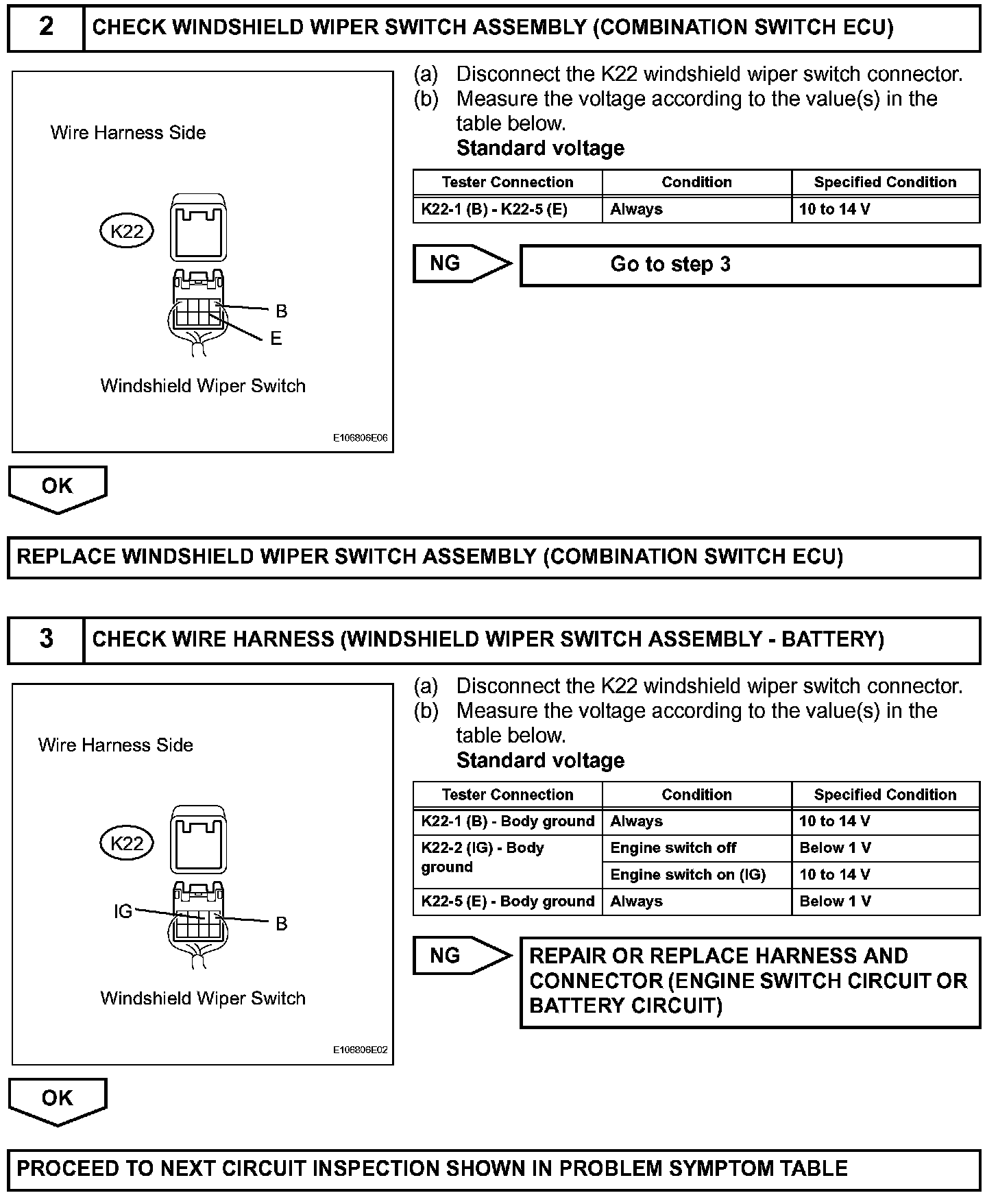

Step 2-3:
