Wiper Motor Power Source Circuit
Wiper Motor Power Source CircuitDESCRIPTION
This circuit provides power to the front wiper motor and operates the cowl side junction block ECU LH.

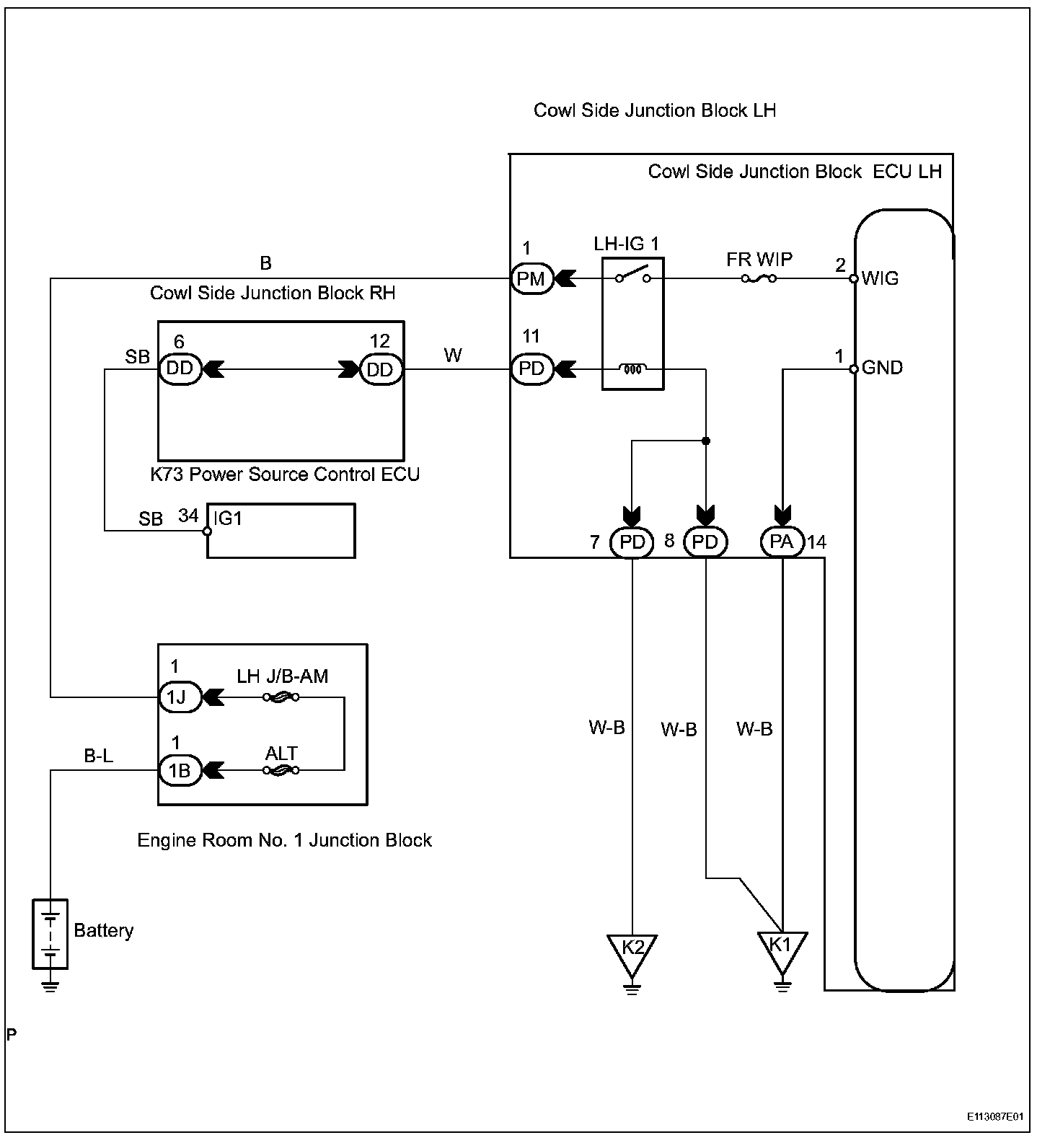

Wiring Diagram:
INSPECTION PROCEDURE

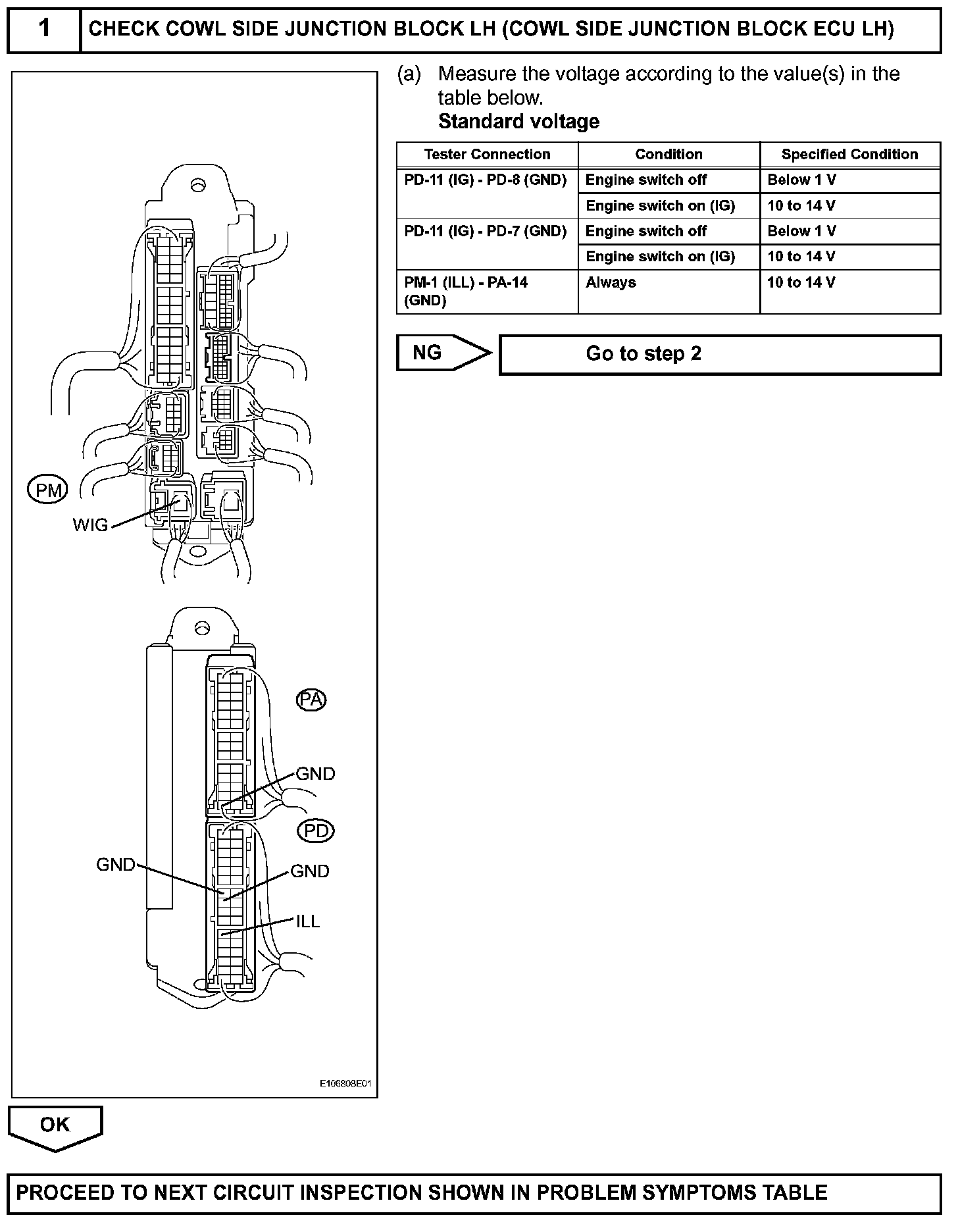

Step 1:

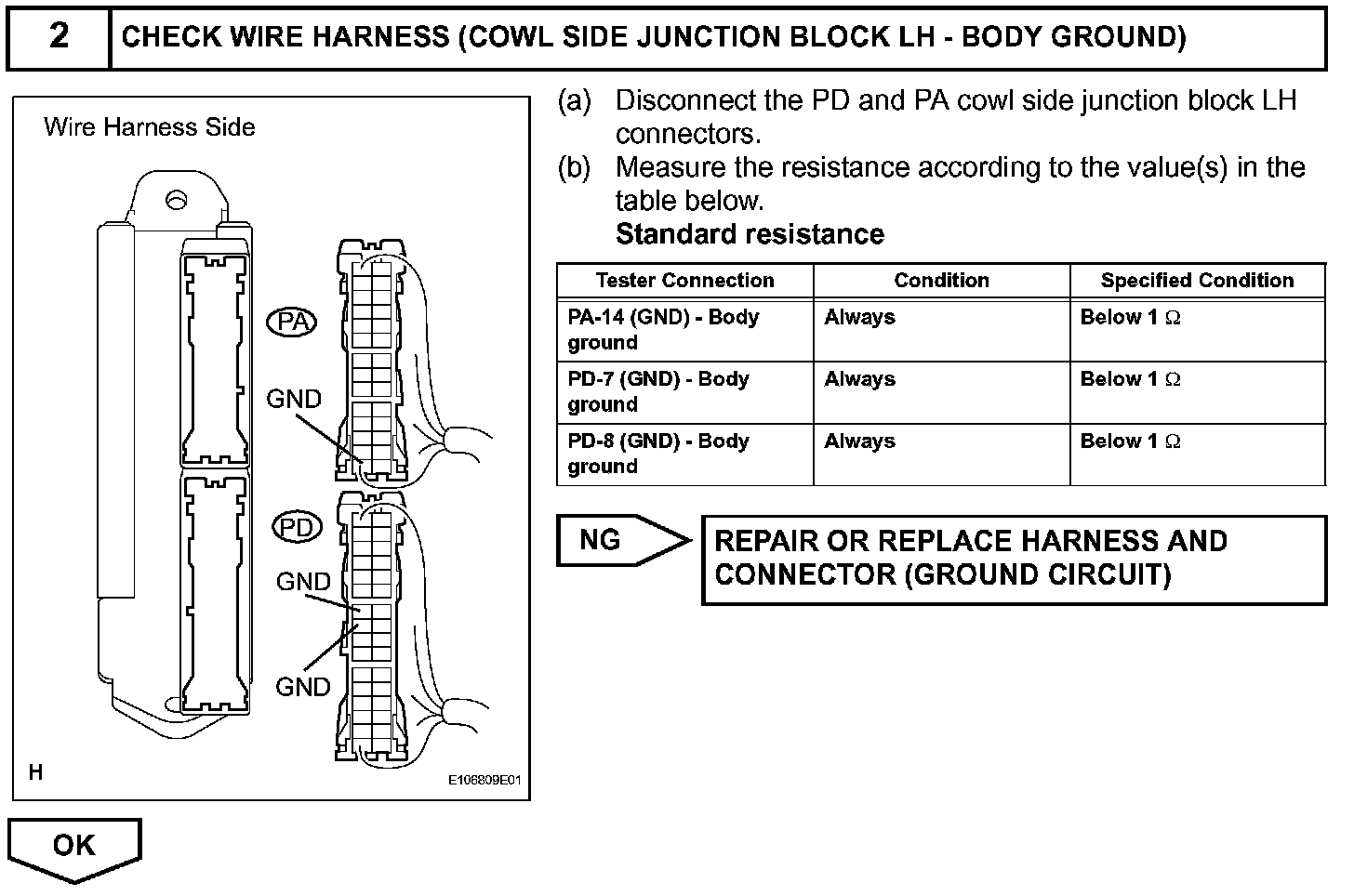

Step 2:

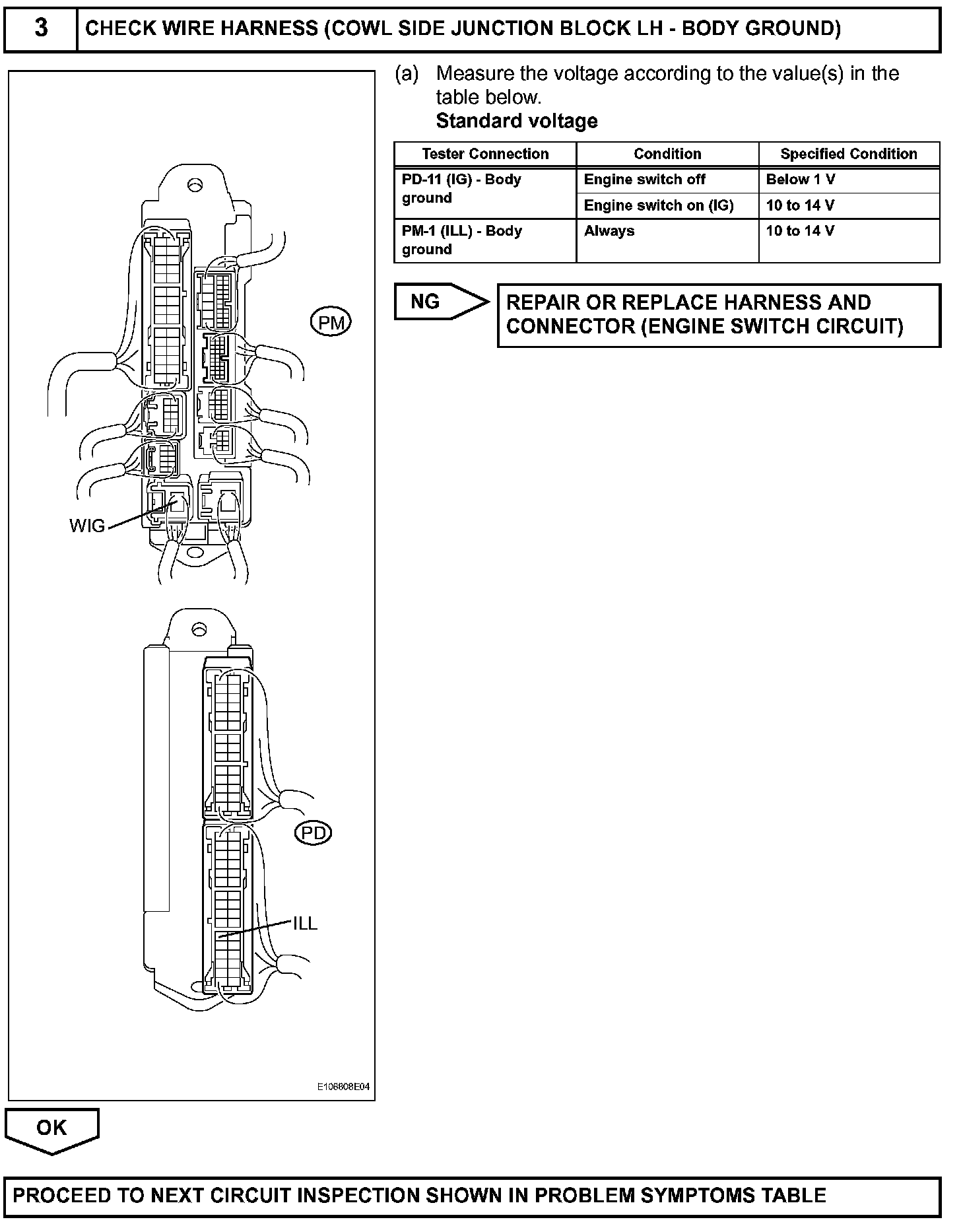

Step 3:
DESCRIPTION
This circuit provides power to the front wiper motor and operates the cowl side junction block ECU LH.
INSPECTION PROCEDURE
