Rear Sunshade Shift-Linked Function Does Not Operate When Shift Lever Is Moved to R Position

Rear Sunshade Shift-linked Function Does Not Operate When Shift Lever Is Moved To R Position

SYSTEM DESCRIPTION
When the engine switch is on (IG) and the rear sunshade is raised, moving the shift lever to R causes the PNP switch to send a reverse-linked signal to the ECM. Then the ECM sends the signal through the multiplex communication line to the multiplex network rear ECU, which sends the signal to the rear sunshade relay. The relay then lowers the rear sunshade.

WIRING DIAGRAM

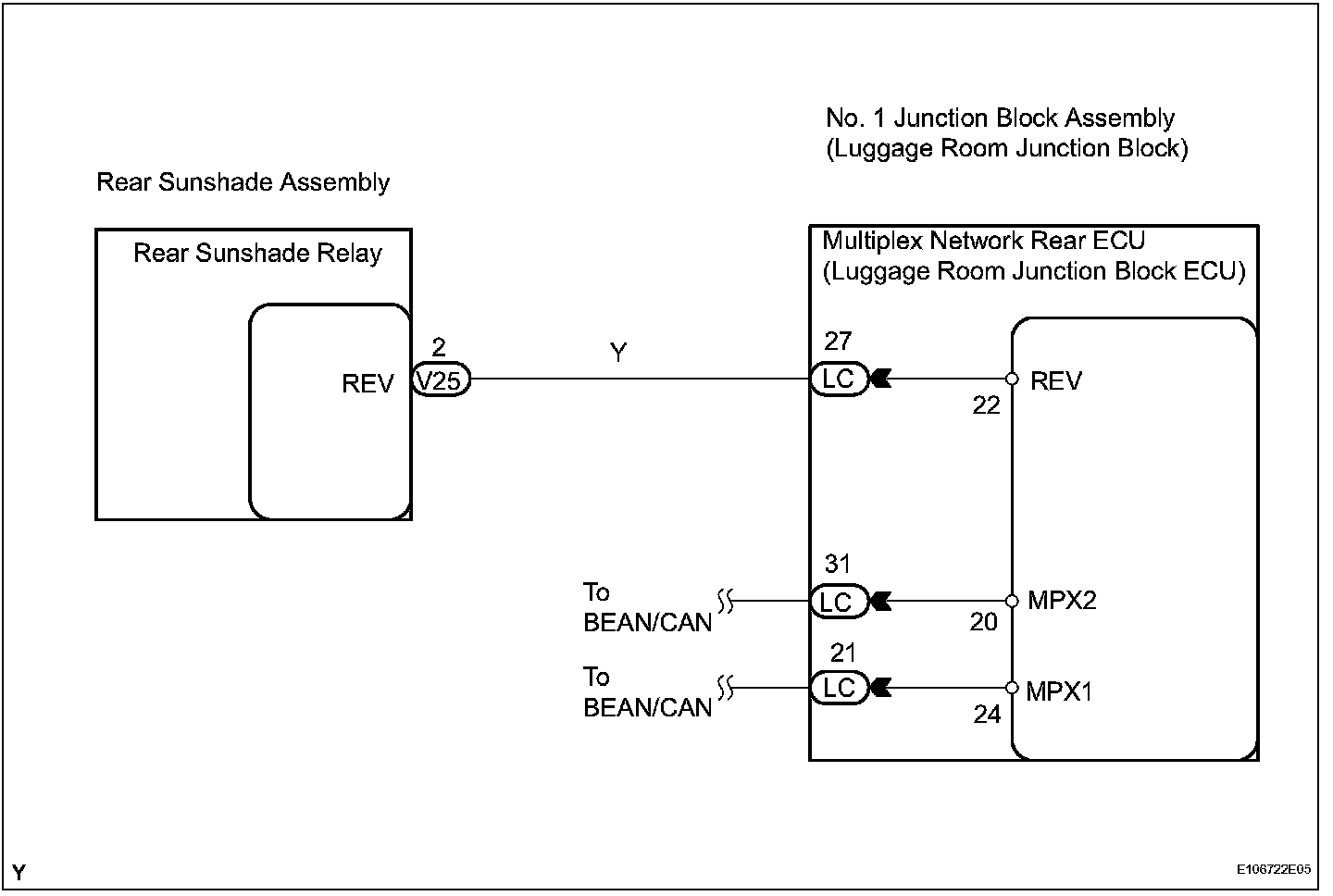

Wiring Diagram:

INSPECTION PROCEDURE

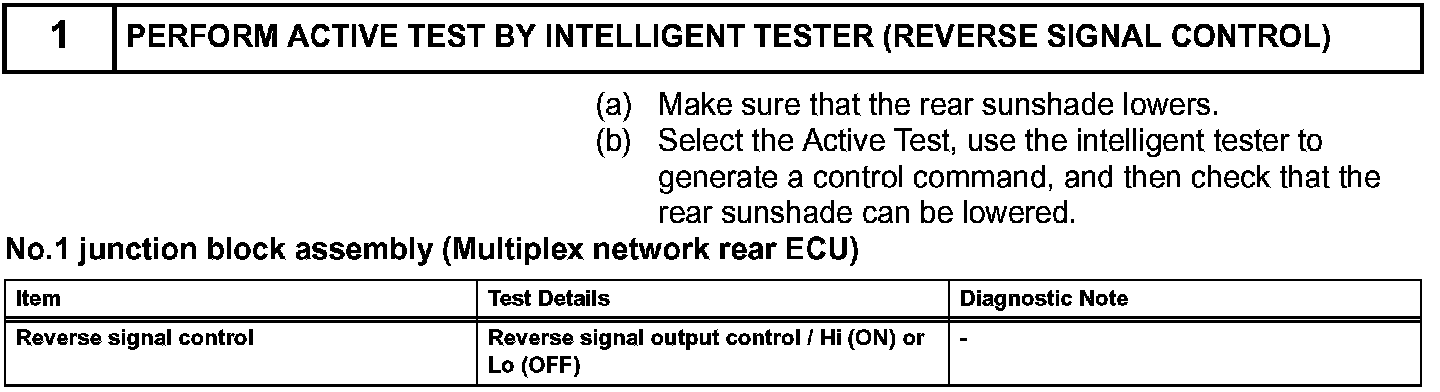

Step 1:

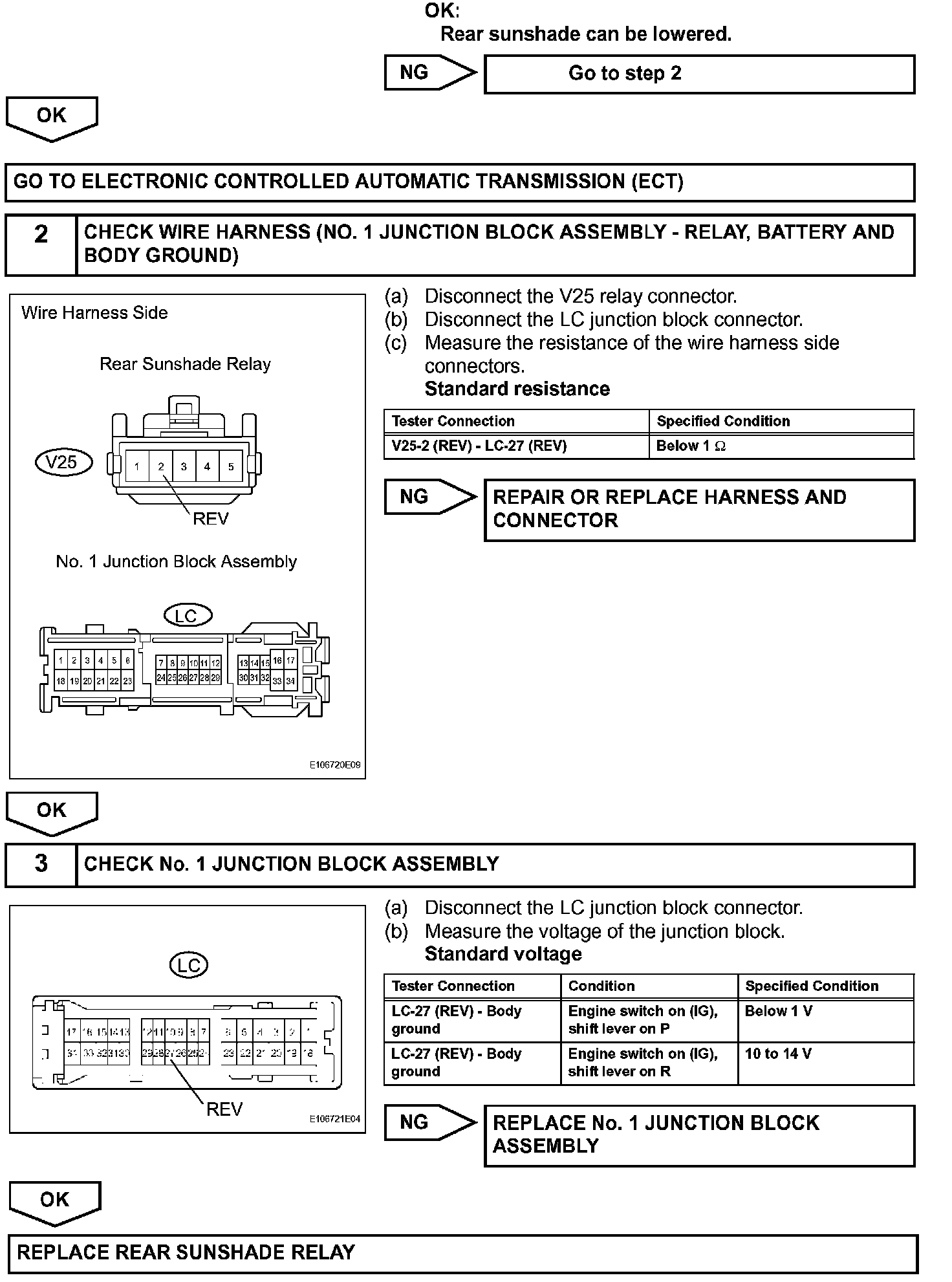

Step 1(Continued) - 3:
