Key-Off Operation Function Operates Even If Operating Conditions Are Not Satisfied
Key-off Operation Function Operates Even If Operating Conditions Are Not SatisfiedDESCRIPTION
The multiplex network master switch keeps power supplied to the power window regulator motor for 43 seconds after the engine switch is turned off. However, the master switch will cut power if one of the following occurs: 1) driver side door is opened within 43 seconds, 2) a signal from the driver door courtesy light switch is input to the cowl side junction block ECU RH within 43 seconds, or 3) no power window activity occurs within 43 seconds.
WIRING DIAGRAM
Wiring Diagram:

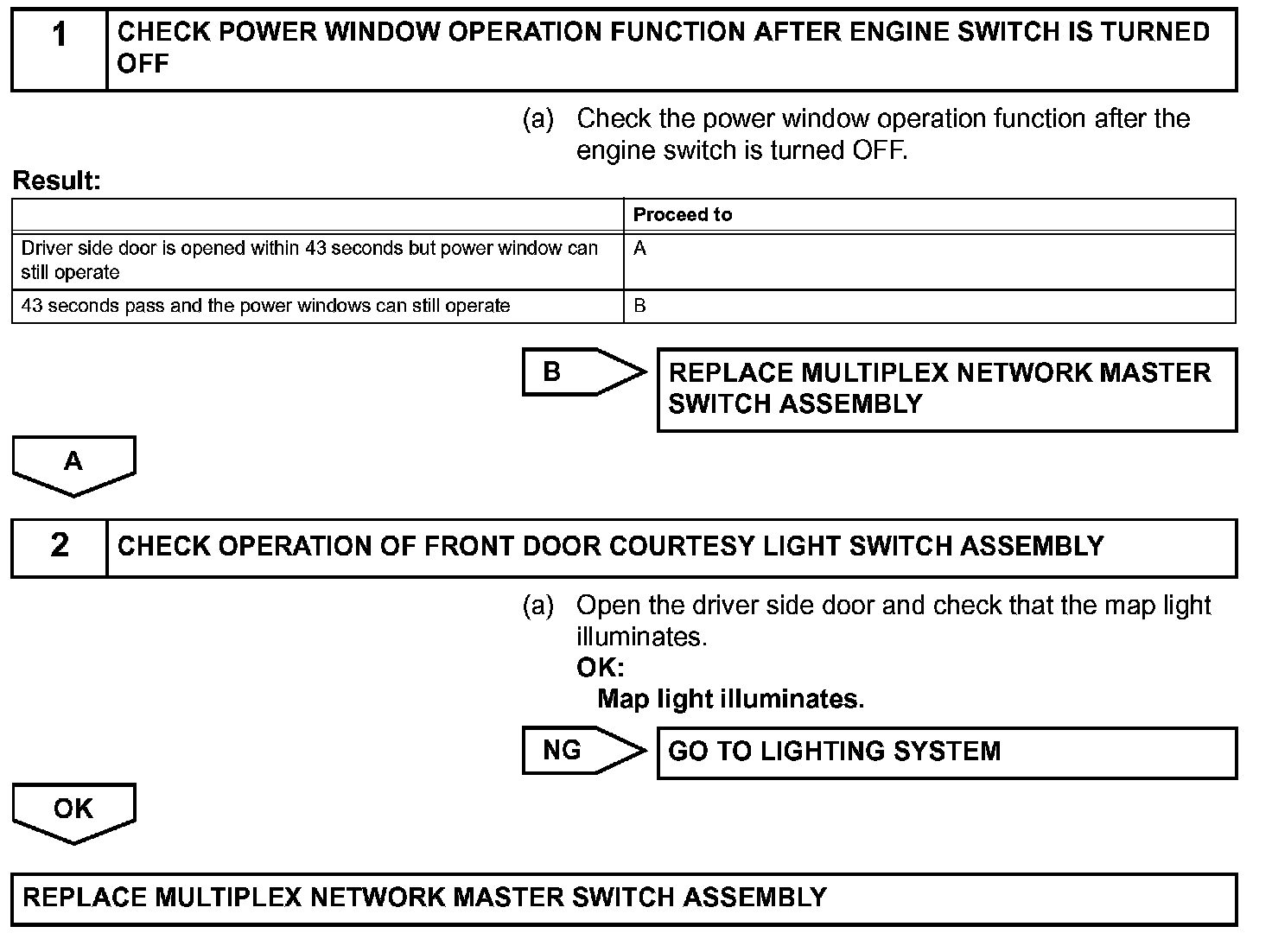

INSPECTION PROCEDURE
Step 1 - 2:
