Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Jam Protection Function Does Not Operate

Jam Protection Function Does Not Operate

Jam Protection Function Does Not Operate

DESCRIPTION
The jam protection function only operates within a specified range during the AUTO UP operation.

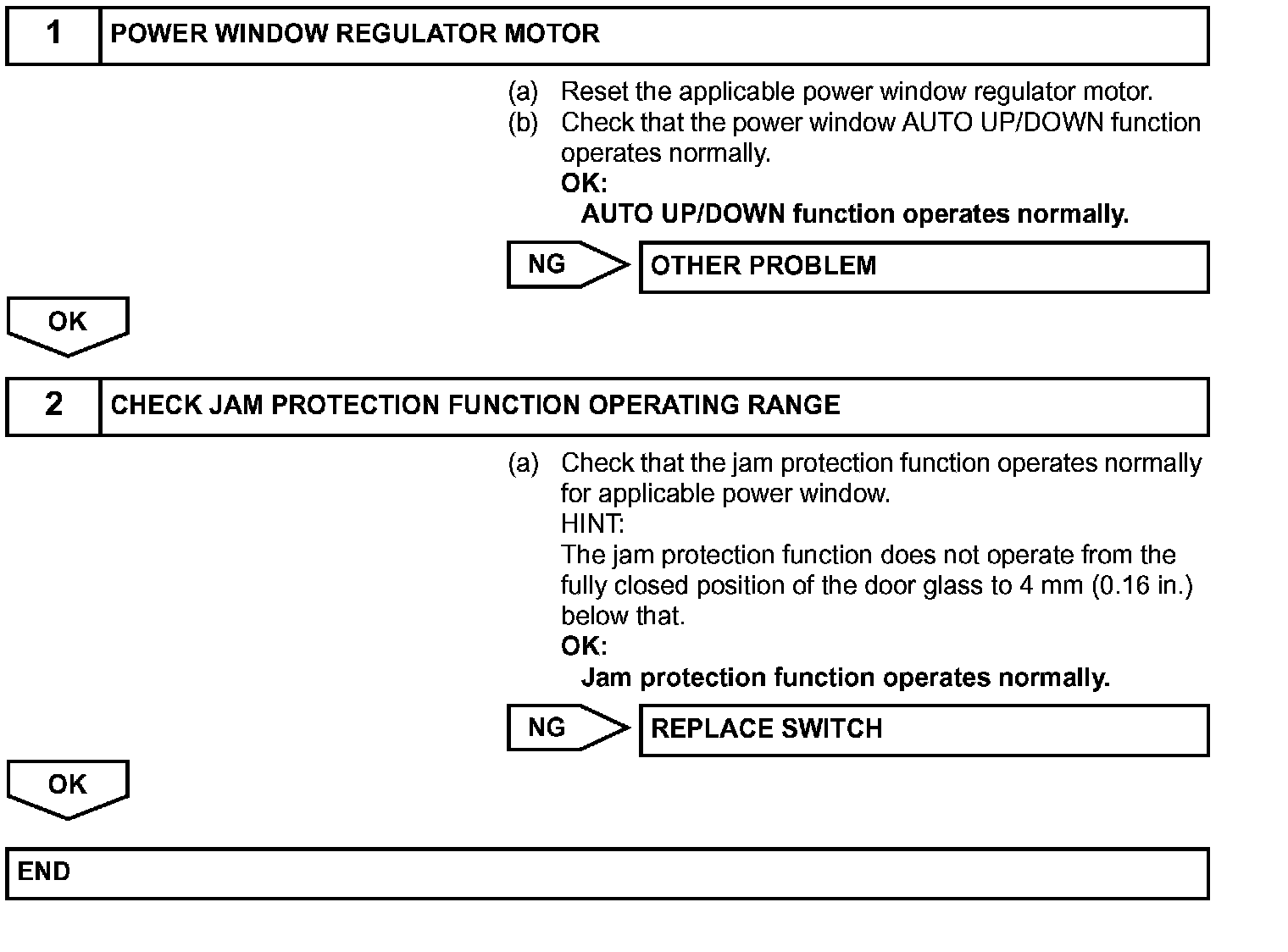

INSPECTION PROCEDURE

Step 1 - 2:
