Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch
Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window SwitchDESCRIPTION
If the manual UP/DOWN function does not operate, there may be a malfunction in the multiplex network switch, front multiplex network door ECU RH, power window regulator motor or wire harness.
WIRING DIAGRAM
Wiring Diagram (Part 1):

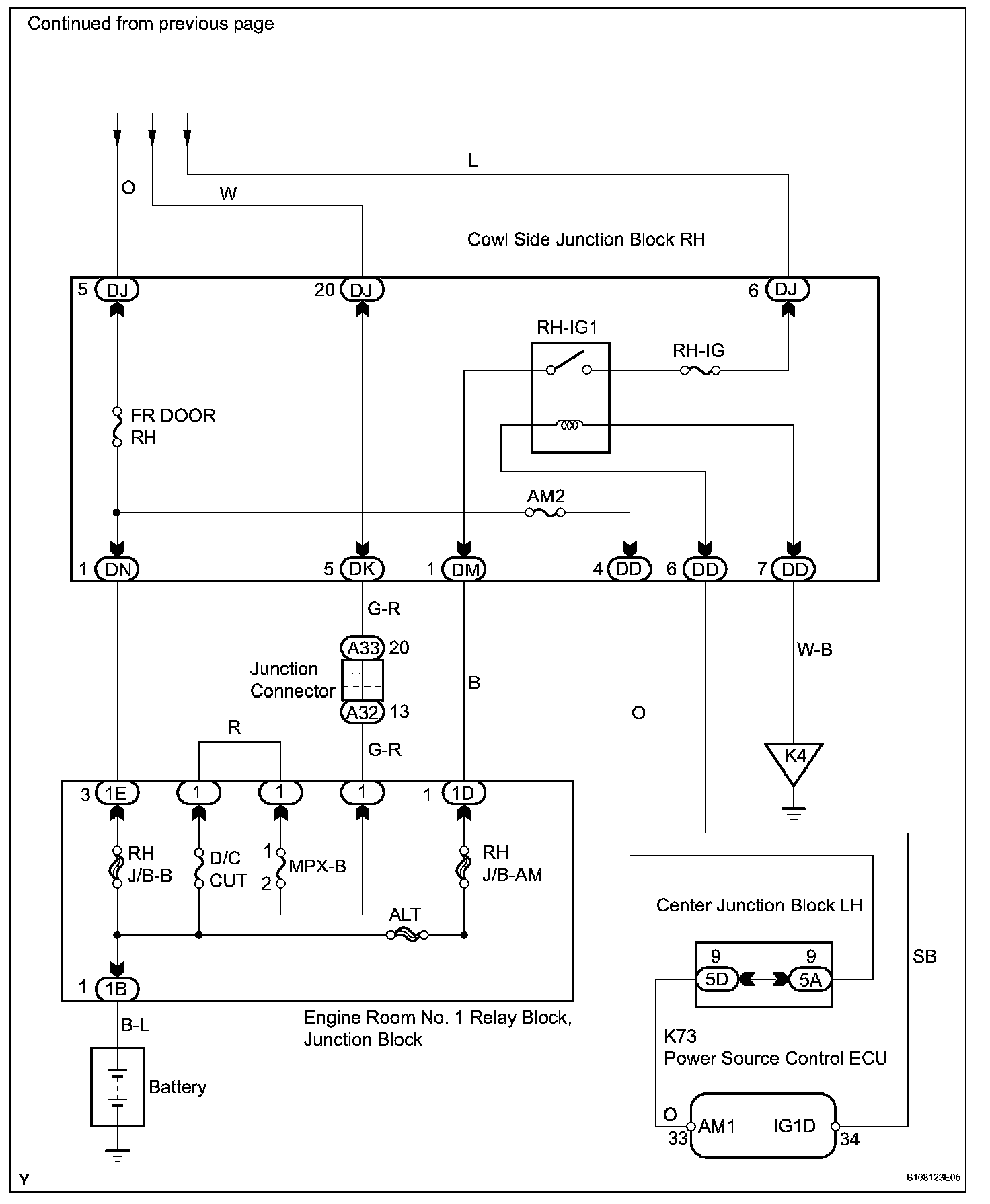

Wiring Diagram (Part 2):
INSPECTION PROCEDURE

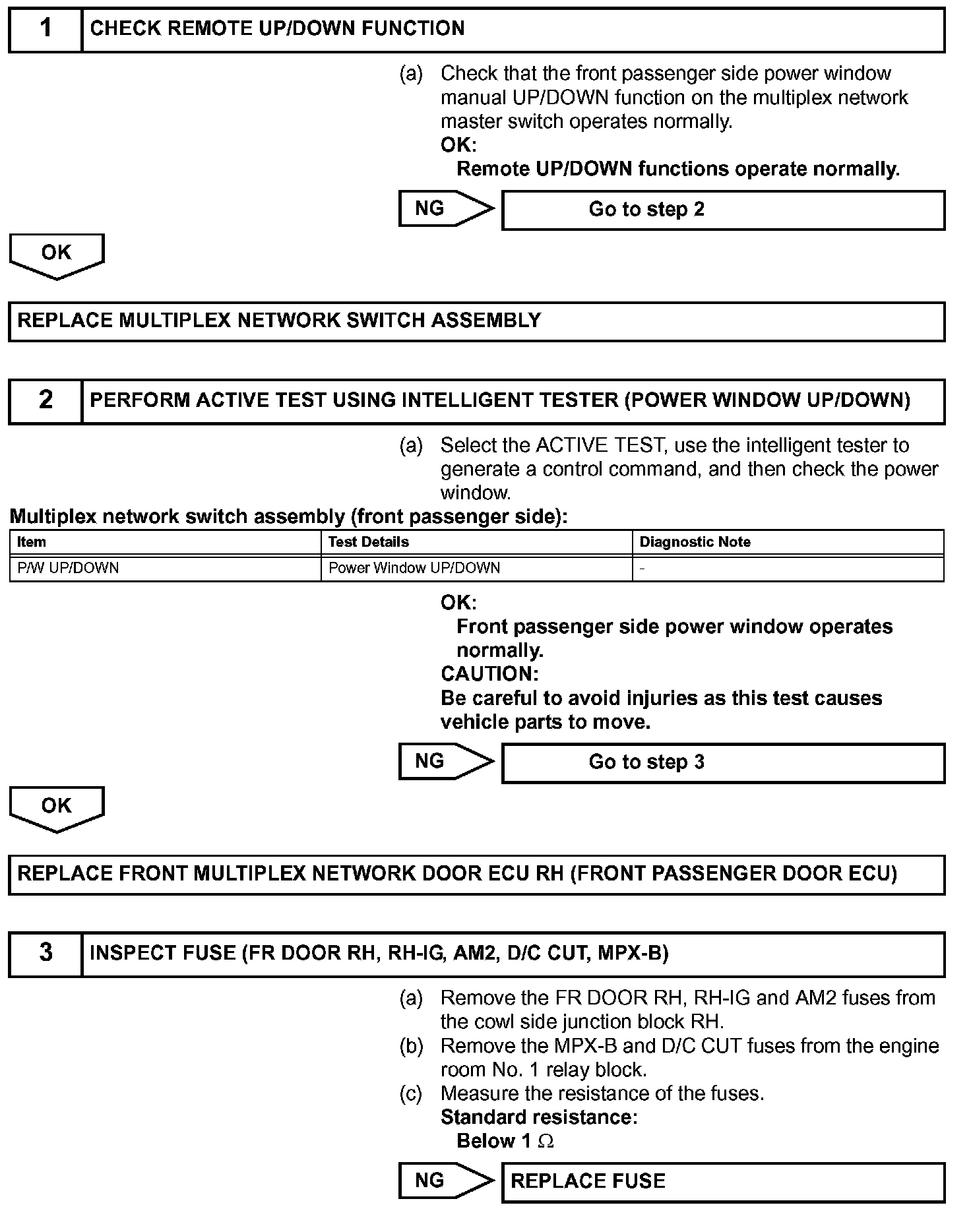

Step 1 - 3:

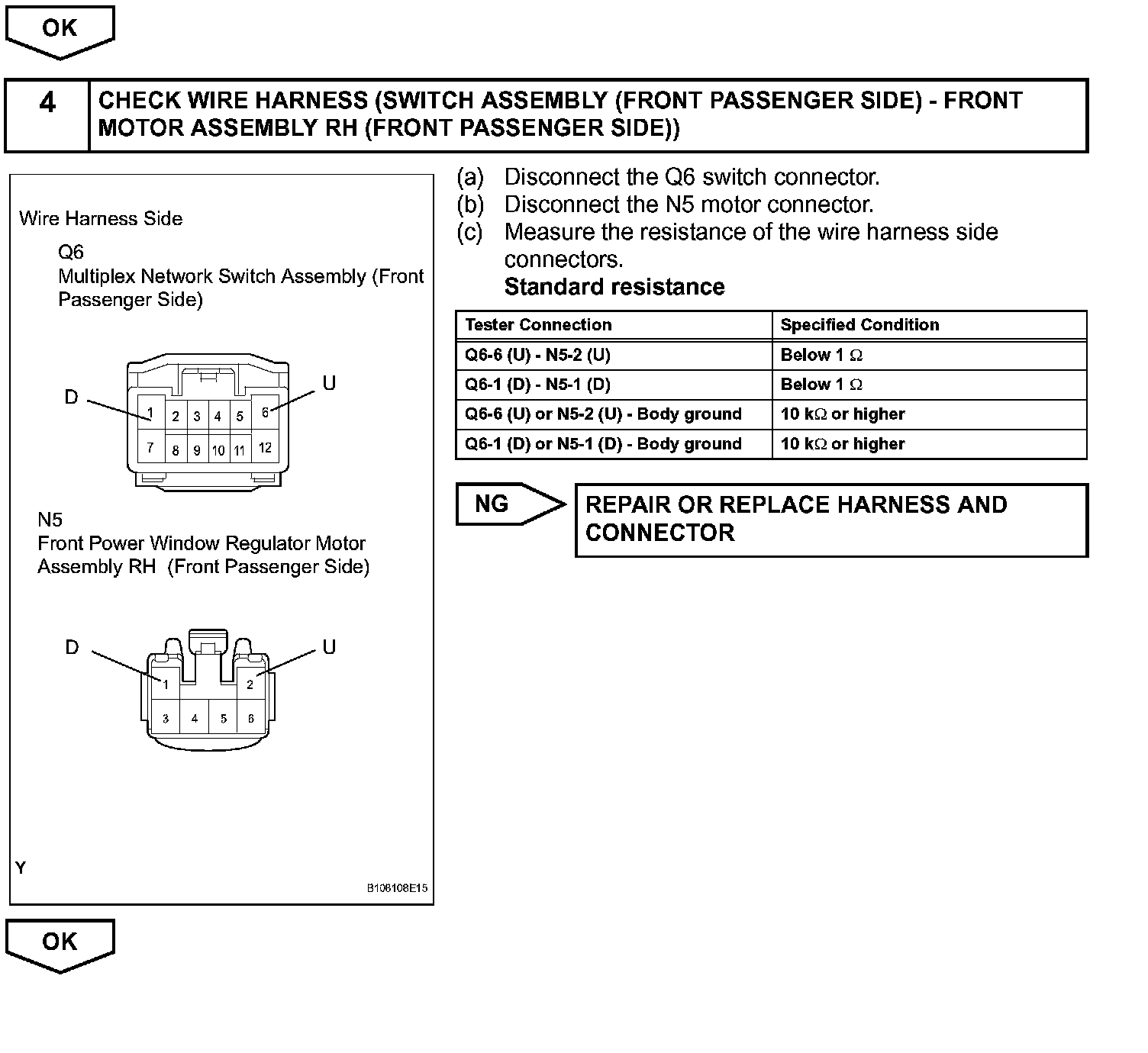

Step 3(Continued) - 4:

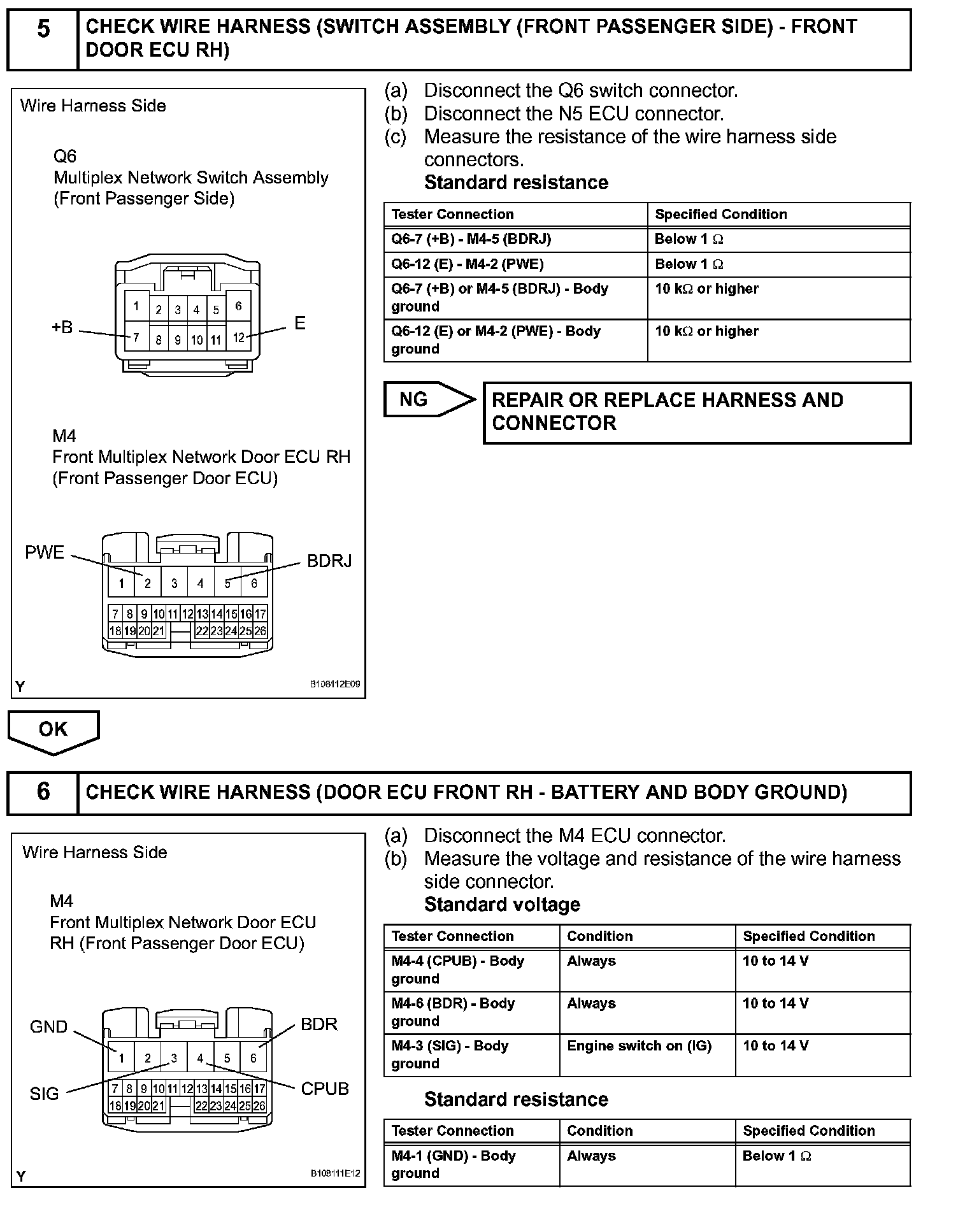

Step 5 - 6:

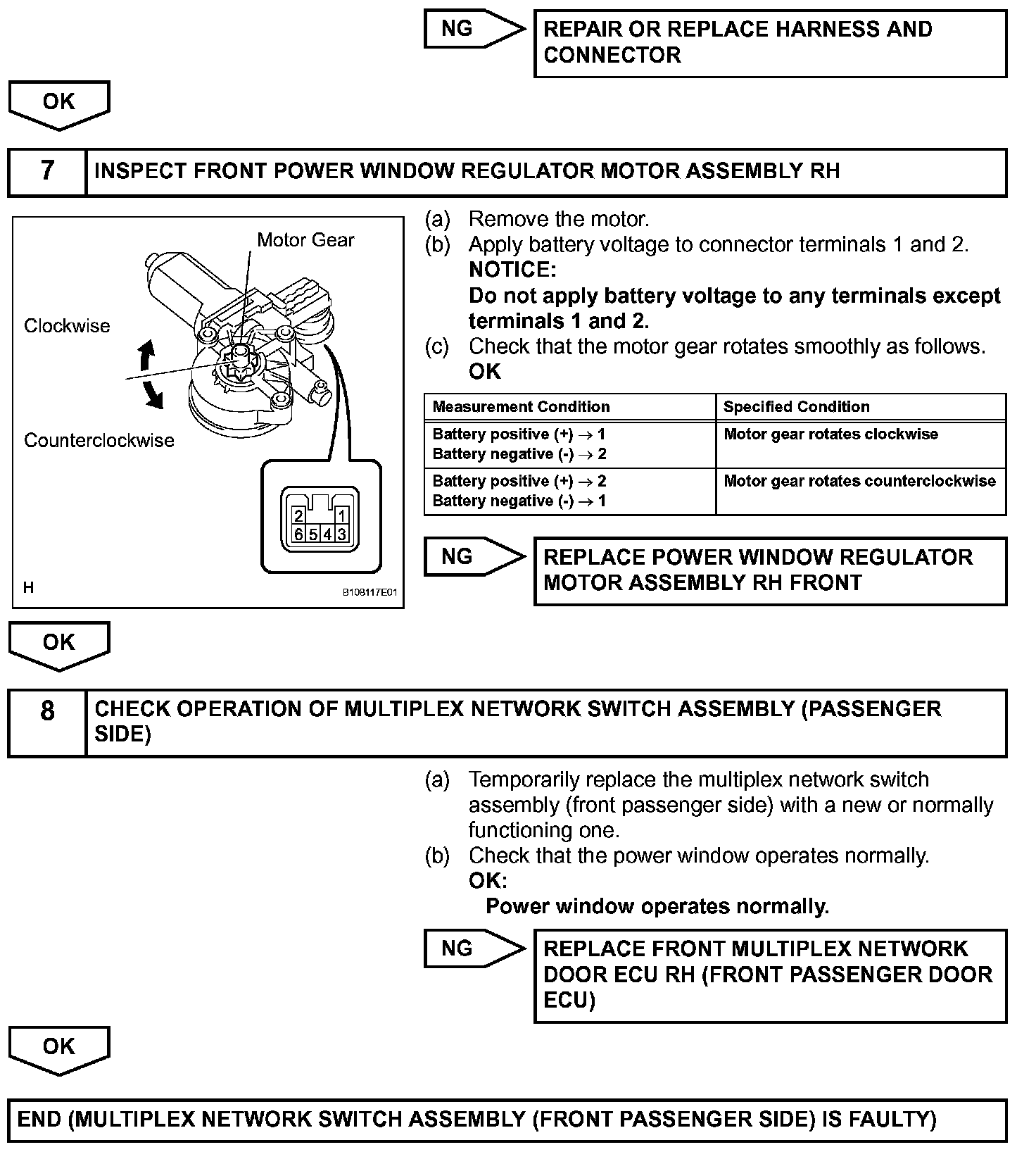

Step 6(Continued) - 8:
