Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch
Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master SwitchDESCRIPTION
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the following:
- The recorded power window fully closed position, which is stored in the multiplex network master switch, was erased as a result of: 1) a fuse or relay related to the driver side power window being replaced; or 2) the battery cable and the master switch's connector being disconnected.
- The master switch has a malfunction.
- The pulse sensors in the driver side power window regulator motor have a malfunction.
- The wiring between the master switch and the driver side power window regulator motor is open or short.
WIRING DIAGRAM

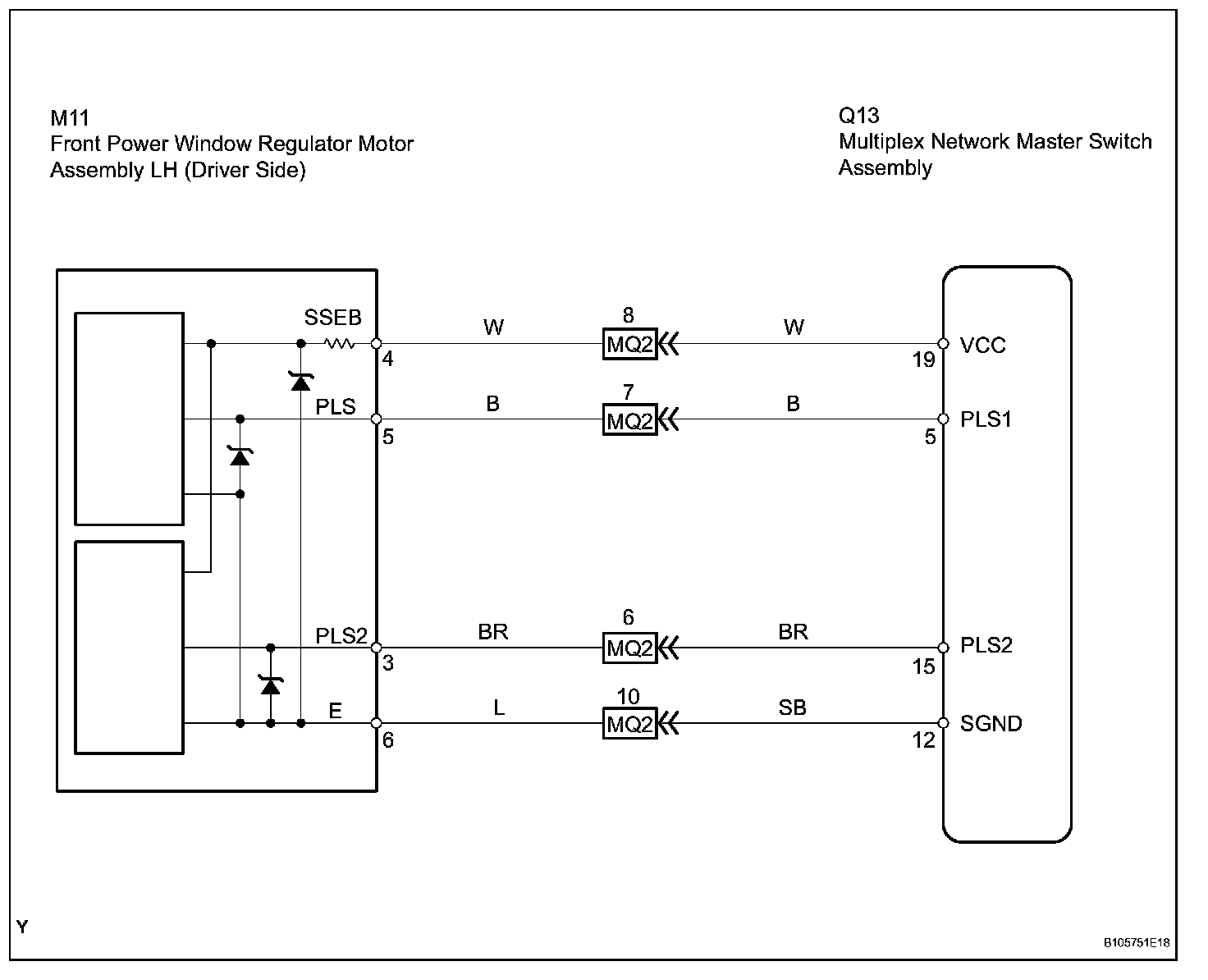

Wiring Diagram:
INSPECTION PROCEDURE

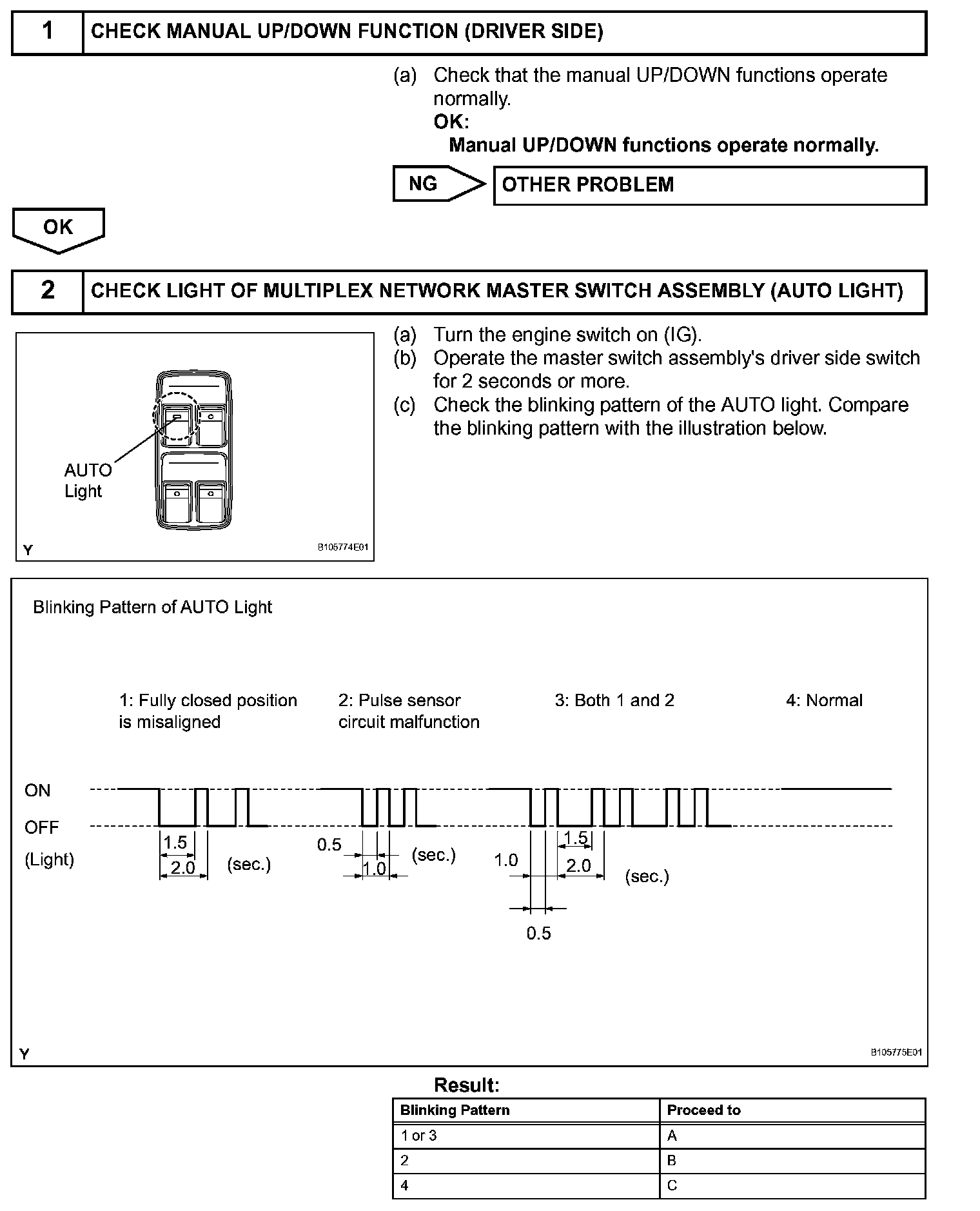

Step 1 - 2:

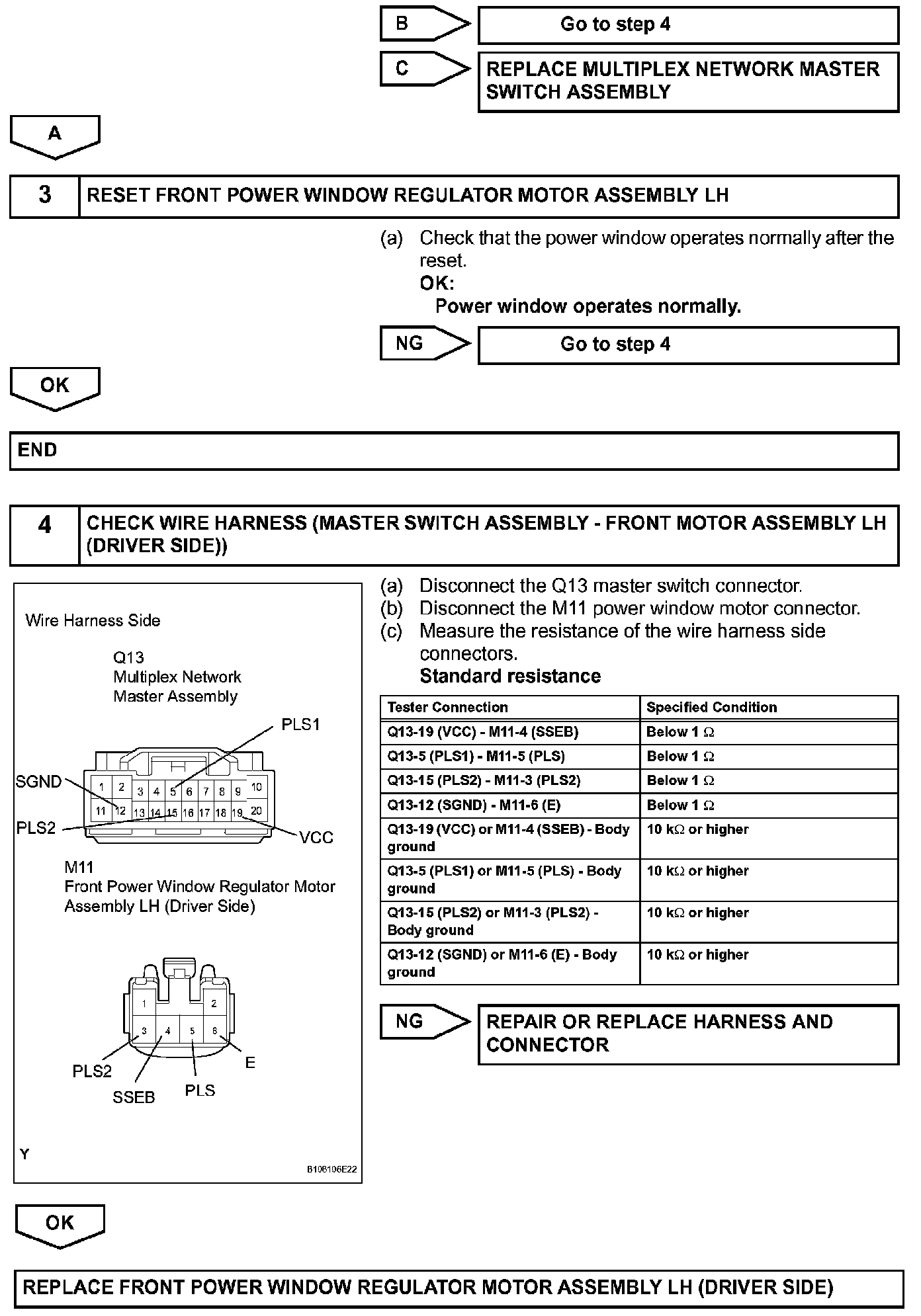

Step 2(Continued) - 4:
