Body - Power Window Initialization

PRE-DELIVERY SERVICE
PD044-06

Title:
INITIALIZATION OF POWER WINDOW
DURING PDS

Models:
'07 GS 350 & GS 430

August 8, 2006

Introduction

As a result of the removal of the DCC fuse, the "one-touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of the power window position memory stored in the microcomputer.

Initialize each door's power window after installing the DCC fuse into its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, each door's power window MUST be re-initialized.

Applicable Vehicles

^ 2007 model year GS 350 and GS 430 vehicles.

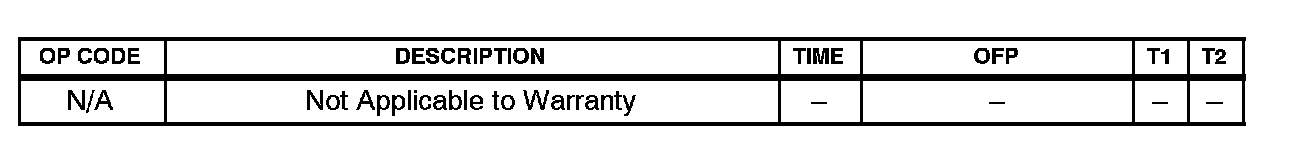

Warranty Information

Initialization Procedure

1. Turn the ignition switch to the "ON" position.

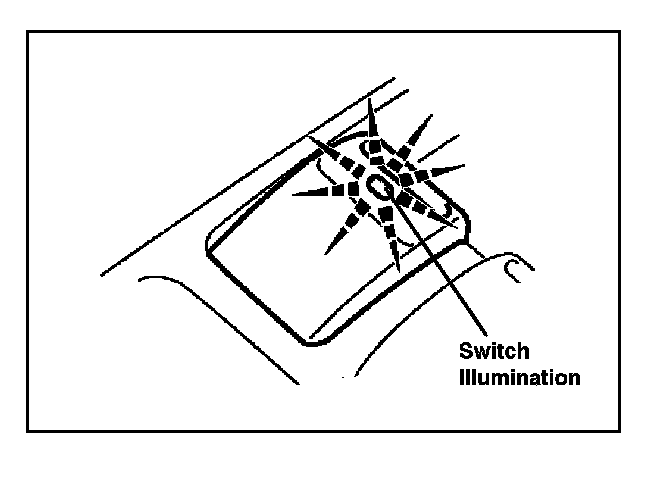

If the power windows have not been initialized, the driver's door power window switch should be blinking.

2. Push the driver's door power window switch to open the window.

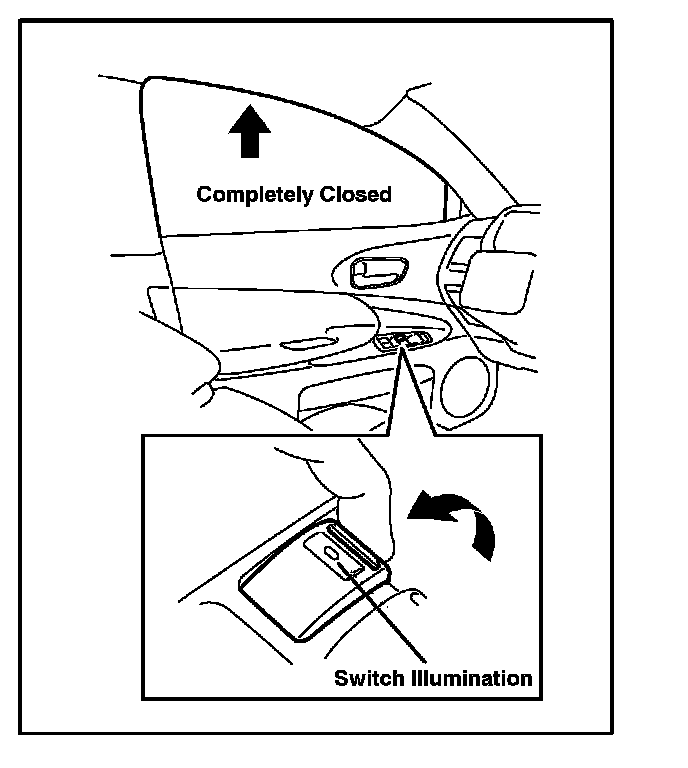

3. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second.

At this time, the driver's door power window switch illumination changes from blinking to constant illumination.

4. Repeat steps 1 - 3 for each door's power window.

NOTE:
When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.

At this time, each door's power window switch illumination changes from blinking to constant illumination.

5. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
