Rear Window Defogger System Does Not Operate
Rear Window Defogger System Does Not OperateDESCRIPTION
When the defogger switch is turned ON, a rear defogger activation request signal is input to the multi-display. Then, the A/C amplifier assembly (A/C ECU) outputs this signal to the defogger relay (Marking: DEFOG) and the rear window defogger system is activated.
WIRING DIAGRAM

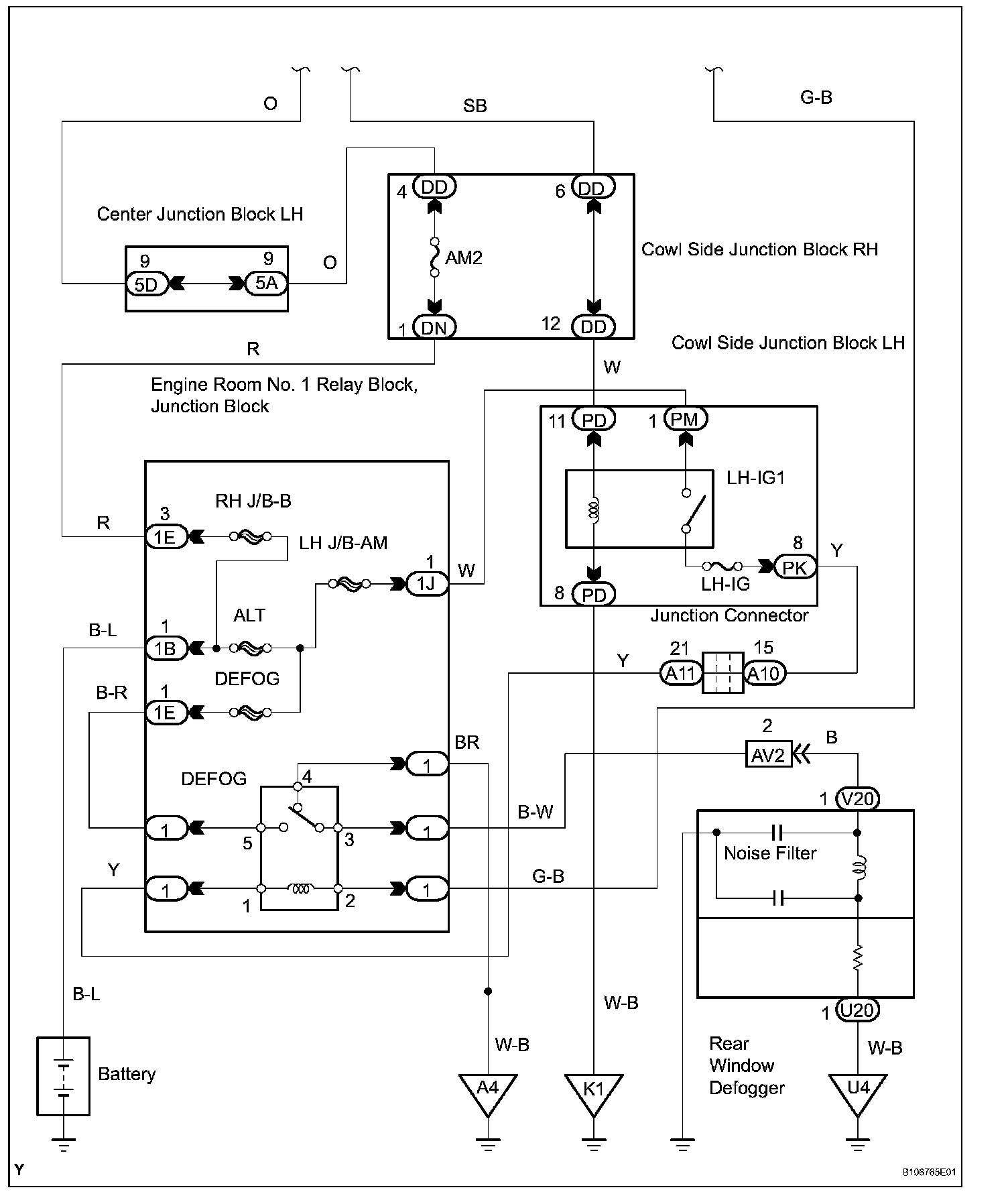

Wiring Diagram (Part 1):

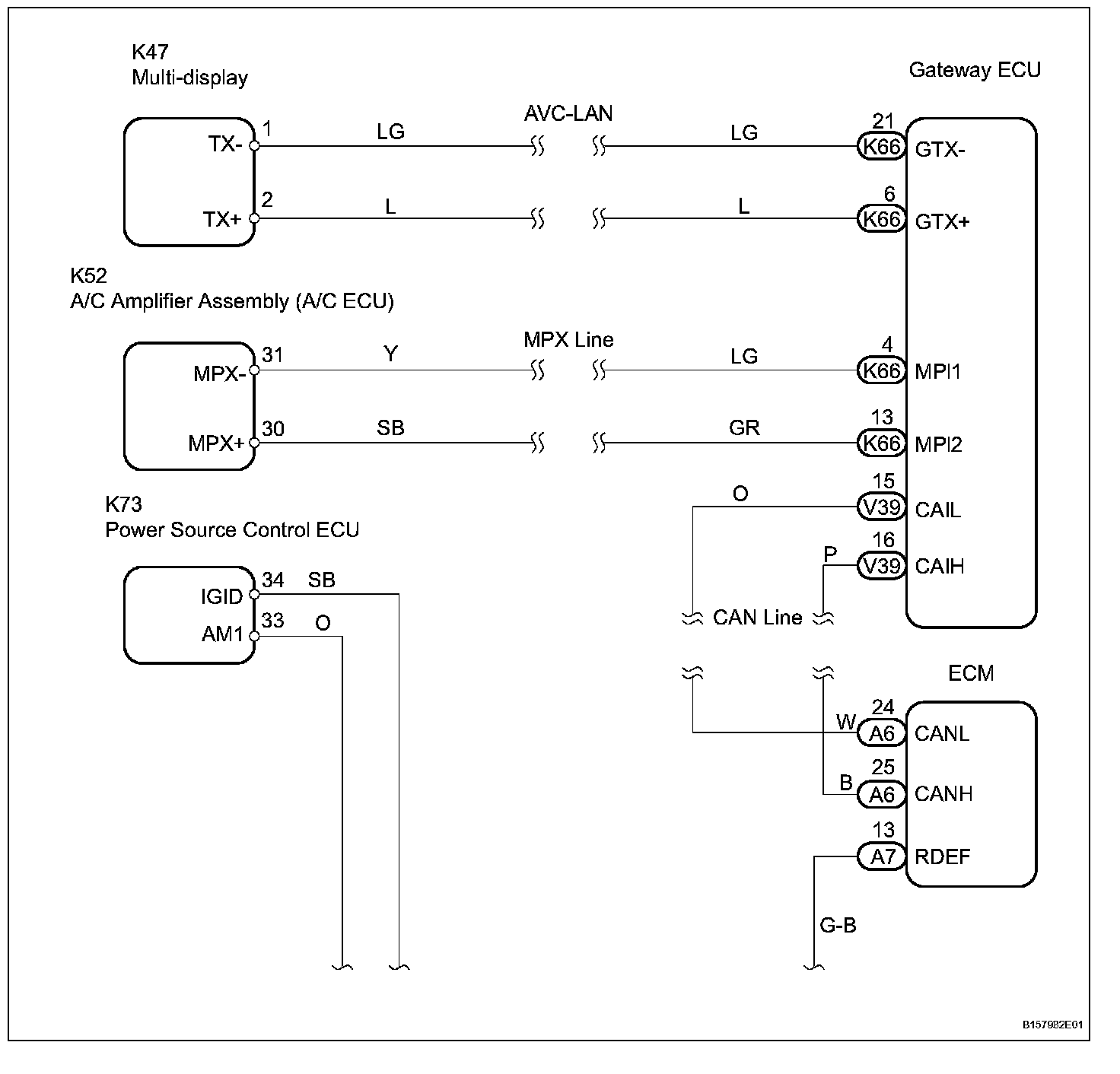

Wiring Diagram (Part 2):
INSPECTION PROCEDURE
Step 1 - 4:

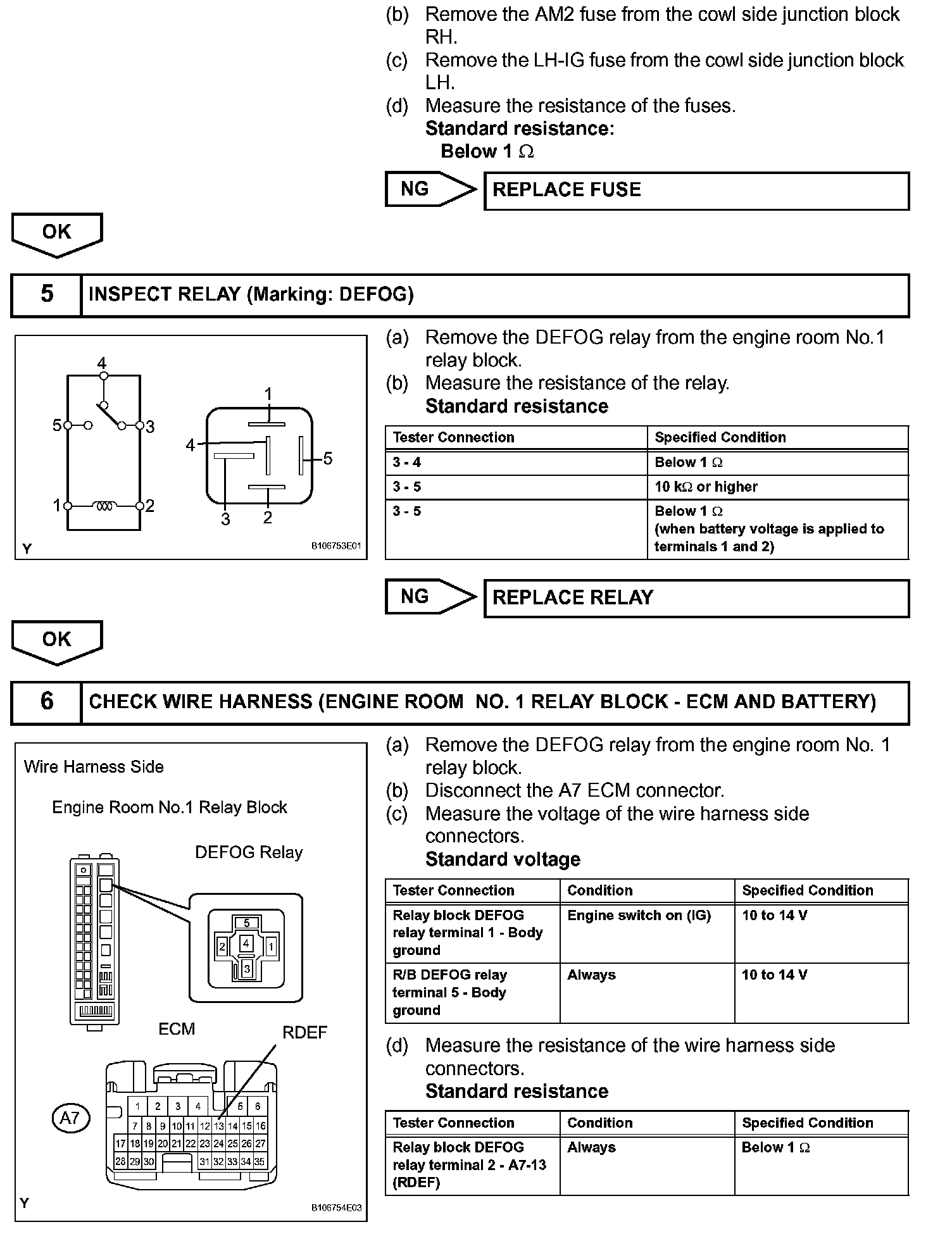

Step 4(Continued) - 6:

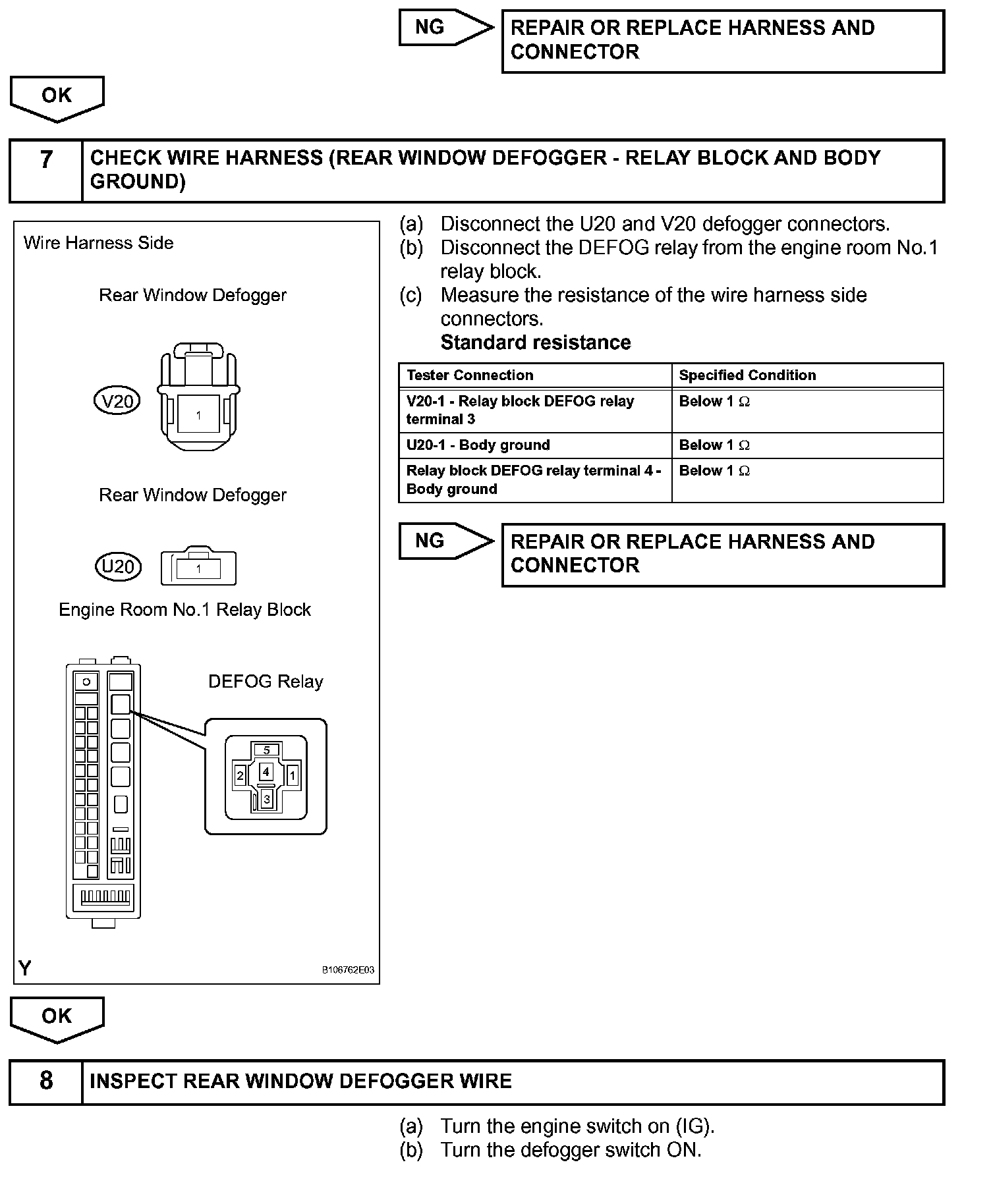

Step 6(Continued) - 8:

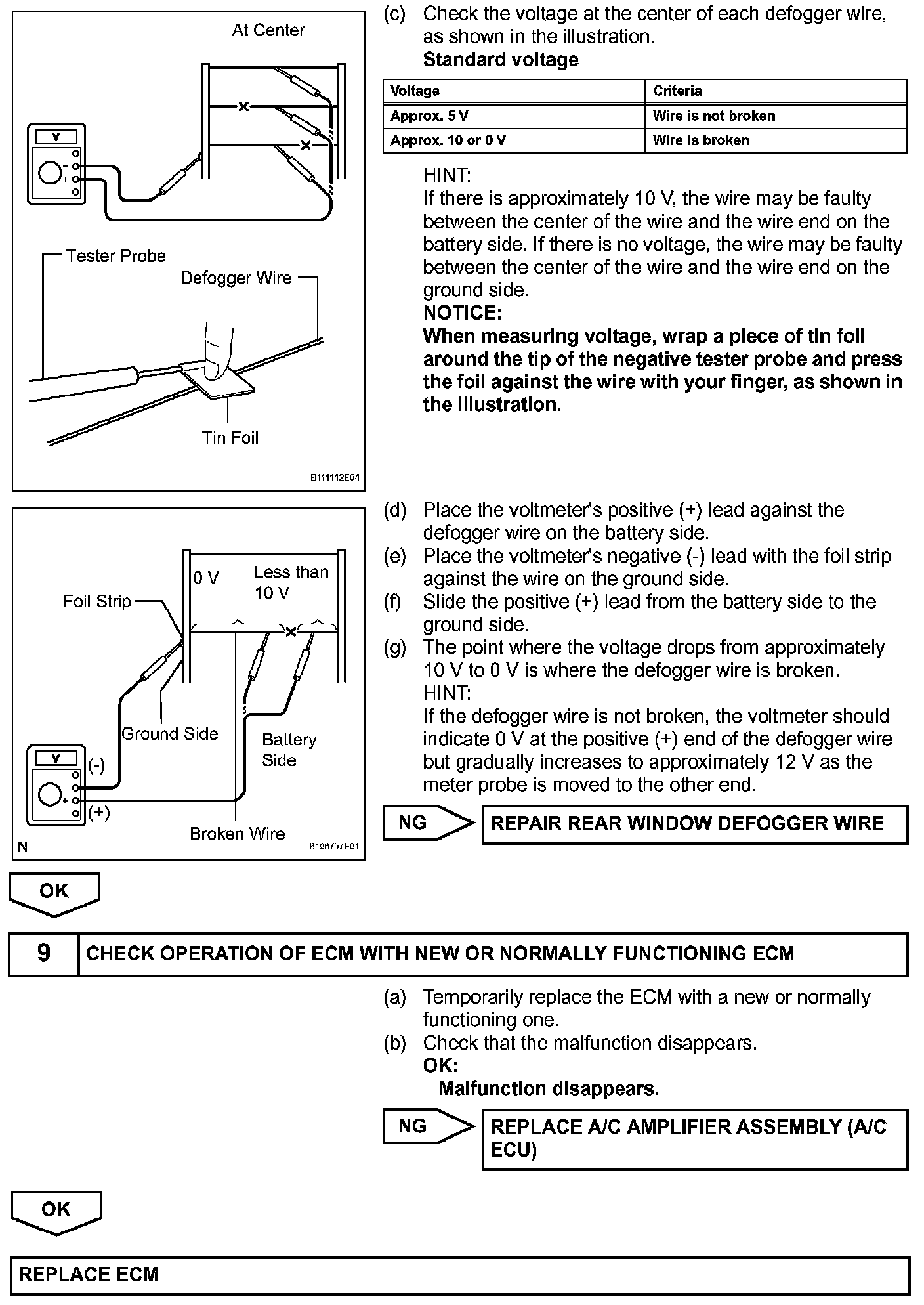

Step 8(Continued) - 9:
