Valve Body: Service and Repair

TRANSFER VALVE BODY ASSEMBLY

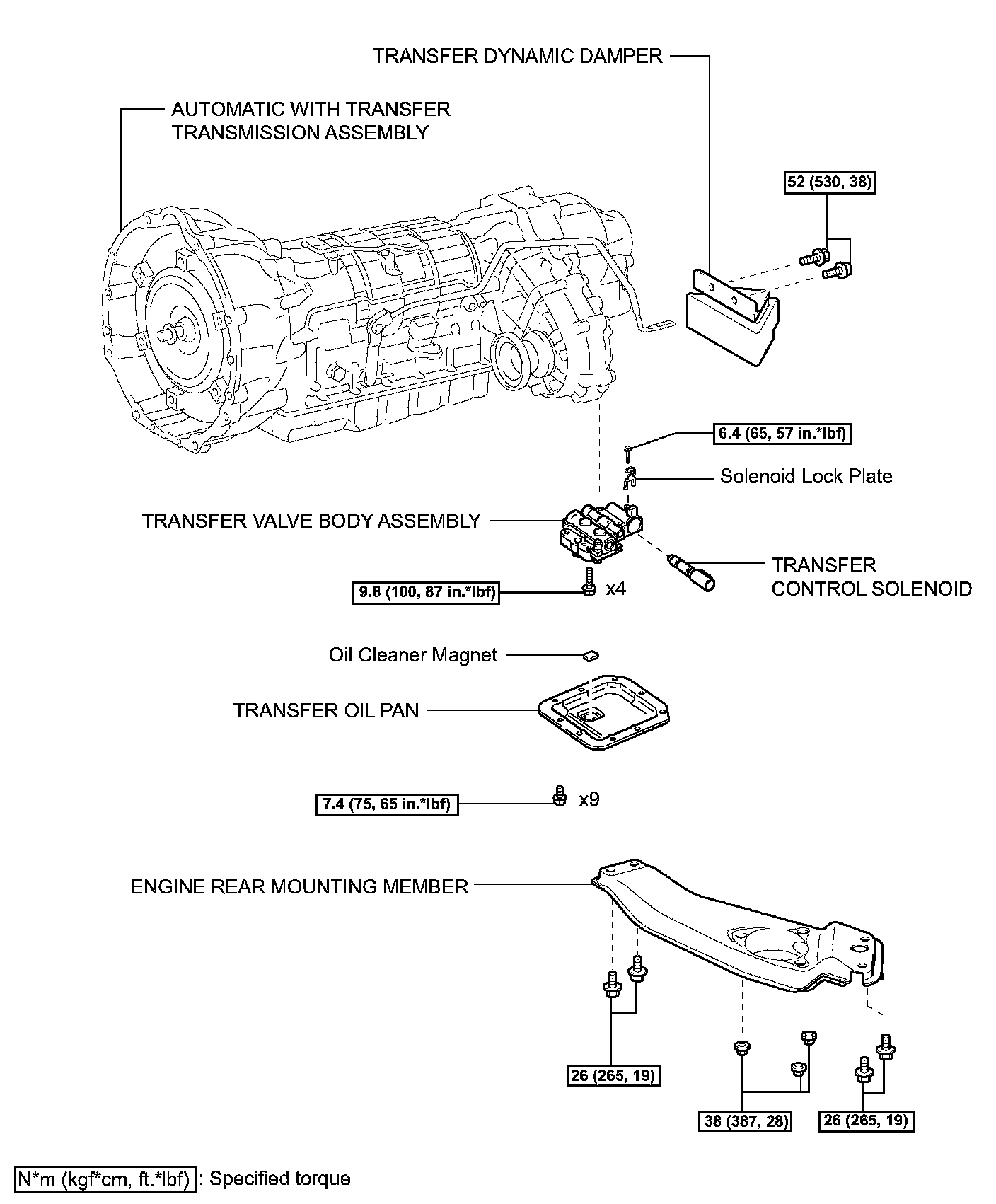

COMPONENTS:

REMOVAL

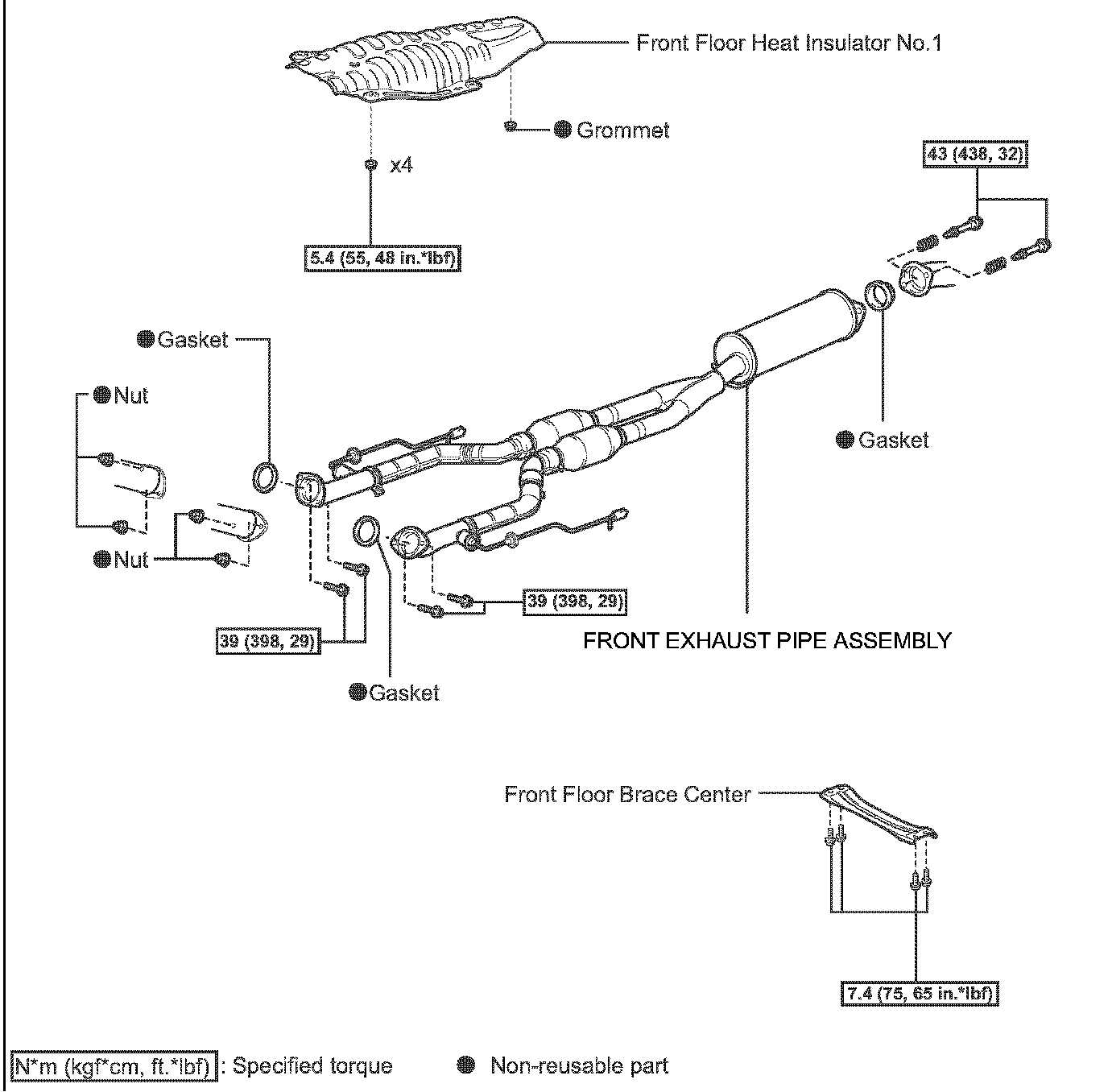

1. REMOVE FRONT EXHAUST PIPE ASSEMBLY
2. DRAIN AUTOMATIC TRANSMISSION FLUID
3. SUPPORT AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY
4. REMOVE ENGINE REAR MOUNTING MEMBER
5. REMOVE TRANSFER DYNAMIC DAMPER
6. REMOVE TRANSFER OIL PAN





7. REMOVE TRANSFER VALVE BODY ASSEMBLY

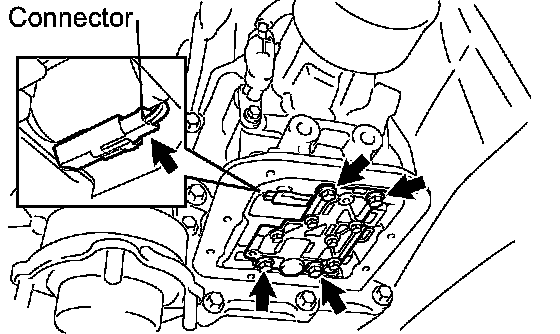

a. Remove the 4 bolts and the transfer upper valve body.
b. Disconnect the transfer wire connector from the transfer control solenoid.

8. REMOVE TRANSFER CONTROL SOLENOID

INSTALLATION
1. INSTALL TRANSFER CONTROL SOLENOID





2. INSTALL TRANSFER VALVE BODY ASSEMBLY
a. Connect the transfer wire connector to the transfer control solenoid.
b. Install the transfer upper valve body with the 4 bolts.
Torque: 9.8 Nm (100 kgf-cm, 87 inch lbs.)

3. INSTALL TRANSFER OIL PAN
4. INSTALL TRANSFER DYNAMIC DAMPER
5. INSTALL ENGINE REAR MOUNTING MEMBER
6. INSTALL FRONT EXHAUST PIPE ASSEMBLY
7. ADD AUTOMATIC TRANSMISSION FLUID
8. CHECK FOR EXHAUST GAS LEAKS
