Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

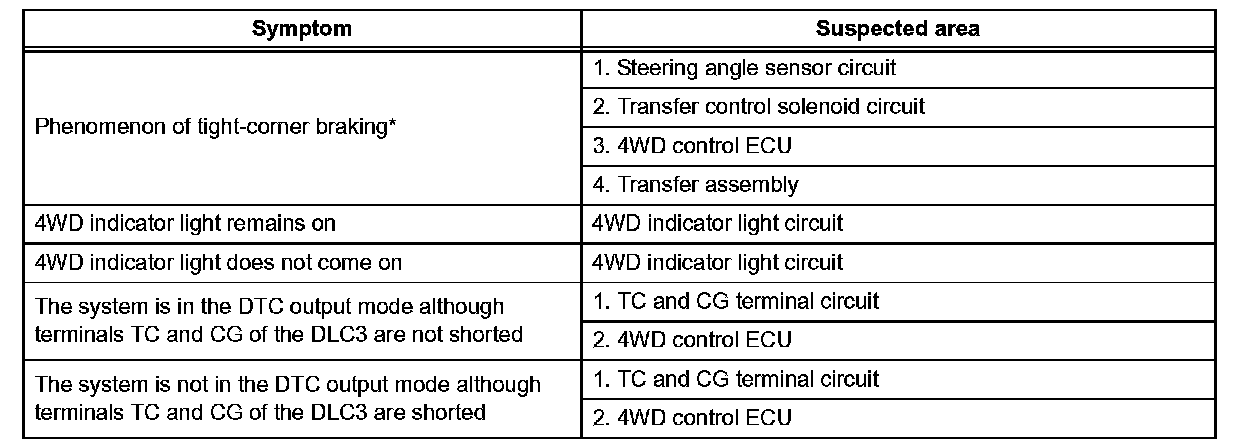

HINT: If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

FOUR WHEEL DRIVE CONTROL SYSTEM:

HINT: Phenomenon of tight-corner braking When driving 4-wheel drive mode, the vehicle is hard to turn, as if the brakes were applied, due to the rotational difference between the front and rear tires while turning.
