4WD Indicator Light Does Not Come On
4WD Indicator Light Does Not Come OnDESCRIPTION
^ The 4WD control ECU inputs the signals sent from the ECM, skid control ECU, and steering angle sensor via the CAN communication system.
^ When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system before repairing each corresponding sensor.
WIRING DIAGRAM (See page TF-45)
HINT: Check the condition of each related circuit connector before troubleshooting.
INSPECTION PROCEDURE

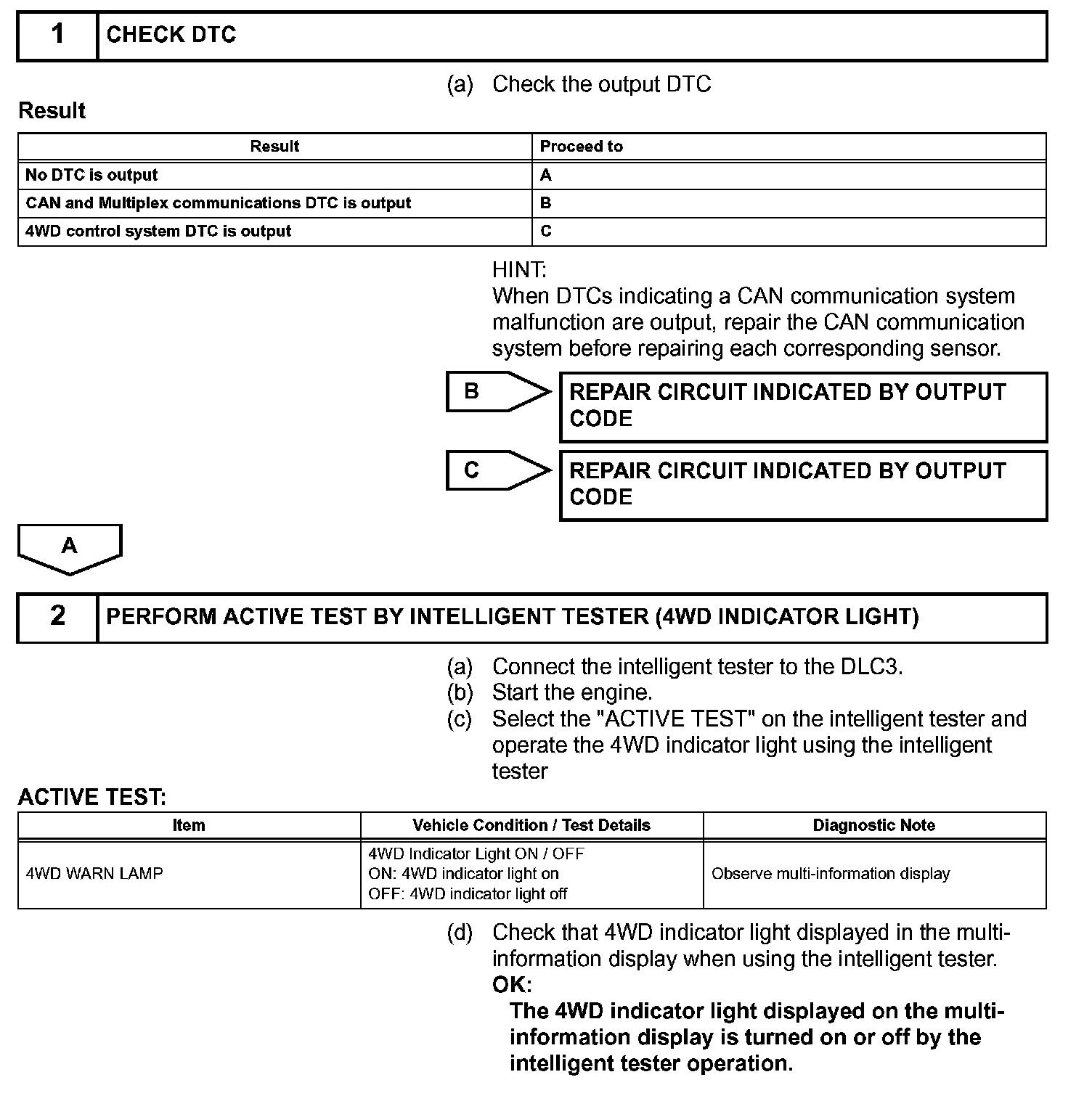

Steps 1-2:

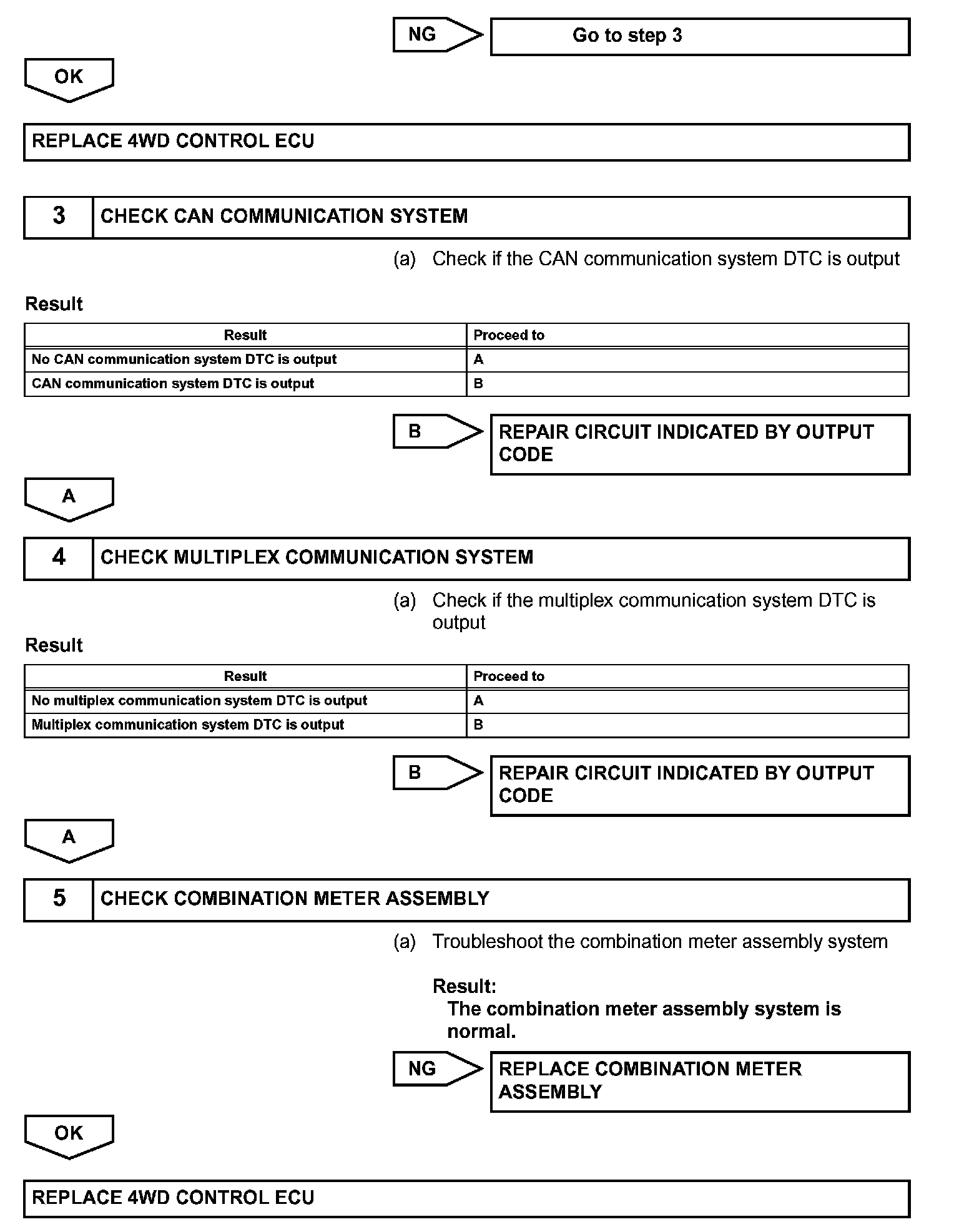

Step 2 (Continued)-5:
