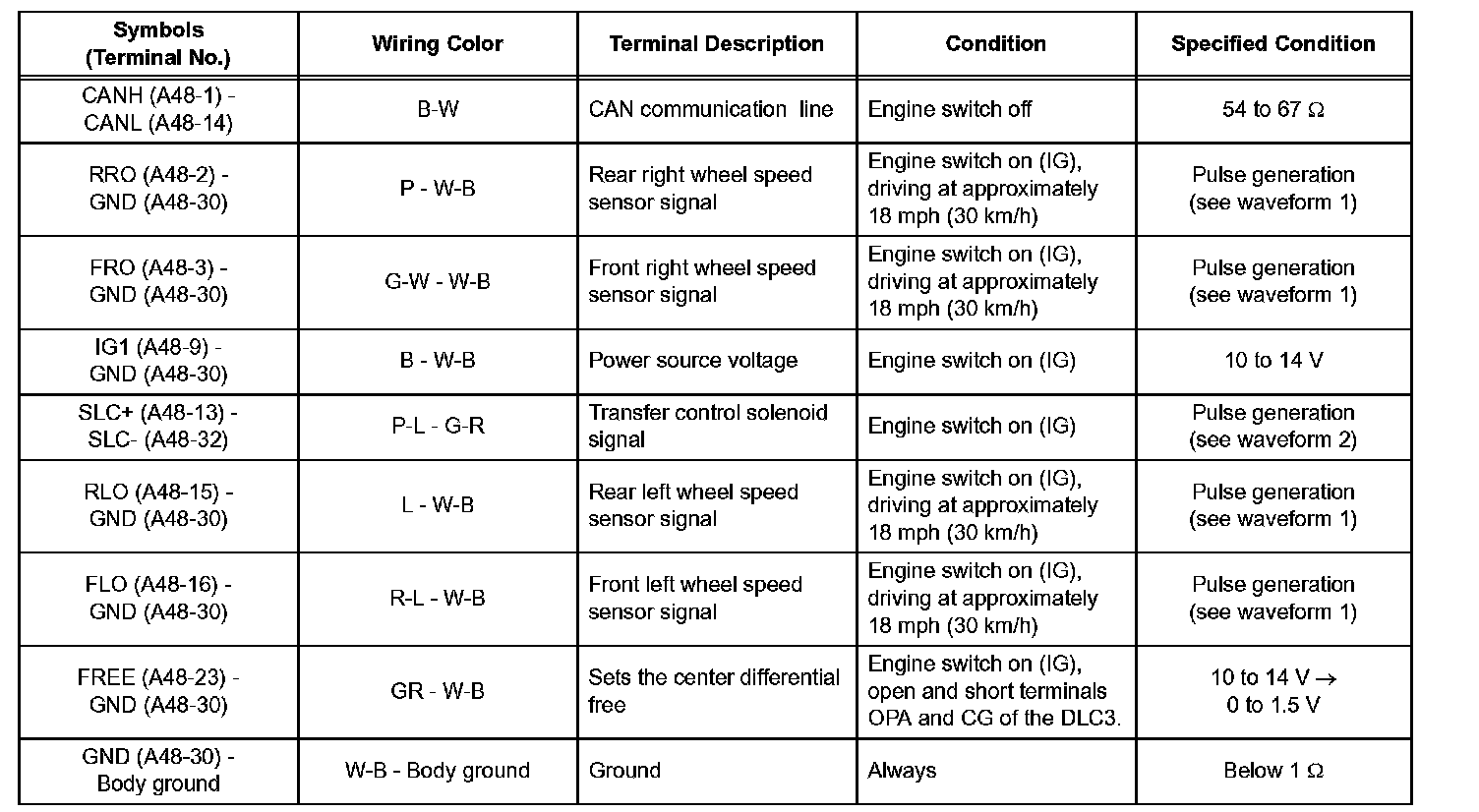

Pinout Values and Diagnostic Parameters

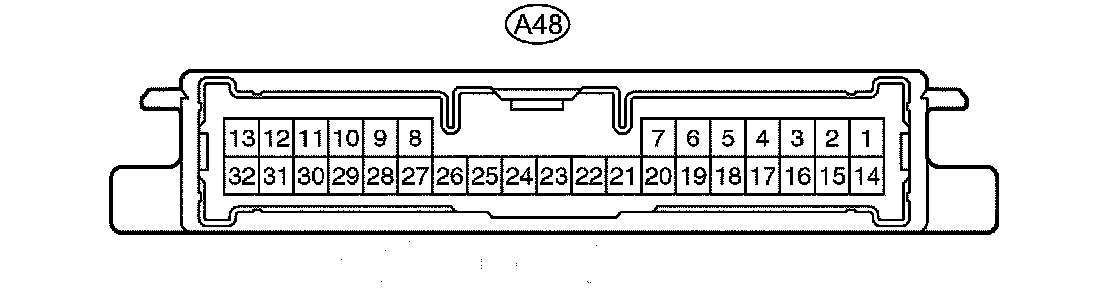

TERMINALS OF ECU

HINT: Inspect the connector from the back side while connector is connected.

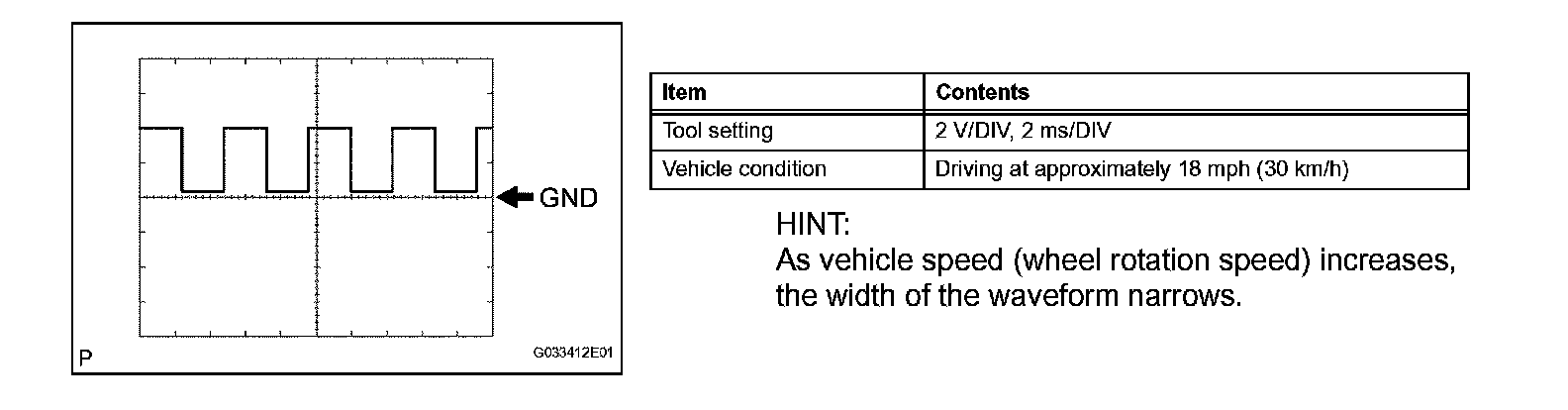

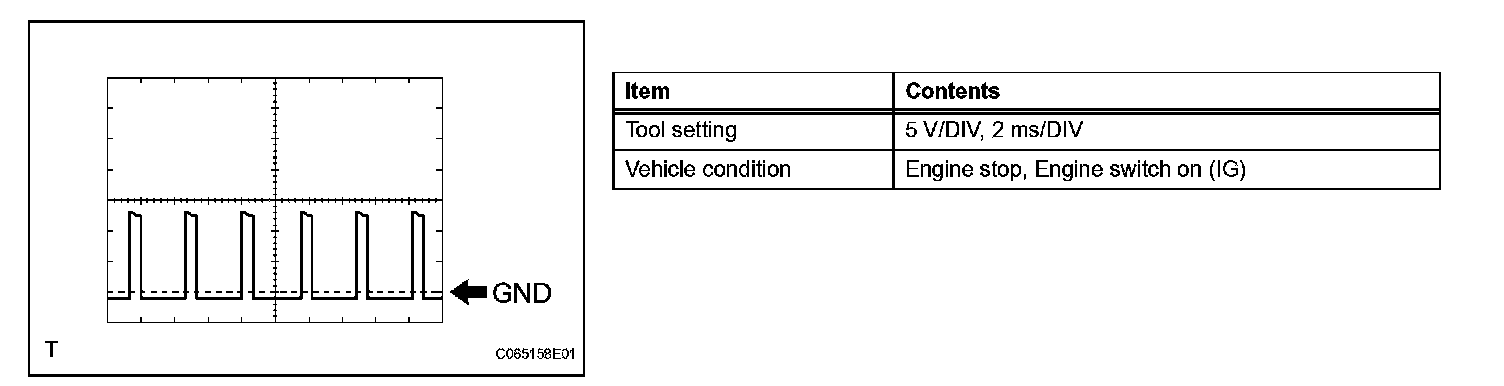

HINT: As vehicle speed (wheel rotation speed) increases, the width of the waveform narrows.
