TC and CG Terminal Circuit

DESCRIPTION
Connecting terminals TC and CG of the DLC3 causes the 4WD control ECU to display a DTC on the multi-information display.

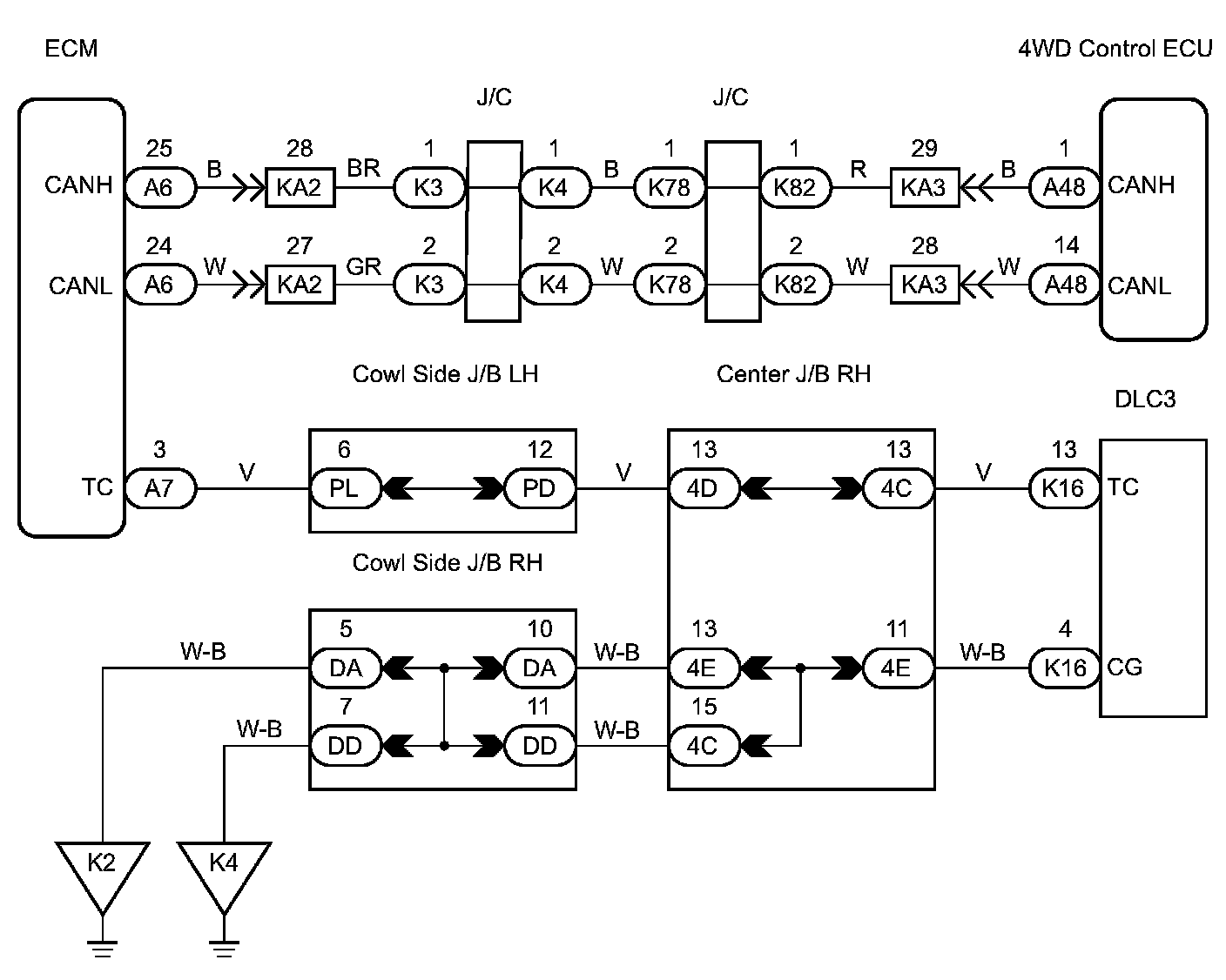

WIRING DIAGRAM:

HINT: Check the condition of each related circuit connector before troubleshooting.

INSPECTION PROCEDURE

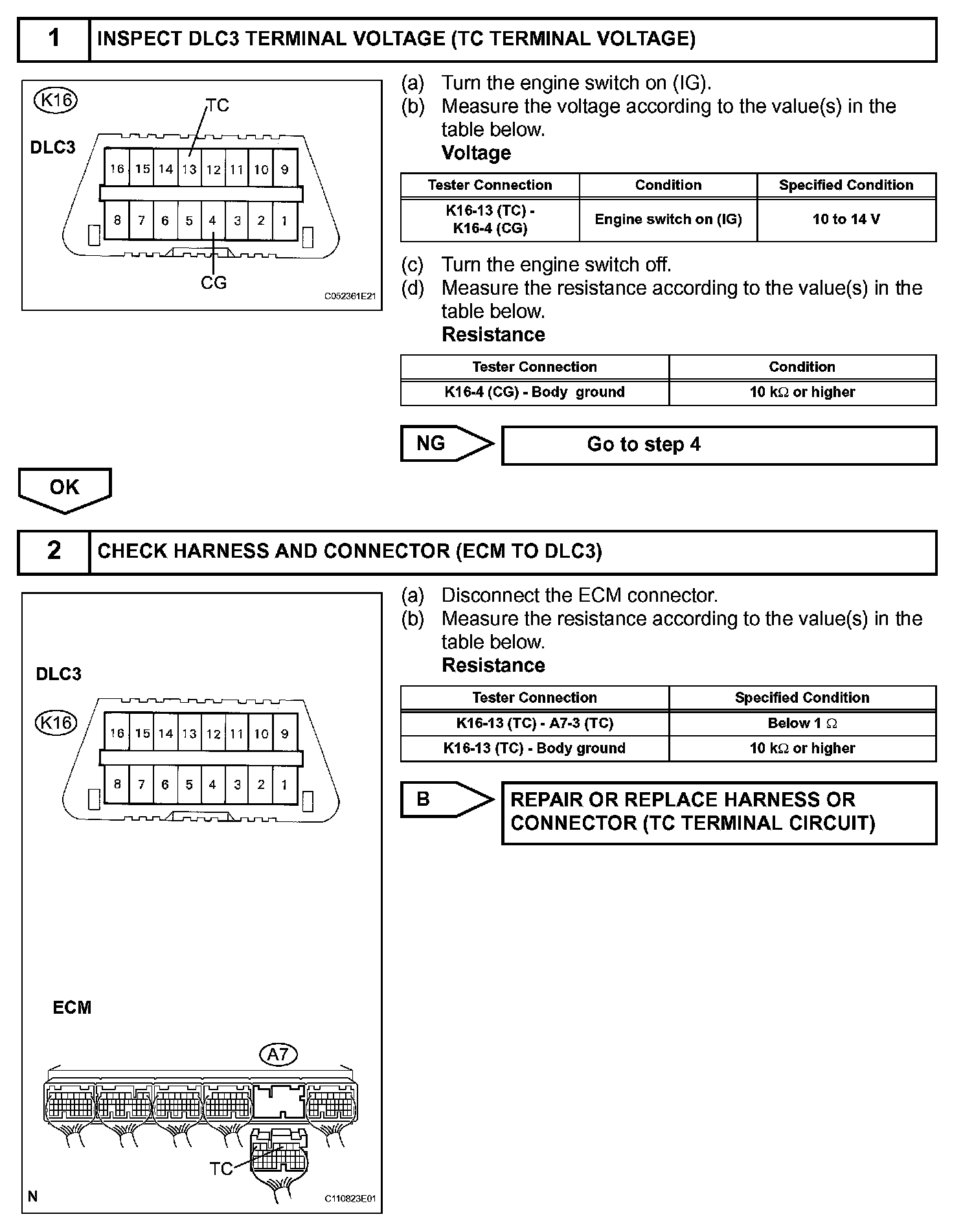

Steps 1-2:

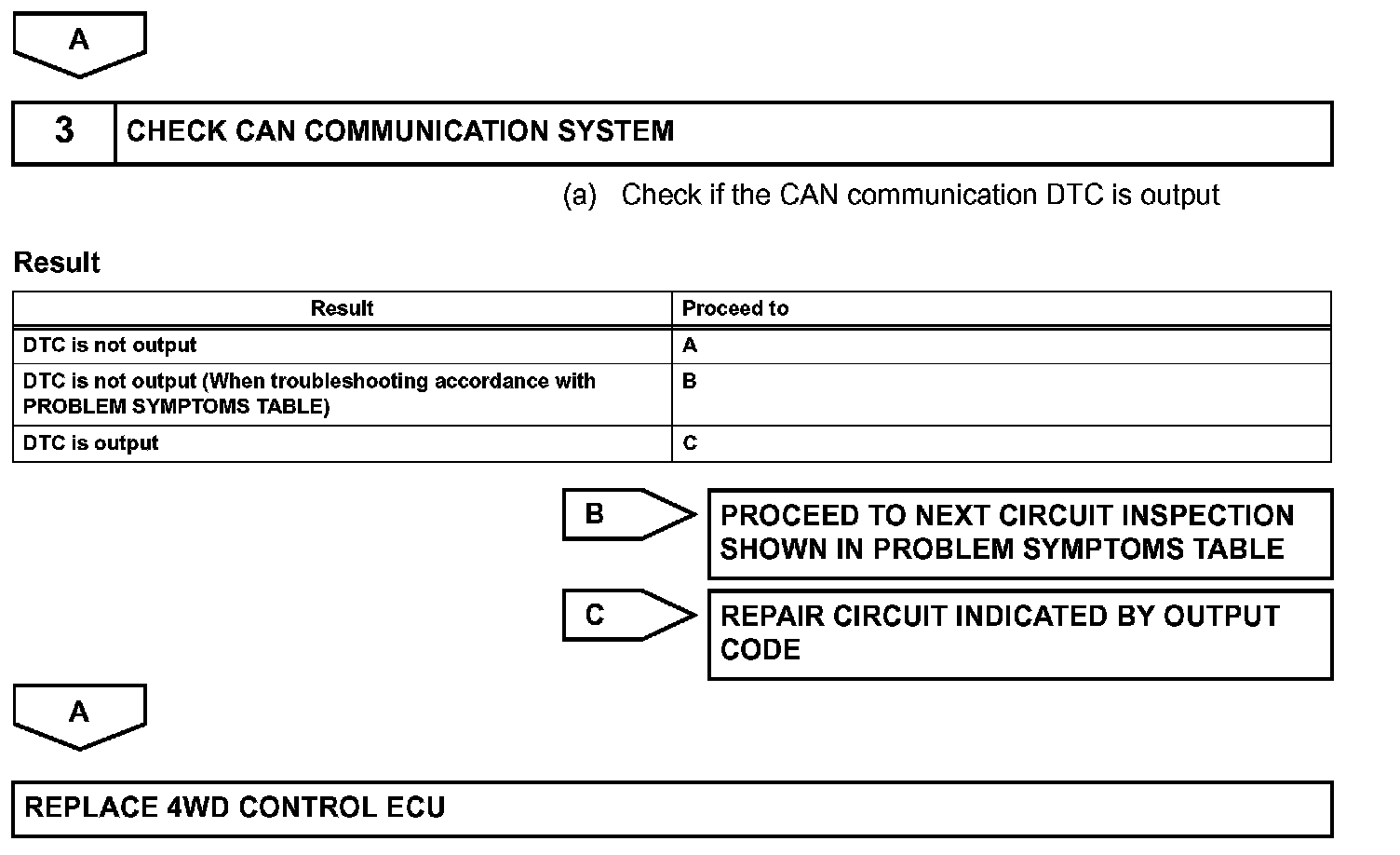

Step 2 (Continued)-3:

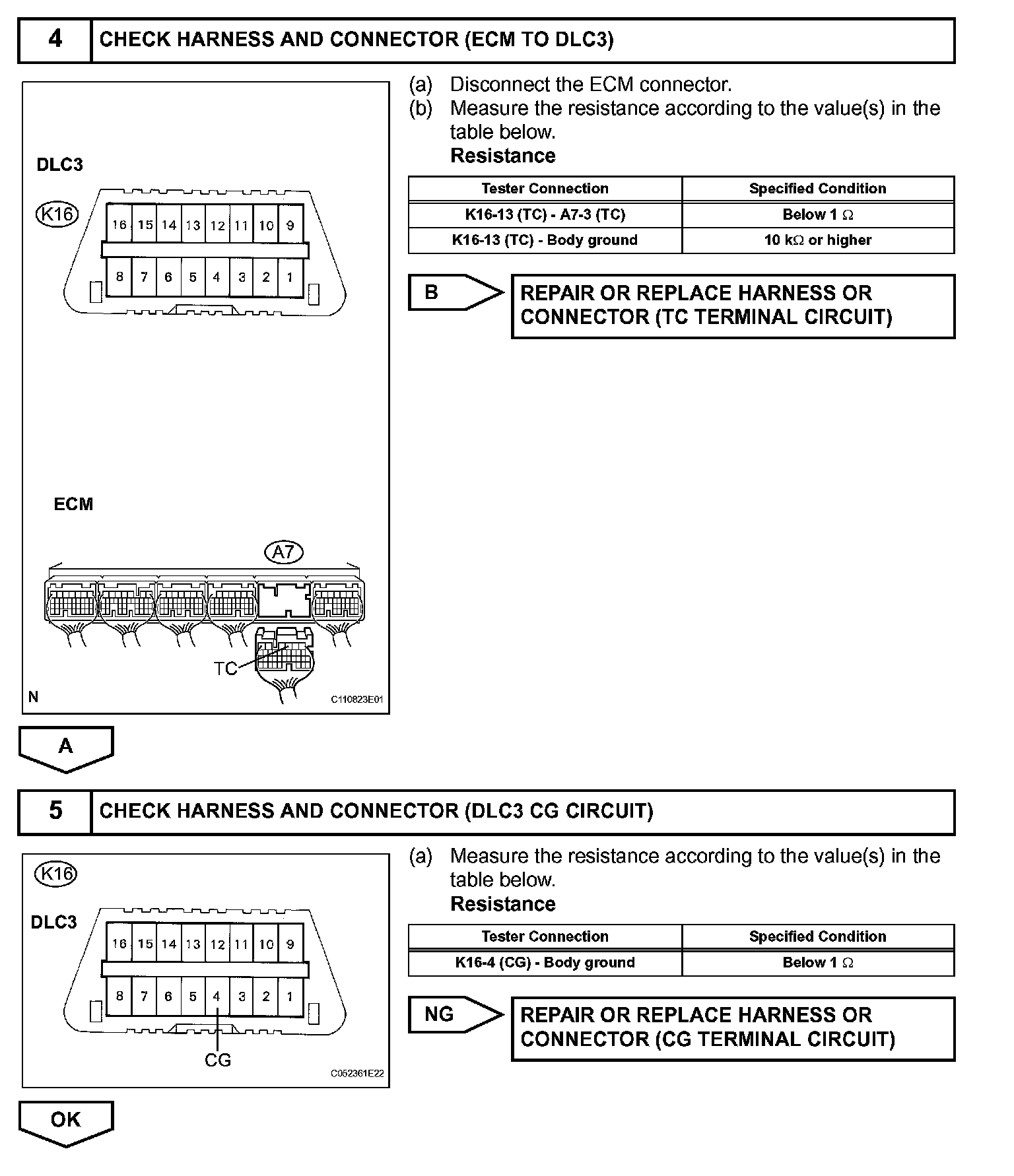

Steps 4-5:

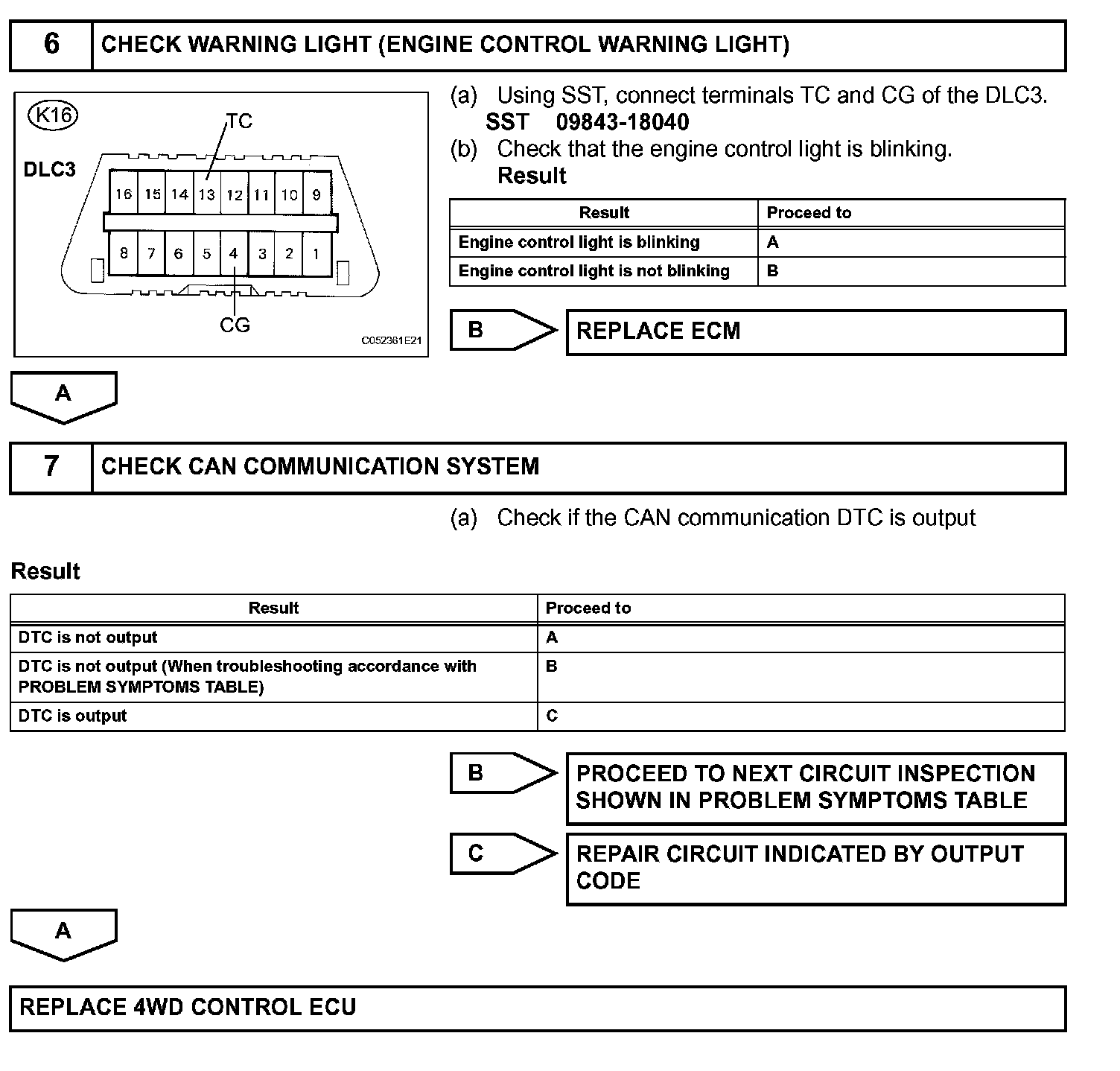

Steps 6-7:
