Front Propeller Shaft Assembly

FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

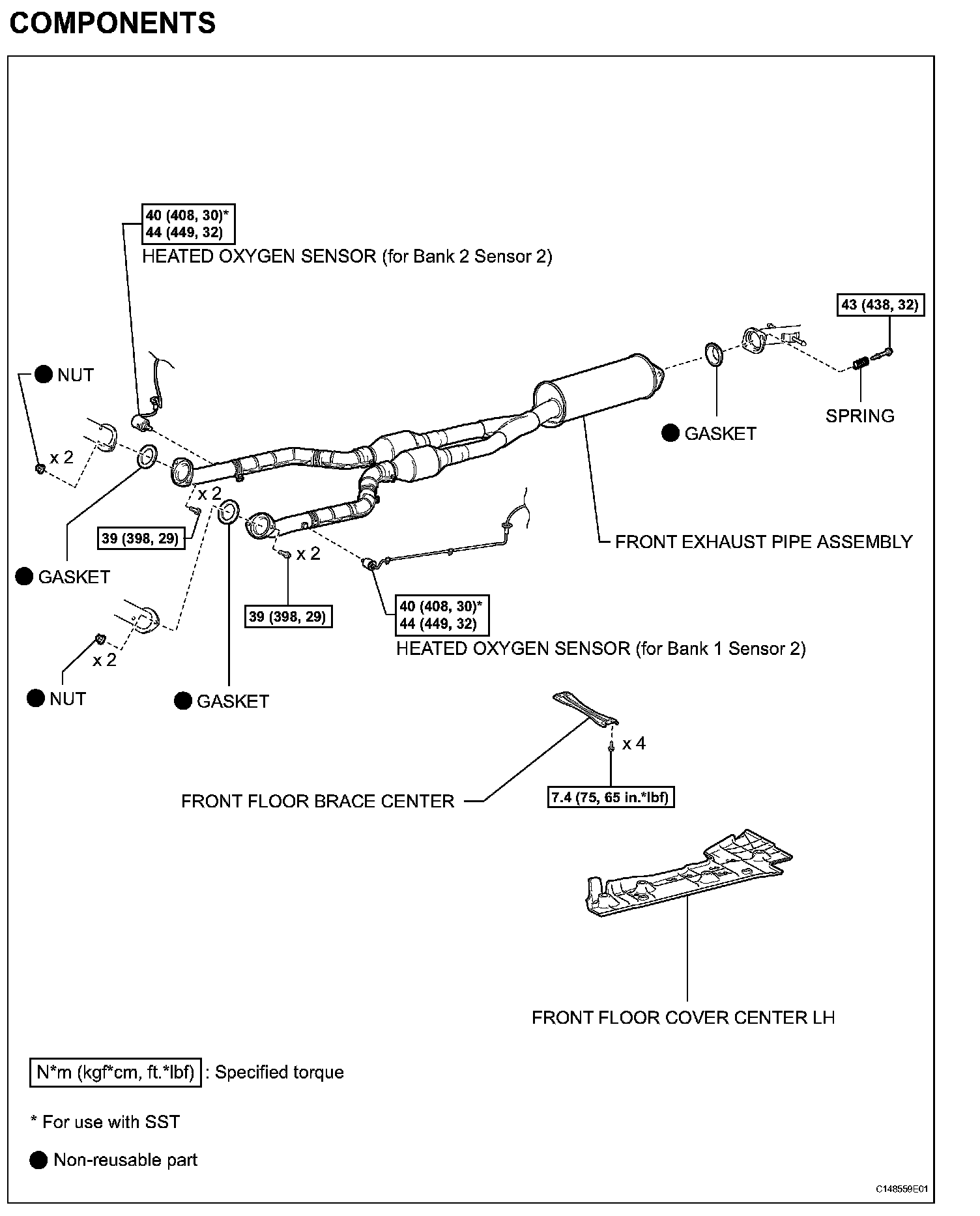

COMPONENTS (Part 1):

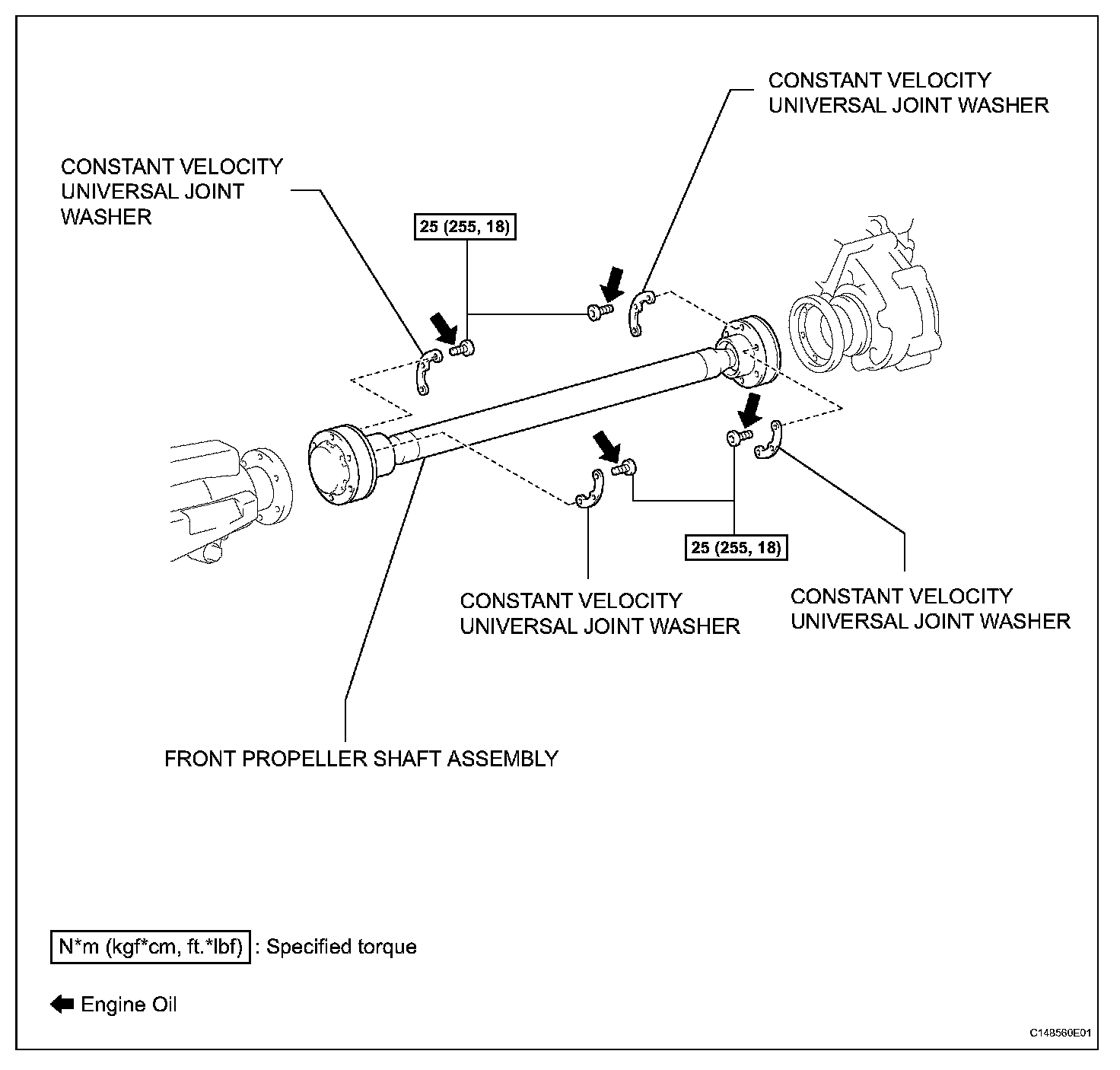

COMPONENTS (Part 2):

REMOVAL
1. REMOVE FRONT EXHAUST PIPE ASSEMBLY
(a) Remove the front exhaust pipe assembly.





2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

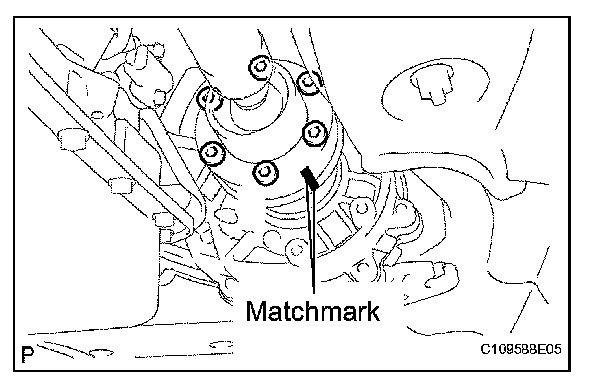

(a) Put matchmarks on the transfer companion flange and the front propeller shaft.

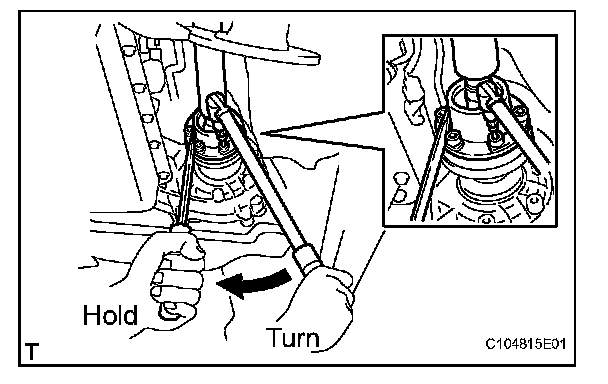

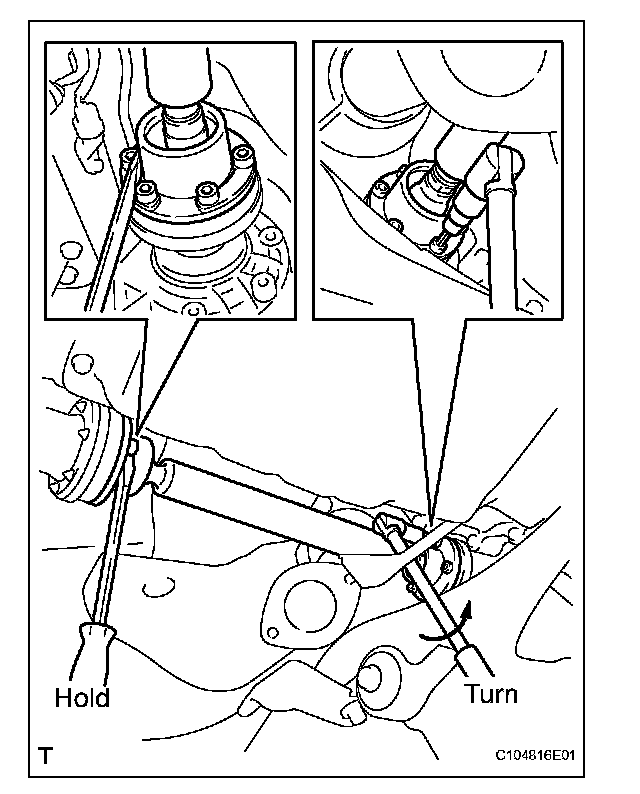

(b) Using a screwdriver or an equivalent, hold the transfer companion flange.
(c) Using a socket hexagon wrench 6 mm, loosen the 6 bolts.

NOTICE:
Be careful not to damage the front propeller shaft.

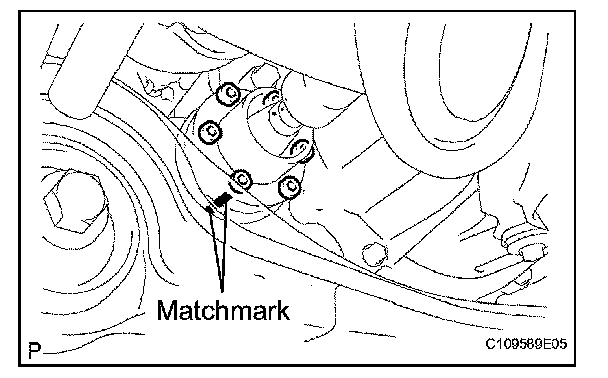

(d) Put matchmarks on the front differential companion flange and the front propeller shaft.

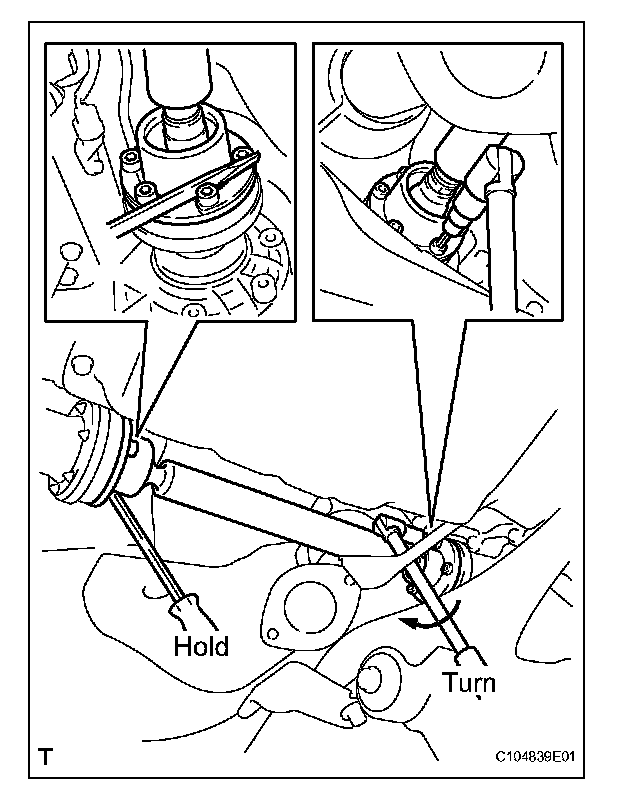

(e) Using a screwdriver or an equivalent, hold the transfer companion flange.
(f) Using a socket hexagon wrench 6 mm, loosen the 6 bolts.

NOTICE:
Be careful not to damage the front propeller shaft.

(g) Remove the 12 bolts, 4 constant velocity universal joint washers and front propeller shaft assembly.
3. INSPECT FRONT PROPELLER SHAFT ASSEMBLY
(a) Check that the propeller shaft is not cracked or damaged.

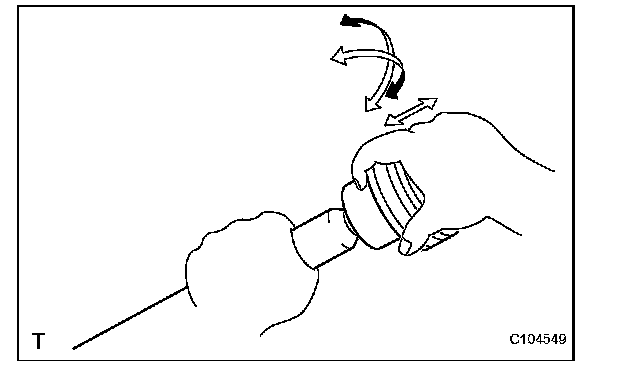

(b) Check that there is no excessive play in the joint.

HINT:
If necessary, replace the front propeller shaft assembly.

INSTALLATION
1. INSTALL FRONT PROPELLER SHAFT ASSEMBLY

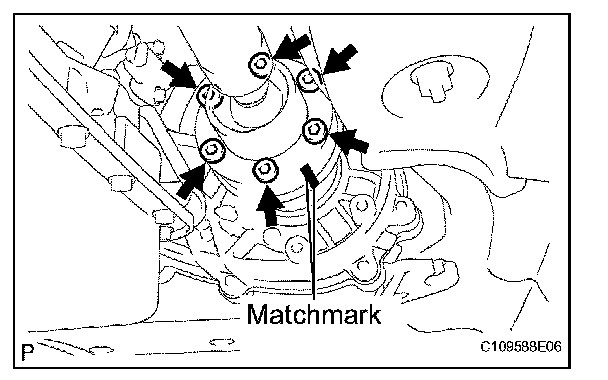

(a) Align the matchmarks on the transfer companion flange and the front propeller shaft.





(b) Temporarily tighten the front propeller shaft with the 6 bolts and 2 constant velocity universal joint washers.

HINT:
If reusing the bolts, apply engine oil to the bolt before use.

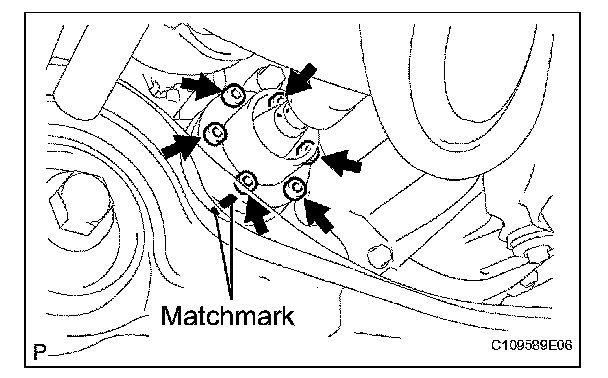

(c) Align the matchmarks on the differential companion flange and the front propeller shaft.





(d) Temporarily tighten the front propeller shaft with the 6 bolts and 2 constant velocity universal joint washers.

HINT:
If reusing the bolts, apply engine oil to the bolt before use.

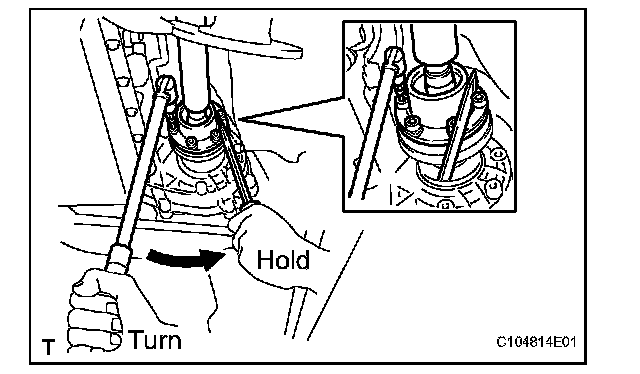

(e) Using a screwdriver or an equivalent, hold the transfer companion flange.
(f) Using a socket hexagon wrench 6 mm, fully tighten the front propeller shaft with the 6 bolts.
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

NOTICE:
Be careful not to damage the front propeller shaft.





(g) Using a screwdriver or an equivalent, hold the transfer companion flange.
(h) Using a socket hexagon wrench 6 mm, fully tighten the front propeller shaft with the 6 bolts.
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

NOTICE:
Be careful not to damage the front propeller shaft.

2. INSTALL FRONT EXHAUST PIPE ASSEMBLY
(a) Install the front exhaust pipe assembly.
3. CHECK FOR EXHAUST GAS LEAKS
