Seals and Gaskets: Service and Repair

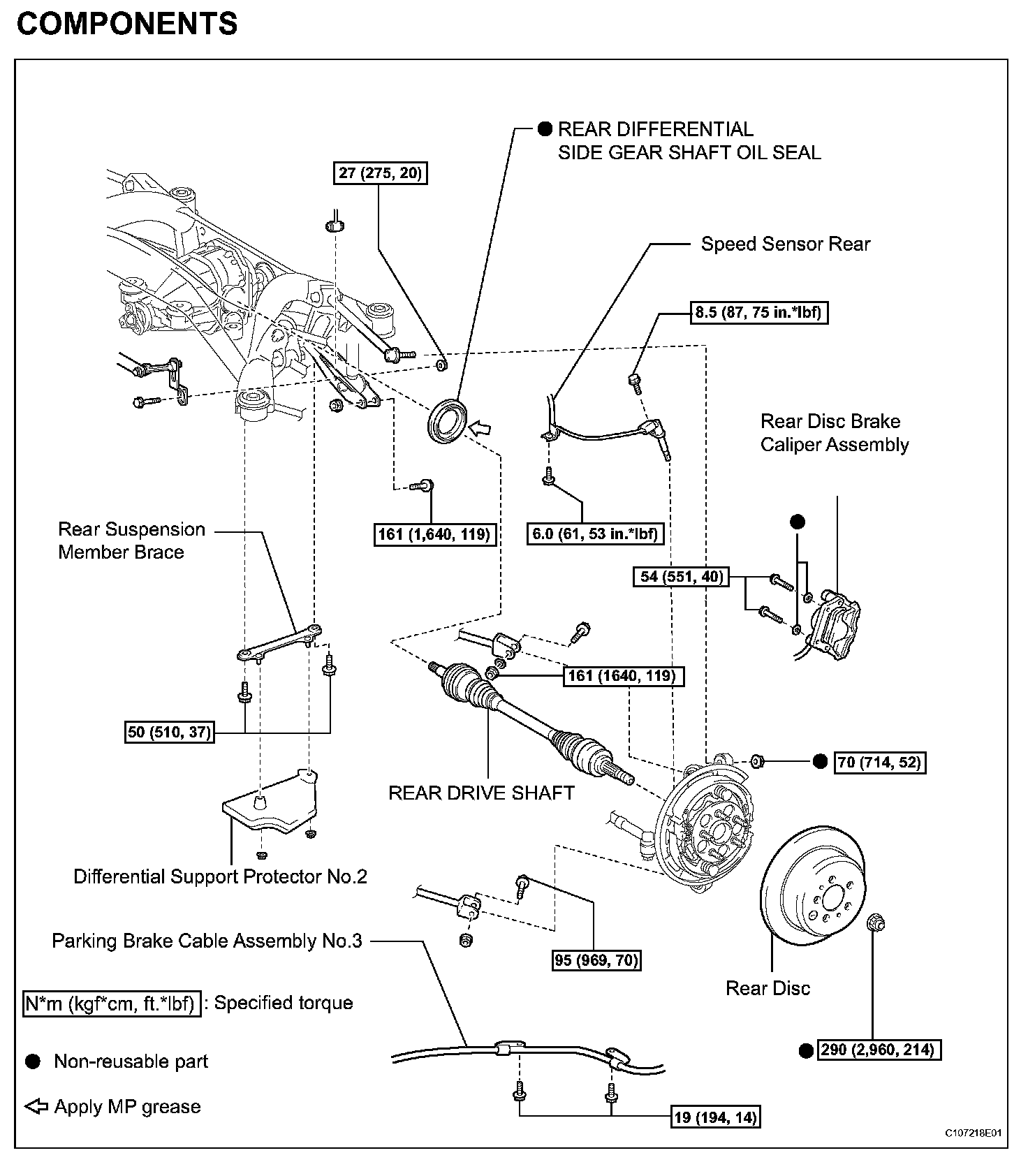

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEALCOMPONENTS:
REPLACEMENT
1. REMOVE REAR TIRE
2. DRAIN DIFFERENTIAL OIL
(a) Using a hexagon wrench (10 mm), remove the filler plug and gasket.
(b) Using a hexagon wrench (10 mm), remove the drain plug and gasket, and drain the oil.
(c) Install the differential drain plug and a new gasket.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
3. REMOVE REAR DRIVE SHAFT
4. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

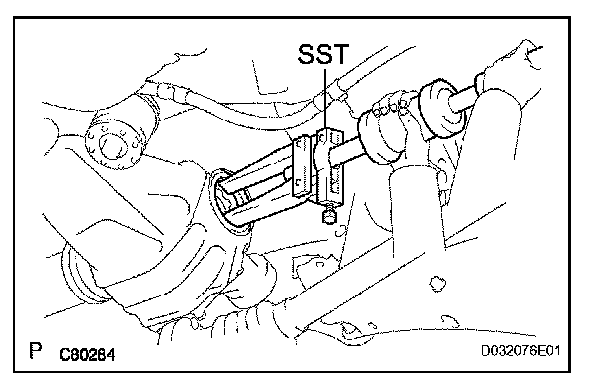

(a) Using SST, remove the oil seal.
SST 09308-10010
5. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

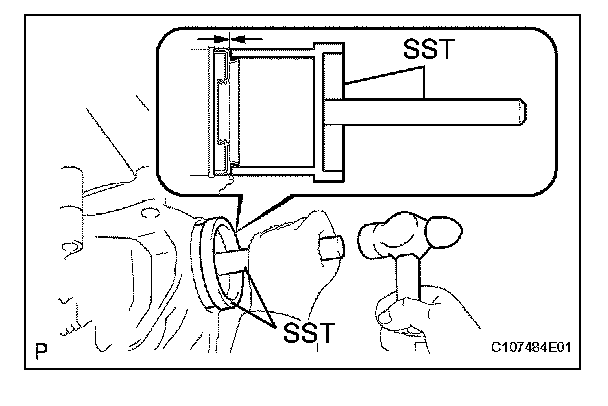

(a) Using SST and hammer, install a new oil seal.
SST 09950-70010 (09951-07150), 09223-15030
Oil seal drive in depth: -0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Apply MP grease to the oil seal lip.
6. INSTALL REAR DRIVE SHAFT
7. ADD DIFFERENTIAL OIL
8. INSPECT DIFFERENTIAL OIL
9. INSTALL REAR TIRE
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
10. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
11. CHECK ABS SPEED SENSOR SIGNAL
