Transmission Control Switch Circuit

Transmission Control Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (first range) and "6" (sixth range).

Shifting to "+" once raises one shift range position, and shifting to "-" lowers one shift range position.

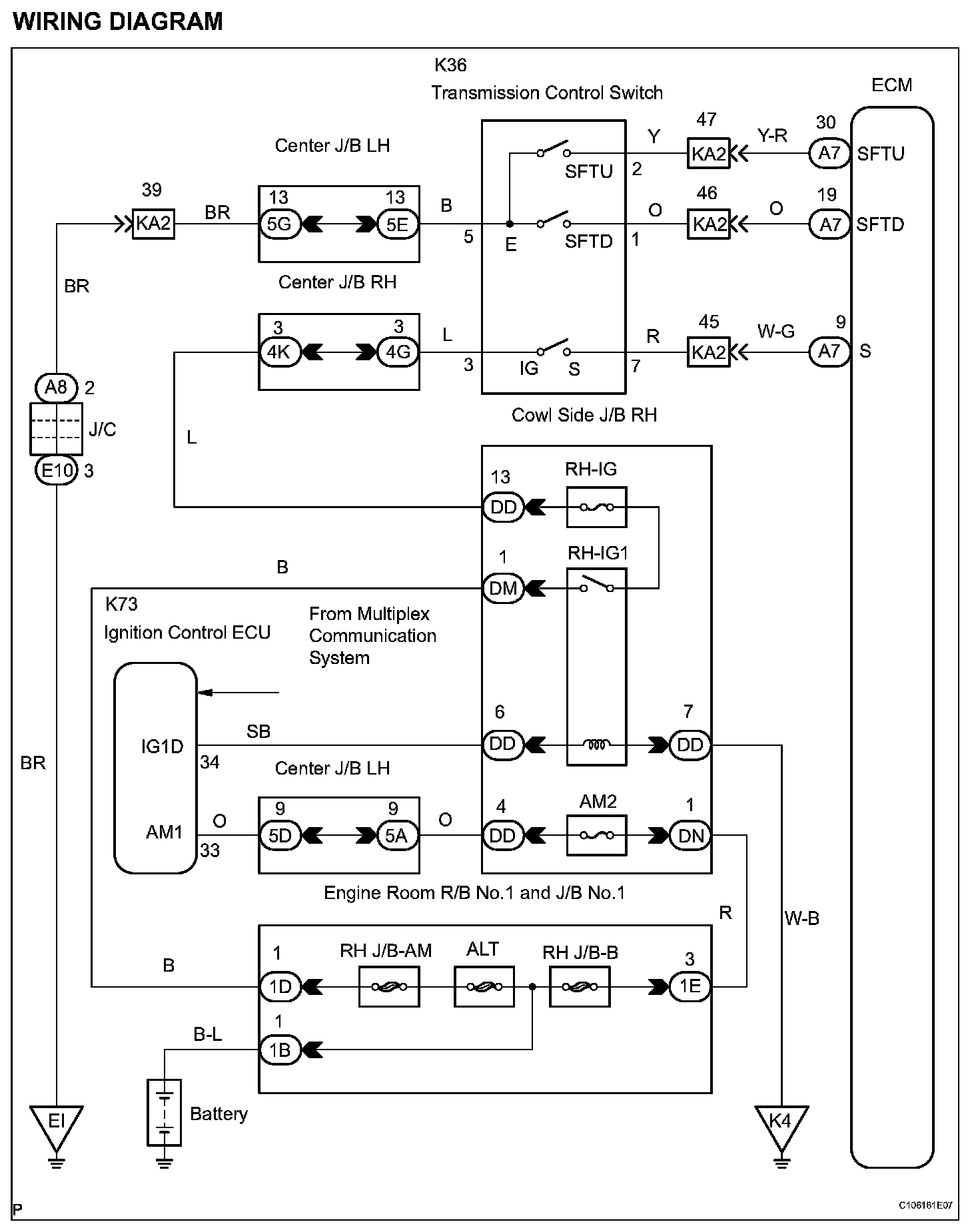

WIRING DIAGRAM:

INSPECTION PROCEDURE

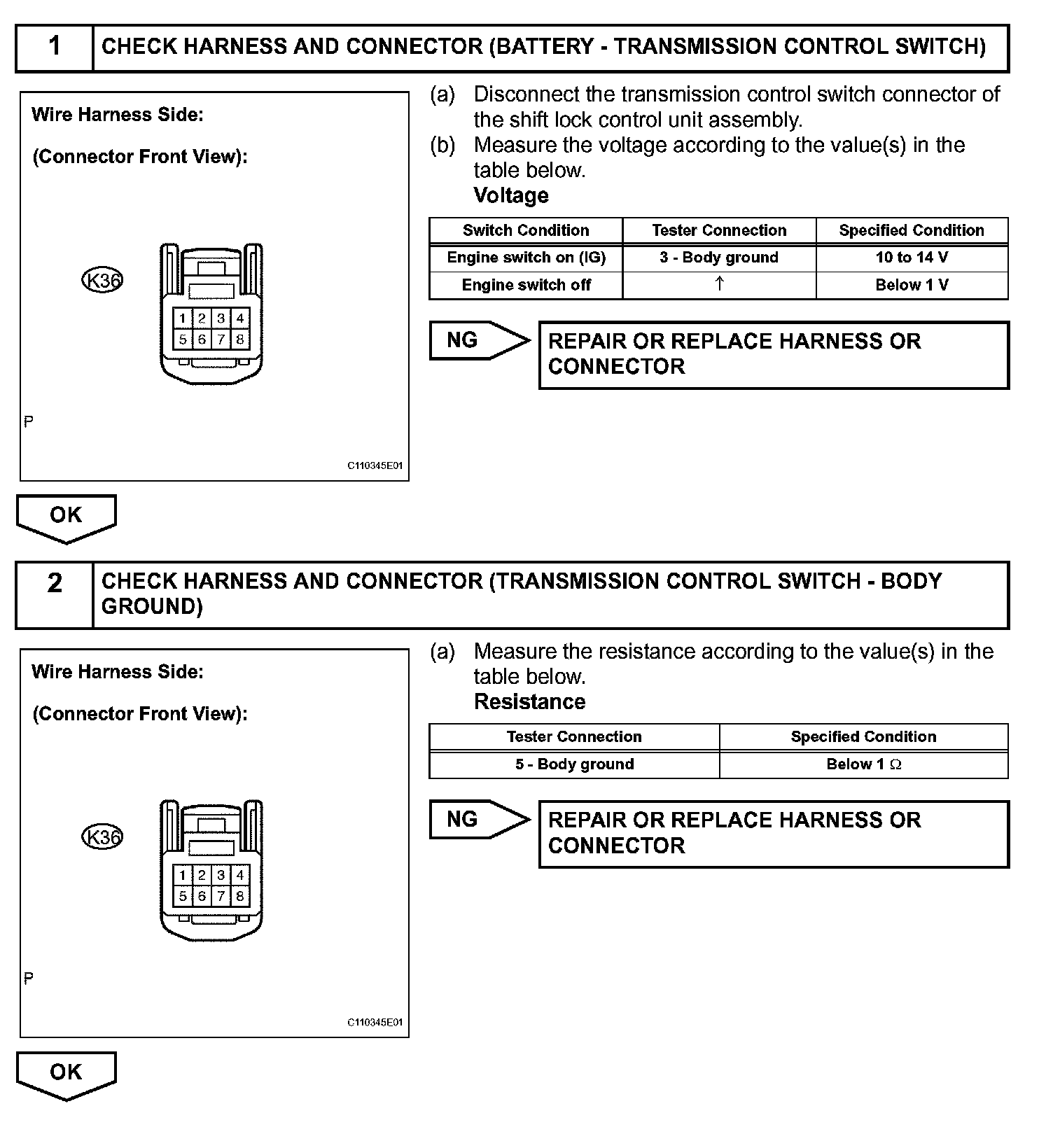

Steps 1-2:

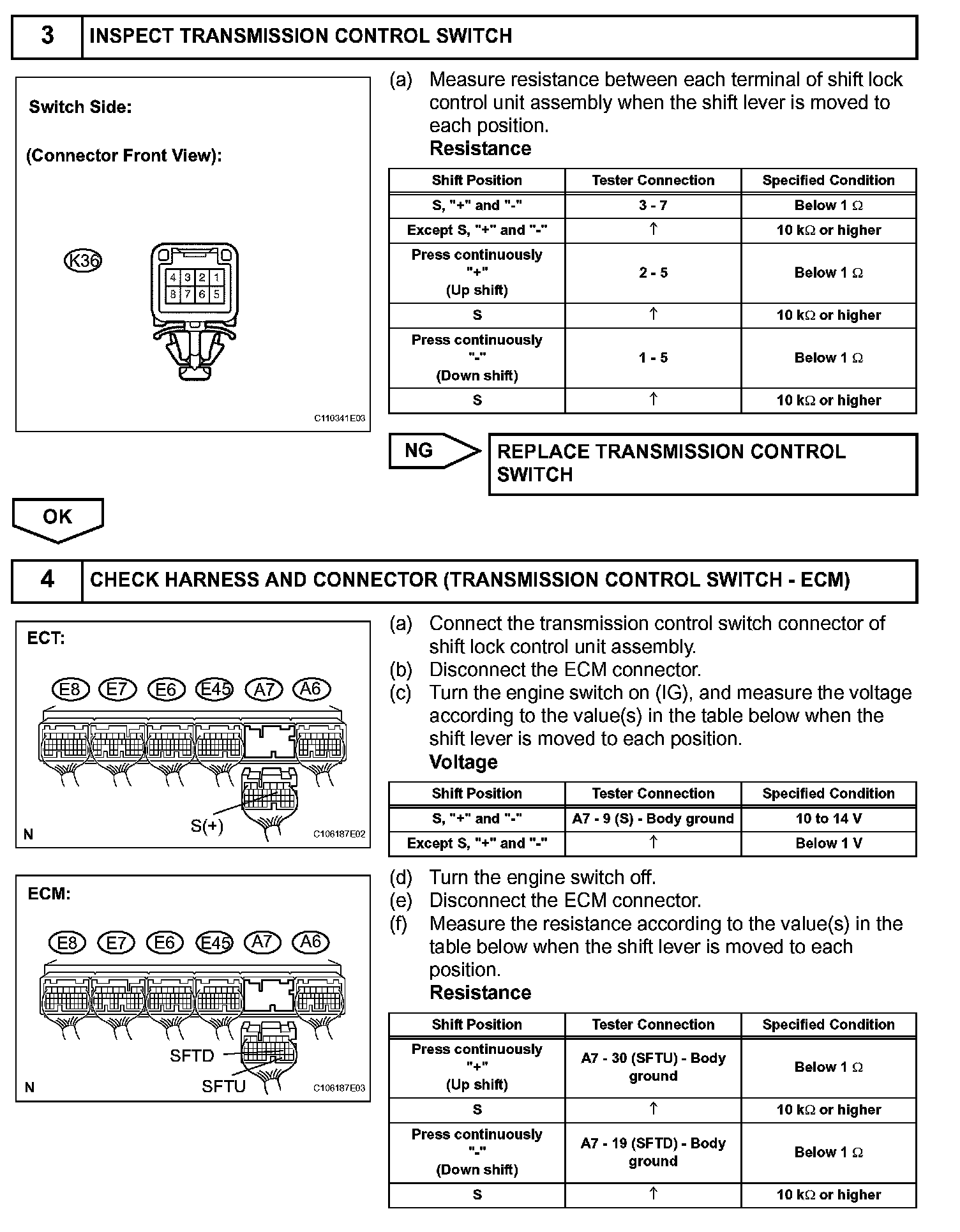

Steps 3-4(Part 1):

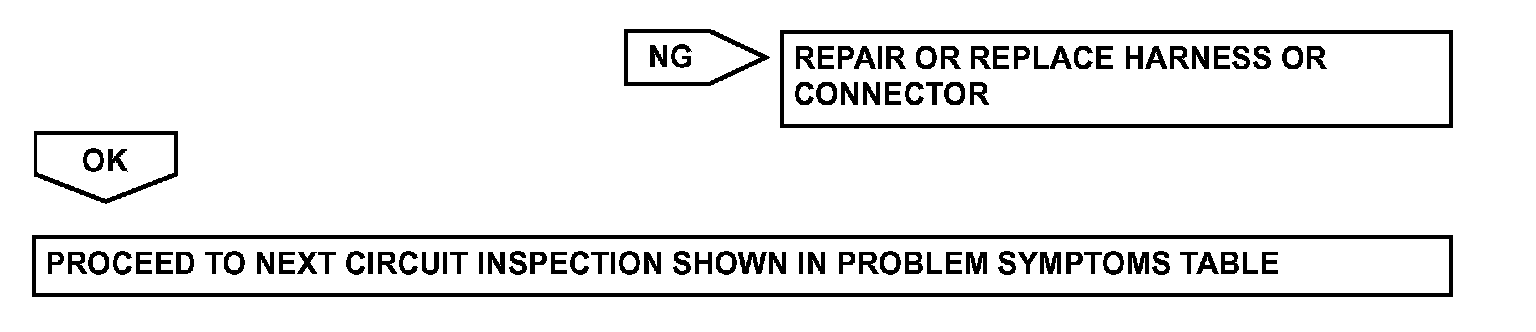

Step 4(Part 2):
