Absorber Control Indicator Light Remains ON

Absorber Control Indicator Light Remains ON

DESCRIPTION

- Check the DTC and make sure that the normal system code is output.
If malfunction code is output.
- If the absorber control ECU stores a DTC, the absorber control indicator light on the combination meter will come on.
- The absorber control ECU is connected to the combination meter assembly via the CAN communication system and multiplex communication system.

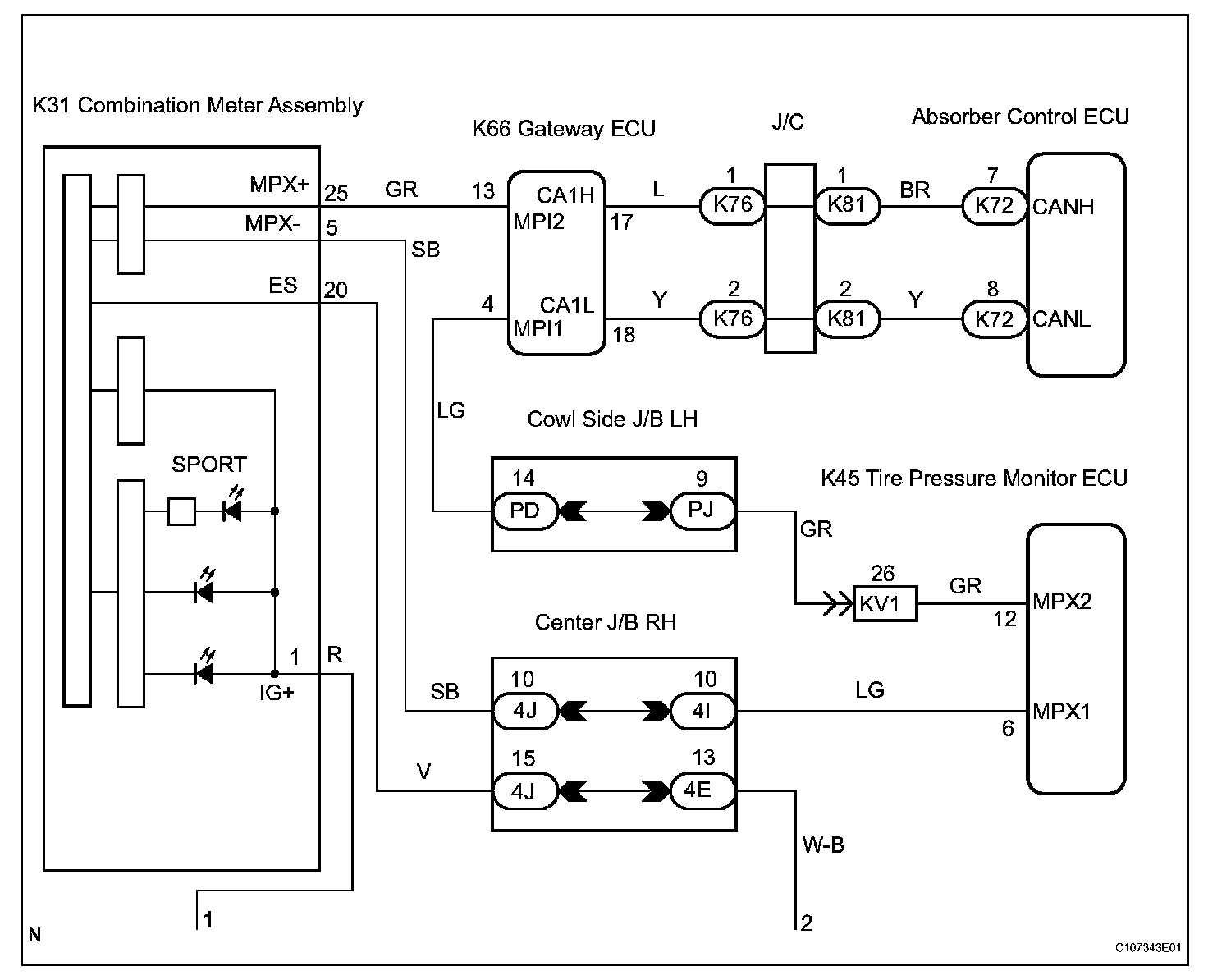

Wiring Diagram:

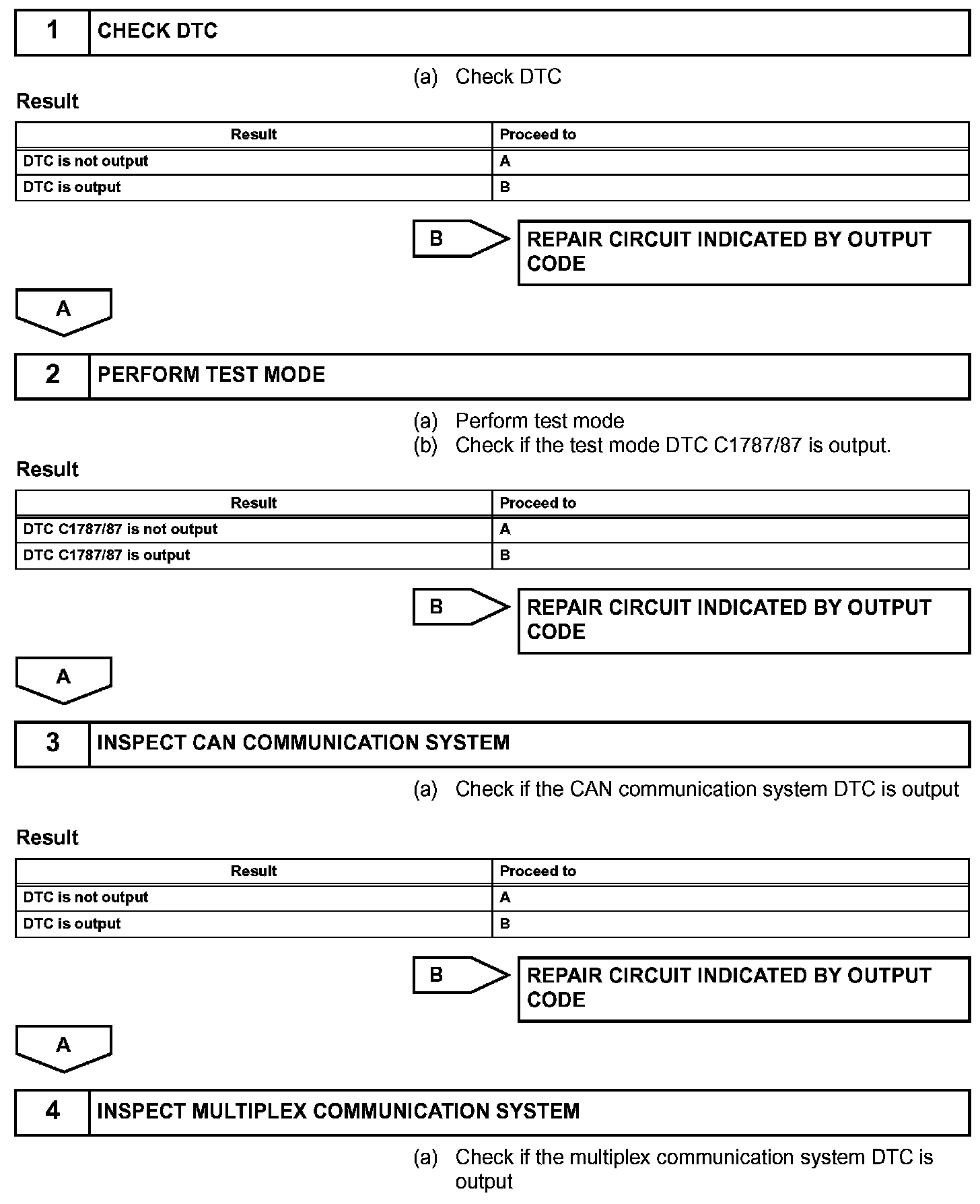

Step 1-4:

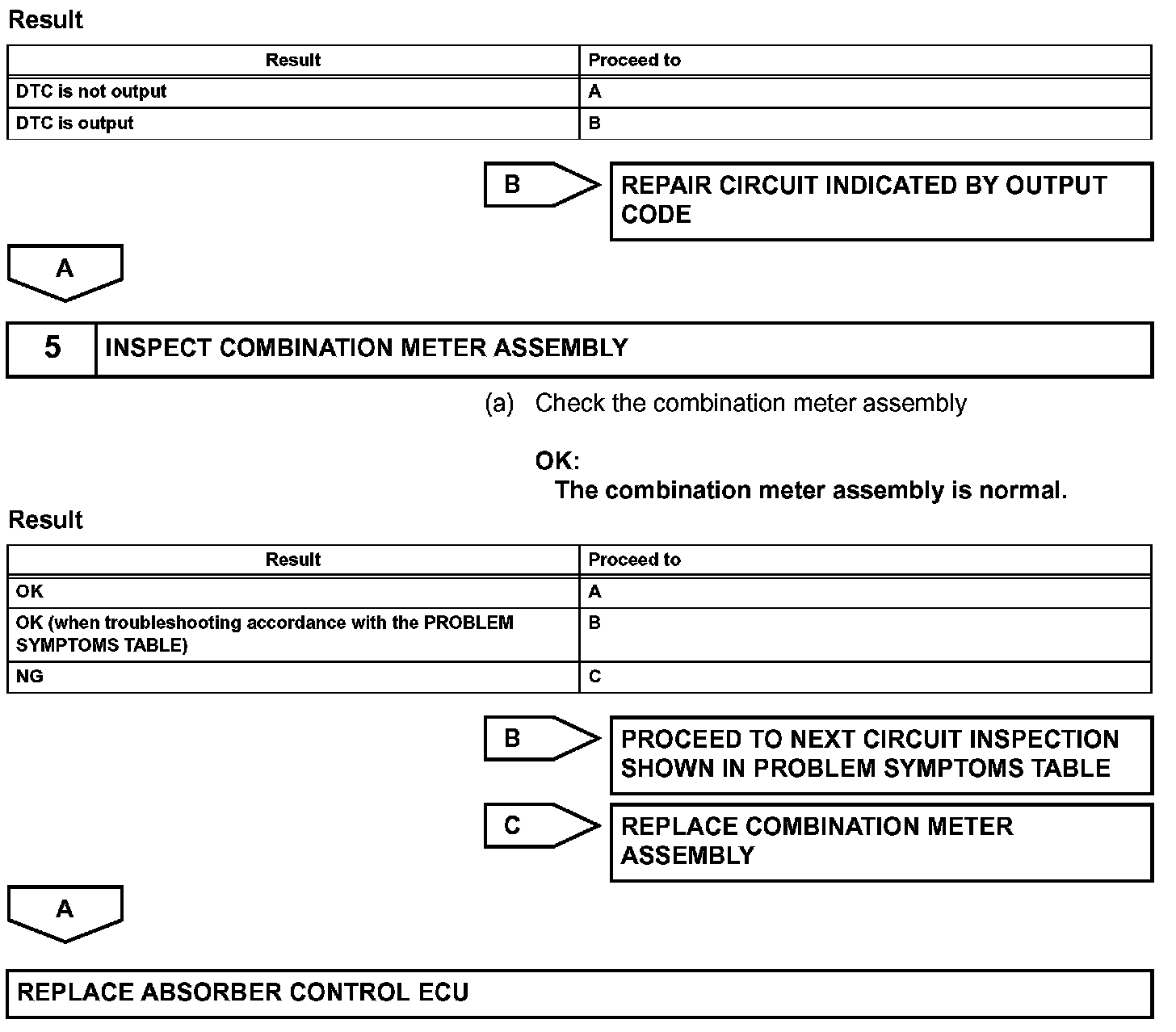

Step 4(Continued)-5:

INSPECTION PROCEDURE

NOTE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT:
- Start the inspection from step 3 when troubleshooting accordance with the PROBLEM SYMPTOMS TABLE.
- Check the condition of each related circuit connector before troubleshooting.
