Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Active Stabilizer Suspension System >> Driveablity Problem

Driveablity Problem

Driveablity Problem

Step 1-2:

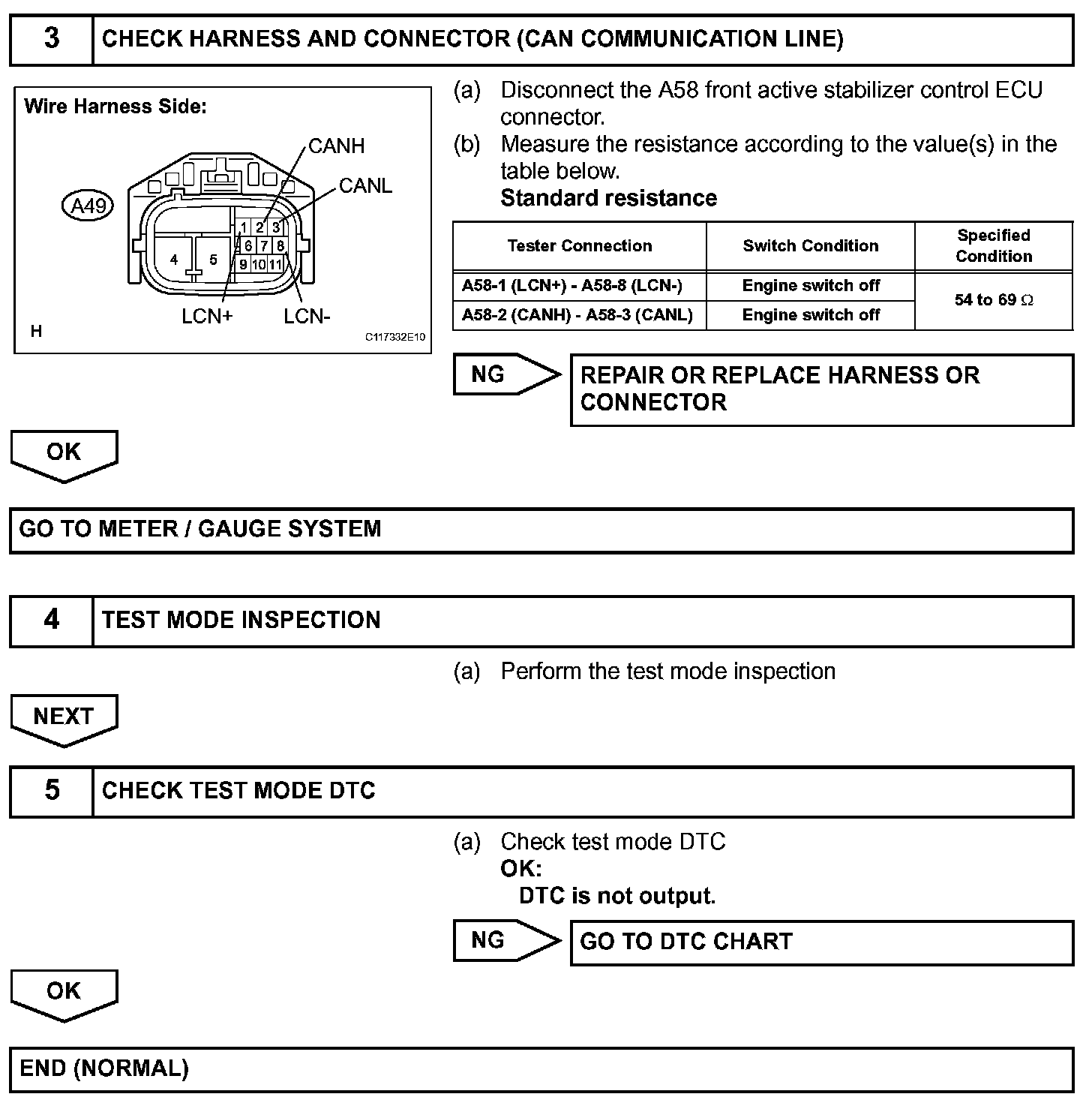

Step 3-5:

INSPECTION PROCEDURE
