Active Test

ACTIVE TEST

HINT: Performing the ACTIVE TEST using the intelligent tester allows the relay, actuator, etc. to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

a. Connect the intelligent tester to DLC3.
b. Turn the engine switch on (IG).

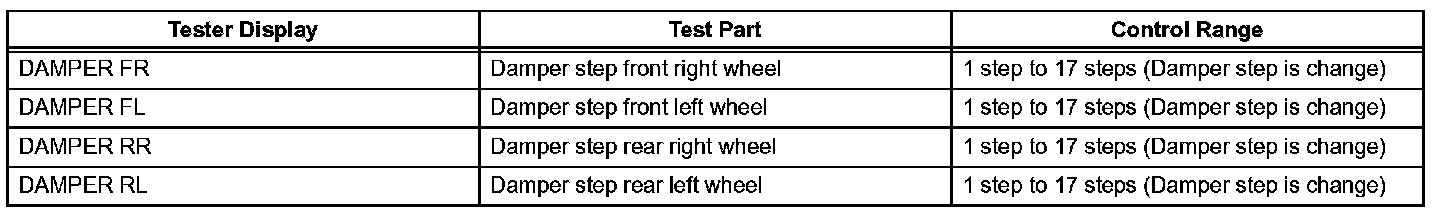

c. According to the display on the tester, perform the "ACTIVE TEST".
