Without Scan Tool

CHECK DTC (USING SST CHECK WIRE)

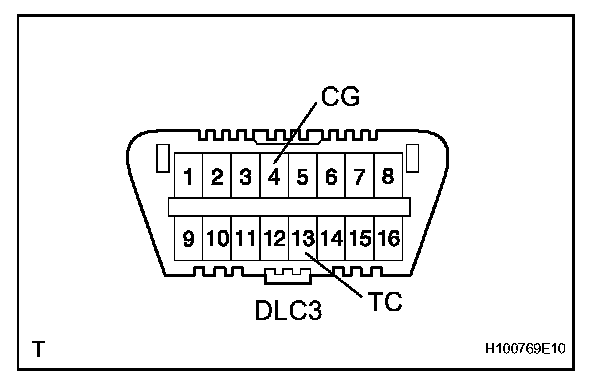

a. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

b. Turn the engine switch on (IG).

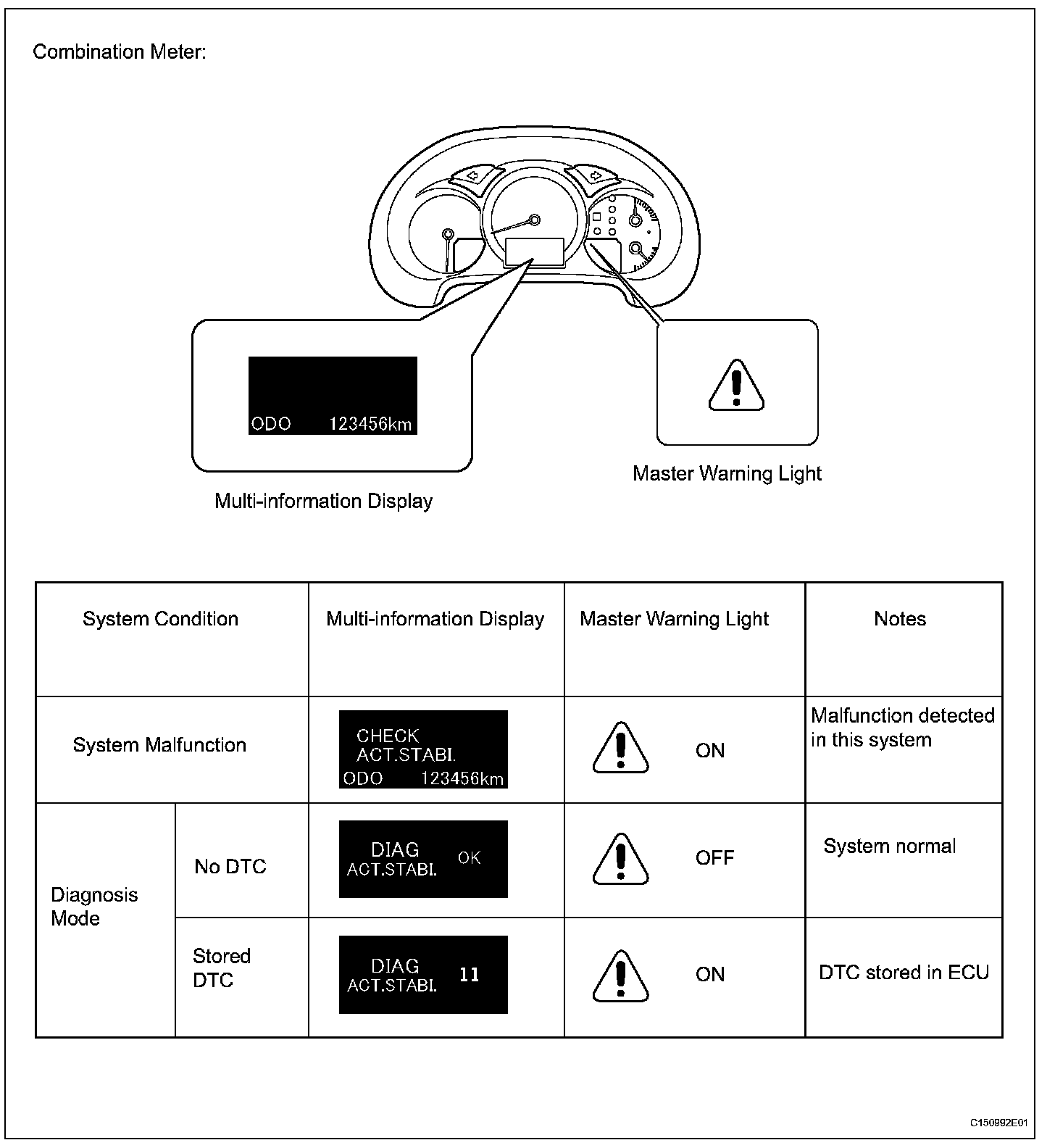

c. Read and record any DTCs indicated by the multi-information display on the combination meter.

HINT: If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.
