Fail-Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
When short circuit of the absorber control actuator is detected, the absorber control actuator located on the other side of the detected absorber will be set at step 9. The absorber control actuator remains at the step 9 position until the engine switch is turned off.

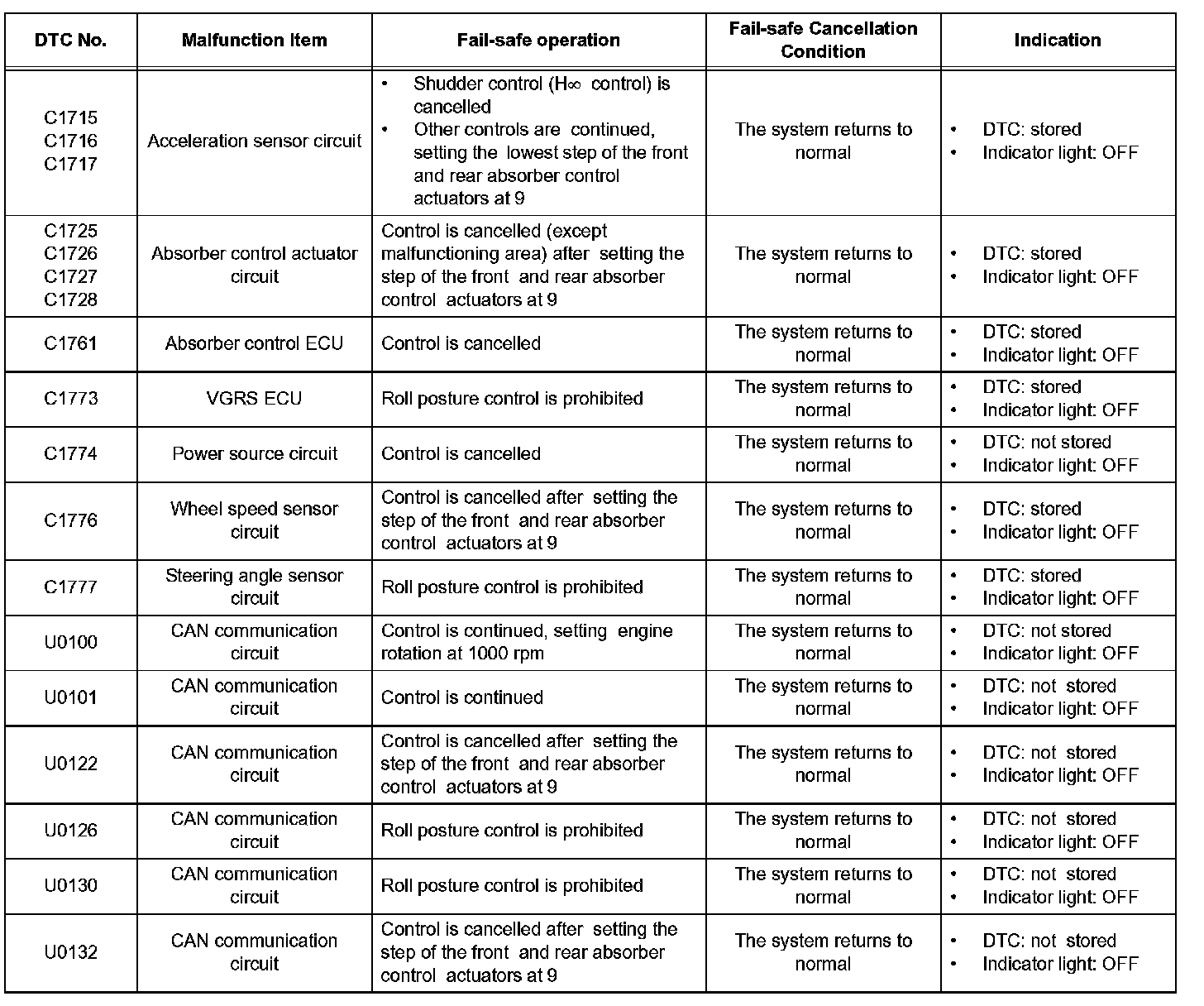

Fail-Safe Chart:

2. FAIL-SAFE CHART
