Rear Active Stabilizer Relay
REAR ACTIVE STABILIZER RELAYON-VEHICLE INSPECTION
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR ACTIVE STABILIZER RELAY (STB RR)
a. Remove the rear active stabilizer relay from the luggage room No. 6 relay block.
3. INSPECT REAR ACTIVE STABILIZER RELAY

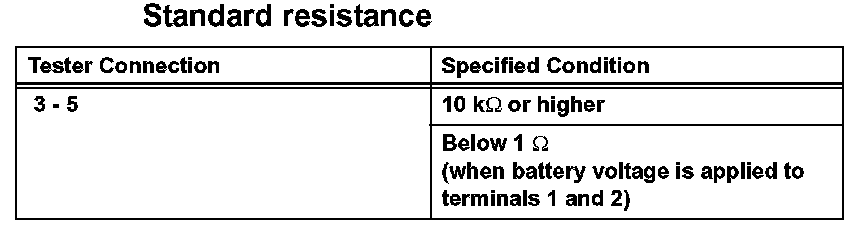

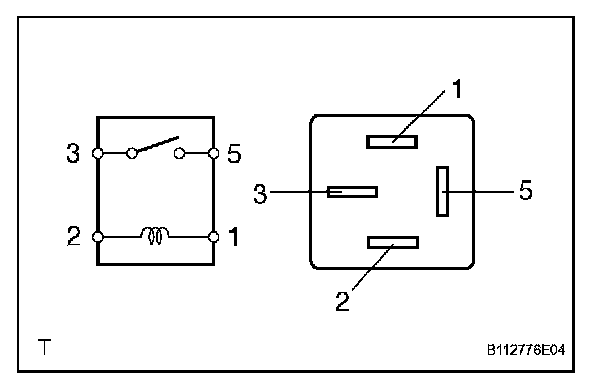

a. Measure the resistance of the relay.
If the result is not as specified, replace the rear active stabilizer relay.
4. INSTALL REAR ACTIVE STABILIZER RELAY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
