Absorber Control Switch

INSPECTION

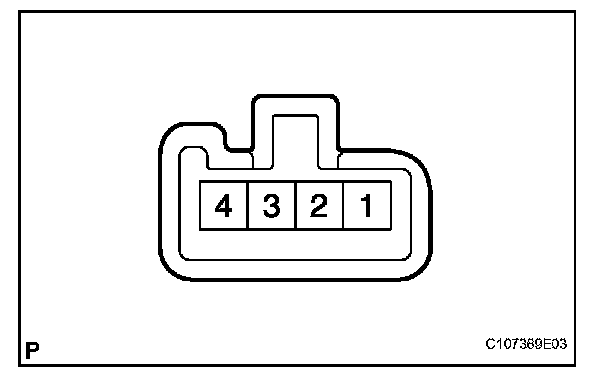

1. INSPECT ABSORBER CONTROL SWITCH

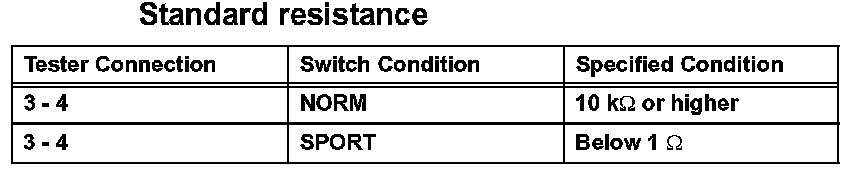

a. Measure the resistance of the switch.
