TS and CG Terminal Circuit

TS and CG Terminal Circuit

DESCRIPTION

The signal check circuit detects any trouble in the sensor or switch signal which cannot be detected by the DTC check.

Connecting terminals TS and CG of the DLC3 starts the check.

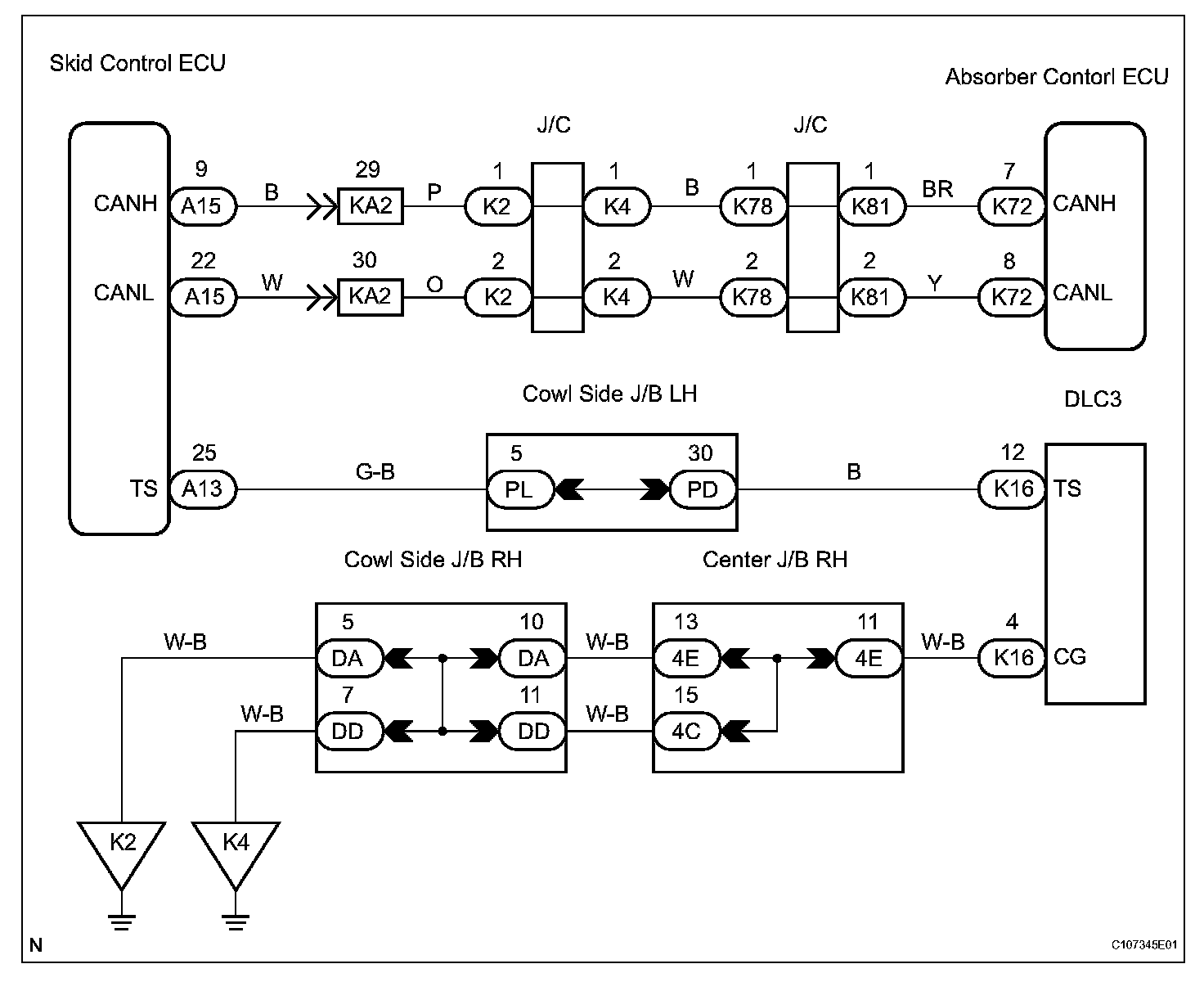

Wiring Diagram:

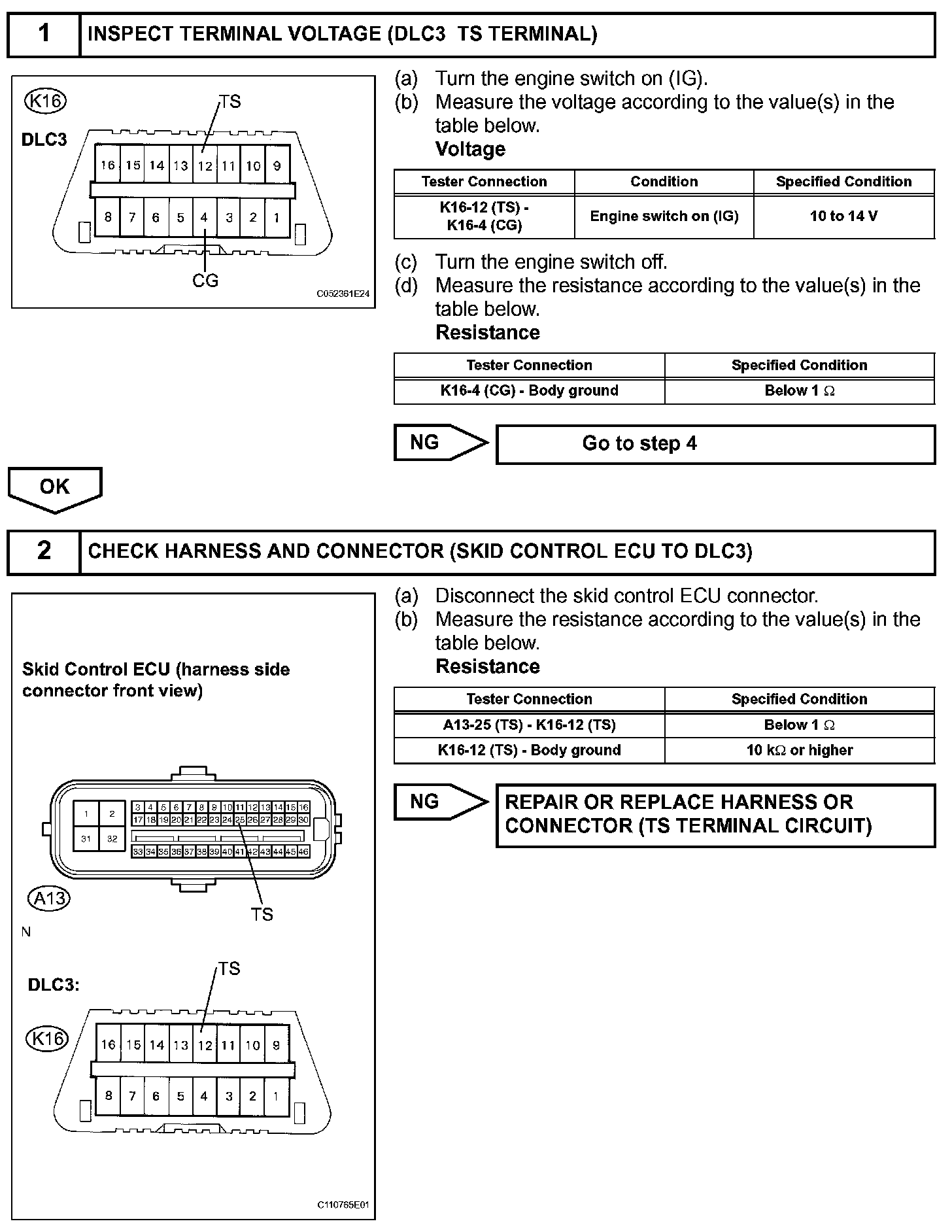

Step 1-2:

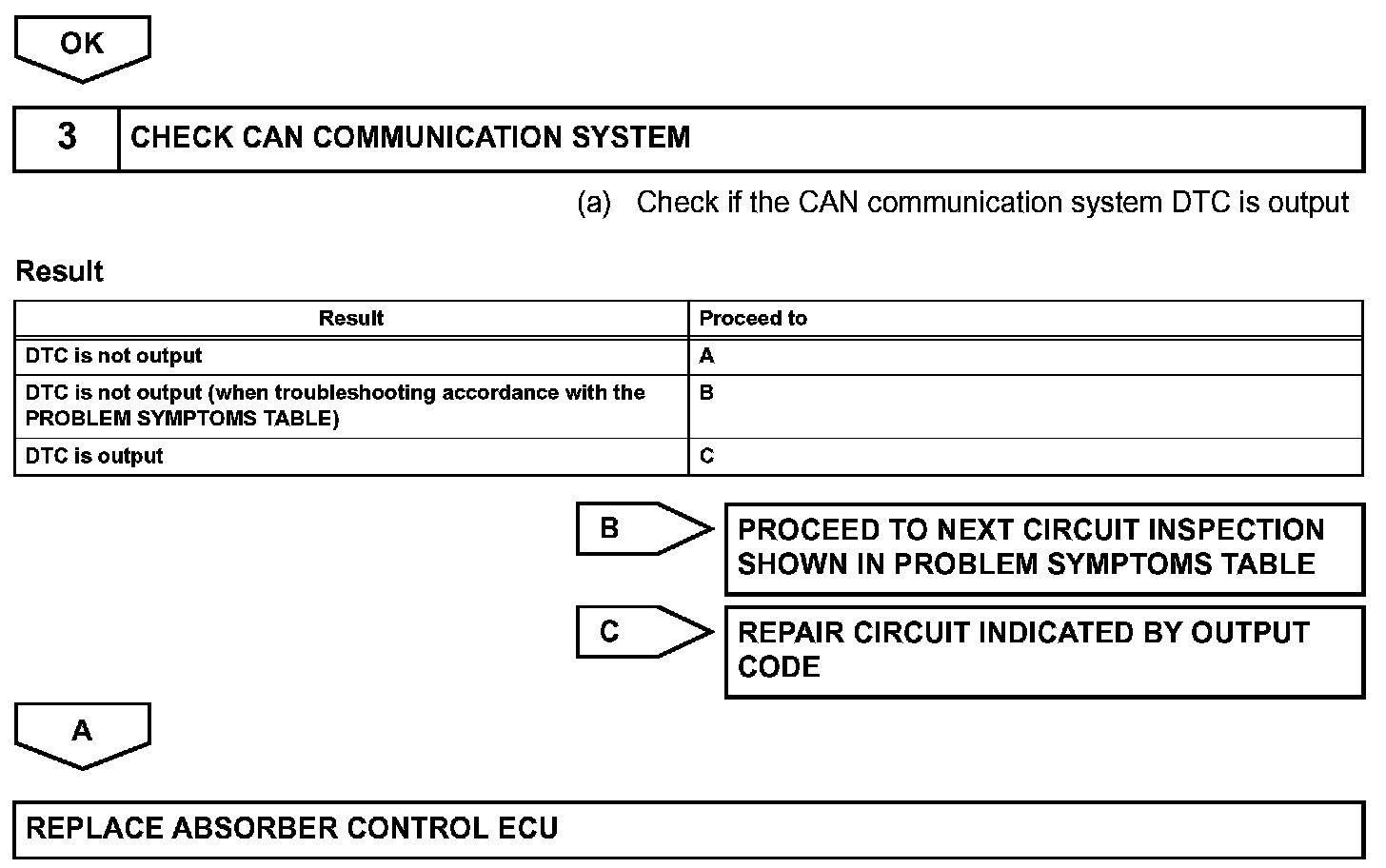

Step 2(Continued)-3:

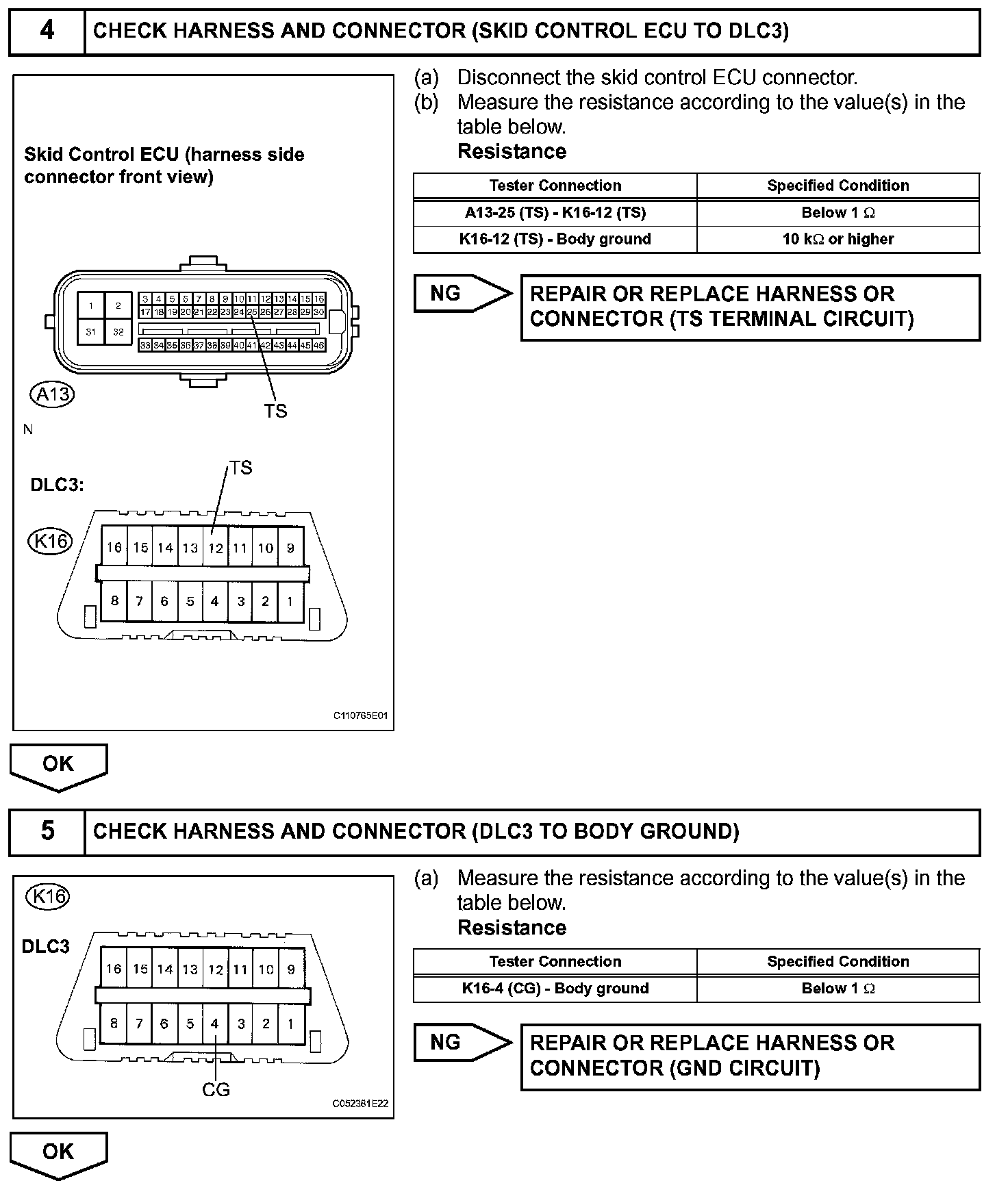

Step 4-5:

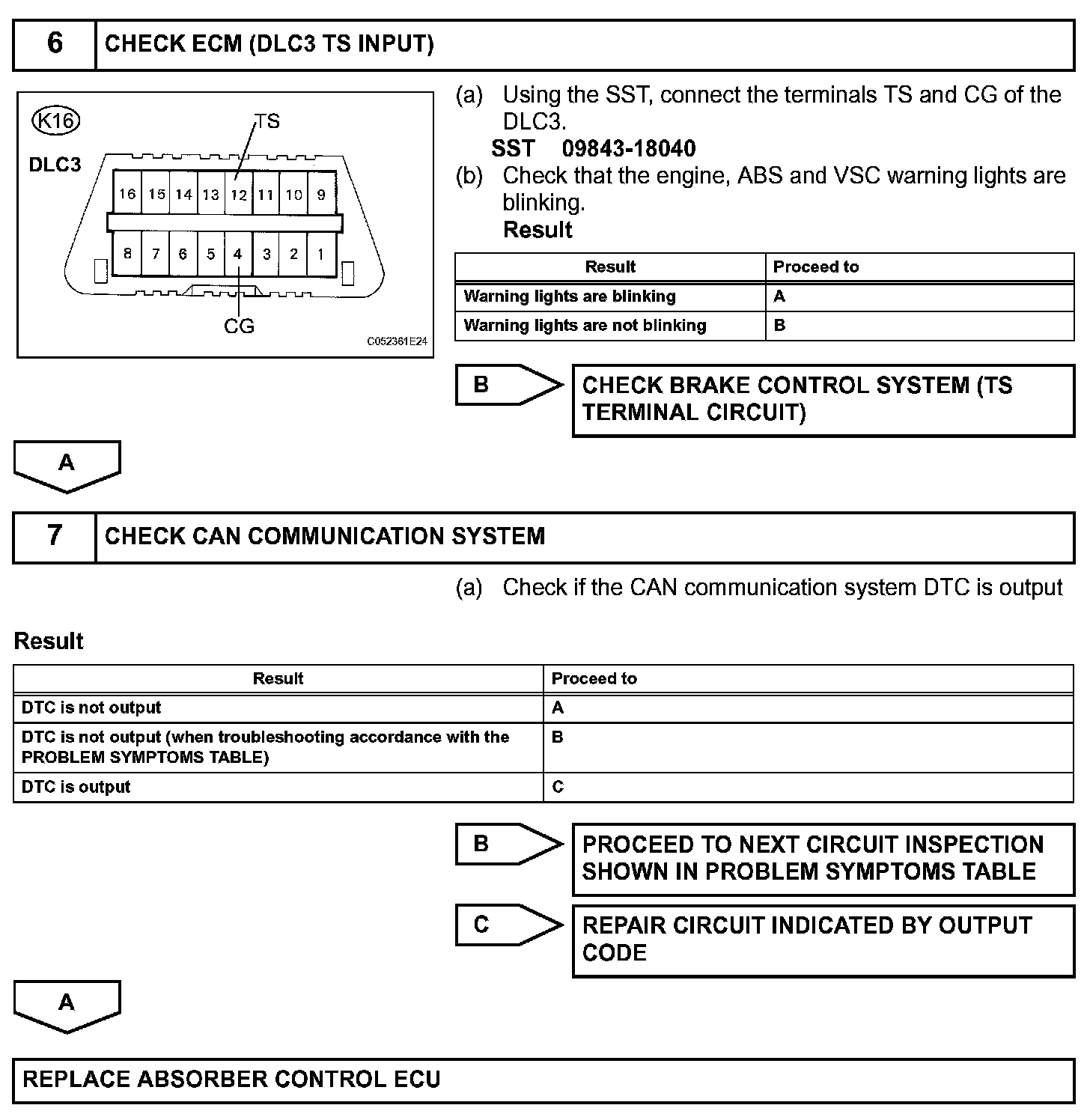

Step 6-7:

INSPECTION PROCEDURE

NOTE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT: Check the condition of each related circuit connector before troubleshooting.
